Insulated Demountable Estate Strong Build Real Estate Container House Design

FOB Reference Price:Get Latest Price
$1,500.00 - $5,000.00 / Sets | 1 Set/Sets (Min. Order)
Material:
Sandwich Panel Steel
Lead Time:
Quantity(Sets) 1 - 8 >8
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
Total
Model Number:
6055*2438*2896mm
Use:
Carport, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet, Villa, family living, engineering living, living in the wild
Assembly method:
assembled, stackable
Size:
20 feet (6055mm * 2438mm * 2896mm) general model
Color:
Custom
Function:
residence, storage
Window:
aluminum plastic sliding 960mm*1200mm (white, gray)
Port:
Qingdao Port or Shanghai Port
Enclosure material:
0.4mm steel plate + 50mm fireproof rock wool sandwich panel
Electrical system:
1 switch, 2 sockets, 1 lamp
Door:
Steel door 860mm*2000mm (color custom)
Supply Ability
Supply Ability:
8 Set/Sets per Week
Packaging & Delivery
Packaging Details
Flat Package,All Components Are Well Wrapped
Port
Qingdao Port or Shanghai Port
Lead Time :
Quantity(Sets) 1 - 8 >8
Est. Time(days) 15 To be negotiated
Product Description

Prefab Light Steel Structure and Sandwich Panel Container Houses

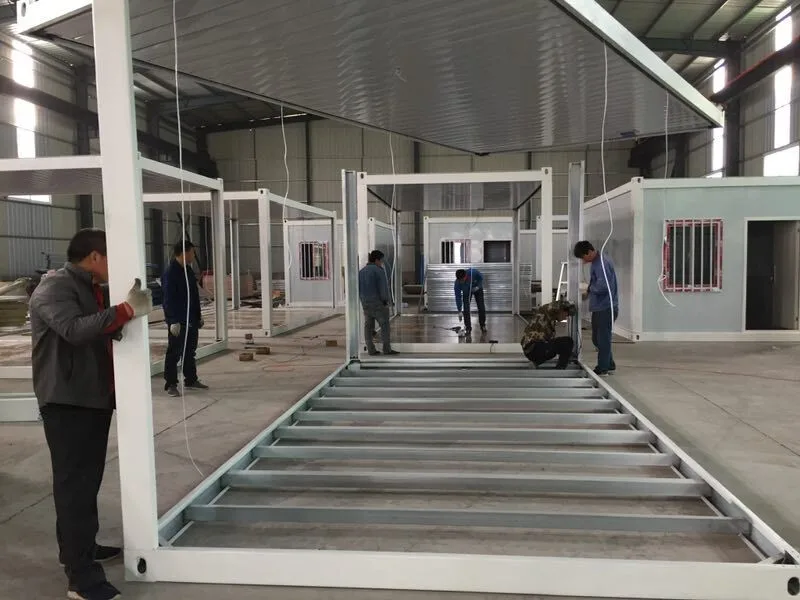

This product is a container house with light steel as the skeleton and sandwich panel as the enclosing material, which can be quickly disassembled and assembled. The process is simple, all components are produced by the manufacturer, and the top surface only needs to be lifted and bolted. Install the column and install the enclosure material and doors and windows.

Bottom frame
3.0mm galvanized profiled beam, 3.0mm galvanized side sill, 0.8mm galvanized steel, lower beam angle steel flooding, 100*1.75mm galvanized cross bracing 20*20*3mm galvanized square tube, bottom tile 0.3mm thick
Column

Inner column
3.0mm galvanized column, L support, 8.0mm thick L connector

0.8mm thick galvanized inner column
Colour
Baking paint (electrostatic spray)
Bolt
Hexagon socket (black)
Ground
18mm thick Bomei fire board / 1.8mm floor leather
Door

Window
850*2040mm.0.4 thick (950 wall panel) steel door

Plastic steel security window, double glass 3.0 1100*1110 hollow glass window
Wall panel
75mm rock wool composite board, double-sided iron sheet 0.5/0.5mm, bulk density 100kg/m3
Electric matching
Distribution box J-8 (1), leakage protection (16A) (1), 3 single p open, 3 five holes, 1 switch, 1 three holes, two ceiling lamps, industrial socket 1 Set (4mm2*3.5M, 2.5mm2*17.5M, 1.5mm2*15M).

Product usage.

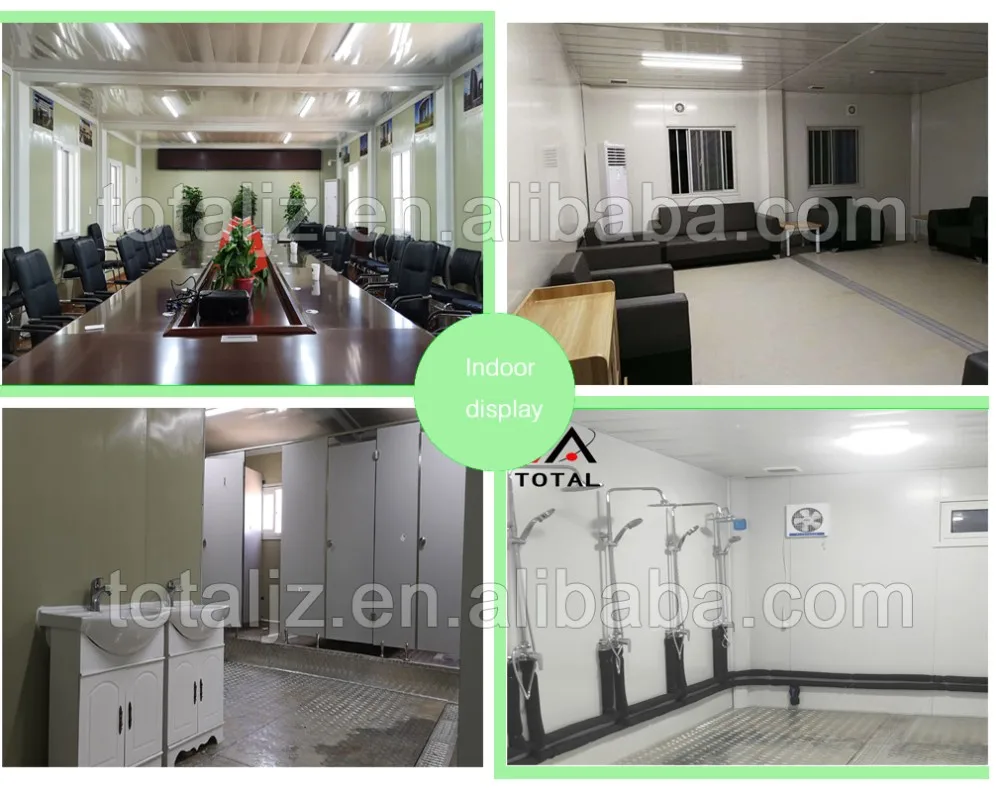

Housing construction can be completed to meet different needs, such as dormitories, restaurants, warehouses, toilets.

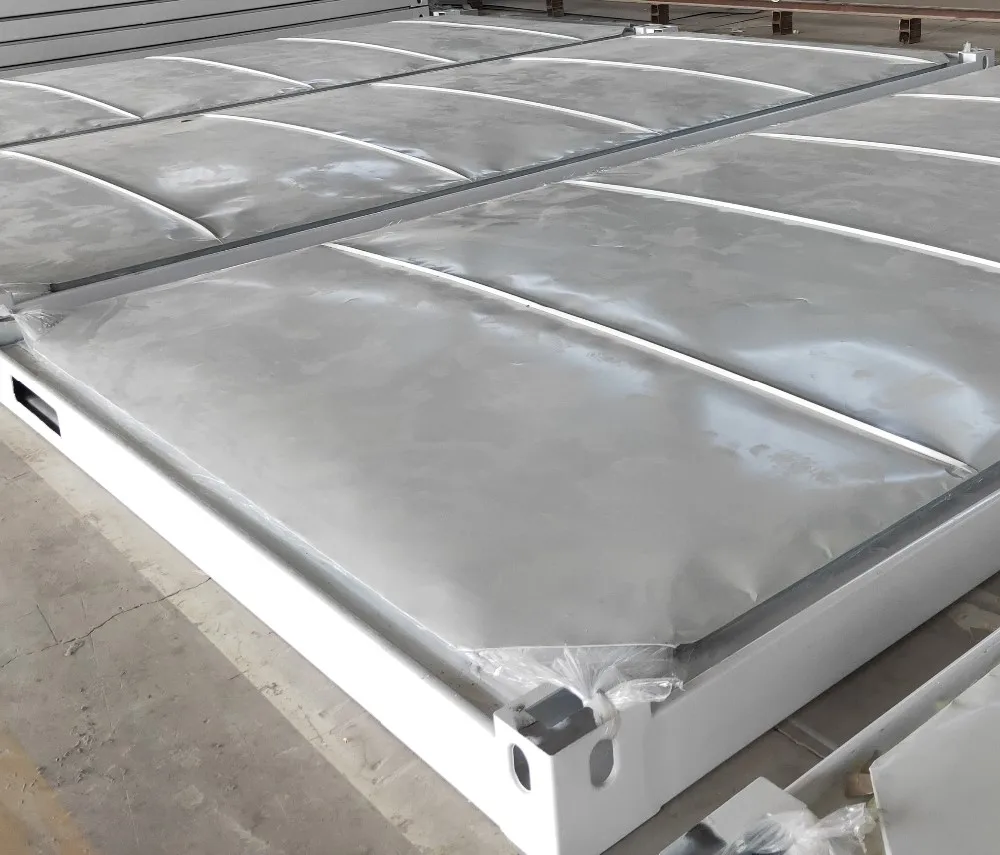

The bottom frame.

Adopt galvanized steel, Angle steel, square tube.Strong and stable, with excellent bearing capacity.


Metope advocate material.


The main material of the wall is made of double-sided iron sheet rock wool composite board, which is characterized by fire prevention, sound insulation and easy installation.

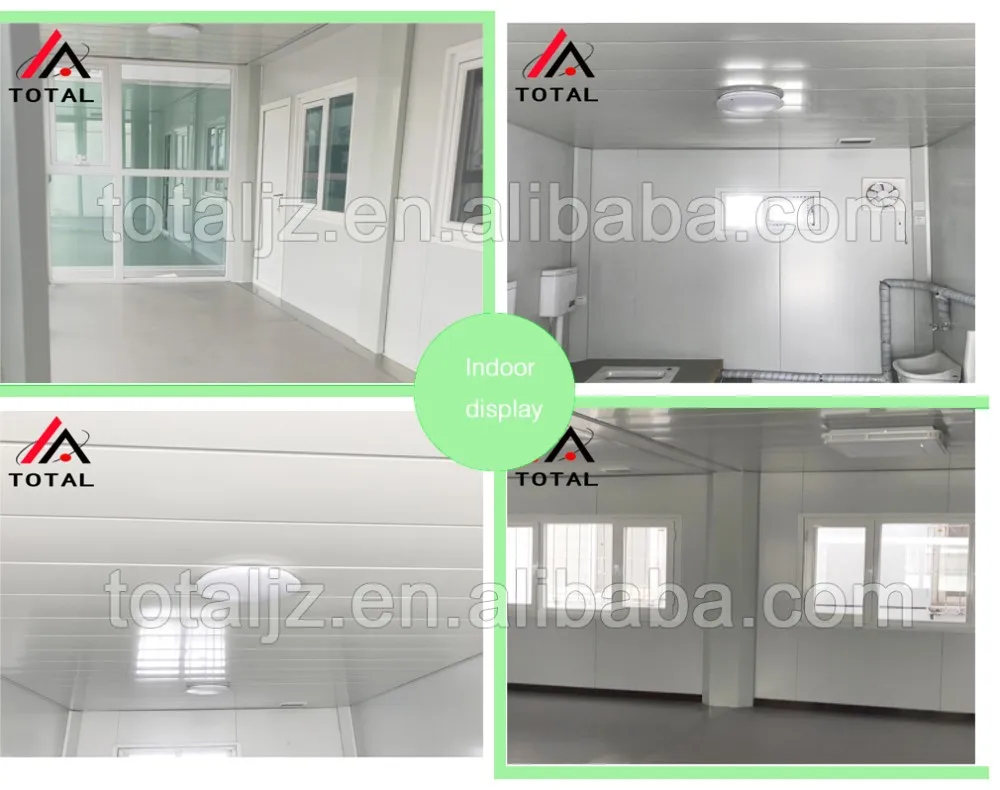

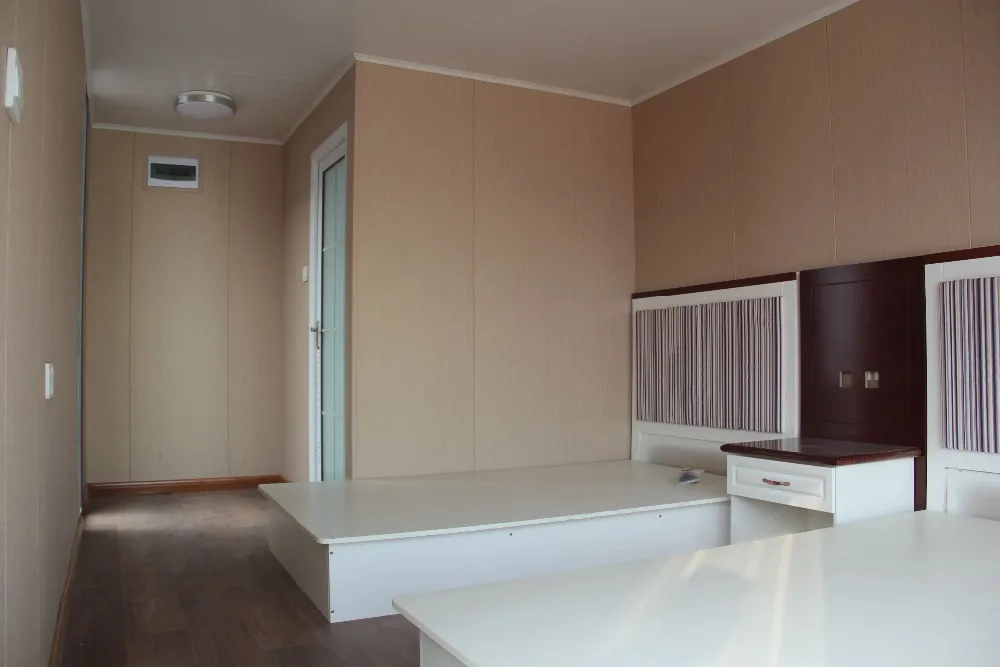

Interior space.

The interior space will be equipped with simple ceiling lights, electricity meters and two sockets to meet basic daily needs.

relative products

      Container house


             Light steel villa


             steel structure


Our Service

1.Your inquiry of our will be replied in 24 hours.
2. Good quality product, quick delivery time, competitive price, strong packing.
3.According to your needs, we can produce, including size / color / door and window position.
4.We will provide product installation drawings and installation videos.
5.Our engineers and workers can be sent abroad for guidance and installation.
6.10 professional engineers conduct consulting services.
7. We have enthusiastic and energetic sales force who can speak English fluently.
