Iqf Frozen Machine Quick Freezer For Fish Squid Pangasius Fillet

  • 1-2 Sets
    $39,945.00
  • >=3 Sets
    $18,745.00
Model Number:
TF-100
$
- +
available
TF-150
$
- +
available
TF-200
$
- +
available
All 7 Options
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
45 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Tunnel Freezer
Place of Origin:
Tianjin, China
Brand Name:
HITREES
Voltage:
Customized
Power:
6.5KW
Dimension(L*W*H):
11.2*2.3*2.3m
Weight:
Customized
Certification:
CE
Cooling Capacity:
Customized
Belt Type:
Stainless steel material
Output Capacity:
500kg/h
Belt Width:
2500mm
Tunnel Passable Height:
100mm
Inlet Device Length:
700mm
Outlet Device Length:
700mm
Condensing Type:
Evaporative cooled
Evaporating Area:
540 square meters
Compressor Model:
BITZER HSN8571-125,1set
Refrigerant:
R404A
After-sales Service Provided:
Field installation, commissioning and training
Warranty:
1 YEAR

Packaging & Delivery

Selling Units:
Single item
Single package size:
11.5X2.5X2.5 cm
Single gross weight:
3000.000 kg
Package Type:
Seaworthy packing for Iqf Frozen Machine Quick Freezer For Fish Squid Pangasius Fillet
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated
Product Description

Iqf Frozen Machine Quick Freezer For Fish Squid Pangasius Fillet

Tunnel freezers are mostly used for flour food freezing, meat freezing, seafood freezing and prepared food freezing.
SPECIFICATIONS FOR TUNNEL FREEZER
Model:TF Series
Output
Installed Power
Referigeration Consumption
Dimension
 L*W*H
Belt Width
TF100
100kg/h
2.25kw
15kw
7.4*1.5*2.2m
1000mm
TF150
150kg/h
2.95kw
21kw
8.0*1.8*2.3m
1300mm
TF200
200kg/h
4.5kw
30kw
10.2*1.8*2.3m
1300mm
TF300
300kg/h
6.5kw
43.5kw
11.2*2.3*2.3m
1800mm
TF500
500kg/h
10.3kw
75kw
13.5*3.0*2.5m
2500mm
TF1000
1000kg/h
19.8kw
142kw
22.9*3.0*2.5m
2500mm
TF1500
1500kg/h
28.6kw
225kw
26.4*3.5*2.5m
3000mm

Main Features

1.Stainless Steel Conveyor Belt:
We adopt food grade stainless steel as the material of conveyor belt. The surface of belt is flat and neat.

2.Insulation Panels:
PUF sandwich panels, 150mm thick with 42kg/m3 density, laminated both sides by stainless steel sheet.

3.Access Door:
The doors we adopted are specially used in low temperature environment and equipped with frame heating system for each.

4.Driving System:
Speed reducer + Variable speed controller

5.Evaporator and Fan:
Both the tubes and fins of evaporators are made of aluminum alloy. The large fins and different fin pitches can assure the perfect effect of heat exchange.

The air-box of axial fan is made of stainless steel, while fan blades are made of aluminum alloy.

6.Water Discharging Design:
Full welded stainless steel water discharging plate will be installed on top of floor panels. It will bring inside water out of cabinet through many stainless steel draining pipes.

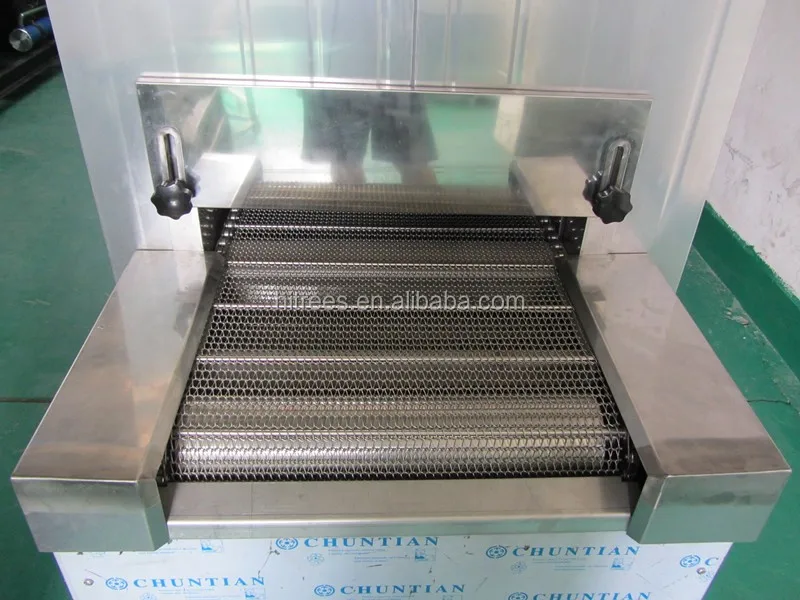

7.Inlet & Outlet device:
Both the Inlet & Outlet devices are made of food grade stainless steel.

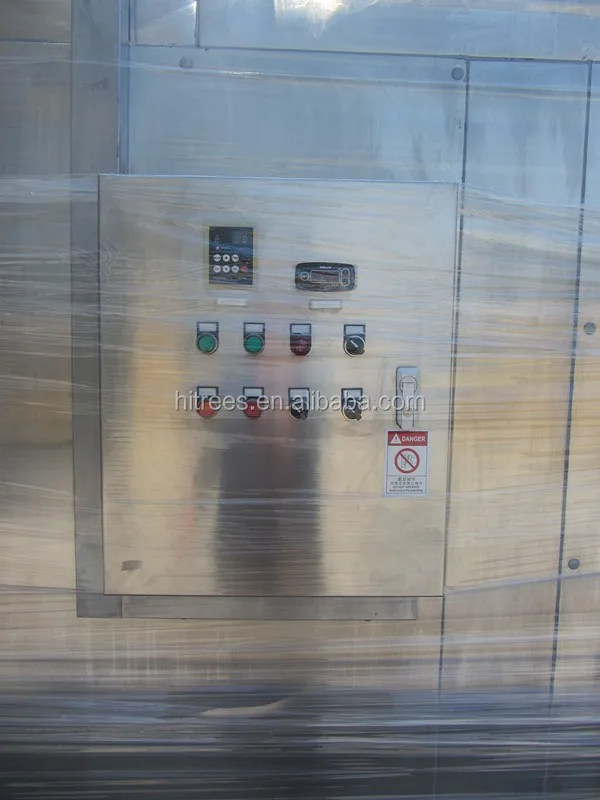

8.Electric Controlling System:

We adopt Schneider or Siemens electric components

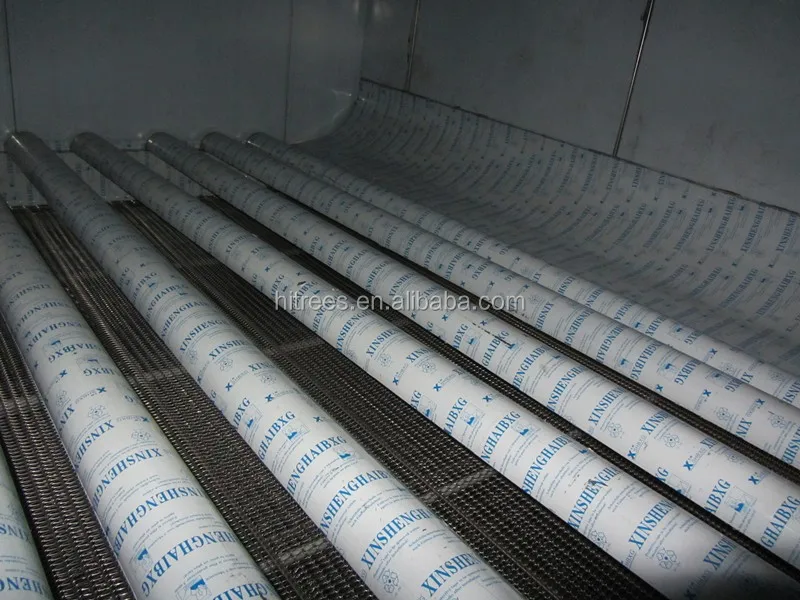

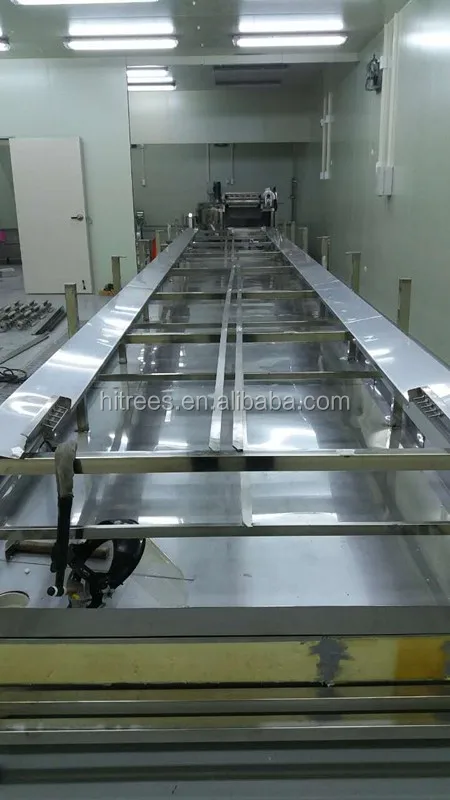

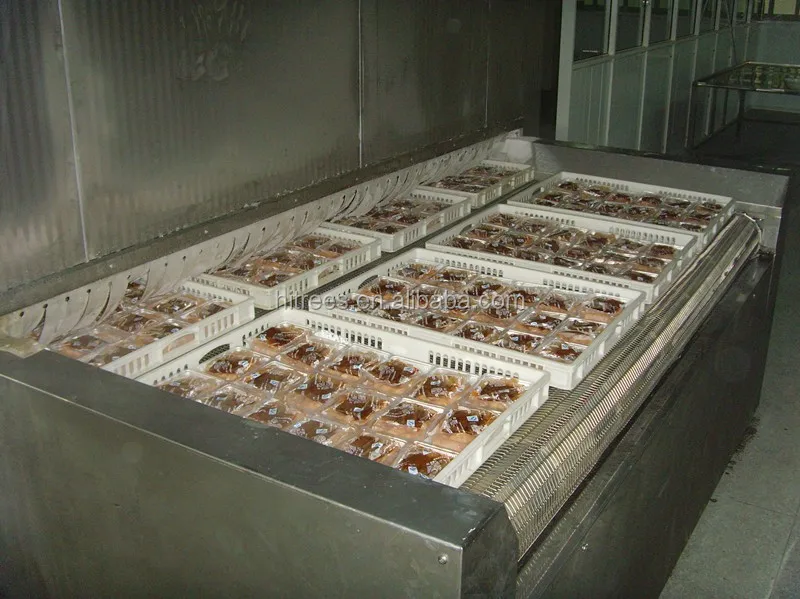

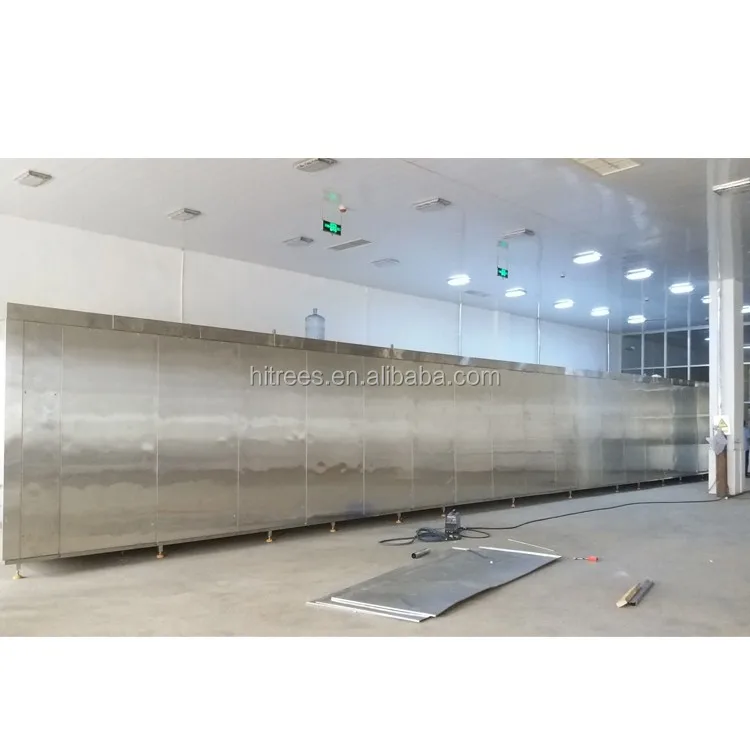

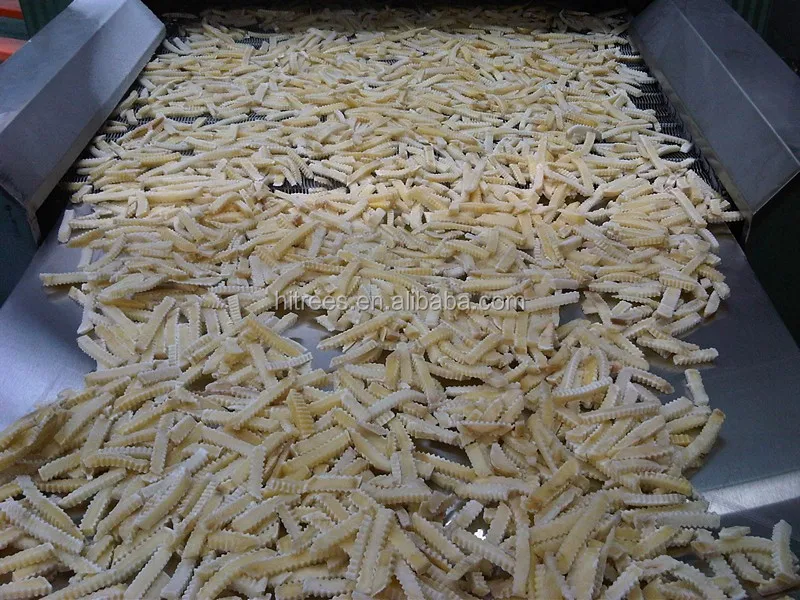

Detailed Images
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.


* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details

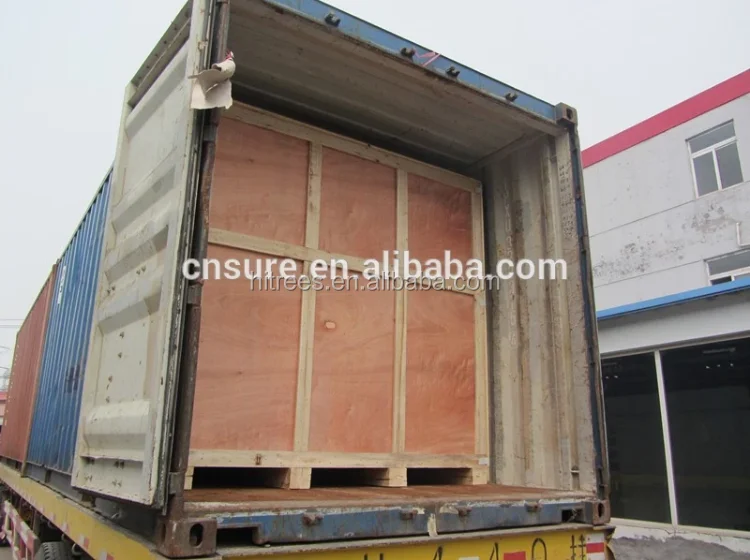

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
