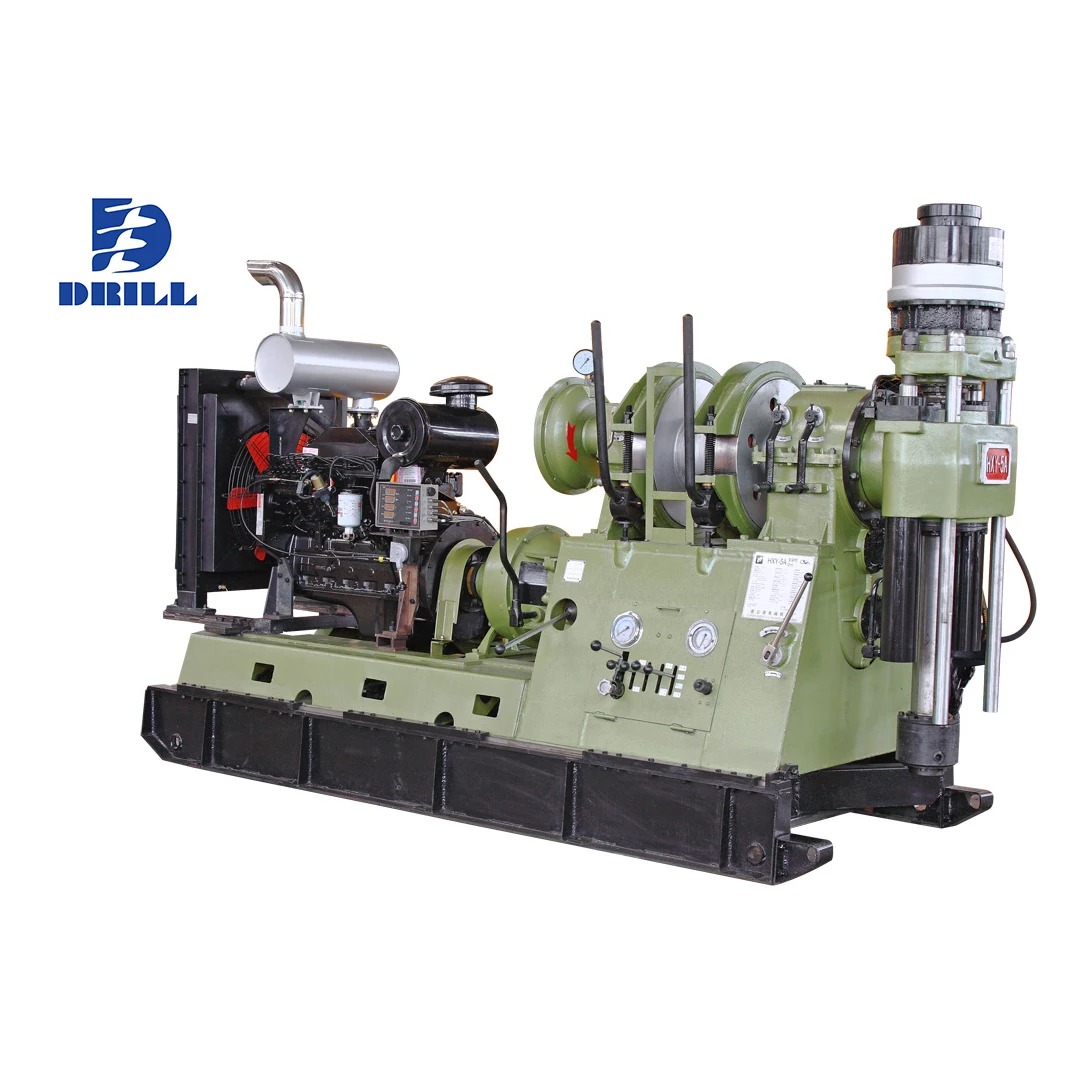

J 900-1800m depth HXY-5A Geotechnical Core Drilling Rig machine for water well

FOB Reference Price:Get Latest Price
$23,000.00 - $28,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
HXY-5A
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
ZD DRILL
Voltage:
Diesel Engine Driven
Certification:
ISO9001-2008
CNC or Not:
Normal
Dimension(L*W*H):
3500*1300*2175mm
Drilling Speed:
CUSTOMERIZE
Product name:
Cnc Drilling Milling Machine
Machine type:
WATER WELL
Application:
CORE AND WELL
Max. drilling diameter:
600-1600mm
Function:
DRILL RIG
After-sales Service Provided:
Engineers available to service machinery overseas
Power(W):
85KW
Weight:
3600Kg
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
20GP Container Transport. If container is too tigher, we will use pe film for packing or pack it according to customers special request.
Port
Ningbo Port, China
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 20 To be negotiated
Product Description

HXY-5A

The machine is fit for engineering works of inclined and vertical hole drilling. It is compact in construction,tational in overall arrangement, moderate in weight, convenient in assembling and wide in range of rotation speed. Equipped with water brake, HXY-5A core drilling rig with high hoisting force, is convenient in low-position lift brake application.

Technical parameters
ContentParameterContentParameter
Drilling depth900-1800mMax. lifiting capacity of spindle135kN
Rotation anglc of spindlc0-360°Max. pressuringforceofspindle100kN
Spindlc speedPositive96, 170, 244, 356 rpmDimensions     (L×W×H)Electric motor3500×1300×2175mm
359, 591, 850, 1246 rpm
Negative84, 293 rpmDiesel engine3700×1300×2175mm
Max. rotary tarque of spindle5500N•mSteel Wire Diameter18.5mm
Spindle stroke600mmContent of Winding Drum120m
I.D of spindle93mmMax. hoisting forcce60kN
PowerY250M-4 electric motor 55KW/1480rpmWeight(without power unit)3600kg
YC6108G diesel engine 85KW/2000rpm



Drill rig (3)   HYDX2



Drill rig (2)   Drill rig (1)
