JBZ-D disposable paper cup making machine

FOB Reference Price:Get Latest Price
$22,000.00 - $25,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
JBZ-22D
Report Suspicious Activity
Overview
Quick Details
Product Type:
Paper Cup Machine
Processing Type:
Paper cup forming
Power(W):
11.5kw
Warranty:
1 year
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
WITY
Voltage:
380v3P50Hz
Dimension(L*W*H):
1750x1350x1850mm
Weight:
2200kg
Certification:
CE
cup size:
6-22oz
Raw material:
160-350g/㎡
Top diameter:
60mm-90mm
Bottom diameter:
40mm-70mm
Height:
60mm-180mm
Bottom depth:
5mm-10mm
speed:
60-90pcs/min
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard export wooden package
Port
Ningbo port or Shanghai port
Product Description

Product Advantages:

1)The whole steel plate fuselage、inter layer paper feeding design and the style of oil poured  lubrication system is  Ensured the equipment long-term normal and Stable Work;
2) Short distance double vertical axis combine advanced and high-precision cylinder open type cam drive make every stations high-speed worked accurate without mistake;
3)Single wrap the leaf groove cam structure combine seesaw roof bar design can make the high-speed paper feeding go to the place accurately;
4)Exquisite original creation ¢490mm mold turn-plate design make the equipment work load more light and the speed to be more fast;
5)Scientific and reasonable mechanical is fit Itinerary design can using in premise of exchange mold can make the products producing range 6oz-22oz ;paper thickness 170g-350g .

SPECIFICATIONS
Model
JBZ-22D
Cup size
6-22oz
Raw material
160-350g/㎡ (Two side PE coated paper and one side PE coated paper)
Top diameter
Φ60mm-Φ90mm
Bottom diameter
Φ40mm-Φ70mm
Height
60mm-180mm
Bottom
Depth 5mm-10mm
Capacity
60~90psc/min
Main motor power
1.5kw
Energy consumption
6-6.5kw/h
Total power
11.5kw
Air source
0.4m³/min, 0.5-0.8mpa
Weight
2200kg
Dimension
1750mm*1350mm*1850mm

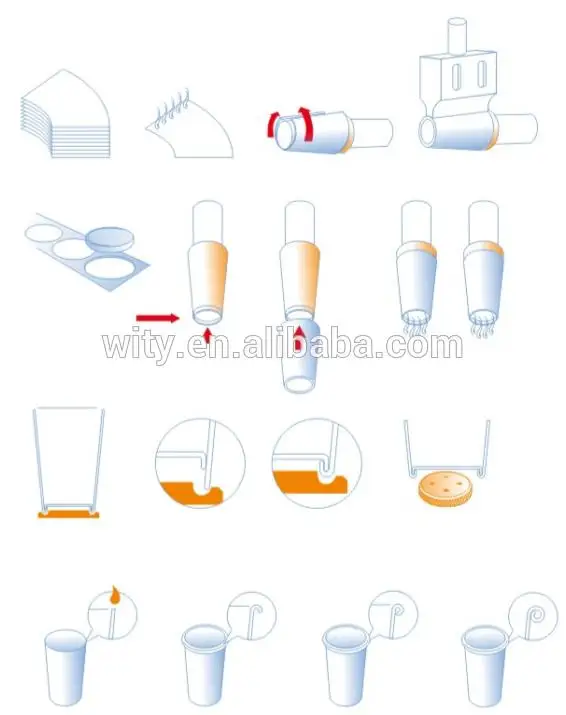

Rate flow
KN

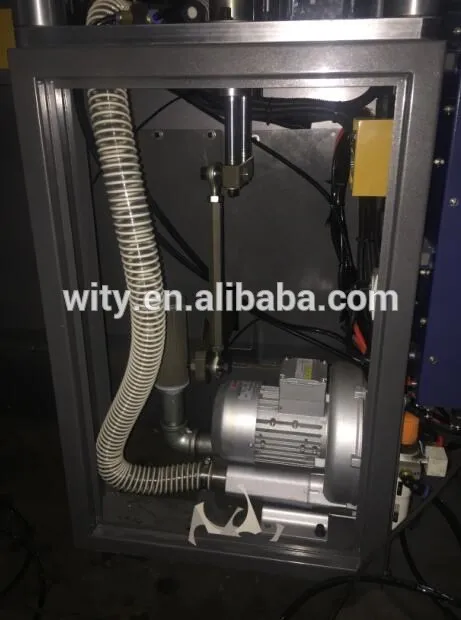

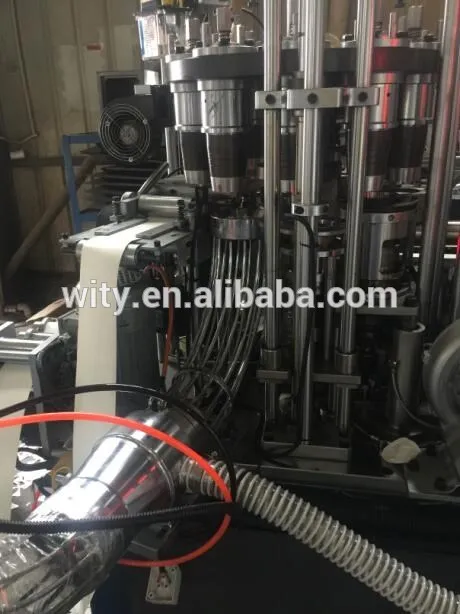

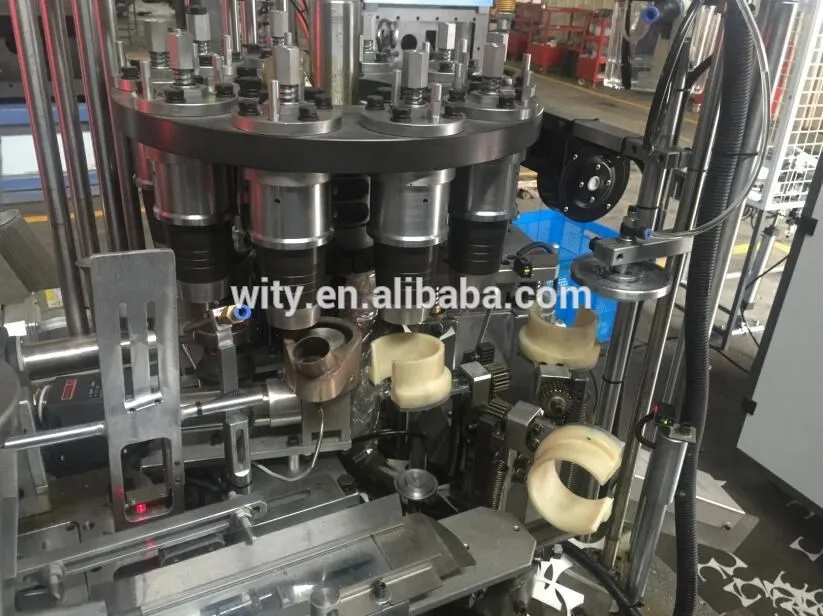

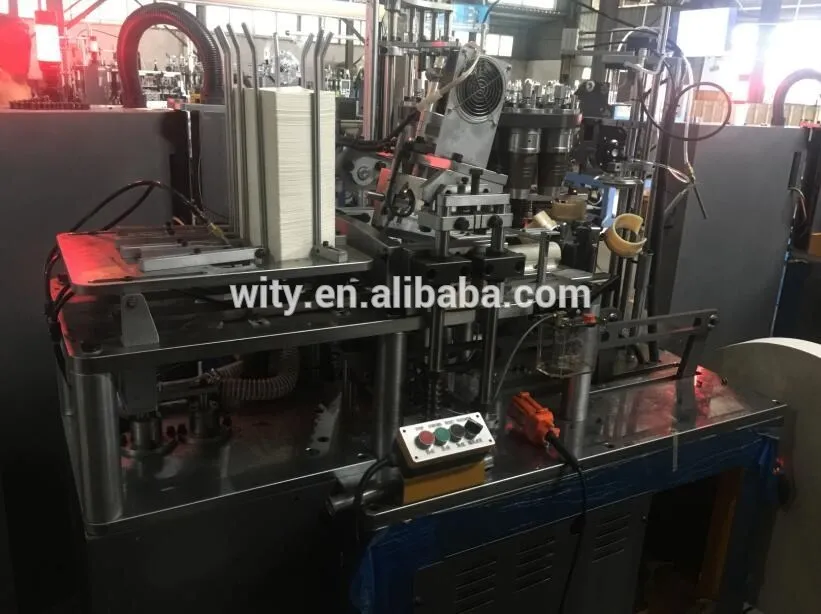

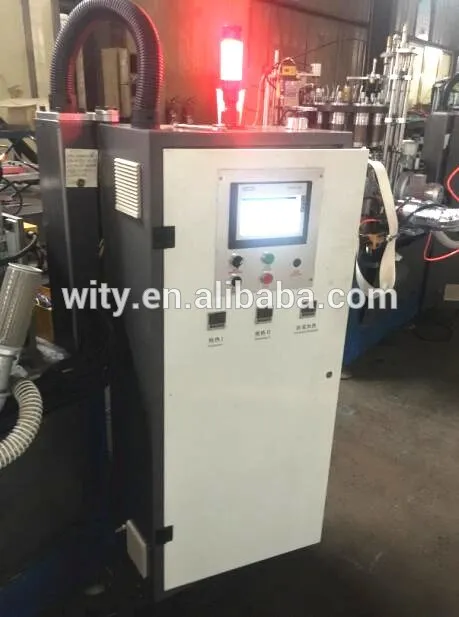

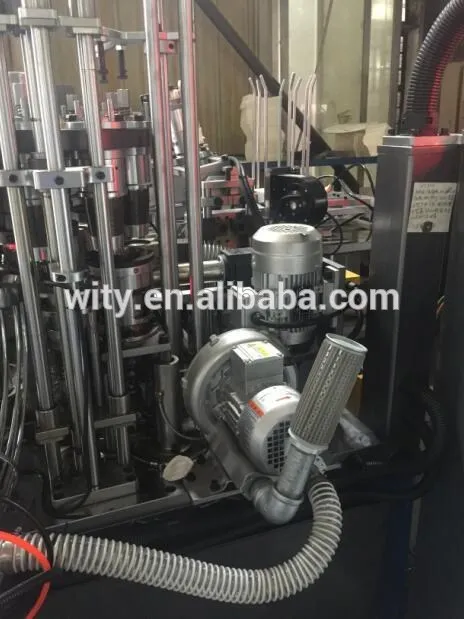

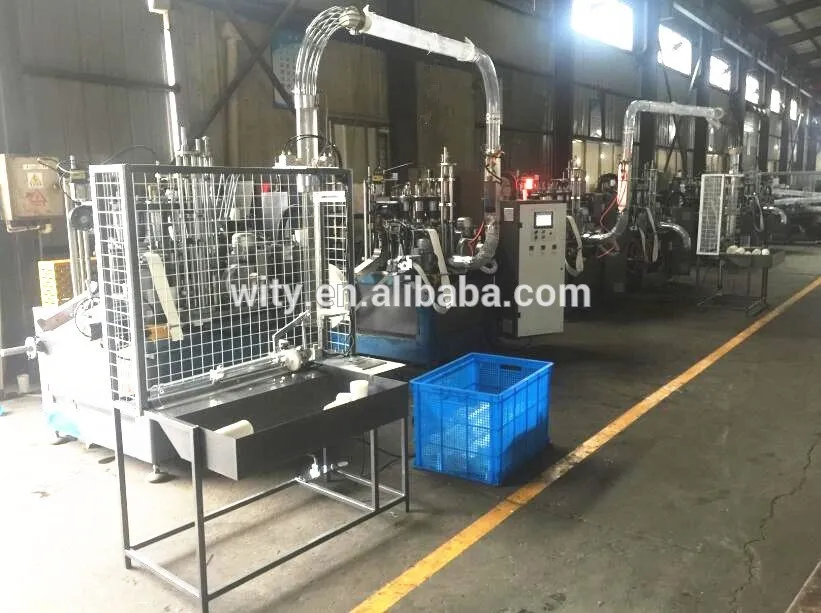

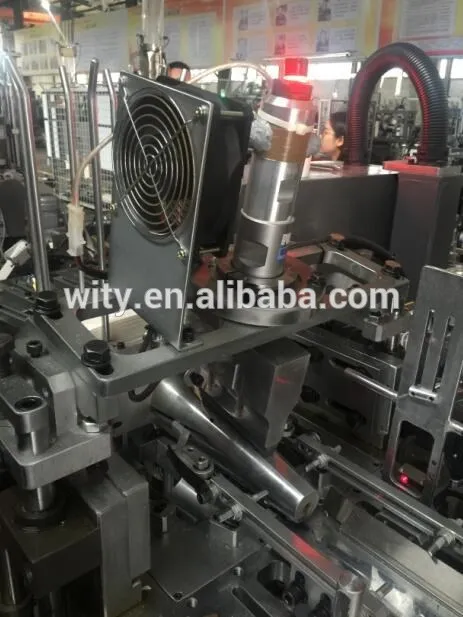

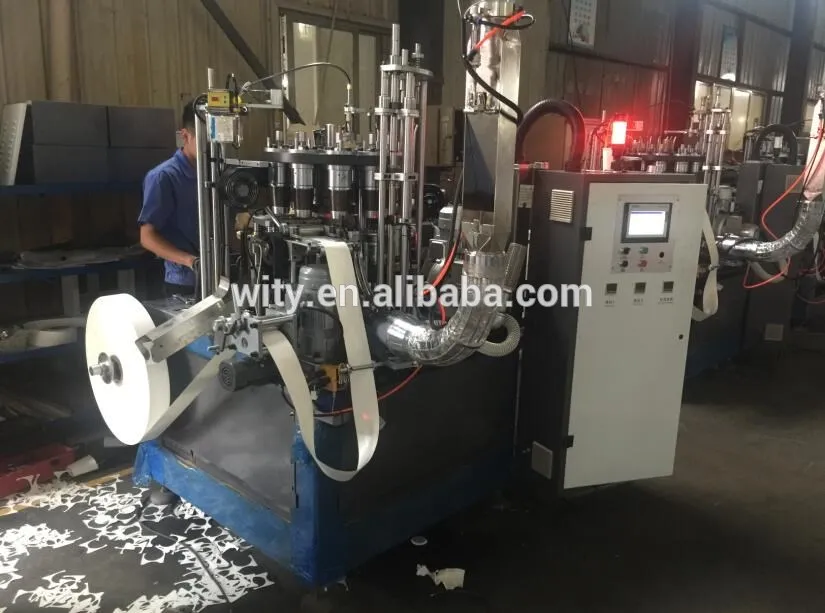

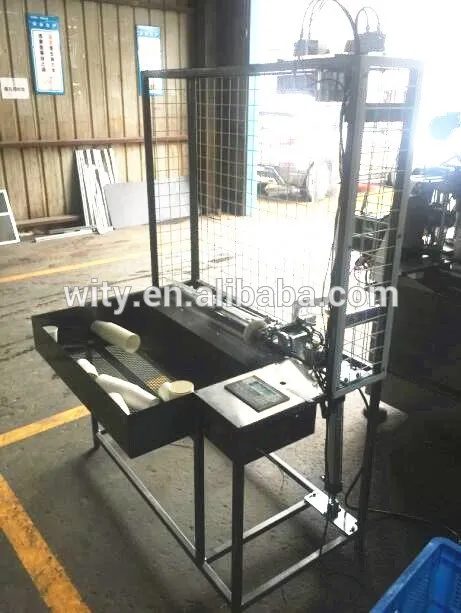

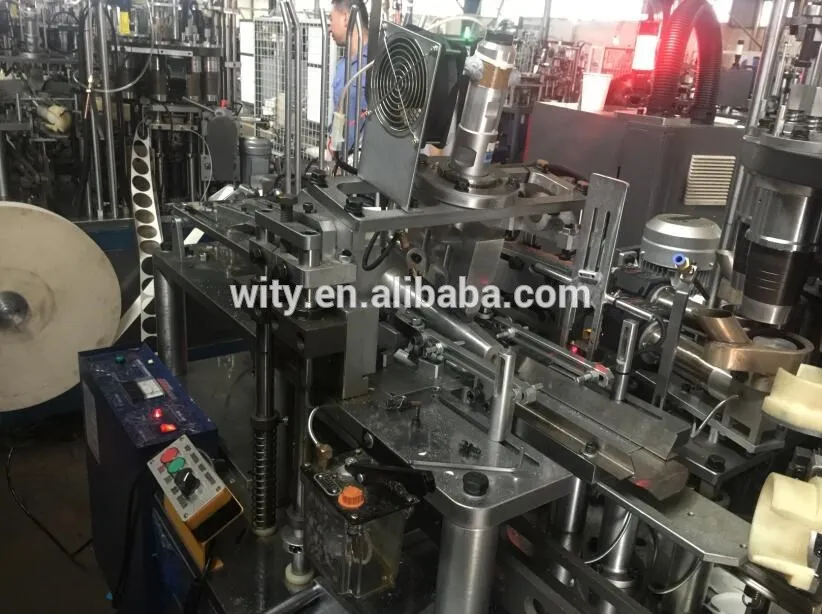

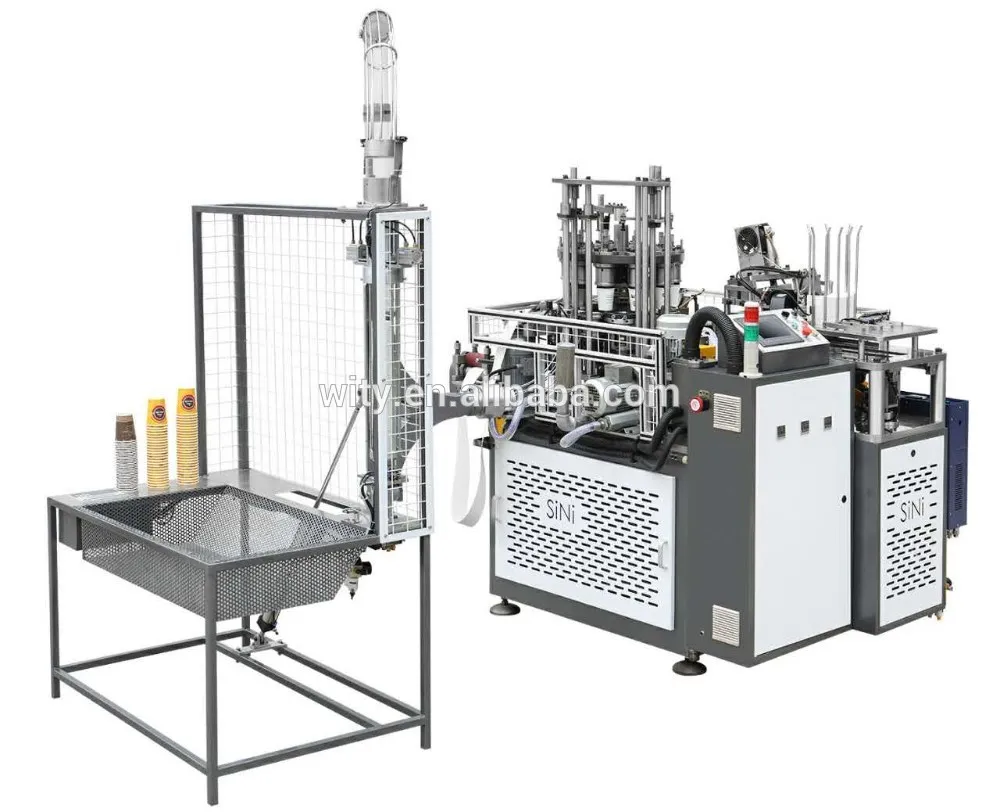

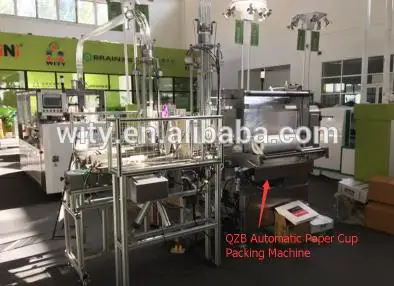

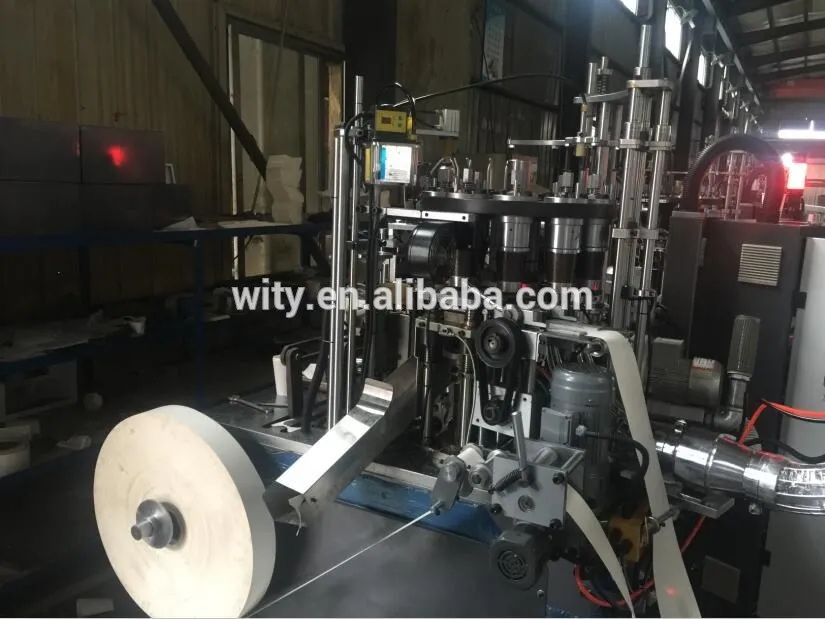

Machine photos
More photos
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

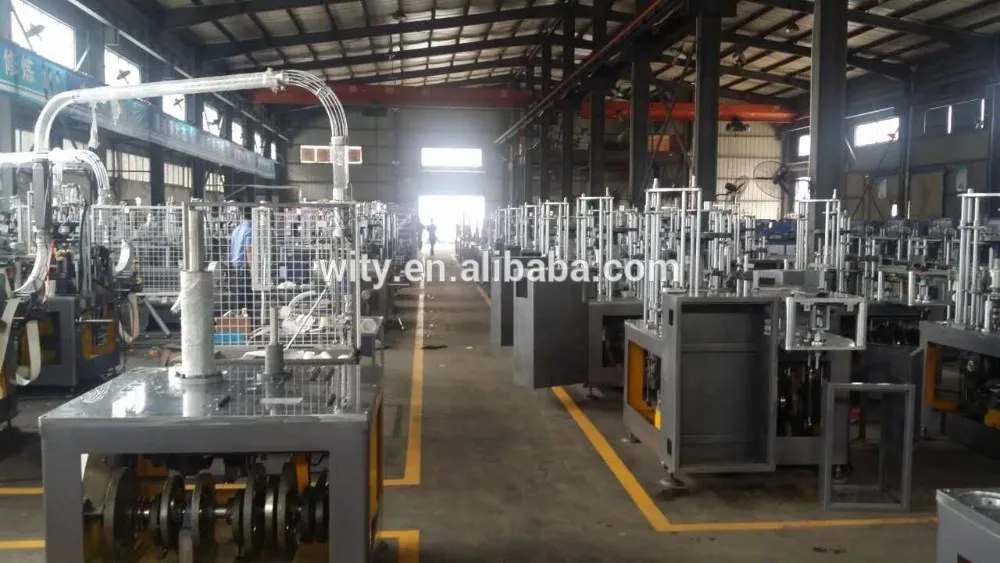

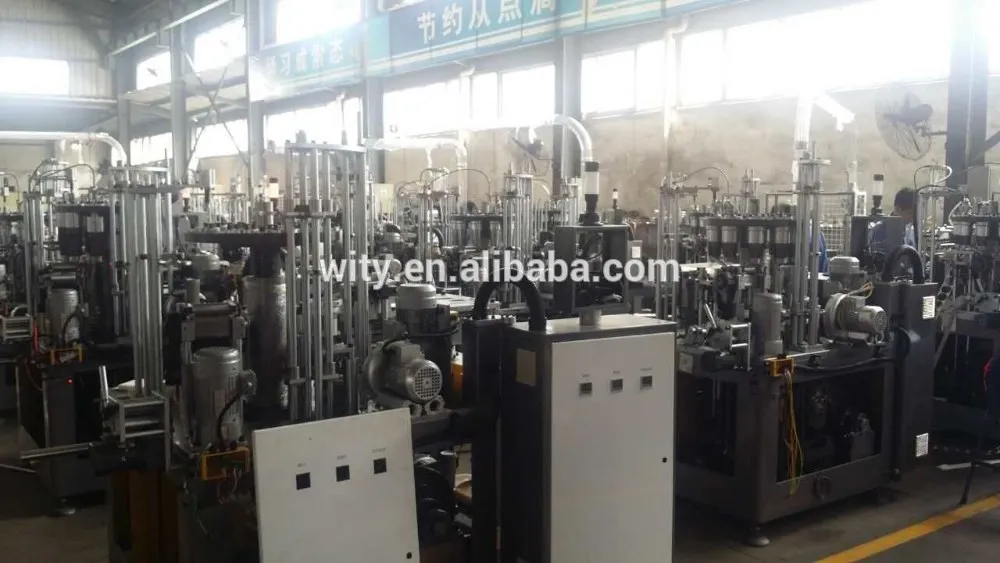

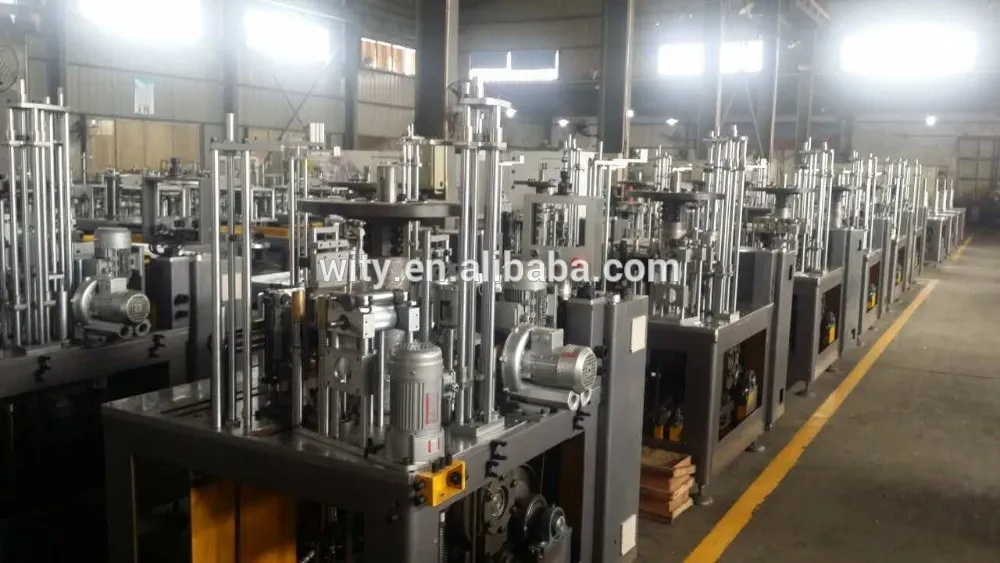

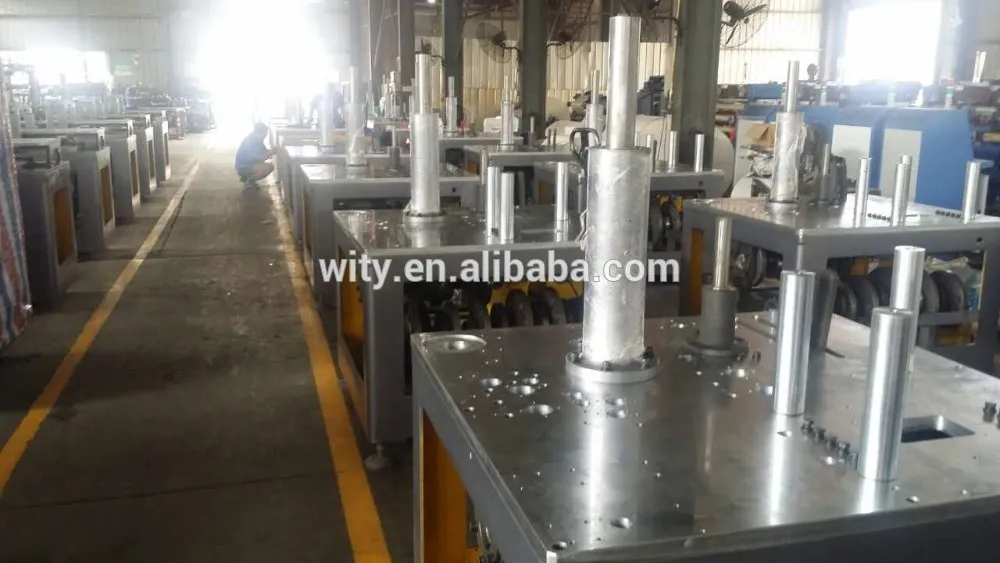

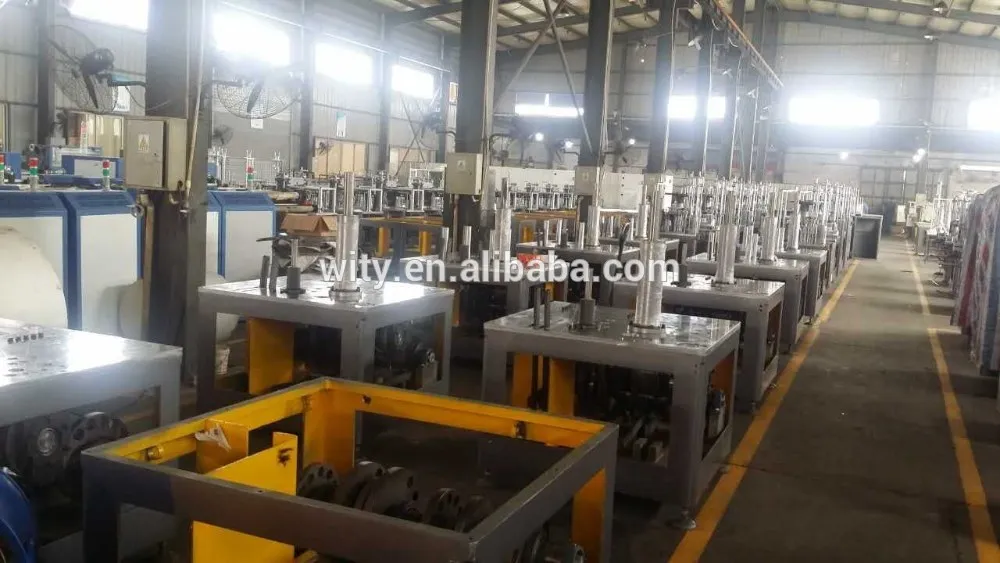

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

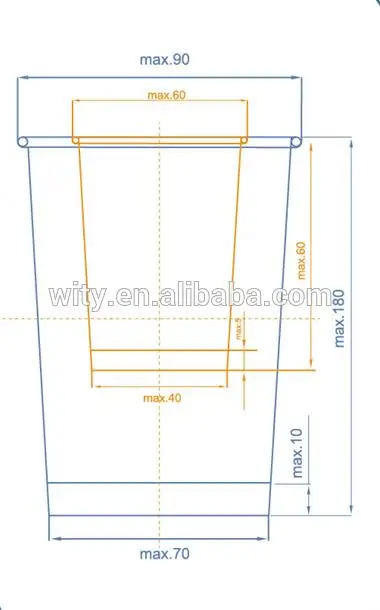

drawing

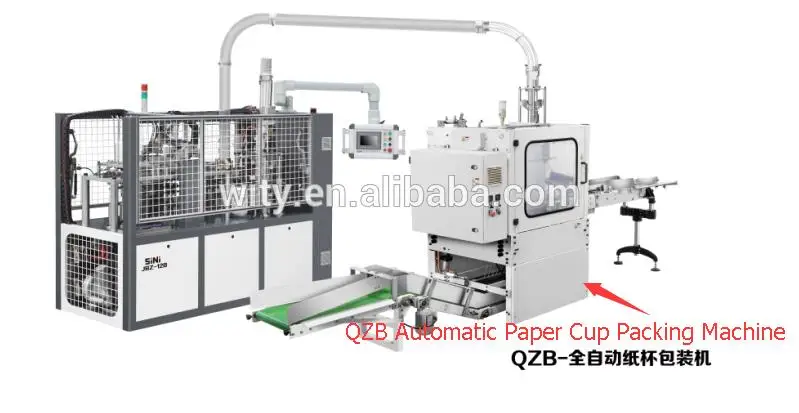

Related machine
