JET 5.5mm2 solar cable1500V XLPE insulation for solar pv system

FOB Reference Price:Get Latest Price
  • >=1000 Meters
    $0.55
Lead Time:
Quantity(Meters) 1 - 100000 >100000
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
SUNKEAN
Model Number:
JET PV-CC
Type:
Insulated
Application:
Solar system
Conductor Material:
Copper
Conductor Type:
Stranded
Insulation Material:
PVC
Color:
Red and Black
Certification:
JET
Conductor:
Copper Core
Jacket:
PVC PE XLPE
Rated Voltage:
1500v
Insulation:
XLPE Insulation
Standard:
JET PV-CC
Name:
5.5 sqa mm solar power cable for solar system used accessories
Supply Ability
Supply Ability:
500000 Meter/Meters per Month Manufacturer Wuxi Sun king TUV approved 4 sqa mm solar cable
Packaging & Delivery
Packaging Details
500 m/roll, 1000 m/roll
Manufacturer Wuxi Sun king JET approved 5.5 sqa mm solar power cable for solar system used accessories
Port
SHANG HAI
Lead Time :
Quantity(Meters) 1 - 100000 >100000
Est. Time(days) 15 To be negotiated
Product Details

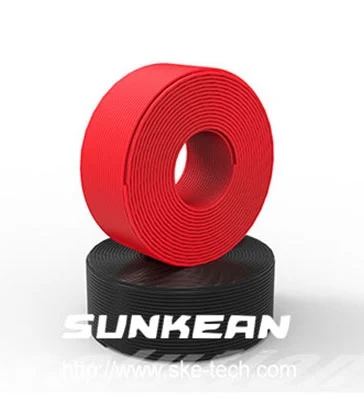

JET Approved 5.5mm² Solar Cable

This product with meter printing obtain high fire performance  JET certification. It's very convenient in the installation of solar plant.

Product Introduction

JET Approved 5.5mm² Solar Cable

Ambient temperature: -40℃~+90℃.
Intergrated with heat and cold resistance service life>25 years.
Good performance at mechanical strength, rub resistance and waterproof.
Qualified at acid, alkali and Ozone test.
Eco-Friendly and soft and easy to strip.
Max. Temperature at short circuit 200℃ 5 seconds.

Construction(n/m)
Conductor
Stranded OD.(mm)
Max Voltage
7/1.00
3.00
7.10
1500
Product Parameters
Brand Name
SUNKEAN
Model Number
JET PV-CC
Voltage Test
6500VAC/5 min
Insulation Material
XLPE
Bending Radius
≥4*φ(D<8mm) ≥6*φ(D≥8mm)
Content of Halogen Acid Gas
IEC670754-1
EN50267-2-1
Max. Conductor Temp
+120℃
Jacket
PVC/XLPE
Nominal Voltage
1000V/1500V
Cross Section
5.5mm2
Certification
TUV/EN
Fire Performance
EN60332-1-2 10000VAC

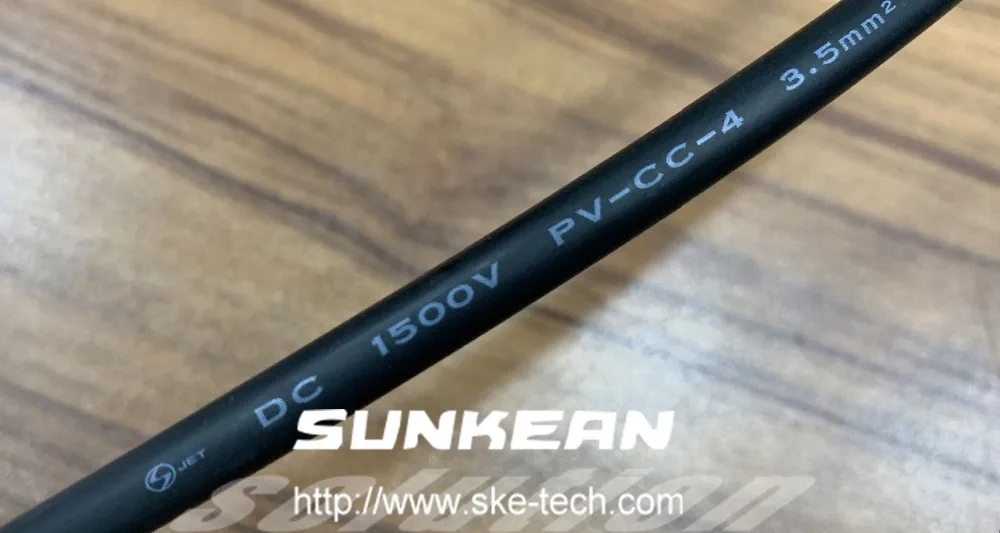

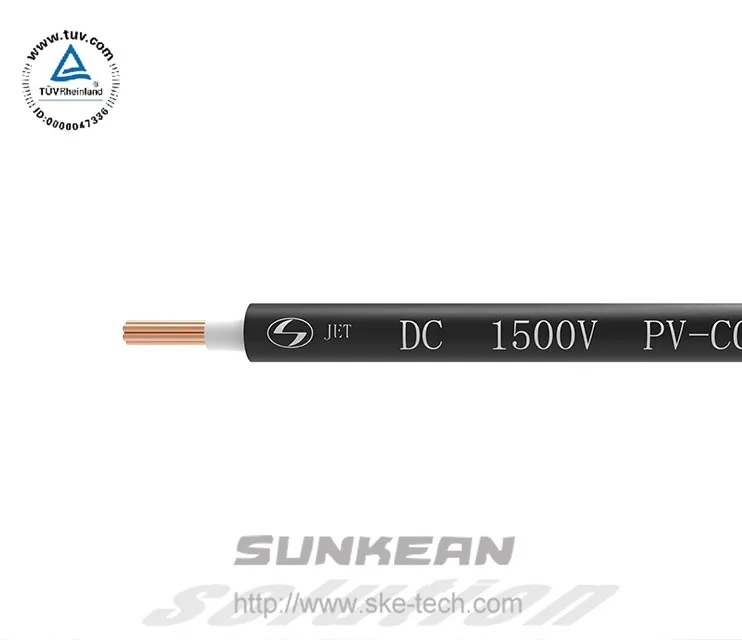

Product Details Show
Why Choose Us

About us

More than ten years' experience in solar field.

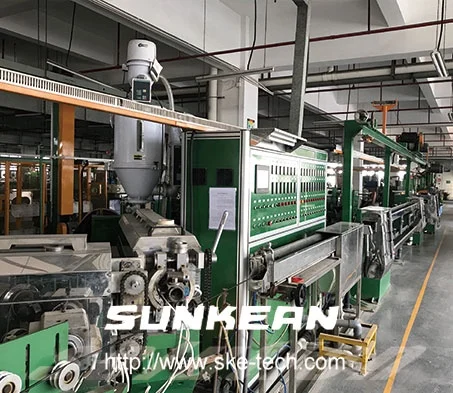

Equipment & Technology

Professional solar cable manufacture.

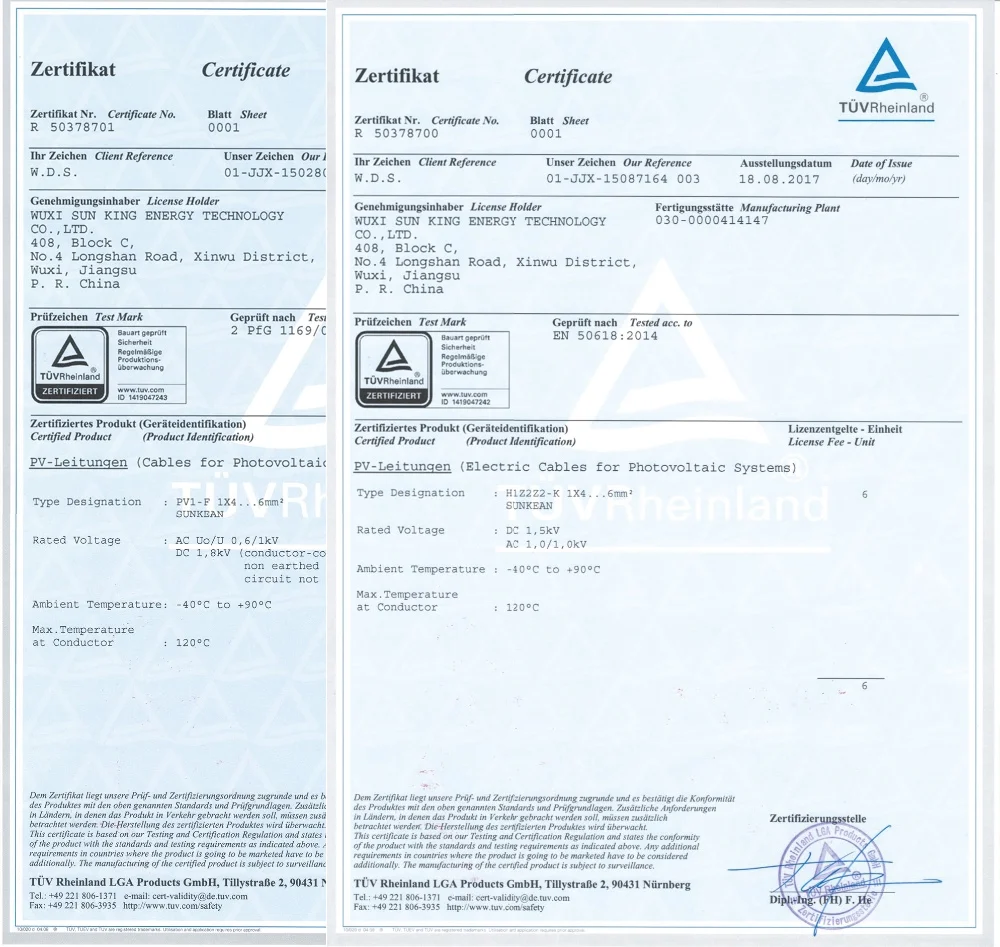

Certification

TUV and EN Certification.

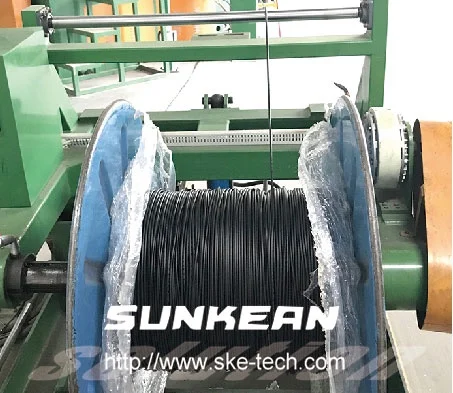

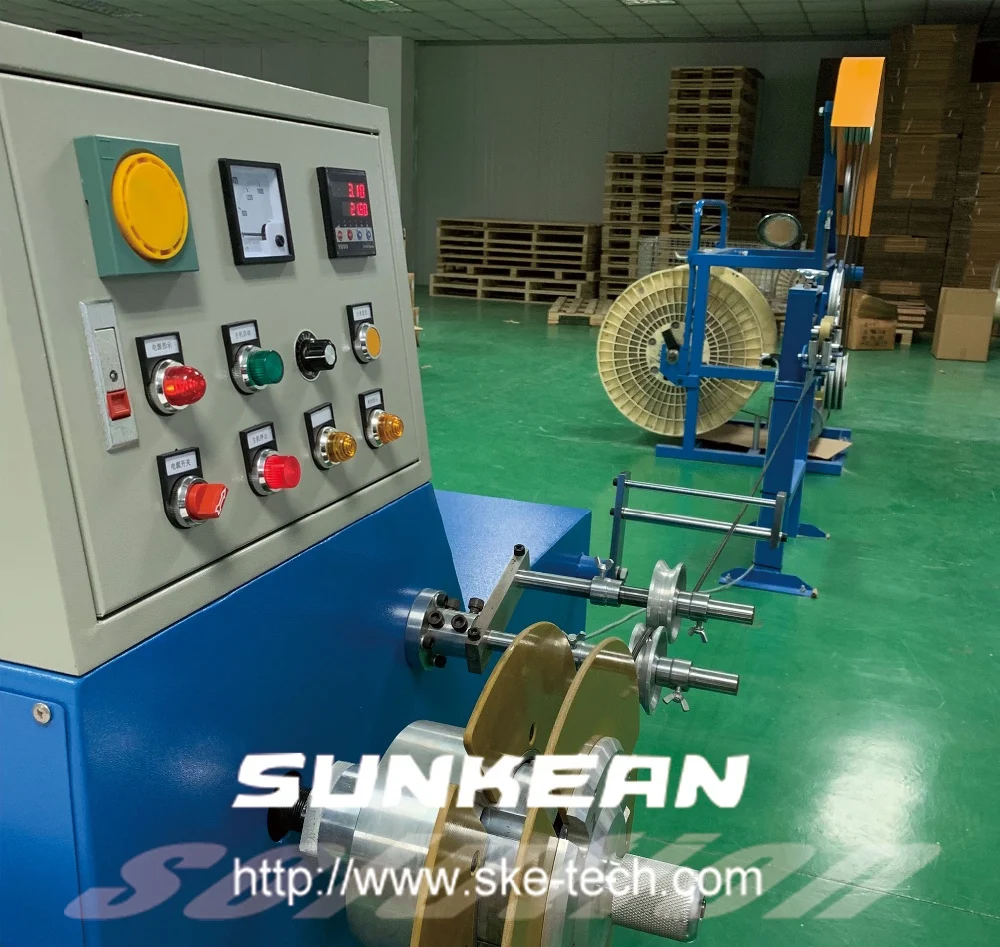

Product Processing

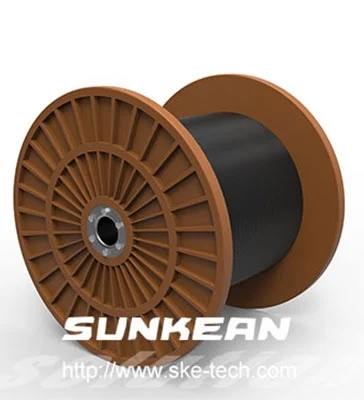

Product Packaging
