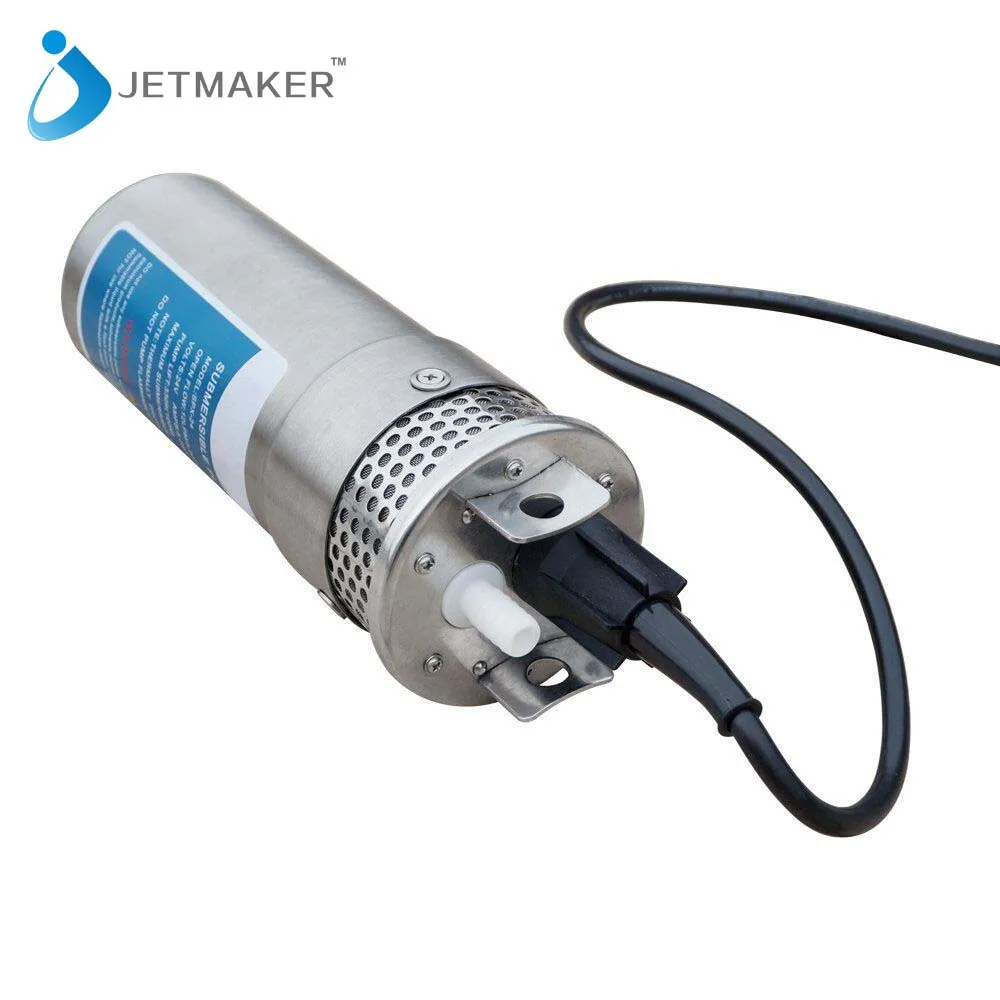

JETMAKER 12V dc solar water pump dc solar submersible pump with lift rate 100m and flow rate 12L/M for irrigation

FOB Reference Price:Get Latest Price
US $75-90 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
JETMAKER
Model Number:
YM1260-30
Theory:
Electromagnetic Pump
Structure:
Diaphragm Pump
Usage:
Water
Power:
120W
Standard or Nonstandard:
Nonstandard
Fuel:
Solar
Pressure:
Low Pressure
Application:
Submersible
Voltage:
12V
product name:
12V dc solar water pump for irrigation
Certificate:
ISO9001,CE
Warranty:
12 Months
Material:
Stainless steel
Maximum Lift:
100m
Maximum Submerion:
100 Feet Maximum (30m)
Outlet Port:
1/2''
Motor:
Permanent Magnet, Thermally Protected
Amps:
10A
Supply Ability
Supply Ability:
10000 Piece/Pieces per Day 12V dc solar water pump for irrigation per pc per box
Packaging & Delivery
Packaging Details
12V dc solar water pump for irrigation Packaging Details
Single package size: 37X15X14 CM for solar water pump system
Single gross weight: 3.2 KG
Port
Shenzhen ,xiamen

DC Solar Submersible Water Pump for Drip Irrigation

JETMAKER 12V dc solar water pump  dc solar submersible pump with lift rate 100m and flow rate 12L/M for irrigation





Solar submersible pumps can solve your long-distance water trouble, which is a sturdy and durablewater pump, it can at a maximum depth of 70 meters for your continued to provide 3 to 6 liters / minute of water flow, generally used for outdoor long-range water operating.

* Solar-powered submersible pump suitable for wells with a 4 inch diameter or larger.

*Designed to be strong and yet lightweight.

*Wide-range of parts and kits for ease of rebuilding and repair.

Features&Benefits

Pump:

*Strong Construction, yet lightweight.

*Dry Running capability without pump damage.

*Internal Bypass Feature for pump protection.

*Long-life,24VDC Operation.

*Easily repaired in the field.

*State of the art solid diaphragm.

  Power Connector:

*Unique water-tight gland connector.

* Stops water wicking and prevents potential condensation.

*Quick Discounnect-No splicing necessary.

*Accepts a variety of jacketable cables.


Pump DesignPositive Displacement 3 Chamber Diaphragm Pump
MotorPermanent Magnet, Thermally Protected
Voltage24V / 12V DC Nominal
Voltage24V / 12V DC Nominal
Internal Bypass105-110PSI Max.(7.2-7.5 BARS)
Maximum Lift100m Maximum
Maximum Submerion100Feet Maximum (30m)
Outlet Port1/2''(12.7mm) Barbed Fitting for 1/2'' (12.7mm) I.D.Tubing
Inlet50 Mesh Stainless Steel screen
MaterialHigh Strength Engineered Plastics, Stainless Steel Fasteners



ModelVoltFlow ratelift(m)AmpsBody cover
YM2440-3024V6.0LPM(360LPH)704.0APlastic body

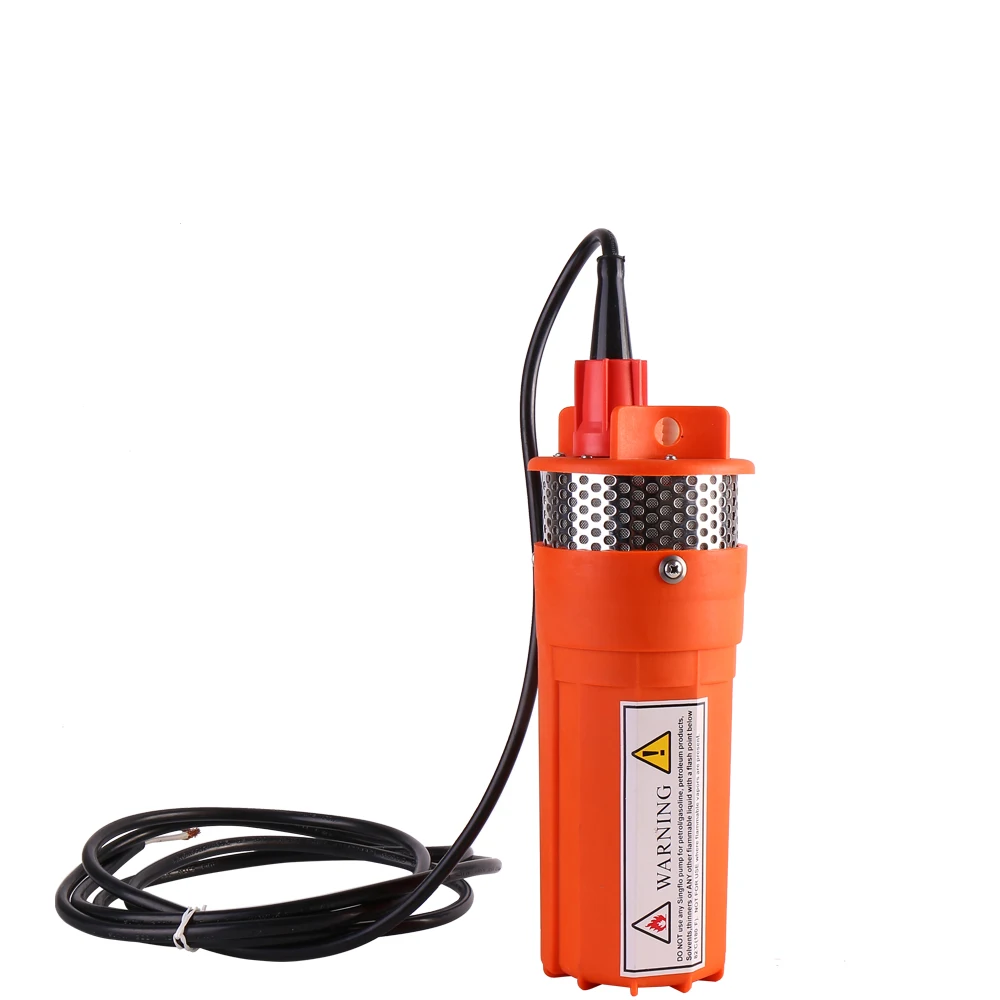

YM1240-3012V6.0LPM(360LPH)708.0APlastic body
YM2460-3024V12.0LPM(720LPH)1005.0AStainless steel body
YM1260-3012V12.0LPM(720LPH)10010.0AStainless steel body

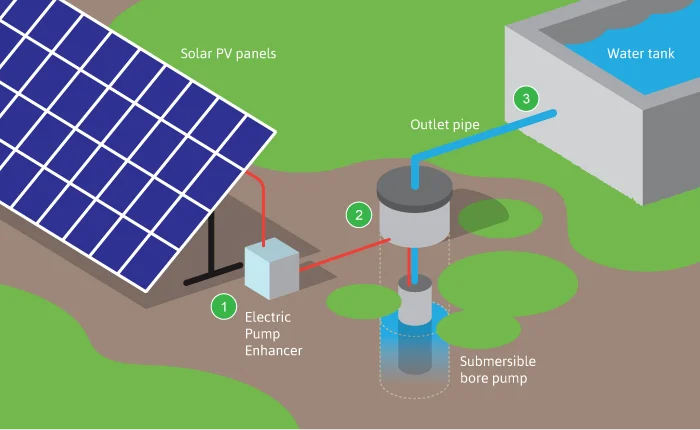

Application:

solar pump appliction.jpg

photobank (3).jpgphotobank (1).jpg

Company Information



Jetmaker (Xiamen) Liquid Equipment CO.LTD is established in 2017,which specializes in the development,production and selling of pump.The mainly product focuses on micro-precision pumps and valves,diaphragm pumps,solar pumps,bottled water dispenser etc.

        Pumps widely have been used in home household appliances, food and beverage, medical equipment, industrial & agriculture, , solar water energy,environmental protection,measured analysis,printing and ink-jet ect.

The products accesses ISO 9001, CE,ROHS & FDA certification and are sold smoothly overseas market such as North America, Europe and Australia and so on.

        Jetmaker own-brand on selling crossing the whole world, also offers high quality goods with the core of clients' demand and efficient service for OEM & ODM.

        It has the premise of professional services,focused scientific research and improving enterprise culture to become a world class leading micro-pumps and valves businesses. It continuously devotes to more green and convenient products to work hard for human beings better life. LOOK MORE
