JNOD electric boiler for central heating and hot water

  • 1 - 19 Pieces
    $400.00
  • >=20 Pieces
    $390.00
Model Number:
GFEB321E
Lead Time:
Quantity(Pieces) 1 - 7 8 - 20 >20
Est. Time(days) 15 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Hotels, Farms, Restaurant, Home Use
After Warranty Service:
Video technical support, Online support
Local Service Location:
Turkey, United Kingdom
Showroom Location:
United Kingdom
Condition:
New
Type:
Electric
Usage:
Industrial
Structure:
Water Tube
Pressure:
High Pressure
Style:
Vertical
Fuel:
electric
Place of Origin:
Guangdong, China
Brand Name:
JNOD
Output:
HOT WATER
Dimension(L*W*H):
460*250*280
Weight:
5~50ton
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Key Selling Points:
Energy saving
Voltage:
380-400V
Frequency:
50/60Hz
Power:
21kW
Application:
Single Heating Function
Heating area:
140mm2
Working temp. range:
35°C~80°C (in radiator mode)
Temp. range:
35°C~65°C (in floor heating mode)
Max. Water Temperature:
85°C
Inlet & outlet connector:
G3/4"
Safety Class:
Class 1
Product Certification certification
CE Certified.
Supply Ability
Supply Ability:
30000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
each brown box with foam inside, 1pc/ctn
Port
Shunde, Guangzhou
Lead Time :
Quantity(Pieces) 1 - 7 8 - 20 >20
Est. Time(days) 15 30 To be negotiated

Application

Metal out case with white paint.
Unique patent heating element,high heating efficiency.
Touch operation panel,blue LED display.

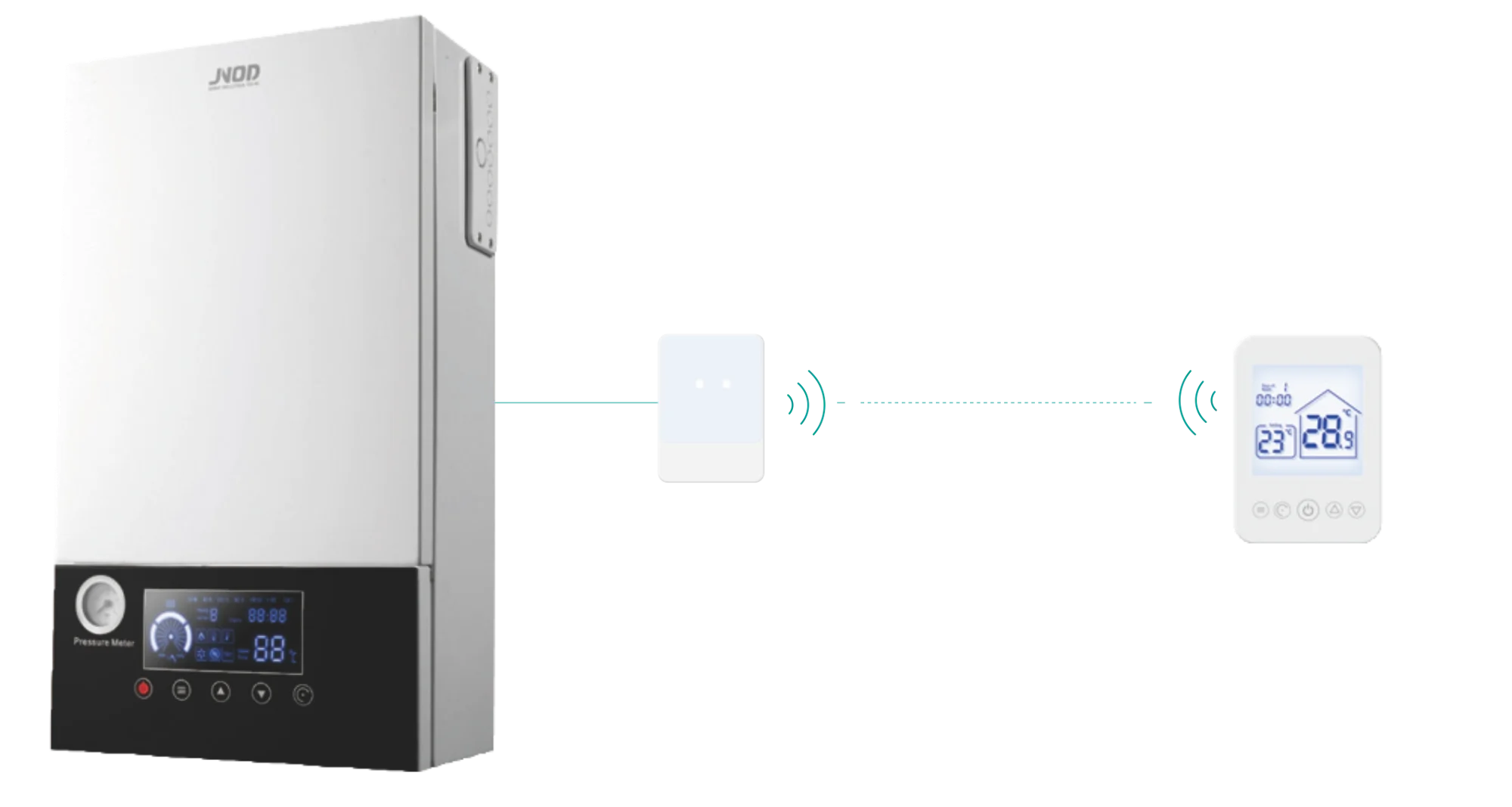

Infrared remote control&the remote control.
The boiler is equipped with optional control unit interface.
Built-in explansion tank &pump to avoid complicated system installation.
Timing start up and shutdown function.Weekley cycle set the program.
Double dry-heating protection function.
Automatic anti-freezing function.
Fault auto-detection technique.
Ultra low noise working,no effect on environment.
Technology data of electric boiler
Model
GFEB212E
GFEB215E
GFEB312E
GFEB315E
GFEB318E
GFEB321E
GFEB324E
Voltage(V)
220
380
Power(kW)
12
15
12
15
18
21
24
Current(A)
54.5
68.1
18.2
22.7
27.3
31.8
36.4
Wire(mm²)
10
16
2.5
4
4
6
6
Circuit Breaker(A)
63
80
25
32
32
40
40
Input Power(kW)
12
15
12
15
18
21
24
Output Power(kW)
11.76
14.7
11.76
14.7
17.64
20.58
23.52
Thermal Efficiency
98%
98%
Rated Pressure(mpa)
0.05-0.2
0.05-0.2

Working Temp.Range
              30-80℃                      (in radiator model)
 30-80℃
 (in radiator model)
30-55℃
(in floor heating model)
30-55℃
                                         (in floor heating model)
Heating Square(m²)
120
150
120
150
180
210
240
Product Size(mm)
695*440*256
695*440*256
Inner Packaging
Product Size
695(L) * 440 (W) * 256 (D)mm
Inner Box Size
805(L) * 535(W) * 360(D)mm
N. W.
32kgs
Product Portect Packing
Foam
Gift Box Material
5 layer corrugated paper
Remark
Color Packing will be free of charge base on 500pcs for each series.
Out Carton
Carton Size
858(L) * 596 (W) * 505(D)mm
Units in CTN
1 units/CTN
G. W.
35kgs
Package Material
3 layer corrugated carton
