JX PDI-6221MG-180 20KG 180 degree Angle High Precision Metal Gear Digital Standard Servo Motor Robot UAV Hobby Education

FOB Reference Price:Get Latest Price
$8.00 - $8.67 / Piece | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Quick Details
Radio Control Style:
RC Hobby
Place of Origin:
Guangdong, China
Brand Name:
JX Servo
Model Number:
Radio Control Toy
Hobby, Robots, Industrial, Education
Max Angle::
Operating Speed (6V)::
0.16 sec/60°
Max Angle:
Stall Torque (6V)::
20.32 kg.cm (281.89 oz/in)
40.5X20.2X38mm /1.59 X0.80X49 in
Connector Wire Length:
JR 265 mm (10.43in)
62 g (2.18oz)
Supply Ability
Supply Ability:
10000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Contact us
We are happy to provide
any information you need!
Video Description
Product Description

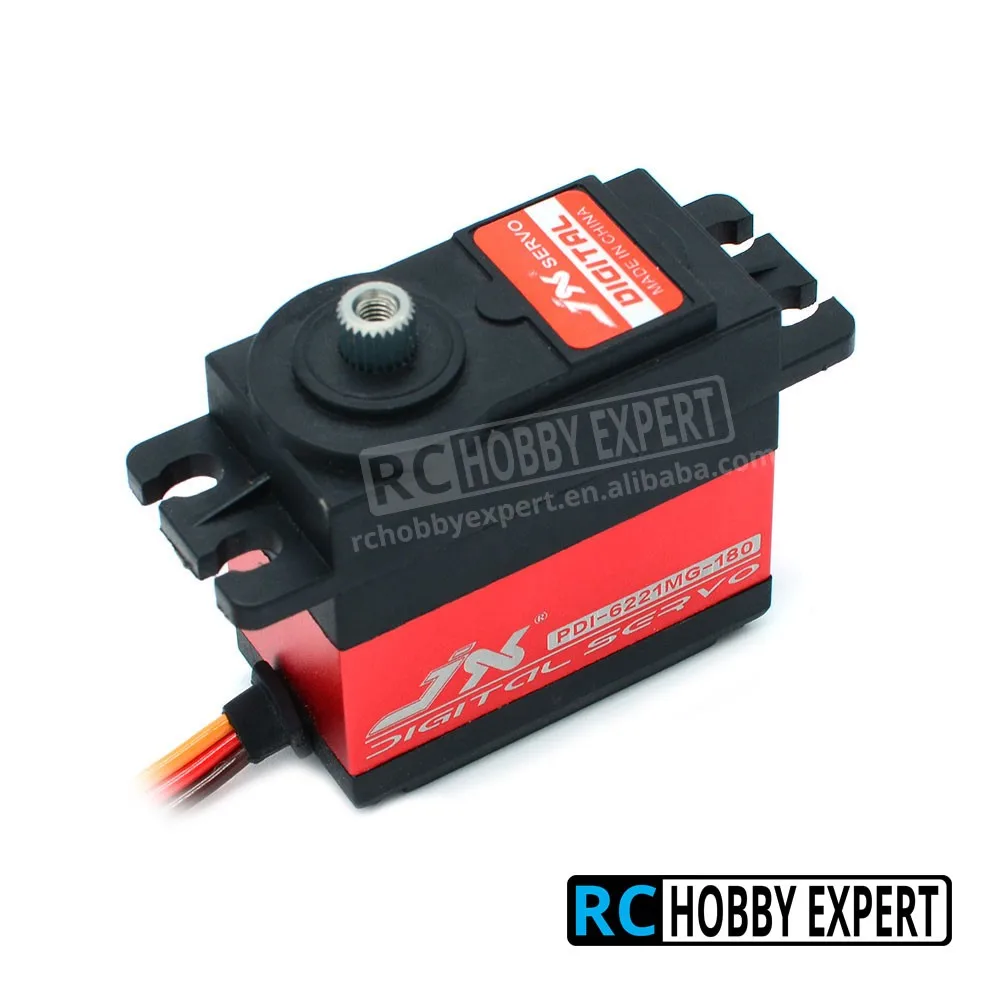

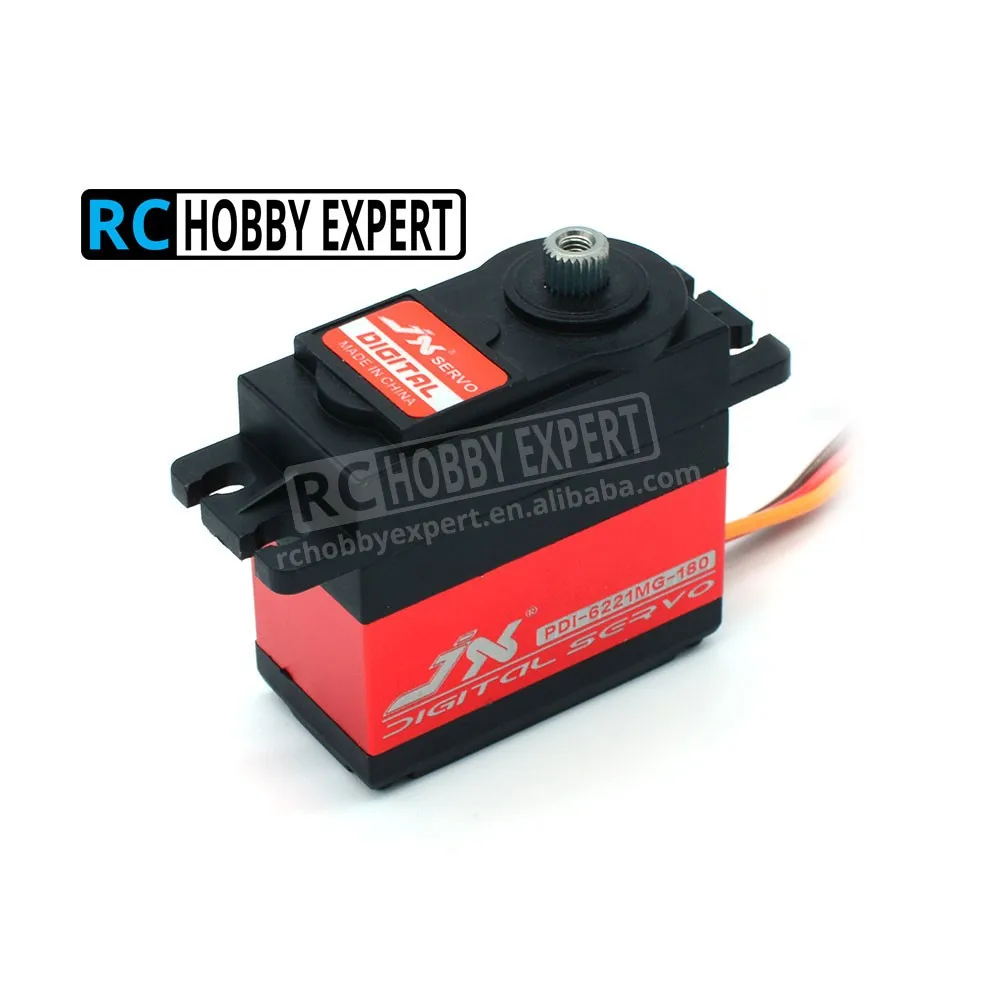

JX PDI-6221MG-180 20KG 180 degree Angle High Precision Metal Gear Digital Standard Servo Motor Robot UAV Hobby Education

JX Servo Technology have established a reputation for reliability and value. JX Servo produce servos for all applications from RC Modelling, UAV, Robotics to industrial applications. JX Servo offer an affordable solutions for all kinds of servo applications and are backed up with years of R&D and production development to ensure reliable quality servos are always delivered quickly.

-- 180 Angle 20kg digital servo
-- High performance digital standard servo
-- High-precision Taiwan-made aluminium gears with hard anodizing
-- CNC aluminium middle Shel
-- Dual ball bearings

Max Angle:180°
Pulse width:500-2500μs=180°
Dead band: 2μs 1520μs / 330hz
Operating Speed (4.8V): 0.18 sec/60°
Operating Speed (6V): 0.16 sec/60°
Stall Torque (4.8V): 17.25 kg.cm (239.55oz/in)
Stall Torque (6V): 20.32 kg.cm (281.89 oz/in)

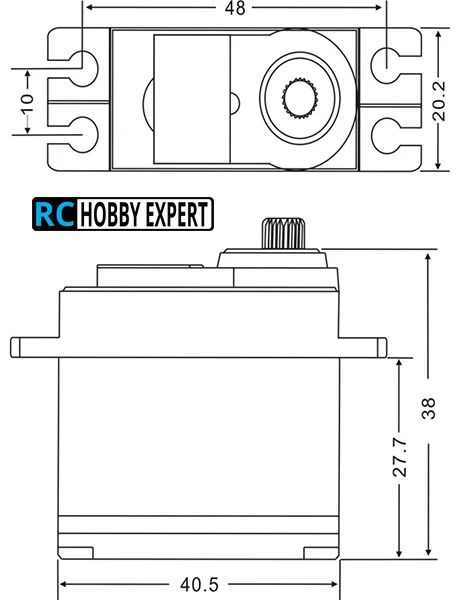

Dimensions: 40.5X20.2X38mm /1.59 X0.80X49 in
Weight: 62 g (2.18oz)
Connector Wire Length: JR 265 mm (10.43in)
Bearing: 2BB

Tooth Count: 25

Robotic and Industrial servo OEM & ODM services available. We are confident we can make any type of servo to suit any application. Our engineering team are up to the challenge and looking forward to building a servo to suit your needs.

We can build servos with features like these and more!
Torque ranging from 2kg*cm to 700kg*cm
Travel speeds from 0.03s to 0.5s
Travel angles: from 40deg to 360deg
Communication protocols such as TTL. RS232, i2C, RS485 or PWM
Servo positioning and current feedback
Gear materials from plastics to titanium
Voltage ranges are also customizable from 4.8v to 28v
Size, Shape and design can be customized to your needs
A variety or motor options such as brushed, coreless & brushless
We can offer Potentiometer or magnetic induction control

Potential Applications.
1. Electric lock (anti-heft door lock servo)
2. Luggage case lock servo
3. Washing machine safety mechanism servo

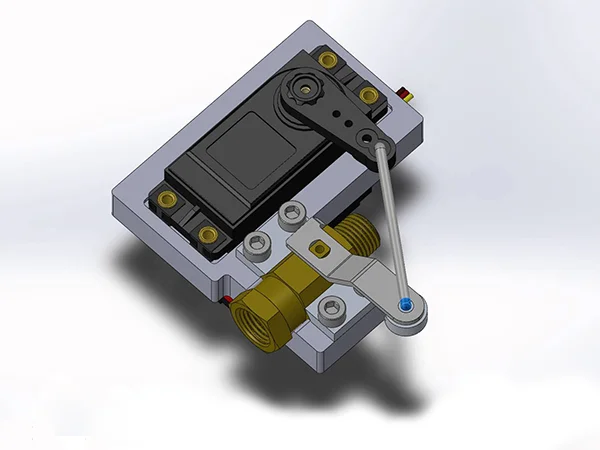

4. Water/gas valve control Servo
5. Smart lamp Switch Servo
6. Camera gimbal control servo
7. UAV heavy duty servo
8. Servo Release Servo Drop
9. Curtain Servo
10. Automatic Perfume and liquids Sprayer Servo
11. Smart bike gear change servo
12. Electric car mirror servo
13. Car seat adjustment servo
14. Car window winding servo
15. Medical equipment servo
16. safety lock servo
17. Robot servo
18. Wheel servo

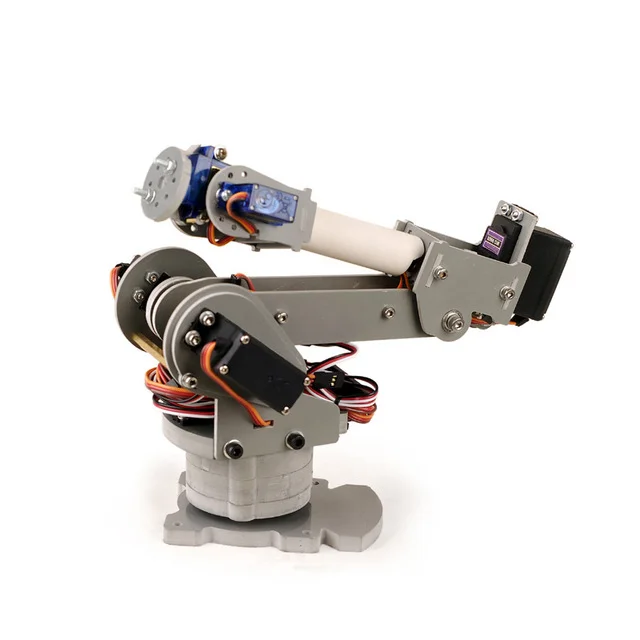

19. Robot arm servo
