JYWQ/WQ series sewage submersible pump for dirty water

FOB Reference Price:Get Latest Price
US $75-975 / Sets | 5 Set/Sets Submersible Pump (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Xi'an Cheng Hui
Model Number:
JYWQ/WQ
Structure:
Single-stage Pump
Usage:
Water
Application:
Submersible, Sewage
Power:
Electric
Fuel:
Electric
Pressure:
High Pressure
Product name:
Cast Iron Sewage Submersible
Material:
Cast Iron
Flow:
2~800M3/h
Rated speed:
980~2900r/min
Voltage:
110V/ 220V/230V/240V/380V/460V
Head:
10-55m
Type:
Submersible Pump
Color:
Customer Specifications
Feature:
Long Life
Standard or Nonstandard:
Standard
Theory:
Centrifugal Pump
Supply Ability
Supply Ability:
500 Set/Sets per Month Sewage Submersible Pump
Packaging & Delivery
Packaging Details
Export standard veneer cases or wooden cases or according to customers' requirements.
Port
Shanghai
Lead Time :
Within 7-15 days after received your advance payment
Product Introduction

Product Features

1.Reasonable design, supporting a reasonable motor, high efficiency, energy-saving effect is remarkable.
2.Mechanical seal with double-channel series seal, the material is hard corrosion-resistant tungsten carbide, with durable, wear-resistant and so on, can effectively through the fibrous matter for 5 times of pump diameter and diameter of about 50% of the solid particles.
3.Compact overall structure, small volume, easy to move, easy to install, without having to build pump room, working while being submerged into water, and greatly reduce the project cost.
4.The pump seal oil chamber has a high precision anti-interference leakage detection sensor, thermal sensor is embedded in the stator winding,
automatic protection of pump motor.

Product Details

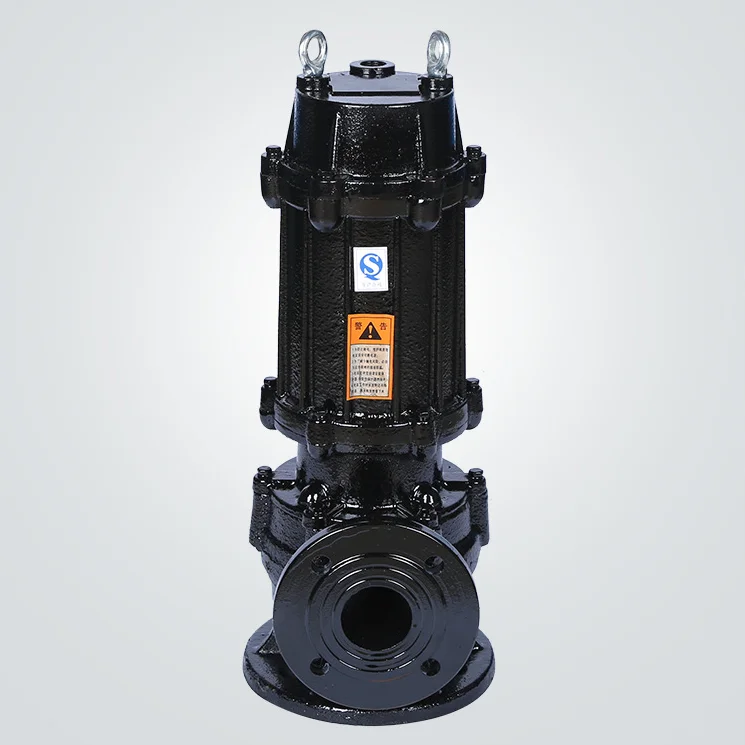

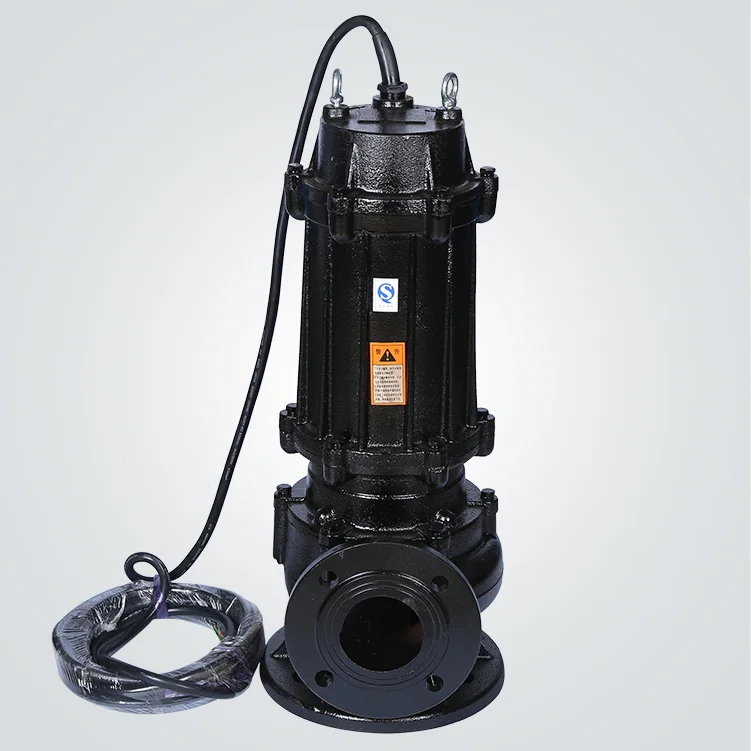

JYWQ/WQ series sewage submersible pump for dirty water

JYWQ/WQ High Flow Low Head Electric Sewage Pump Submersible Centrifugal Water Pump, which is designed based on the combination of the advanced technology from abroad and domestic pump performance features. This model has features such as energy-saving, anti-winding, non-clogging, automatic installation and automatic control. This pump is excellent in transporting sewage with solid-particles and long fibers.
This pump uses special structure impeller and new mechanical seals to make it more efficient in delivering sewage with solid particles and long fibers. Compared with traditional impellers, the new ones (spiral-flow type
or double-leaf type) have an excellent delivery capacity, which improves the pump performance. It runs more smoothly without any vibration.

WQ+automatic mixer=JYWQ

Main technical date
Model
lift(m3/h)
Head(m)
Power(kw)
50JYWQ10-10-0.75
10
10
0.75
50JYWQ15-10-1.1
15
10
1.1
50JYWQ15-15-1.5
15
15
1.5
65JYWQ25-9-1.5
25
9
1.5
50JYWQ15-20-2.2
15
20
2.2
65JYWQ25-13-2.2
25
13
2.2
80JYWQ35-10-2.2
35
10
2.2
100JYWQ50-8-2.2
50
8
2.2
50JYWQ20-20-3
20
20
3
65JYWQ25-15-3
25
15
3
80JYWQ50-10-3
50
10
3
100JYWQ60-8-3
60
8
3
50JYWQ20-28-4
20
28
4

50JYWQ10-10-0.75: "50" means diameter of opening is "50mm".

We have many other models, please contact us if you need.

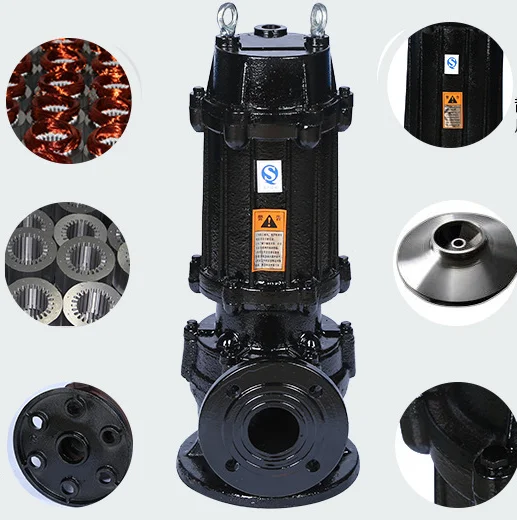

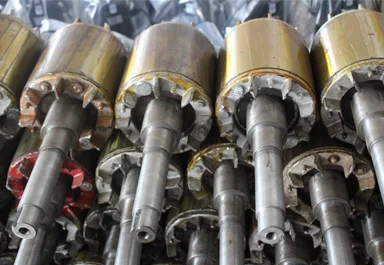

Product Details Show
