Japan Standard Refrigerant Metal Tube Flow Meter Rotameter Flowmeter

FOB Reference Price:Get Latest Price
$100.00 - $2,000.00 / Pieces | 1 Piece/Pieces Refrigerant Metal Tube Flow Meter Rotameter Flowmeter (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 2 3 - 5 >5
Est. Time(days) 5 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
GN
Model Number:
CX-RFM
Medium:
Gas and liquid
Temperature:
-20~120CRefrigerant Metal Tube Flow Meter Rotameter Flowmeter
Pressure:
less than 1Mpa
Normal size:
15;25;40;50
Accuracy:
1.5 and 2.5% Refrigerant Metal Tube Flow Meter Rotameter Flowmeter
Range ratio:
10:1 Refrigerant Metal Tube Flow Meter Rotameter Flowmeter
Connection:
Screw and flange
Material:
stainless steel and glass
sealing ring:
fluoro rubber or EPDM
Product Name:
Refrigerant Metal Tube Flow Meter Rotameter Flowmeter
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month Refrigerant Metal Tube Flow Meter Rotameter Flowmeter
Packaging & Delivery
Packaging Details
carton box of Refrigerant Metal Tube Flow Meter Rotameter Flowmeter
Port
shanghai
Lead Time :
Quantity(Pieces) 1 - 2 3 - 5 >5
Est. Time(days) 5 10 To be negotiated
Description

              Japan Standard Refrigerant Metal Tube Flow Meter Rotameter Flowmeter

                                                                                  ----------We are gold supplier in 9 consecutive years

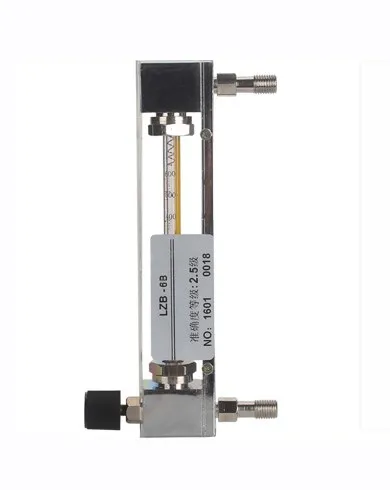

   Refrigerant Metal Tube Flow Meter Rotameter Flowmeter is a variable area flow meter, and it is mainly a bottom-up vertical glass tube and a cone movable up and down with his son to expand the size of the flow of the composition. Because there is a certain function of the flow through the meter and the float ascent ( flow meter area) between the height position of the float can be used as a measure of flow rate indication.

Parameters

                                             The Shanghai CiXi Instrument Company

                                                                                         ----without quality complaints in 3 consecutive years

 Diameter size
        Model
     Liquid(L/h)
       Gas(L/h)
      Pressure
   Temperature
                                                  15
                                                        VA30S-15
        4~40
        0.12~1.2
                                                                   <1.0Mpa
                                                               -20~120C
       16~100
         0.5~5
       25~250
          1.2~12
      63~630
          2~20
                                                                  25
                                                                VA30S-25
       63~630
          2~20
                                                               <1.0Mpa
                                                               -20~120C
   100~1000
          3~30
   160~1600
          5~50
    250~2500
          8~80
                                                                  40
                                                                VA30S-40
    160~1600
         5~50
                                                               <0.9Mpa
                                                              -20~120C
     250~2500
          8~80
    400~4000
         12~120
                                                                 50
                                                                VA30S-50
     400~4000
       12~120
                                                               <0.7Mpa
                                                                -20~120C
      630~6300
        20~200
1000~10000
          30~300
4000~16000
Detailes

                                            The Shanghai CiXi Instrument Company

                                                                                         ---------More 30 years' technology to focus details

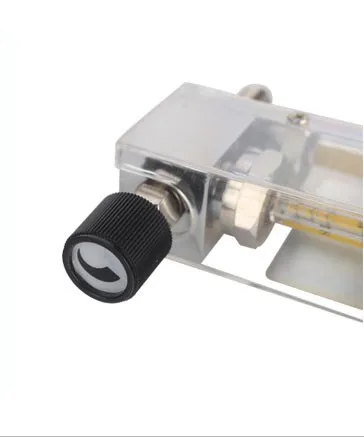

                      Regulating valve


       Refrigerant Metal Tube Flow Meter Rotameter Flowmeter with regulating valve.

      Could adjust the flow .

                  All stainless steel base


      Refrigerant Metal Tube Flow Meter Rotameter Flowmeter with all stainless steel base .

      The stainless steel is SS304 with Corrosion resistance

                  Mechanical interface


      Refrigerant Metal Tube Flow Meter Rotameter Flowmeter with mechanical interface.

       So it is very durable.

Advantages

                                           The Shanghai CiXi Instrument Company

                                                                                                            --------80% instruments is for exporting

                                          THE ADVANTAGE OF AIR ROTAMETER PRICE

1) We are Alibaba Assessed 9 years Gold Supplier.
2) We have about 30 years experience in production.
3) Our Refrigerant Metal Tube Flow Meter Rotameter Flowmeter have been exported to more 100 countries and area.
4) 100% QC inspection Before Shippment.
5) ISO,CE,SGS standard and factory price.

                                       THE FEATURE OF AIR ROTAMETER PRICE


1. Little Pressure Drop;
2.Reliable performance;
3.Simple structure, easy to install;
4.Cheap price.
