Jiecang JC35ER-2 monitor lift computer workstations work benches assembly desk kitchens lifting column

FOB Reference Price:Get Latest Price
1 Piece/Pieces lifting column (Min. Order)
Supply Ability:
50000 Piece/Pieces per Month lifting column
Port:
Ningbo or Shanghai
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
JIECANG
Model Number:
JC35ER-2
Load capacity:
4000N
Stroke:
100-400mm,over400mm optional
Input:
12v or 24v
IP:
IP43
Duty cycle:
10%,2mins continous use
Color:
Black or Gray
Limit switch:
Built-in
Overload protection:
integrated in appropriate control box
Certification:
CE/UL
Optional feature:
Hall Sensor
Packaging & Delivery
Packaging Details
standard carton and pallet ,costominzed package is welcomed and please tell us in advance.
Delivery Time
delivery date depends on order quantity

Jiecang JC35ER-2 monitor lift computer workstations work benches assembly desk kitchens lifting column

Product Description




Load Capacity Push (N)40002000
Load Capacity Pull (N)40002000
Static Load Push*   (N)40002000
Static Load Pull*     (N)40002000
Input  (VDC)24

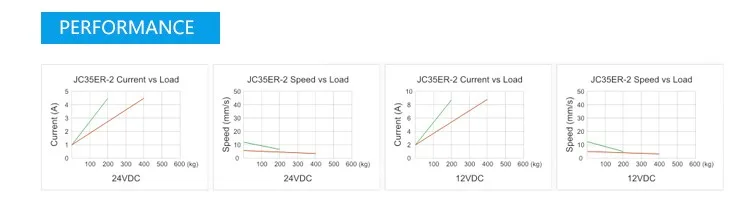

Speed at Full Load (mm/s)47
Input  (VDC)12
Speed at Full Load (mm/s)3.55

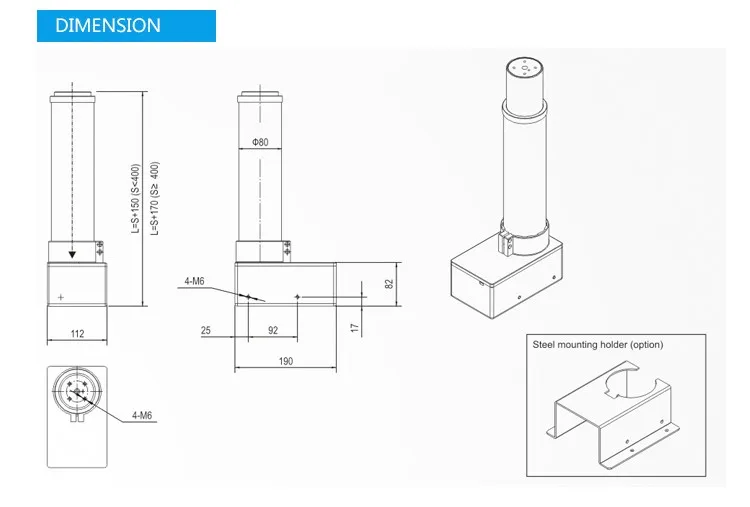

Stroke Length (mm)100-400 (option >400)
Mounting By screws on the side directly or by holder(option)
ColorBlack or Grey
Limit SwitchBuild-In
Overload ProtectionIntegrated in appropriate Control-Box
Duty Cycle10%, Max 2min. Continuous use
Tube material Aluminum tube
IP GradeIP 43
Operating Temperature+5 centigrade ~ +40 centigrade
CertificateUL/ CE
Option FeaturesHall Sensor Option(type JC35ERY)


* The static load applies when Jiecang Control Box is used , which shortcuts the motor during stop

Applications



Company Information



Packaging & Shipping







Our Services

 Our services

1,5 years global warranty service

2,OEM,ODM,OBM cooperation, Customized service

3,If it is possible, Installation Service is available, if not, we will give you the installed video or the maintenance video.

4,High quality and short lead time

5,24-hour Trade manager on line ,and your inquiry will be answered within 12hs.

Your satisfaction is our eternal need! We promise to provide you with the best service!

FAQ

Q:What is your MOQ?

Our MOQ is usually 10 sets.



Q:What is the shipping port?

Shanghai or Ningbo Port



Q:When can I get the quotation?

Usually you need to send up information, we will quote within 12 hours after we get it.

The details you should to give:

material, size, input,  Load  capacity,quantity, color ,speed  or frequency  , etc.



Q:When is the delivery time?

After you pay the sample price and freight charge, send us confirmed files, Samples in stock will be delivered within 3 days. Customized samples will be delivered within 15 days. Delivery date for bulk order depends on order quantity.



Q:Do you get the relevant certifications?

Yes, so far, we have got certification of CE,TUV, UL, PSE, KC, SAA, ROSH,ISO9001:2008,ISO14001:2004,ISO27000 and so on.

When you have any questions, please feel free to contact us. And any comments or precious advice are welcomed.
