Jinan Lifan philicam vacuum table wood cnc router 1325 machine price

Feedback Ratings
  • 1-4 Sets
    $8,000.00
  • 5-9 Sets
    $6,000.00
  • >=10 Sets
    $4,000.00
Model Number:
FLD1325
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Samples - $4,000.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China (Mainland)
Brand Name:
PHILICAM
Voltage:
110v 220v or 380v
Dimension(L*W*H):
3080*1920*1500
Certification:
CE
Warranty:
18 Months
name:
vacuum table wood cnc router
control system:
NK105 DSP handle control system
body structure:
iron cast body
running circumstance temperature:
0°~45°
optional:
working area,spindle,motor and driver,vacuum table and pump,etc
Guide:
Taiwan Hiwin square linear rail guide
guide:
square linear guide rail
spindle:
3kw water cooling spindle
command:
G code,*plt,*U00,mmg
working area:
1300*2500*200mm
After-sales Service Provided:
Engineers available to service machinery overseas
Power(W):
3.0kw
Weight:
930

Packaging & Delivery

Selling Units:
Single item
Single package size:
3170X2070X1800 cm
Single gross weight:
1200.0 kg
Package Type:
wooden box package
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 15 To be negotiated

Product Description

             T-slot table with water colling spindle rotary axis cnc router



                     Vacuum table with aircooling spindle rotary axis cnc router



                                Add rotary axis--four axis rotary axis cnc router



rotary axis cnc router Main Features :



1. The rotary axis cnc router adopt steel structure ,seamless welding,according to the standard industry to produce.

2. X Y adopt the straight line square guide rail,high precision ,good dust.

3. X and Y Z axis adopt rack and pinion transmission.faster working,higher efficiency and low cost.

4. High performance subdivision stepper motor operates smoothly at maximum speed.

5. Air cooled spindle 3.0kw,low noise,long tine mass processing.

6. Perfect oil lubricating system make the maintenance more convenient.

7. It is able to go on engraving when the electricity is cut or the tool is broken.

8. Compatible CAD/CAM designing software eg :Type3/Artcam/castmate/wentai/UG etc.

9. OEM and customize different kinds of size

10. Rotary device,DSP system w/portable control pad(128MB),Vacuum holding, Dust collector, Oil lubrication system

                                           rotary axis cnc router More Details
No.
rotary axis cnc router Description
rotary axis cnc router Parameter
1
X,Y,Z working area
1300x2500x200mm
2
X,Y,Z Traveling positioning accuracy
±0.03/300mm
3
X,Y,Z Repositioning positioning accuracy
±0.03mm
4
Lathe bed frame
Steel square tubes
5
X,Y Structure
Rack drive, Taiwan HIWIN guide
6
Z Structure
Germany Ball screw and Taiwan HIWIN guide
7
Drive motors
Stepper system
8
Table surface
T-slot or vacuum table(T-slot vacuum table)
9
Max power comsumption
(without spindle)2.0KW
10
Max rapid travel rate
22000mm/min
11
Max working speed
15000mm/min
12
Spindle power
3.0KW(option)
13
Spindle speed
0-24000RPM
14
Spindle inverter
Fuling inverter
15
Working voltage
AC220V/50/60Hz,3PH(Option:380V)
16
Command language
G Code
17
Operatiing system
DSP system (Nc studio/Mach3 PC software)
18
Computer interface
USB
19
Flash memory
128M(U Disk)
20
Collet
ER25(3.175/4/6/12.7mm. Optional )
21
X,Y Resolution
<0.02mm
22
Software compatiliby
Type3/Artcam/Ncstudio/Ucancam/JDpaint etc software
23
Running environment temperature
0-45 centigrade
24
Relative humidity
30%-75%
25
Mini order quantity
1 set
26
warranty
1 year
27
Delivery time and payment
7-30 days after get 30% payment by T/T(option:the third party alibaba ESCROW)






28
Optional parts
1.Air cooling spindle (HSD) or water cooling spindle

2.Taiwan Syntec system and Delta inverter

3.Japan Yaskawa/800w or Panasonic/750w servo motors

4.Vacuum pump(Germany Becker or chinese water and free oil pump)

5.Rotary system

6.Dust collector

7.Sink and water cooling system


29
Quality Control
1.Strect control machine assembly each link,ensure the machine clean and beautiful.

2.48 hours continuous work before the machine leave the factory, ensure high quality of the machine.
30
After sales service
1.24 hour technical support by email,calling or MSN

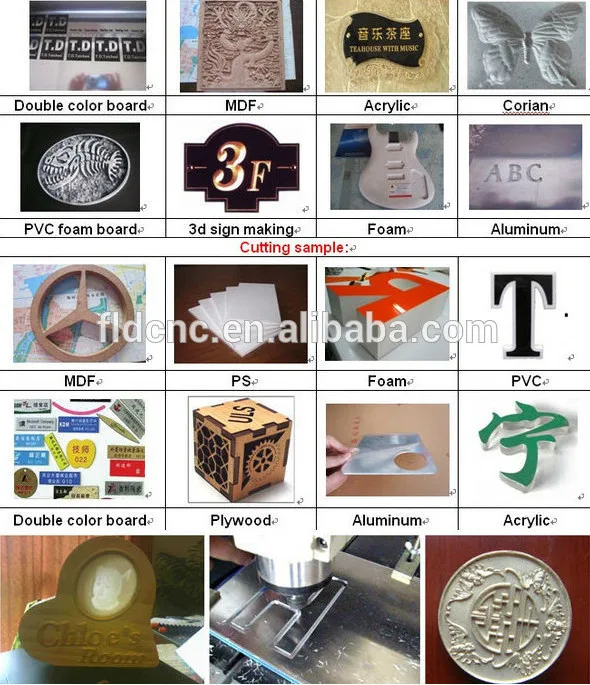

Product Samples
rotary axis cnc router Application :

Material:

MDF, acrylic, green board, soft metal, PVC, aluminum-plastic panel, particle board, insulation board, particle board,
solid wood, multilayer board, marble.

Product:
Furniture industry: cabinet door, kitchen,door,cabinet,wardrobe, study, chair, table, picture frame, handicraft.
Advertise industry: Advertising board, Label design, Acrylic cutting, model of the multi material decoration products.


                                  rotary axis cnc router cnc router Service



                              rotary axis cnc router Package & Delivery
rotary axis cnc router Packaging
Size
324(L) * 225 (W) * 188 (D)
Weight
1370 KG



Packaging Details
First use the spiecial materials for to
cover the machine,to protect the machine from the duct and water.

Then strong stell wooden package.
