John crane roten pump mechanical seal for water pump

FOB Reference Price:Get Latest Price
$1.00 - $100.00 / Pieces | 1 Piece/Pieces pump parts mechanical seal parts (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Sichuan, China (Mainland)
Brand Name:
KYSEAL
Model Number:
58u/59u
Material:
Metal
Style:
Mechanical Seal
Temperature:
-20-200°C
Pressure:
1.7MPa
Speed:
25m/s
shaft size:
14~100mm
Certificate:
ISO9001:2008
Product name:
John crane roten pump mechanical seal for water pump
Keywords:
pump parts mechanical seal parts
Sealing face:
carbon,silicon carbide,TC
Secondary sealing:
viton,epdm,ptfe
metal part:
ss304,ss316L
Standard or Nonstandard:
Standard
Supply Ability
Supply Ability:
1000 Set/Sets per Month pump parts mechanical seal parts
Packaging & Delivery
Packaging Details
sponge + carton + wooden case or according to your requirement
New products pump parts john crane mechanical seal
Port
Shanghai,Shenzhen,Chongqing,Ningbo
Lead Time :
shipped in 20 days after payment
Product Description

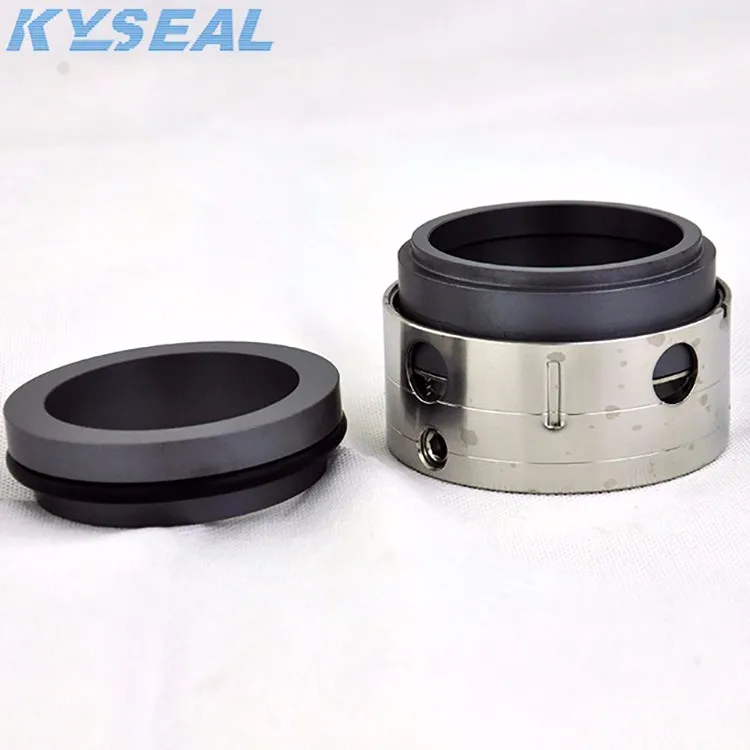

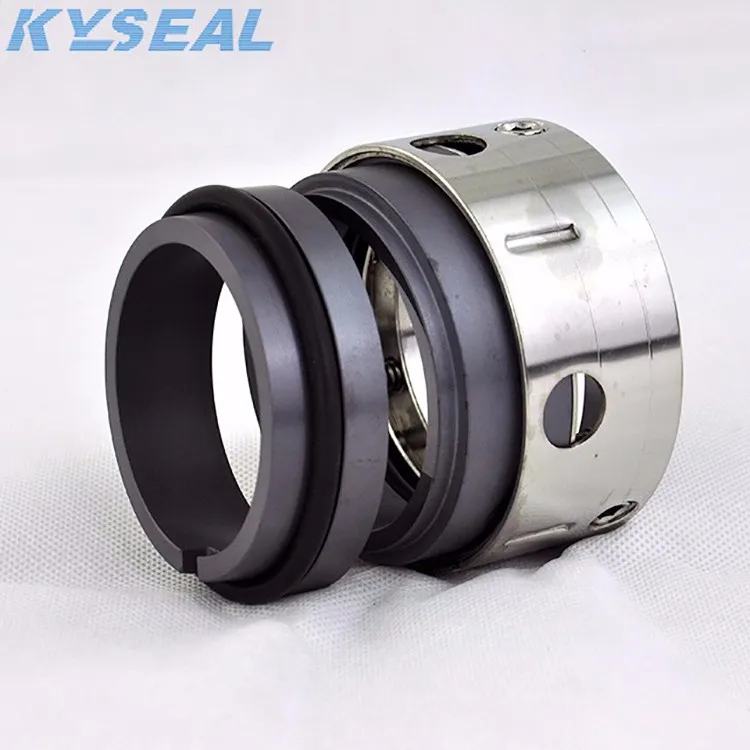

New products pump parts john crane mechanical seal

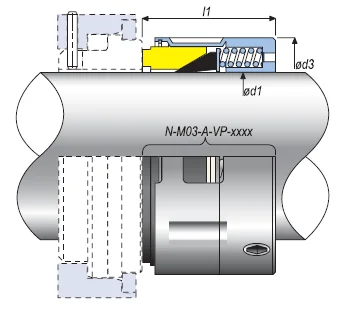

Design Structure:
Operating limits:
1. Dependent on the direction of rotation
1. Pressure: 1.7mpa
2. Single face
2. Temperature-20-200°C
3. Unbalanced
3. Speed: ≤25m/s
4. To EN12756(DIN24960)
4. Shaft size:14~100mm
5.Sealing face:Silicon carbide,Carbon,TC
6.Secondary Sealing:Viton,NBR,PTFE,EPDM
7.Mental component:316L, 304
8. Media: Oil, water, non-crystalline acid, alkali, salt and other organic solvents

mechanical seal

mechanical seal

About john crane

John crane provides engineering products and services to customers in the field of energy services and other process industries. John crane has more than 230 sales and service organizations in more than 50 countries in the world, which can fully meet all kinds of needs for mechanical seals, dry gas seals, packing seals, sealing auxiliary systems, coupling and lubrication systems. These products are widely used in petrochemical, natural gas, fertilizer, water treatment, papermaking, automotive, pharmaceutical, power, food processing, textile and metallurgy industries.

john crane mechanical seal series

Non-cartridge john crane: 57B, 58u, 58B, 59U, 59B, 2100,
metal bellow seal: 604, 606, 609, 613, 670, 676, 680,285,1604,2609,3609, 1670-2,1670-3, GL1H, GL1B,
Cartridge john crane: 586, 587, 600, 5870, 5610D, 5620D, 8600,  48XPVL, FFET, 37,  3710, 5860, 8600 , 5610,5610Q, 5620,5620PR, 5625,5625PR, RRA,RRE ,
4600 series: 4610, 4620P
2800 series: 2800E, 2800X, 2800XP
Sulzer Ahlstar Pumps seal: SE1, SE2, SEW
ABS scan pump seal:SE1, SE1F, SEG, SEW, SE2C
Andritz pump sealJCS1, JCS2
Pusher seal: 1648, 2648, 3648
5280 series: 5280d, 5280g, 5280w
5600 series:5611, 5615, 5620, 5625
SB seriesSB1A, SB2A,
28 series: 28AT, 28XP, 28EXP
Elastomer Bellows Seal: Type 6, 502,
Compressor Seals: type 28
Fully Split Seal: type 37 FS, 37 FSB,
Low Emission Elastomer O-Ring Seals : TYPE 48LP/48MP/48HP
Dry-running secondary containment seal:48SC/S48SC
Eccentric Screw Pumps Seal:SAS, SE2,SAB
Sulzer AHLSTARUP series :JCS1, JCS1F, JCS2
Vessel and Agitator Mechanical Seals:CK728, CK738 ,

Our service

1,OEM/ODM is available for our factory
2, supply burgmann/john crane/flowserve mechanical seal
3, accept customized mechanical seal accroding to your drawing or requirement

Application

the application of mechanical seal

industry
equipment
pump factory
ksb pump
flygt pump
grundos pump
submersible pump
agitator/mixer
factory
sharpe agitator
ekato
agitator
lighthin
agitator
sardik
agitator
mut
agitator
power station
desulphurization
pump
paper-making
industry
Pulp pump
shipbuliding
Our advantage

1,mechanical seal made by good quality stainless steel, wear face of rotating ring and static ring is smooth, tolerance of it is just 0.02mm.
2,we are manufacturer of mechanical seal , So we can save a lot of commission from distributor
3,we can make a deal within 1 hour. we are good at urgent order,fast and professional.

Packing & Delivery

1,we pack mechanical seal with sponge + cartoon + wooden cases
2, we pack it upon your requirement without logo on package

Our certifications

AS a china factory specialized in mechanical seal , we have many certificate as above.

FAQ

1.Q:Are you a factory or trading company?
A: We are a factory.
2.Q:Where is your factory located? How can I visit there?

A: Our factory is located in Chengdu of China.You can fly to Chengdu airport directly.All our clients, from home or abroad, are warmly welcome to visit us!

3.Q:How can I get some samples?
A: We are honored to offer you samples.
4.Q:How about the lead time?

A: With in 10-30 days after getting the payment
