KADA self start diesel generator 15000 w yangdong silent diesel generator 15kw 50hz

FOB Reference Price:Get Latest Price
$2,300.00 - $3,000.00 / Sets | 1 Set/Sets (Min. Order)
Rated Power:
15KW
Output Type:
AC Three Phase
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 25 Negotiable
Customization:
Customized logo (Min. Order: 10 Sets)
Customized packaging (Min. Order: 10 Sets)

More

Graphic customization (Min. Order: 10 Sets)
Color (Min. Order: 10 Sets)
Controller (Min. Order: 10 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
KADA
Model Number:
GFS-15KW
Rated Voltage:
380V
Rated Current:
30.38A
Speed:
1500RPM
Frequency:
50HZ
Type:
diesel generator 15kw
Brands:
KADA, OEM
Style:
Silent/Open
Connecting type:
3 phase, 4 wire
Cooling method:
Water cooled
Protection grade:
IP22
Speed governing:
Electronic speed governor
Starting method:
Electric Start, By batteries
ATS:
Optional
Fuel Tank:
10-12 hours
Supply Ability
Supply Ability:
500 Set/Sets per Month diesel generator 15kw
Packaging & Delivery
Packaging Details

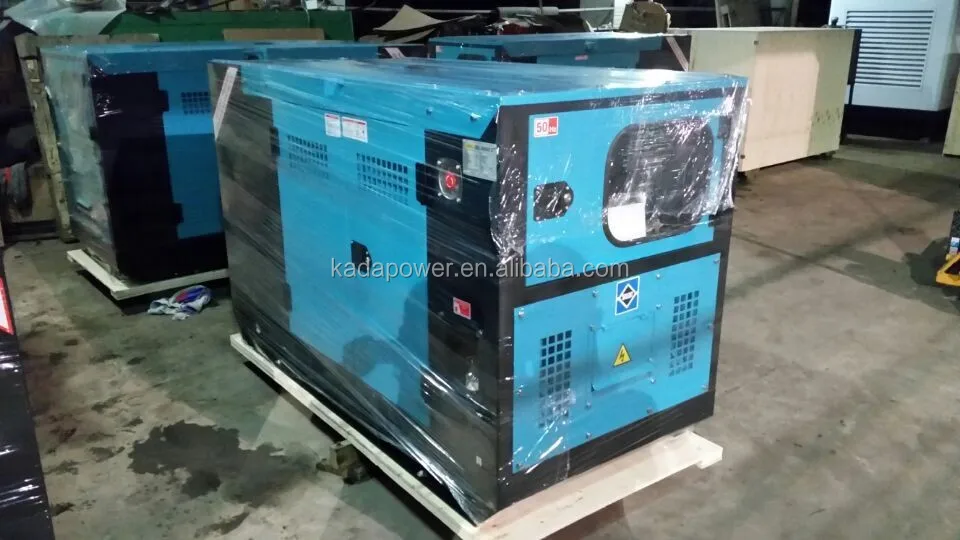

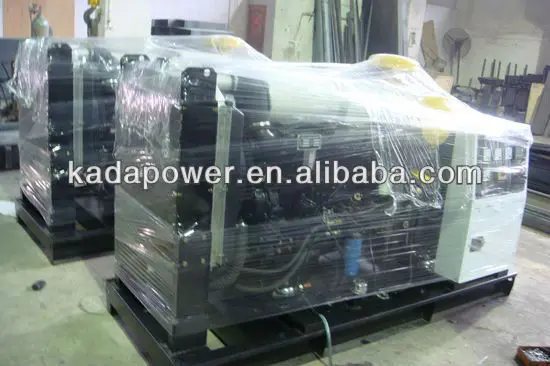

silent diesel generator: packing under shrunk plastic film or wooden
Port
Fuzhou,China
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 25 To be negotiated
Description
KADA Diesel generator set : Safety – Stability – Economy - Reliability Power

1. Our cooperate with famous diesel engine –Powered by Cumis, Peks, Detz , Doosan, Weichai, Ricardo, Yangdong,ect.
2. Equipped with famous Brushless alternator – Optional Stamford, Leroy Somer, Marathon, KADA.
3. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working.
4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system.
5. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
6. Equipped with high density sound-absorbing material -- sound insulation, fireproofing
7. Generator equipped with 12V/ 24V DC battery with charger, battery connects wire.
8. Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working.
9. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker
10. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
11. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance
12. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.
13. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.

Diesel generator set Silent / Soundproof type / Open type / Trailer type / container generator

Our generator set compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard
Diesel generator Prime output power: from 5KVA to 2500KVA
Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V etc. other voltage is optional
Generator Phase and connecting: 3 phase, 4wire.
Rated frequency: 50Hz@1500rpm or 60Hz@1800rpm
Alternator excited type: Brushless, self excited or PMG optional
Alternator Insulation: Class H
Alternator Protection: IP21 ~ IP23
Voltage regulation: AVR automatic control 1%
Altitude above sea level: ≤1000 meters
Ambient air temperature: ≤40°C
Relative air humidity: ≤ 90%
Specification
Technical Data
Genset models
GF-8
GF-10.8
GF-12
GF-15
GF-22
GF-25
Diesel engine model
YD380D
YD480D
YND485D
YND485D
Y4100D
Y4102D
Engine characters
water-cooled,in line,4-cylinders,4-cycle,direct injection,1500rpm
Bore/Stroke(mm)
80/90
80/90
85/90
85/90
100/115
102/115
Rated output(kw)
10
14
17
17
32
33
Fuel consumptiom
<247
<250
<248.9
<248.9
<237
<237
Lube consumptiom
<2.72g/kw.hr
Compression Ratio
18
Starting model
Electric(12v)
Alternator model
KD164B
KD164C
KD164D
KD184ES
KD184F
KD184G
Rated output(kw)
8
10.8
12
15
22
25
Voltage(V)
110-690
Current(A)
Depends on the voltage and power
Frequency(hz)
50
Power factor
0.8/1.0
Dimension (cm)
176*80*95
186*80*95
186*88*95
186*88*95
205*88*105
215*88*105
Weight(kg)
650
700
750
750
900
1000
Details
         Yangdong diesel engines are famous for its small bore and multi cylinders.If you complain that gigantic body of power generator occupys too much of your valuable spaces and it troubles you each time moving it,compact body of Yangdong is your first choice to sovels your problem.As a national high-tech enterprise,Yangdong has developed 14 serise and 500 types of multi cylinders diesel engines which are widely used in engineering machines and generator sets,Most of Yangdong's diesel engines have got and are in conformity with Euroll and Eurolll Emission.
        Maybe Compact and pretty appearance is your first reason to choose Yangdong but performance is your optimum reason to choose Yangdong.
        Rated Output:From 8-30kw.

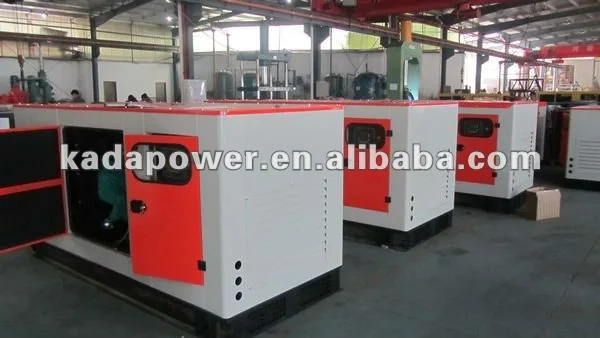

        Both Open Type and Silent Type are available.

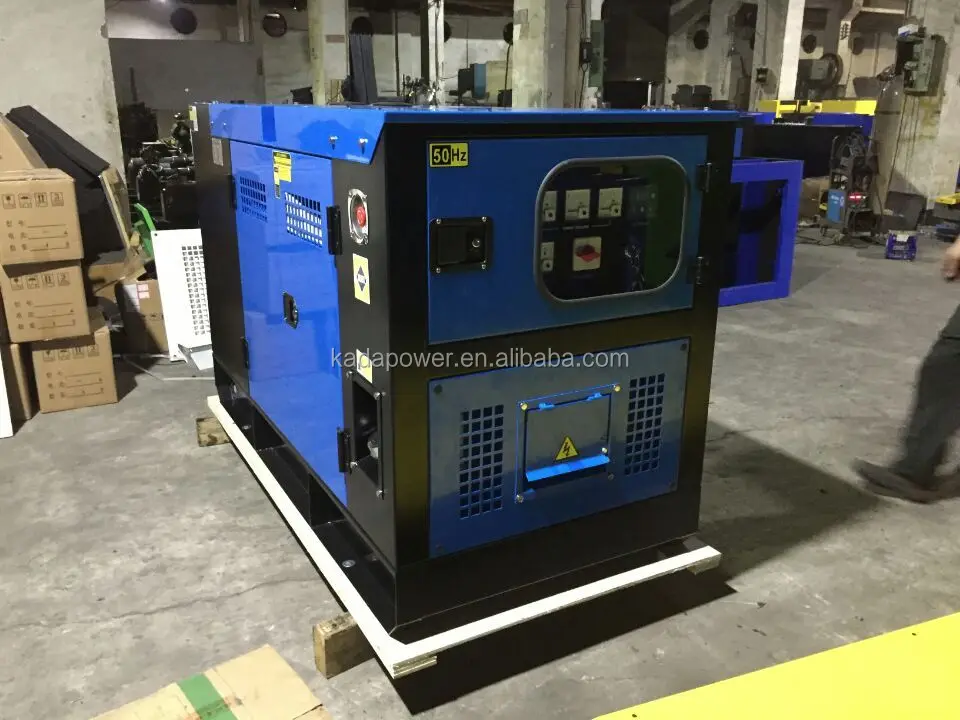

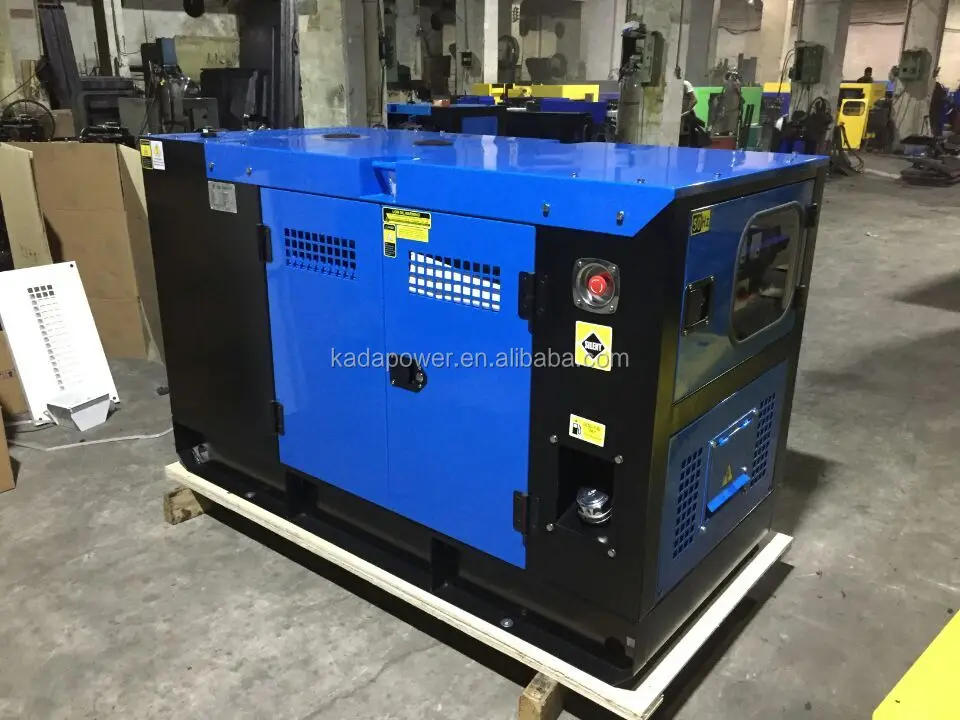

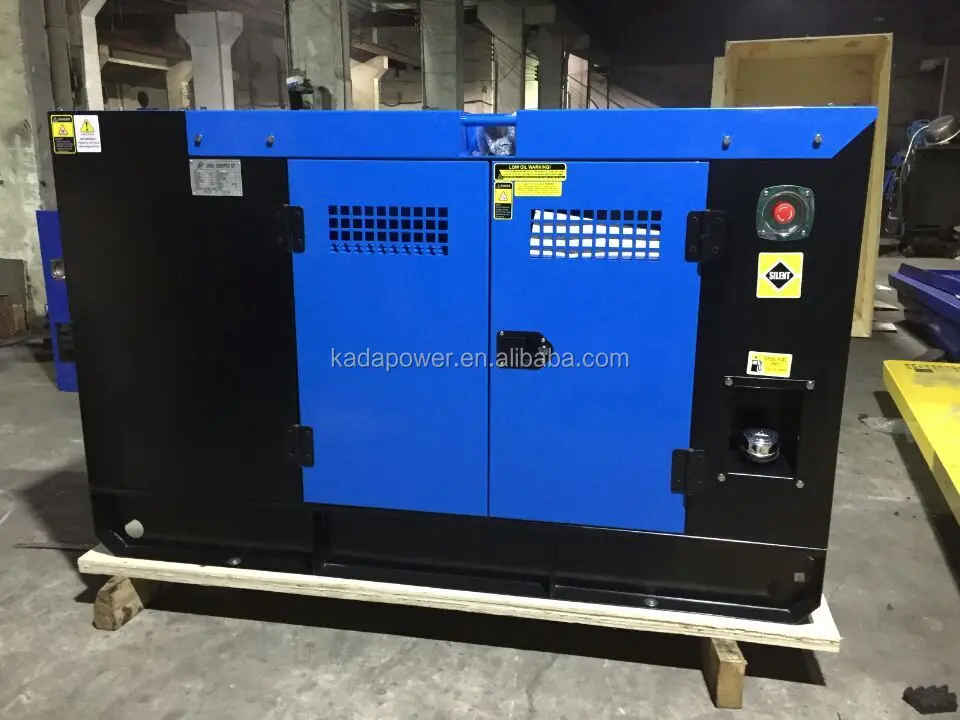

model: GF3-15KW  voltage:380v  phase:3 phase
prime:15kw/18kva standby:16kw/19kva
style:silent type   start system: electric start


engine:chinese yangdong brand  model:YND485D
output:17kw/21kva
type:vertical,4 cylinder,4 stroke,direct injection,water cooling,natural aspiration

total displacement: 2.67L


 alternator: brushless stamford alternator

Brief Introduction

All diesel generating sets include diesel engine, alternator and control box.Our diesel engine is powered by Cumis, Peks, Detz , Doosan, Weichai, Ricardo, Yangdong,ect.and equipped with famous Brushless alternator – Optional Stamford, Leroy Somer, Marathon, KADA.and equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp .ect.


Control system

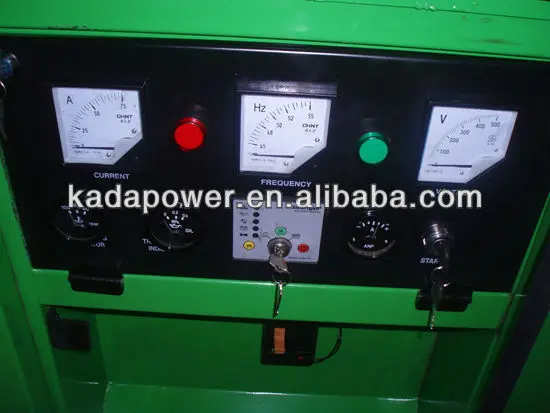

(1). Standard control panel, including digital genset control model:HGM1780, voltmeter, frequency meter, ampere meter, water temperature gauge, oil temperature gauge, oil pressure gauge, emergency button, preheating button, battery voltage gauge, running calculagraph, fuel level meter, circuit breaker (2). AMF model Standard control panel, including digital LED genset control model: HGM6120U, DSE7320, DSE6020 (3). Automatic transfer switch (ATS) and Automatic parallel operation system

Packing
FAQ

Q: Do you offer OEM service?
A: Yes

Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C.

Q: What is your lead time?
A: About 25-30 days after receiving deposit or original L/C.

Q: What certifiicate do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc


Q: What is your warranty policy?
A: KADA product has guarantee for one year or 1000 hours whichever reach first from exfactory date. During the guarantee period, we will provide the free easydamageable spare parts of motor caused by our quality of production or raw material. After expiration, we will charge the cost of spare parts.
