KEDA brand High quality PP/PE plastic bottle/film scrap washing machine line for best price

FOB Reference Price:Get Latest Price
$3,000.00 - $15,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
PET bottle washing line
Condition:
New
Application:
pet bottles, film,bottle,pipe
Automatic Grade:
Automatic
Place of Origin:
Shandong, China
Brand Name:
keda
Voltage:
380V 50HZ, 220/380/400 can be accepted
Dimension(L*W*H):
3500*1400*2200mm
Certification:
ISO
Product Name:
PET bottle washing line
Raw material:
pet bottles
material silo:
0.8CBM
control system:
yes
Peeling rate:
95-99%
Power(W):
55KW, 55kw
material:
Stainless Steel
Capacity:
500kgs/H
Weight:
8-15tons
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Production Capacity:
500kgs/H
Supply Ability
Supply Ability:
999 Set/Sets per Month
Packaging & Delivery
Packaging Details
FCL Three Plywood
LCL Wrapping Film
Customized
Port
qingdao
Lead Time :
Shipped in 20 days after payment
Product Description

This full line is suit for PP/PE/PET Flakes , from crushing ,washing and drying in 300-500kgs/h , you can select the equip as your requirement , there have cold wash and hot wash
for your choose , it is a economic and more used to make good good quality pellets after wash .
each machine will be designed be perfect , if interested ,please kindly contract us
1.Description

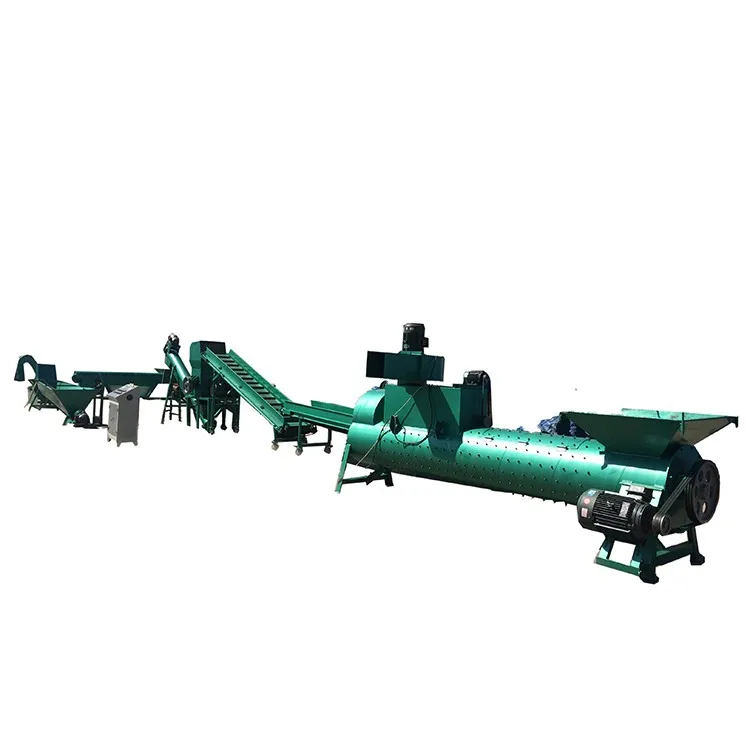

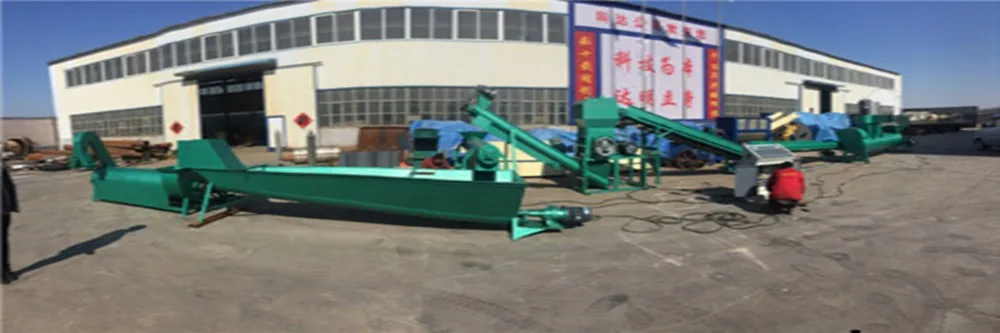

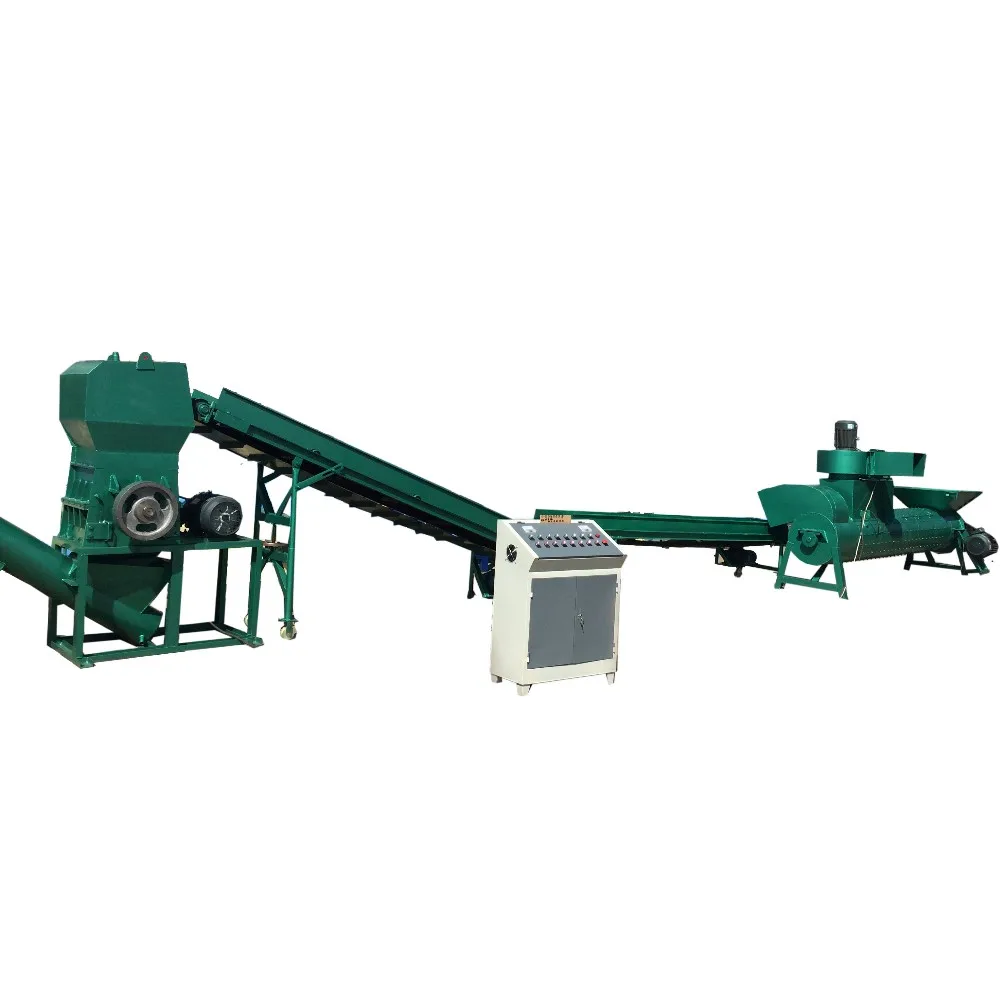

This PET flakes washing and drying line is suitable for high capacity.
It is a whole line consists bottle label peeler, crusher,washing machine and dewatering machine.
It is an automatic production line which produces high quality production.
2.Characteristic
1.Automatically works,conveying material,peeling label,crushing,washing,drying.
2.Hot washing for PET flakes by using steam.
3.moisture for the end production.
4.Impurity pvc is less than1% in production.

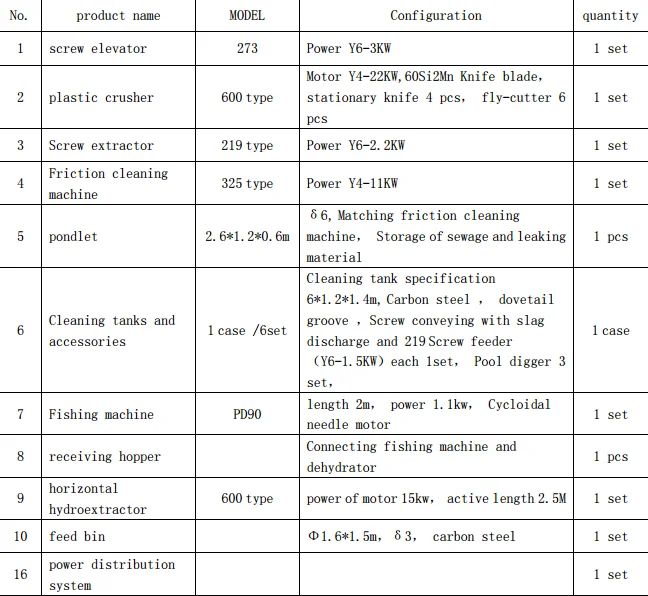

3.Technical data


1. conveyor with magnet

Dimmension(L*W) 5000*800mm; Power of motor  2.2kw; Speed adjusted by inverter; Height Can be adjustment; material Carbon steel;


2.New type dry label remover
Power of motor 22kw; Power of blower 4kw; Capacity 1200-1300kgs/h; Label removing rate >95%; Cap removing rate ~70%;

Label suck up rate 99%; Fixed blade :46pcs ; Rotary blade :72 pcs; Material Carbon steel;


3. Conveyor
Effective length:4000m; Width of conveyor:500mm; Thickness of belt:4mm; Power of motor:1.5kw; Height can adjustment;


4. Crusher;
Model:SFX-221C; Capacity:600-700kgs/h; Rotation diameter:420mm; Rotary blade:3 pcs x 2 lines; Fixed knife:4 pcs x 1 lines;

Size of entrance:550x300mm; Power:22kw; Dia of screen:14mm; Blades:SKD11;


5.Screw feeder
Effective length:4000mm; Screw diameter :380mm; Power of motor:3kw; Material:stainless steel;


6. Friction washer
Effective length:4000m; Power of motor:7.5kw; Rotational speed of screw:500rpm; Center height:1500mm; Material:common steel;

With automatic sewage discharge system;

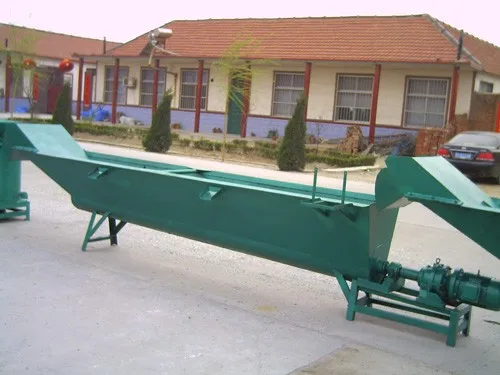

7.Single screw washing machine
Effective length:4000m; Screw diameter:380mm; No. of screw:1pcs; Rotational speed of screw:37rpm; Power of motor:3KW ;

Speed controlled by Delta inverter; Material: common steel;


8. Dewaterer
Power of motor:7.5kw; Rotor and screen made of stainless steel; With down sewage discharge; Material: common steel;


9.Drying system
Dia.of pipe:159mm; Length of pipe:18m; Power of blower:7.5kw; Material: stainless steel;

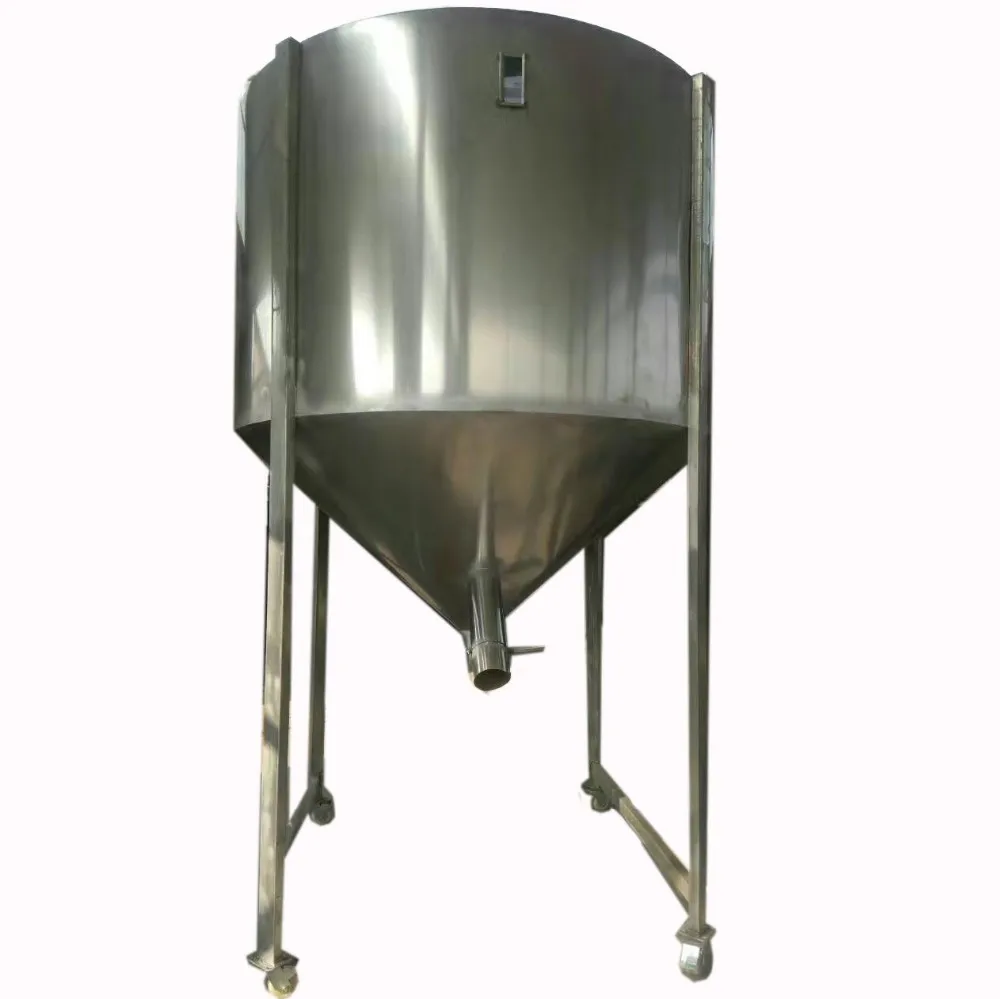

10.Material silo
Cubage:0.8CBM; Made of stainless steel;


11. Control system


12.Option (hot washing)
Steam washer; Diameter of silo:1800mm; Cubage:6CBM; Mixing power:7.5kw; Material: stainless steel; Screw feeder; Effective length:4000mm;
Screw diameter :380mm; Power of motor:3kw; Material: stainless steel;

Detailed Images

1.conveyor with magnet

Dimmension(L*W) 5000*800mm; Power of motor 2.2kw; Speed adjusted by inverter; Height Can be adjustment; material Carbon steel;

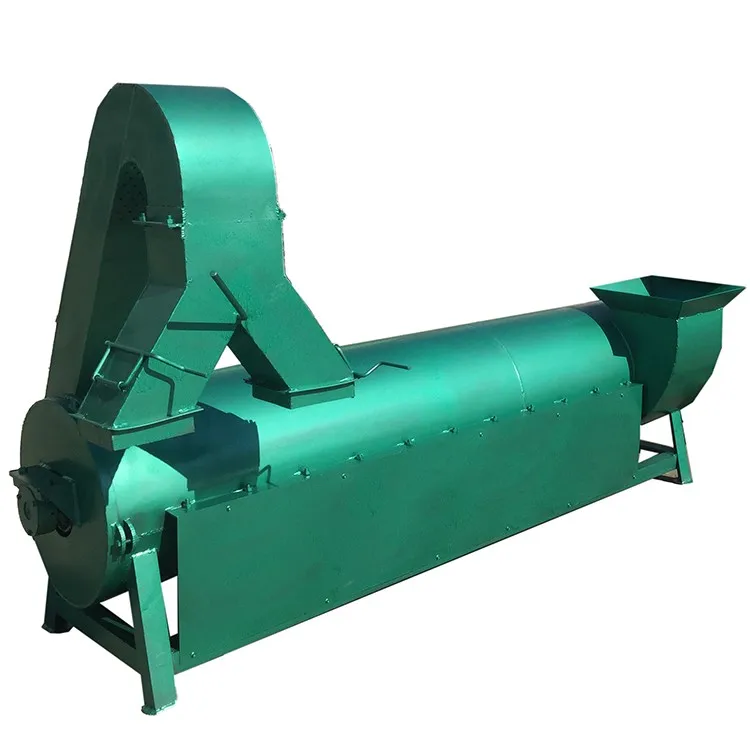

2.New type dry label remover

Power of motor 22kw; Power of blower 4kw; Capacity 1200-1300kgs/h; Label removing rate >95%; Cap removing rate ~70%; Label suck up rate 99%; Fixed blade :46pcs ; Rotary blade :72 pcs; Material Carbon steel;

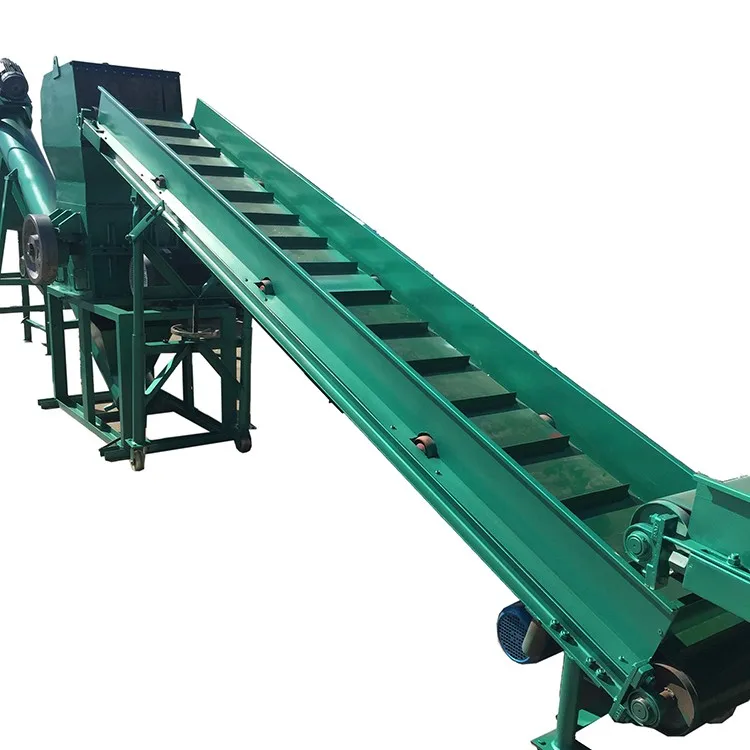

3.Conveyor

Effective length:4000m; Width of conveyor:500mm; Thickness of belt:4mm; Power of motor:1.5kw; Height can adjustment;

4.Crusher

Capacity:600-700kgs/h; Rotation diameter:420mm; Rotary blade:3 pcs x 2 lines; Fixed knife:4 pcs x 1 lines;

size of entrance:550x300mm; Power:22kw; Dia of screen:14mm; Blades:SKD11;

5.Screw feeder

Effective length:4000mm; Screw diameter :380mm; Power of motor:3kw; Material:stainless steel;

6.Friction washer

Effective length:4000m; Power of motor:7.5kw; Rotational speed of screw:500rpm; Center height:1500mm; Material:common steel;
With automatic sewage discharge system;

7.Single screw washing machine

Effective length:4000m; Screw diameter:380mm; No. of screw:1pcs; Rotational speed of screw:37rpm; Power of motor:3KW ;
Speed controlled by Delta inverter; Material: common steel;

8.Dewaterer

Power of motor:7.5kw; Rotor and screen made of stainless steel; With down sewage discharge; Material: common steel;

10.Material silo

Cubage:0.8CBM; Made of stainless steel;

11.Control system
