KN-60A Automatic pill making machine with 5-30kg/h capacity / homemade pill press machine

FOB Reference Price:Get Latest Price
$1,000.00 - $1,500.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Quick Details
Place of Origin:
Hunan, China (Mainland)
Brand Name:
pill making machine
After-sales Service Provided:
Online support
1 Year
KN-60A Pill making machine
220V 50Hz 110V 60Hz
Stainless Steel
Make Pill
Automatic making pills for herbal powder
Motor Power:
Pill Size:
Only 6mm
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export standard wooden case for each set of KN-60A pill making machine
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Video Description
Product Description

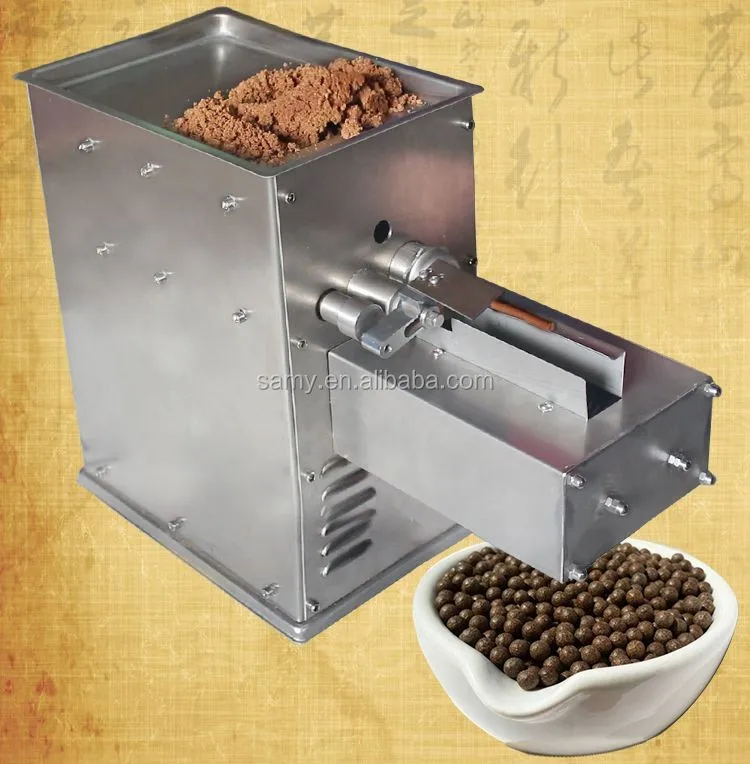

KN-60A Automatic pill making machine with 5-30kg/h capacity / homemade pill press machine

KN-60A High efficient automatic pill machine is mainly used for small pharmaceutical factory and research department of hospitals and small batch production.Advantages of small volume, light weight, easy to replace the pill varieties, smooth operation, suitable for on the working platform.

Specifications for KN-60A Pill Making Machine
5-30 kgs/h
220 V
Size of Pill
6 mm
200 W
65 kg
Outline Dimension
600*220*400 mm
Usage Range
Pharmaceutical factories, hospitals, drugstores, clinics

and food industries
Product Function
Chinese medicine water pill, honey pill, a variety of small pill and mixing function

KN-60A Automatic pill making machine with 5-30kg/h capacity / homemade pill press machine

Scope of application:

Mainly used in large, medium and small pharmaceutical and hospital research departments to develop and small batch production, the machine has the advantages of high efficiency and labor cost saving, and is the preferred machine for a new type pharmaceutical factory.

Detailed Images

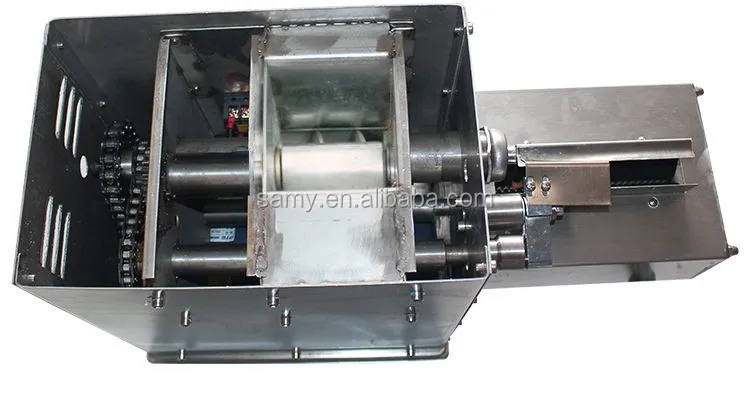

Structure Features

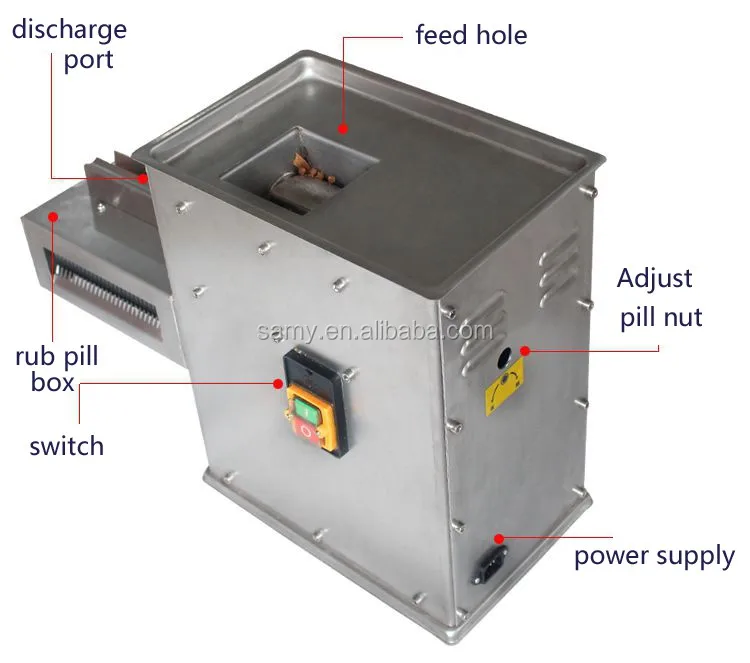

1. Desktop structure, small size, light weight, smooth operation. Stainless steel material is used for contacting parts of drugs and surfaces, no dead ends in the working face, good tightness,easy to remove and clean, comply with GMP requirements.

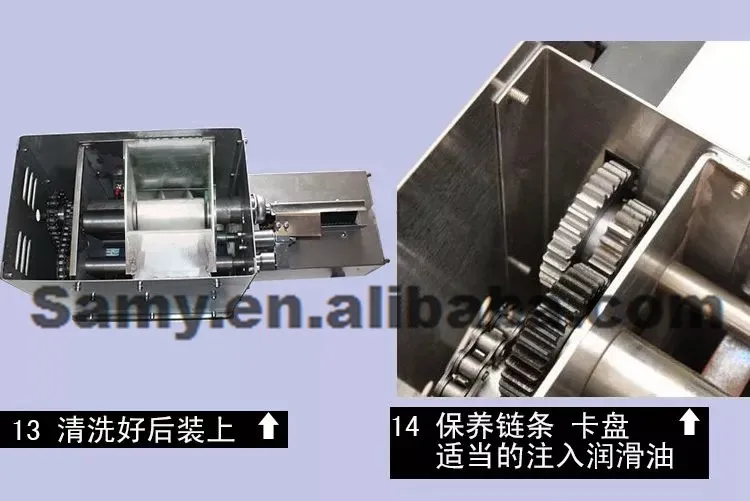

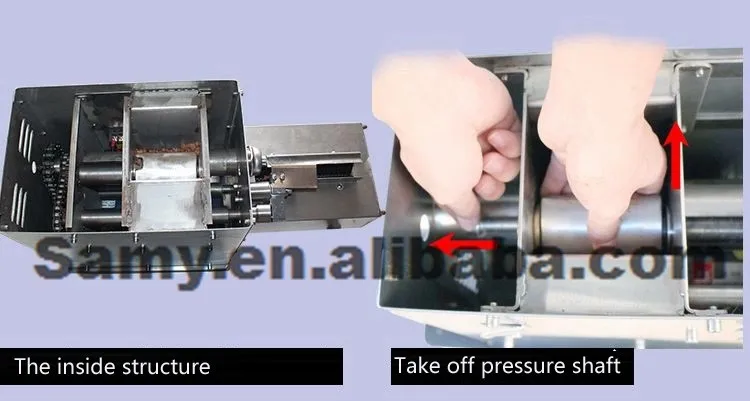

2. KN-60A pill making machine is composed of sliver delivery device and pill device with some advantages of box type structure, horizontal strip, simple structure, easy operation and convenient maintenance.

3. Using a worm gear reducer, stable and reliable transmission.

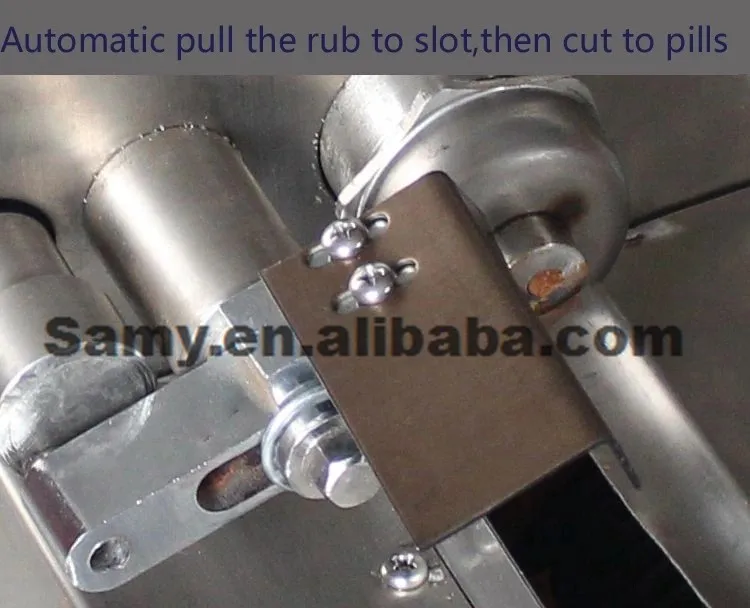

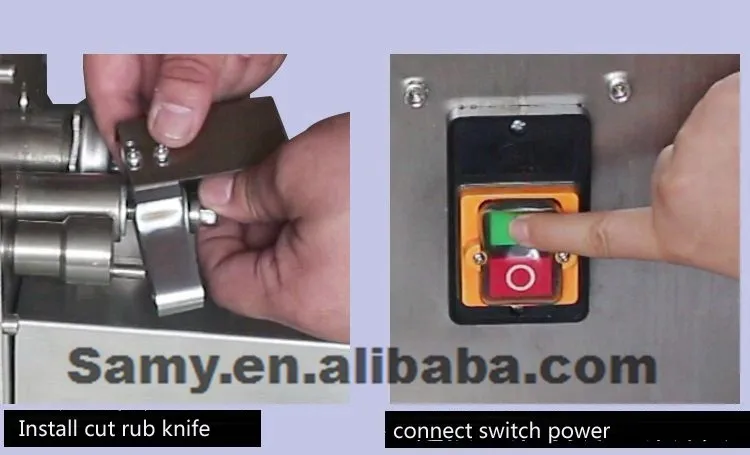

4. The rubbing and cutting mechanism of making pill is in a transmission box,lubrication condition of the machine is good, the speed of cutting can be adjusted by rotary button for a transmission, it can get the speed of 6-30 r/min by using the hobbing cuter, until the cutting speed comply with the delivery speed.

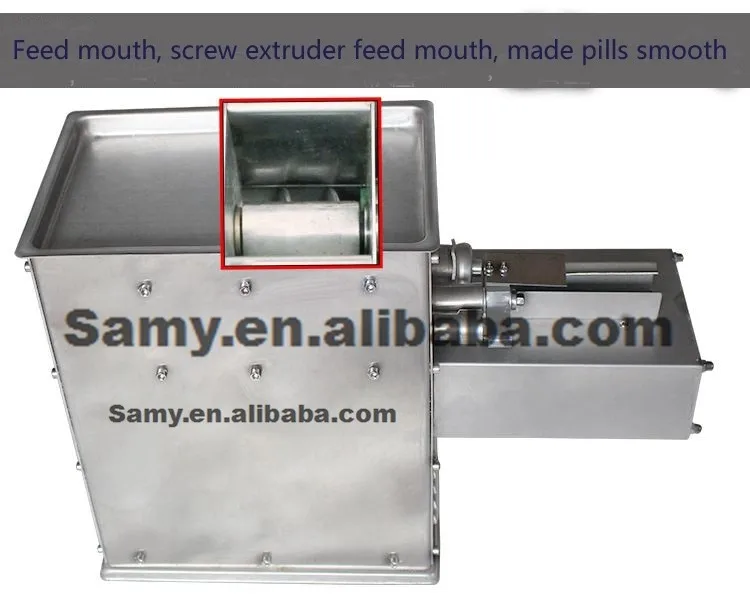

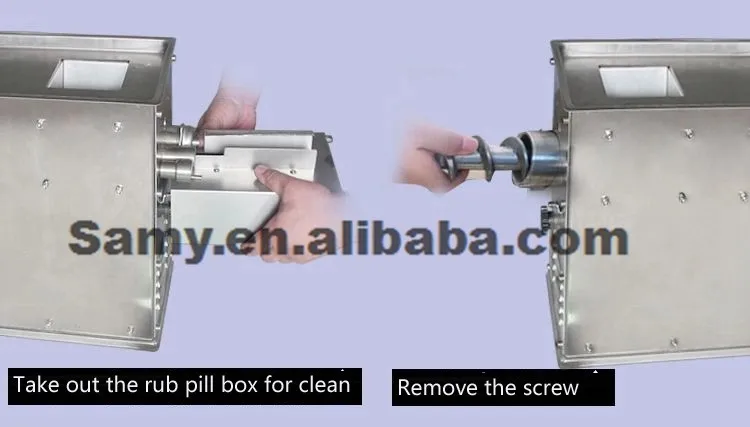

5. The feeding port is big, and the pressing plate is turned the pressed materials, so that the stuffing can be easy, and the shelf material phenomenon can be avoided. The hopper is bounded by a turning plate shaft, it is divided into the upper part and the lower part, it is very convenient to disassemble when cleaning.

6. Using the alcohol to drip drug stick, the outside of the pill knife is provided with a brush, it can stop sticking knife phenomenon, the alcohol is installed in the square box of sliver delivery device, the amount can be adjusted by ball valve.

Use of KN-60A

Working principle:

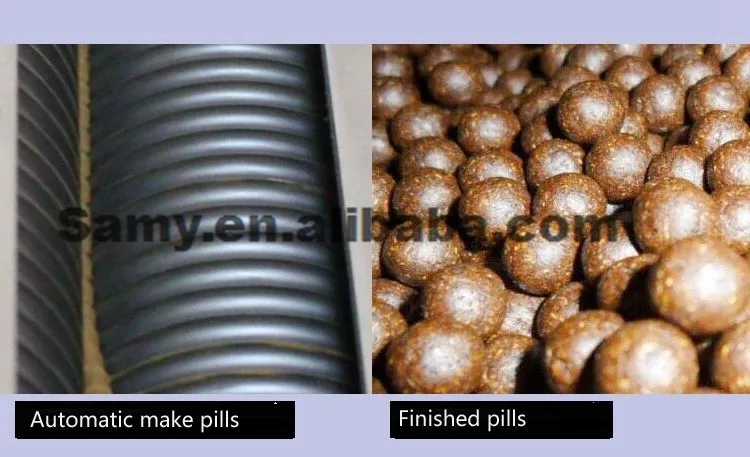

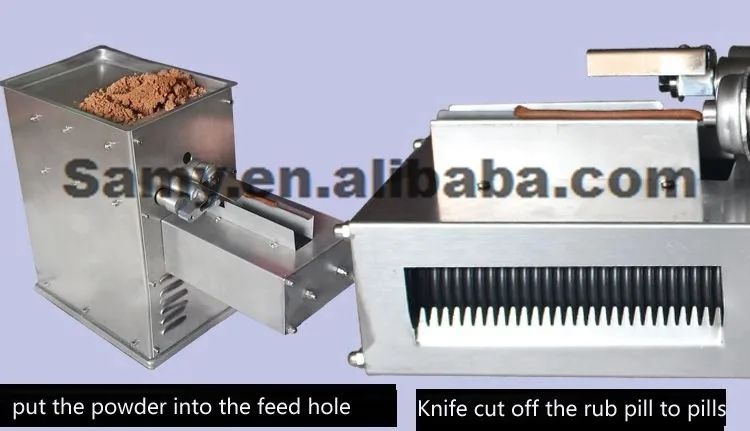

Let the mixed or refining spices into the hopper, the feed blade internal rotation, make the same dimension drugs under the extrusion of the screw propeller, pass idler groove, The bar former is synchronized into the pill wheel, after the quick discussion by double rubbing wheel, make uniform size pills.

Packing & Delivery
600 (L) * 400 (W) * 800 (H)mm
65 kgs

Packaging Details

Whole machine and every parts wrapped by plastic film for dusting-proof.

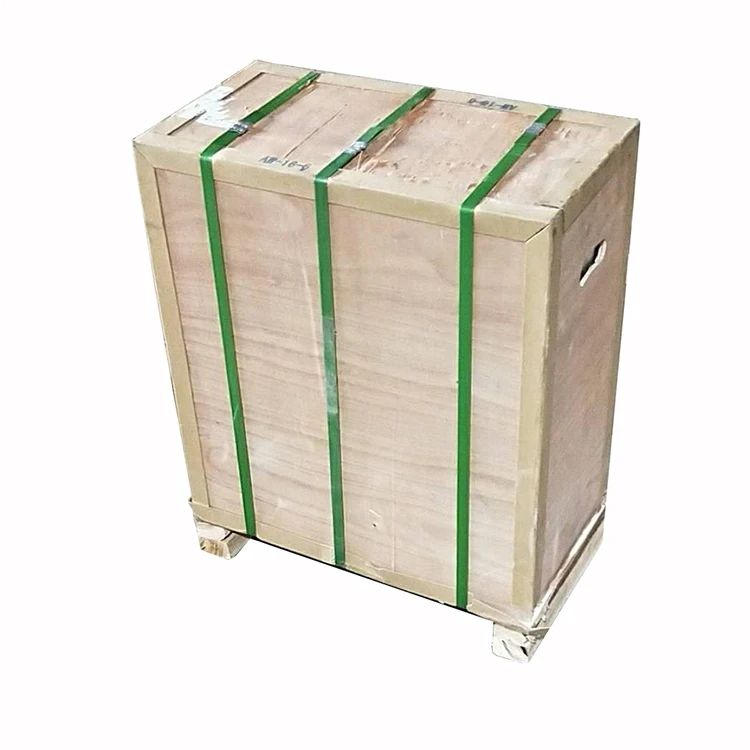

Packed in export standard wooden case with pallet, conducive to forklift handling.


Shipping method: by sea, by air, by international express company.
Delivery time: 10-45 days after order confirm.
Forwarder: We have shipping forwarder agent for sending the goods to all over the world, can arrange shippment to destination port and to door for customer. We also accept forwarder agent of customer.

Our Company

    Changsha Samy Instruments & Equipment Co.,Ltd is a professional high-tech Company,engaged in research &development,manufacturing and marketing of laboratory instruments,we have laboratory planetary ball mill,vacuum furnace,centrifuge and other series laboratory test products .
    With the tenet"Quality is Life", our company has established an impeccable quality management system,and taken the lead of our industry in passing the ISO9001:2008 quality management system certification,CE compliant and ISO13485 medical apparatus and instruments quality management system certification.
    Products of our company are widely applied in the fields of manufacturing and scientific research,such as military industry, science research institutions, institutions of higher education, central blood banks, hospitals, biological, products, pharmacy, bio-chemical, examination, agricultural, science, environmental protection, petrifaction,etc.

Our Fair and Customer:

In the past few years, we have participated in many pill making machine exhibitions and other trade exhibitions, we meet a lot of customers, and they have different needs, sometimes, customers come back to our factory to visit, our centrifuges have been well received by our clients, customers trust our product quality and are satisfied with the price of our products.

Every month, customers visit our factory, we could show the operation of the product to the customer, and customers can check the quality of our product, also customers are satisfied with our products.Our factory is very close to Changsha Huanghua airport and south of Changsha South Railway Station, so our factory has a good location.

Our Service


12 months for the whole machine.

Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free.

Out of 12 months, you will get spare parts at cost price.

You will also get technical support and service all the lifetime.

Technical Support

1. Technical support by phone, email or WhatsApp or Wechat or Skype around the clock.
2. Friendly English version manual and operation video.

After sales services

Normal machine is properly adjusted before dispatch. You will be able to use the mchines immediately.
You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
