KSD503 CE 1/4 - 2" 6-51mm automatic hydraulic hose press crimping machine

  • 1 - 9 Sets
    $1,599.00
  • 10 - 29 Sets
    $1,299.00
  • >=30 Sets
    $599.00
Model Number:
KSD503 hose crimping machine
Samples:
KSD503 hose crimping machine
$1,599.00 /Set | 1 Set (Min. Order) | Buy Samples
Shipping:
Support Express · Sea freight · Land freight · Air freight
Lead Time:
Quantity(Sets) 1 - 1 2 - 5 6 - 7 >7
Est. Time(days) 1 3 5 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Tianjin, China
Condition:
New
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
3 years
Core Components:
Motor, Pump, hydraulic hose press crimping machine
Brand Name:
KSD
Machine Type:
Hose Crimping Machine
Voltage:
380V/220V or customize
Dimension(L*W*H):
900(L)*600(W)*1420(H)mm
Weight:
330kg
Certification:
CE
Warranty:
3 years
After-sales Service Provided:
Free spare parts, Online support, Video technical support
Power (kW):
3KW/4KW/5.5KW
Key Selling Points:
Competitive Price
After Warranty Service:
Video technical support, Online support, Spare parts
Local Service Location:
None
Showroom Location:
None
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Retail, Construction works , Energy & Mining, Advertising Company
Name:
hydraulic hose crimping machine
other name:
automatic hydraulic hose crimping machine
hose inner diamter:
1/4-2'' or 6-51mm
crimp outside diameter:
15-70mm
Free dies:
10sets
Dies number:
15. 19. 23. 26. 31. 36. 41. 47. 55. 63
Crimping force:
640T
Max opening:
120mm
Scale accuracy:
0.01mm
Control System:
foot button or automatic
Supply Ability
Supply Ability:
600 Set/Sets per Month
Packaging & Delivery
Packaging Details
hydraulic hose crimping machine package: innermost layer is plastic bag, middle layer is carton, outside layer is wooden box fumigation
Port
Tianjin Port or your choice
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 2 - 5 6 - 7 >7
Est. Time(days) 1 3 5 To be negotiated
Video Description

KSD503 CE 1/4 - 2" 6-51mm automatic hydraulic hose press crimping machine

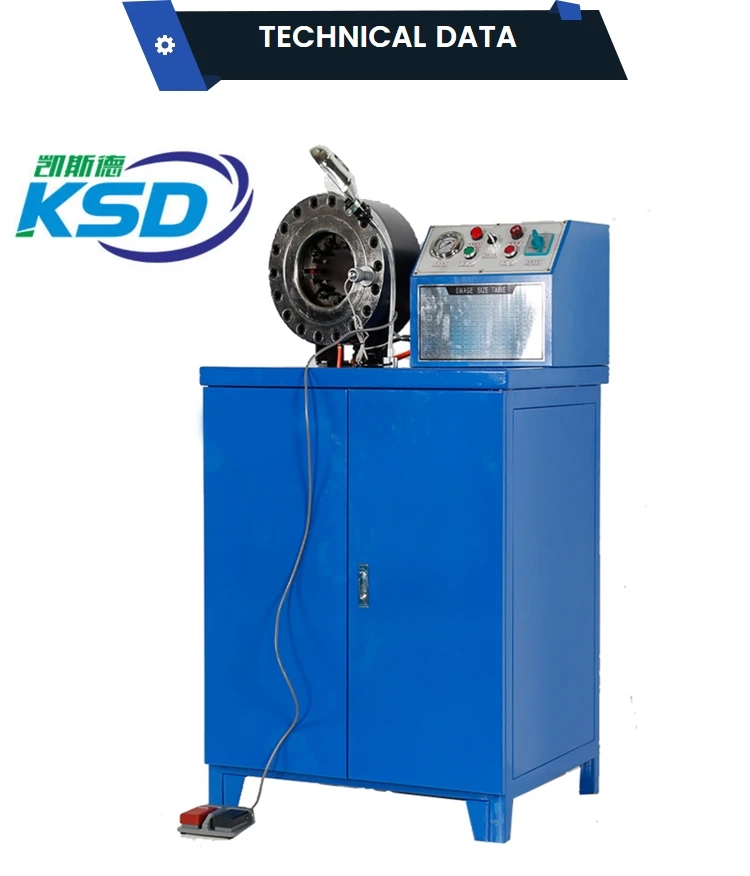

TECHNICAL DATA

Crimping range 1/4-2" or 6-51mm 4 wires
Motor power 3KW / 4KW or customize
Voltage 220V/380V/230V/415V or customize
Crimping force 560T
Dies 10 sets
Oil pump out-let quality 5L
Max opening 116mm
Scale accuracy 0.01mm
Dies number 15 19 23 26 31 36 41 47 55 63mm or customize
Operate method Button,foot pedal and automatic
Dies rack Yes,with holder,1.4m height
Light Yes,gift 1 work light
Spare one set
product
DETAIL AND ADVANTAGE

CAN BE CRIMPED ON


Different hose or fitting need different dies mold, like air suspension ring, air conditioning hose,brake hose,hydraulic hose,cable wire, steel pipe,steel wire rope and so on.

So you can tell us what you need to crimp, then we make customize the dies mold regarding your products or requirements.

RELATED MACHINE

product
product product
PACKAGING

Shipment & Payment

FAQ

Q1 : Are you factory ?
A1: Yes,we are factory,and our factory verified onsite by world-leading inspection company TUV,you can find the report on our website.
Q2: Do you have the machine in stock?
A2: We usually keep the machine in stock, please kindly tell me which model you want,we will provide you more detail information.
Q3: Could you customize the voltage ?
A3: Yes,we can customize the voltage ,we have experience customize on 230V 240V 400V 415V and 110V, if you want customize the voltage,please contact me.
Q4: How about the warranty?
A4: Firstly our machines have 3 years warranty time,its long term warranty for this kind machine;
Then we very confident that if you crimp the hose/fitting within its ability and operate right way,the machine would not work wrong;
If your machine cann''t work,please contact us,we will help you fix it or send you some spares.
Q5 : Could you customize dies molds?
A5 : Yes,we are very experience on customize dies, suck like for air conditioning,brake hose and so on. We could customize the dies pattern or dies number regarding your requirement.
Q6: Does the machine operate easily?
A6: Yes, We complete testing each machine before send,no need anymore adjust,we package installation instructions and use tip for each machine,we also could provide the operate video.
Q7 :Can you produce product with my own brand?
A7. Yes, it''s available except famous brand which are not allowed.
Q8: Could you customize color for me?
A8: Yes,we can customize the color regarding your requirement.
