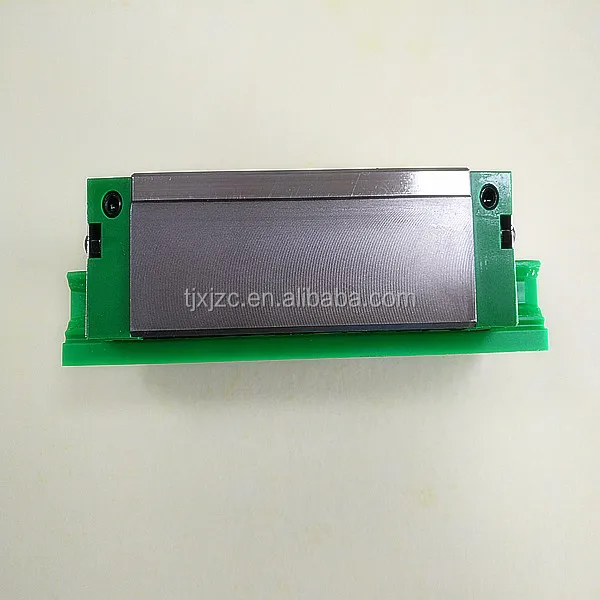

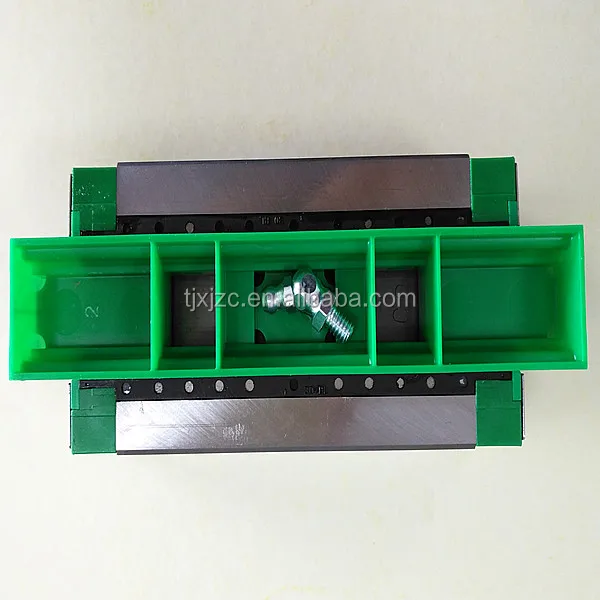

KWVE15-B-H-G3-V1 Germany Linear ball runner block Bearing KWVE15B slide carriages KWVE15 B G3 V1
KWVE55 KWVE55B KWVE55BS KWVE55BSL KWVE556BSNL
KWVE45 KWVE45B KWVE45BS KWVE45BSL KWVE456BSNL
KWVE35 KWVE35B KWVE35BS KWVE35BSL KWVE356BSNL
KWVE25 KWVE25B KWVE25BS KWVE25BSL KWVE256BSNL
The carriages are supplied in numerous variants. They have saddle plates with hardened and precision ground rolling element raceways, in which the balls are recirculated by means of enclosed channels and plastic return elements. A generous grease reservoir is provided by means of favourably positioned lubricant pockets in the carriage;
The guideways are made from hardened steel and are ground on all faces, the rolling element raceways are precision ground.
Series KUVE..-B-KT corresponds to the full complement design. In order to prevent noise from recirculation, however, the rolling elements are guided by plastic spacers – known as Quad-Spacers. As a result, these guidance systems run with less noise than full complement variants.
One Quad-Spacer accommodates two rolling elements each from the compressive and tensile raceway. Since the Quad-Spacers are not connected chain elements, bending and tensile stresses are eliminated, particularly in the return area.
Applied to many industrials, like :
Power transmission and electrical engineering
Construction, building materials and mining machinery, offshore engineering, civil engineering
Precision engineering and medical equipment
Conveying trucks, conveying and warehousing equipment
Rubber and plastics processing machinery, machinery for the chemical industry
Hydraulic and pneumatic engineering
Assembly, handling and industrial robots
Passenger and estate cars, automotive supplier industry
Toys, pedal cycles and sports equipment
Iron and steel industry
Internal combustion engines for gardening and forestry equipment, outboard motors
