Kaplan Turbine Propeller Turbine

FOB Reference Price:Get Latest Price
US $10,000-600,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hunan, China (Mainland)
Brand Name:
vcset
Model Number:
Kaplan Turbine
Type:
Axial flow turbine
Capacity:
200kw-100mw
output power:
20KW-200MW
lifespan:
30-50 years
output type:
AC three phase
Color:
Customized
Service provide:
Design,Prodcution,Maintenance
Water head:
From 10-70m
Suitable water head:
3-45m
Runner material:
stainless steel
Arrangement type:
Vertical
Supply Ability
Supply Ability:
1000 Set/Sets per Year
Packaging & Delivery
Packaging Details
Standard export plywood case
Port
Shanghai,Shenzhen,Guangzhou
Video Description

1_01

Product Description

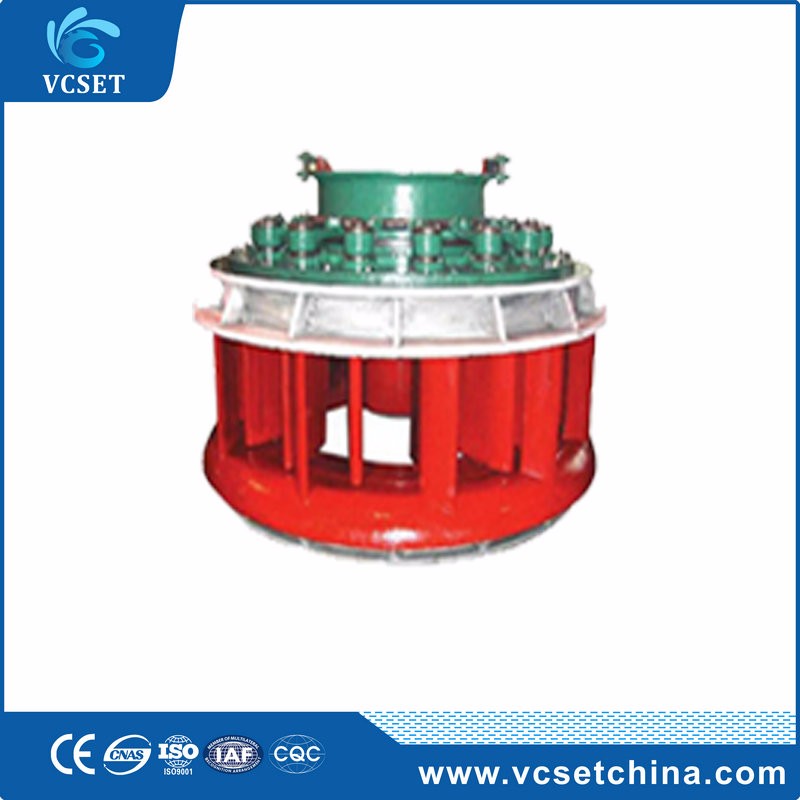

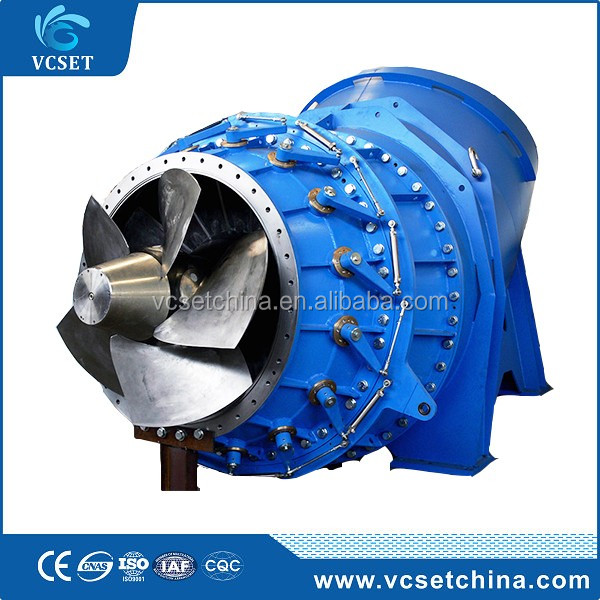

 Kaplan Turbine Propeller Turbine

Kaplan turbine is a kind of turbine suit to low water head 3-45 meters, and with certain big flow, normally divided into fixed blades and adjustable blades turbine. Main components including: runner, draft cone, water chamber, guide vane, bearing, and main shaft. The spiral case could be steel or concrete. The runner diameter we can manufacture is from 80cm to 4meters, with rated output 50Kw to 20Mw.

Turbine units normally be vertical shaft arrangement. Generator equipped with same or different shaft, with Anyway, they will share the same rotating speed. If specially required, a speed increase gear could be equipped between turbine and generator in order to smaller the generator size.

1,Suitable water head : 3-45m

2, Output scope      : 100Kw -30Mw

3, Runner diameter   : 80cm -400cm

4,Runner material    : stainless steel

5, Arrangement type  : Vertical

turbine-kaplan-011.jpgKaplan turbine.jpg
