Kiln Ceramic Kiln Oven For Ceramic Tiles Pottery Laboratory Nitrogen Atmosphere Ceramation Crucible Furnace

FOB Reference Price:Get Latest Price
$1,200.00 - $25,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Classification:
Laboratory Heating Equipments
Brand Name:
SYN
Model Number:
SYN-1100
Place of Origin:
Henan, China (Mainland)
Usage:
High Temperature Sintering
Temperature control:
51segments Programmable
Heating element:
Resistance Wire
Heating Rate:
20 ℃ /min
Thermocouple:
B type
Max temperature(℃):
1100
Power(KW):
5.5
Size:
24" x 26" x 22"
Type:
ceramics sintering furnace
Application:
Lab Equipment
Supply Ability
Supply Ability:
200 Set/Sets per Year
Packaging & Delivery
Packaging Details
Inside: Wrapped by PE paper
Mid : Filled with Poly-foam.
Outside: Packed in wooden box
Port
ZHENGZHOU
Product Description

Kiln Ceramic Kiln Oven For Ceramic Tiles Pottery Laboratory Nitrogen Atmosphere Ceramation Crucible Furnace

1.Double layer steel casing with air cooling to keep furnace surface temperature lower than 60°C, much safer to touch.

2.High purity fibrous alumina insulation for Max. energy saving.

3.Special refractory coating on inner and heating element to increase furnace life.

4.PID temperature controller to meet full automatic constant temperature function.

5.Fast heat-up to reduce energy consumption.

6.Over temperature protection and over-load protection.

Specification
Furnace Structure
Double shell steel case with cooling fan to keep outside case cool
High purity alumina fiber insulation for max. energy saving
Material
Energy saving 1800 grade fibrous alumina insulation
High purity Al2O3 coating.
Standard Working Temperature
1000°C (continuous)
Maximum Working Temperature
1100°C (Peak at < 60 minutes)
Temperature Control
Digital temperature control with 51 segments programmable and automatic PID function and overheated alarm.
Heating Rate
20 °C/min
Temperature Accuracy
+/- 1 °C
Chamber Dimension
12" x 12" x 12" (27 liters)
Heating Element
Resistance Wire
Working Voltage
208~240V AC, Single phase, 50/60Hz
Power
5.5kw, 63A fuse installed
Thermocouple
B type
Gas Inlet/Outlet (optional)
Optional 1/4" barbed gas inlet/outlet can be installed on back panel of furnace
Product Dimension
24" x 26" x 22" (D x H x W)
Shipping Weight
200 lb
Warranty
One year manufacture limited warranty and free replace all defective parts (not including spare parts).

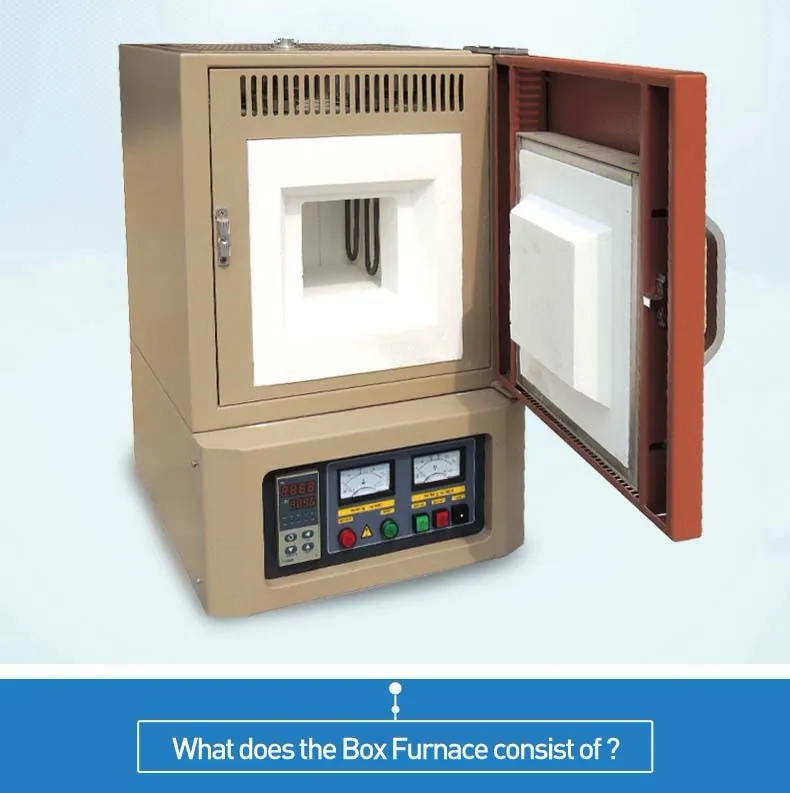

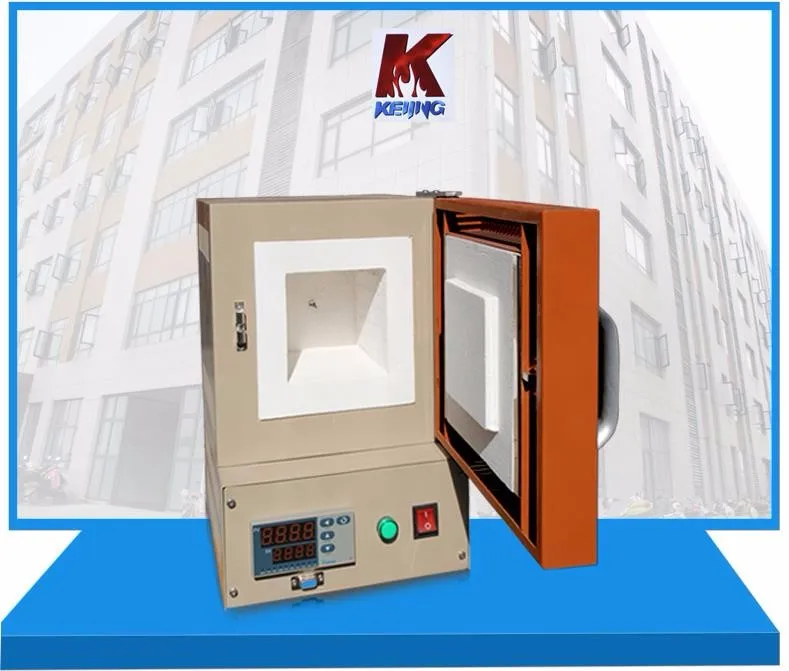

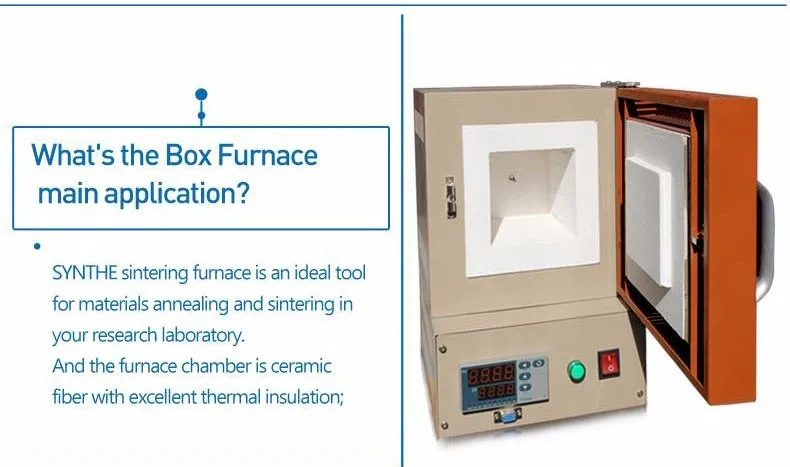

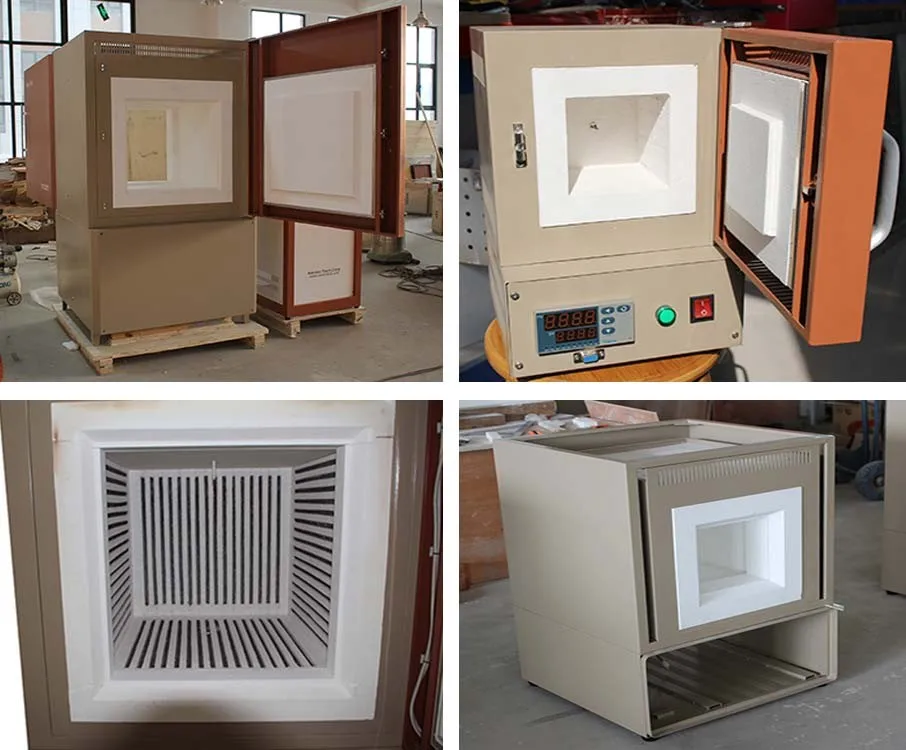

Detailed Images

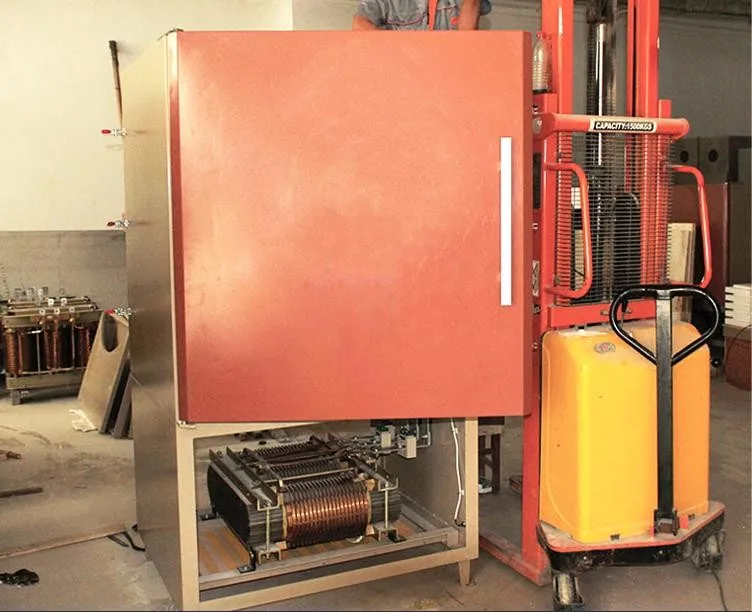

Packing & Delivery
Our Company
Henan Synthe Corporation has been developing, improving, and finishing high temperature furnaces and refractory products for almost 10 years. Today, We are engaged in the manufacture of high-temperature muffle furnaces, tube furnaces, vacuum furnaces and ceramic fiber products.

We also offer furnace spare parts, such as complete SiC and MoSi2 heating elements, Alumina crucibles. Many of our products have been developed for specific purposes with unique designs. We offer extensive research and development. Our highly qualified staff of engineers, scientists, technicians, and plant personnel, will work with you to produce a cost effective, superior product to meet your refractory needs. Synthe takes pride in our commitment to operational excellence. We have the drive, knowledge and ability to meet our customer’s specific and demanding needs for their everyday usage. We will work with you to get things done!
Our Service

1. One year quality warranty for whole furnace.

2. Reply your inquiry in 24 working hours.

3. Experienced staffs answer all your questions in fluent English.

4. Customized design is available.

5. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

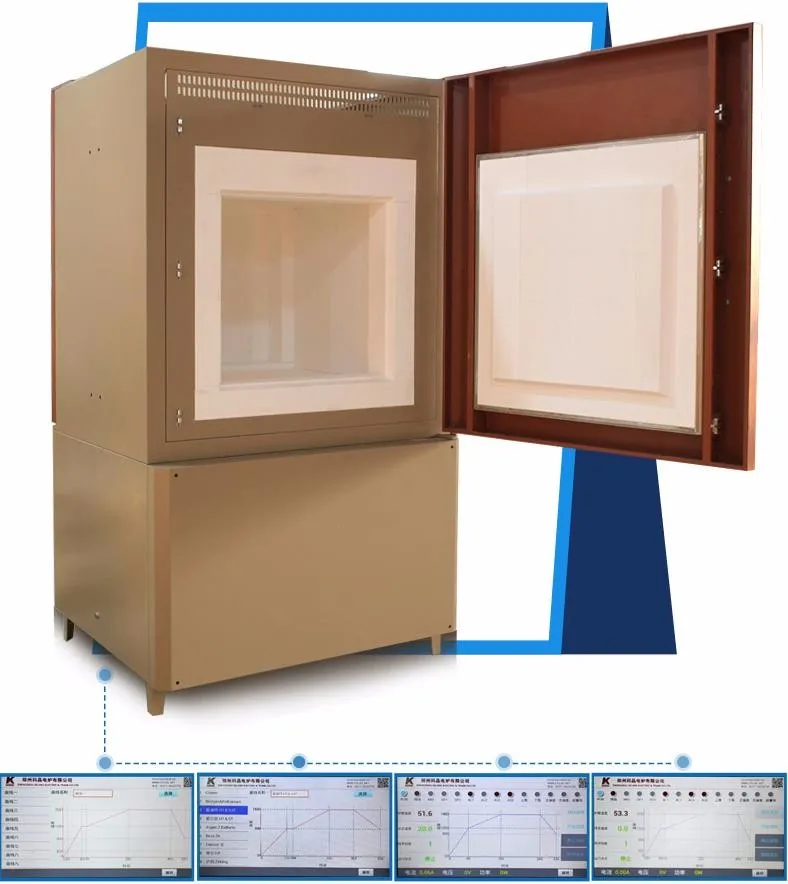

App control system
Specializing in research and development lab furnace for more than 10 years gives you the most professional service.

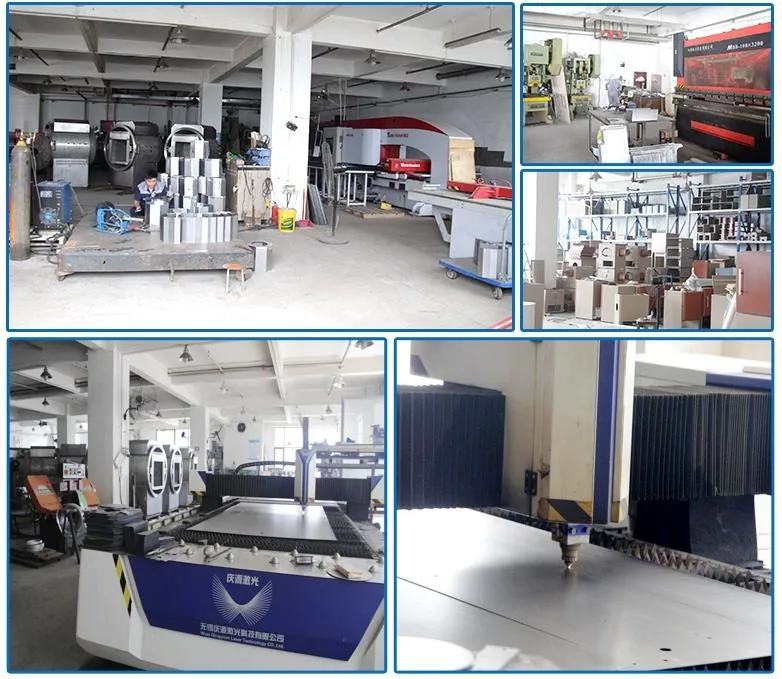

Responsible production lead to high quality.
Large-scale production lines ensure the fast delivery time.
The best package keeps your goods safer and transport easier.
