King Machine bottling line liquor, wine, alcohol, spirits, guzzle

FOB Reference Price:Get Latest Price
$13,500.00 - $85,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
KM
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized packaging (Min. Order: 1 Sets)
Customized logo (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Packaging Type:
Bottles
Packaging Material:
Glass, Plastic
Type:
Filling Machine
Condition:
New
Application:
Beverage, Food, Vodka,whisky and other alcoholic drink
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V 220V 3phase
Power:
3KW
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
KING MACHINE
Dimension(L*W*H):
by order
Weight:
by order
Certification:
CE,ISO
Keyword:
bottling line liquor
Material:
SS304/SS316L
Control:
PLC
Process:
Washing/Filling/Capping
Warranty:
1year
Product name:
King Machine bottling line liquor, wine, alcohol, spirits, guzzle
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
30 Set/Sets per Month King Machine bottling line liquor, wine, alcohol, spirits, guzzl
Packaging & Delivery
Packaging Details
Standard export packing
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated

King Machine bottling line liquor, wine, alcohol, spirits, guzzle



This series of wine filling machine is mainly used for alcohol and all kinds of spirits filling and sealing in glass bottles, also according to customers' demands, to fill in PET bottles, which is with washing, filling and capping monoblock. Such series of machine can fill with different capacities as requirements. Together with other assistant equipments used in the line for alcohol production line.



Features of King Machine bottling line liquor, wine, alcohol, spirits, guzzle

1.Filling valve adopts high precision mechanical filling valve, with the character of no bottle no vacuum pumping.

2.Open gear combinated gear box transmission, with no-off device. Frequency conversion velocity modulation device extends the speed modulating scope

3.This machine has self oil lubrication device so that the lubrication points could be lubricated regularly in time. The machine is of high efficiency, low noise and long life.

4.Centering guide is of double guide bar type, with the function of pre-covering.

5.Wine jar and capping head are driven by manual, also can be driven by electricity to fit different sizes of bottles.

6.The material height in the tank is controlled by electric probe to assure the precise liquid level.



Models of King Machine bottling line liquor, wine, alcohol, spirits, guzzle

Item

CGFF8-6-1

CGFF16-16-5

CGFF18-18-6

CGFF24-24-8

CGFF32-32-10

Capacity

1000bph(500ml)

5000bph(500ml)

6000bph(500ml)

80000bph(500ml)

12000bph(500ml)

Rising heads

8

16

18

24

32

Filling heads

6

16

18

24

2

Capping heads

1

5

6

8

10

Bottle Diameter

Commonly 50-110mm (can adjustable)

Bottle Height

Commonly 150-340mm(can adjustable)

BOTTLE

Glass or Plastic bottle

Rising pressure

0.2-0.25Mpa

Overall size

2030*1700*2350

2130*1700*2350

2450*1800*2350

2780*2200*2350

3600*2650*2350

Weight

3.1t

3.3t

3.5t

4.5t

5.5t

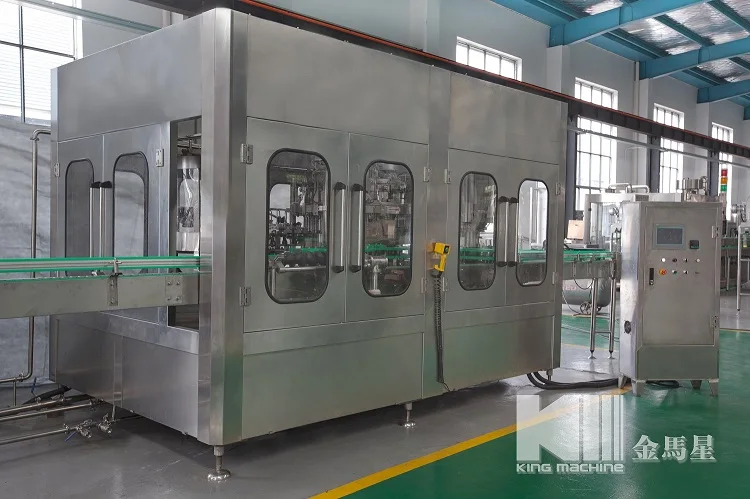

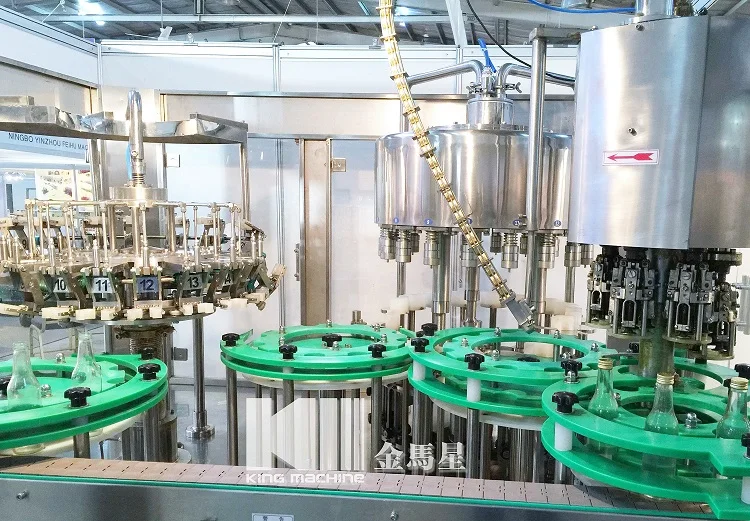

Picture of King Machine bottling line liquor, wine, alcohol, spirits, guzzle
