Kvh6000 4+ Car Garage Portable Waste Oil Heater

FOB Reference Price:Get Latest Price
$3,100.00 - $3,700.00 / Unit | 1 Unit/Units (Min. Order)
Model Number:
KVH6000
Power:
80-120kw
Shipping:
Support Sea freight · Land freight
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 20 Negotiable
Customization:
Customized logo&colour (Min. Order: 5 Units)
Temperature reading & alarm via mobile phone (Min. Order: 1 Units)

More

Air duct amount (Min. Order: 1 Units) Less
Report Suspicious Activity
Overview
Quick Details
Type:
Air Heater
Power Source:
all kinds of liquid oil
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
After Warranty Service:
Online support, Spare parts
Local Service Location:
None
Showroom Location:
None
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
KING VITAL
Dimension(L*W*H):
204x85x183cm
Weight:
289kg
Voltage:
220V or 110V
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Online support
Working Temperature Range:
-40 - 40 ℃
Key Selling Points:
Integrated
Marketing Type:
New upgraded product 2020
Warranty of core components:
3 years
Core Components:
Motor, burner, heat exchanger
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Product name:
waste oil heater
type:
portable&mobile
heat supply area:
800-1000sq.m
Max.output heat:
100,000Kcal/H(400,000Btu/H)
Oil consumption:
6-8 L/H
air duct amount:
four pieces
chimney diameter:
140mm
working pressure:
0.5bar (7psi)
application:
garage, canteen, poultry farm, workshop, etc
business type:
original manufacturer
Supply Ability
Supply Ability:
1000 Unit/Units per Month
Packaging & Delivery
Packaging Details
1 unit:
carton box with tray for sea ship
package size:203x85x183cm(3.2cbm)
G.W:350kg
Port
Qingdao
Picture Example:
package-img
package-img
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Video Description
KVH6000 Details
Item
KVH6000 Oil Heater
Heat Supply Area
800-1000sq.m (800-1000sq.ft)
Size(LxWxH)
195x80x180cm
N.W
370kg
Heat Exchanger
304 ss combustion chamber
Draught Fan System
one 600mm(dia) YWF+one 300mm(dia) YWF
Oil Consumption
6-8L/H
Output Power
80-120KW
Max.Output Heat
100,000Kcal/H(400,000Btu/H)
Air Output
12000m3/h+1800m3/h
Air Output Exit Amount
4x300(dia)
Fan Motor
880w+115w
Chimney Diameter
140mm
Power Supply
220V 50HZ or 110V 60HZ
Working Pressure
0.5bar(7PSI)
Must work with external air compressor,smallest capacity is 90L/min
Fuel
all kinds of liquid oil
Application
Indoor: such as greenhouse, poultry farm, factory
Outdoor: such as tunnel, stadium, snow melt, warm airplane engine
Available Fuel List
1) Waste car/engine oil from the car, truck, garage as well as motor oil, hydraulic oil
2) #2-#5 fuel oil
3) Vegetable oils, such as palm oil, soybean oil, used cooking oil from the restaurant as well as animal fat oil
4) mixed oil
5) diesel oil, light oil
Product Feature
Strong & Protective Fan System
The fan sucks in cold air, via the inside heat exchanger, blows out warm/hot air. The outlet temperature rises from 27℃ to 40℃ takes 2 minutes, continues to rase up.

The fan also functions as the heat exchanger's protector. It keeps sucking in cold air until the exchanger's temperature drops to the setting. Drop from 54℃ to 40℃, takes 2 minutes 15 seconds.

Suck in cold air
blow out hot air

Original Heat Exchanger
The inside exchanger's material is 304 stainless steel; wholly sealed- safe and durable; the reference service time is five years.

How Long To Reach 100℃
The hot air outlet, raise from 26 to 100℃ takes 6 minutes 26 seconds

Long-Distance Heat Transfer
Four-pieces air hoses come with KVH6000 Oil Heater.
The temp from the end of the 3 meter hot air hose, raise from 29 to 48℃ takes 2 minutes, continues to rase up.

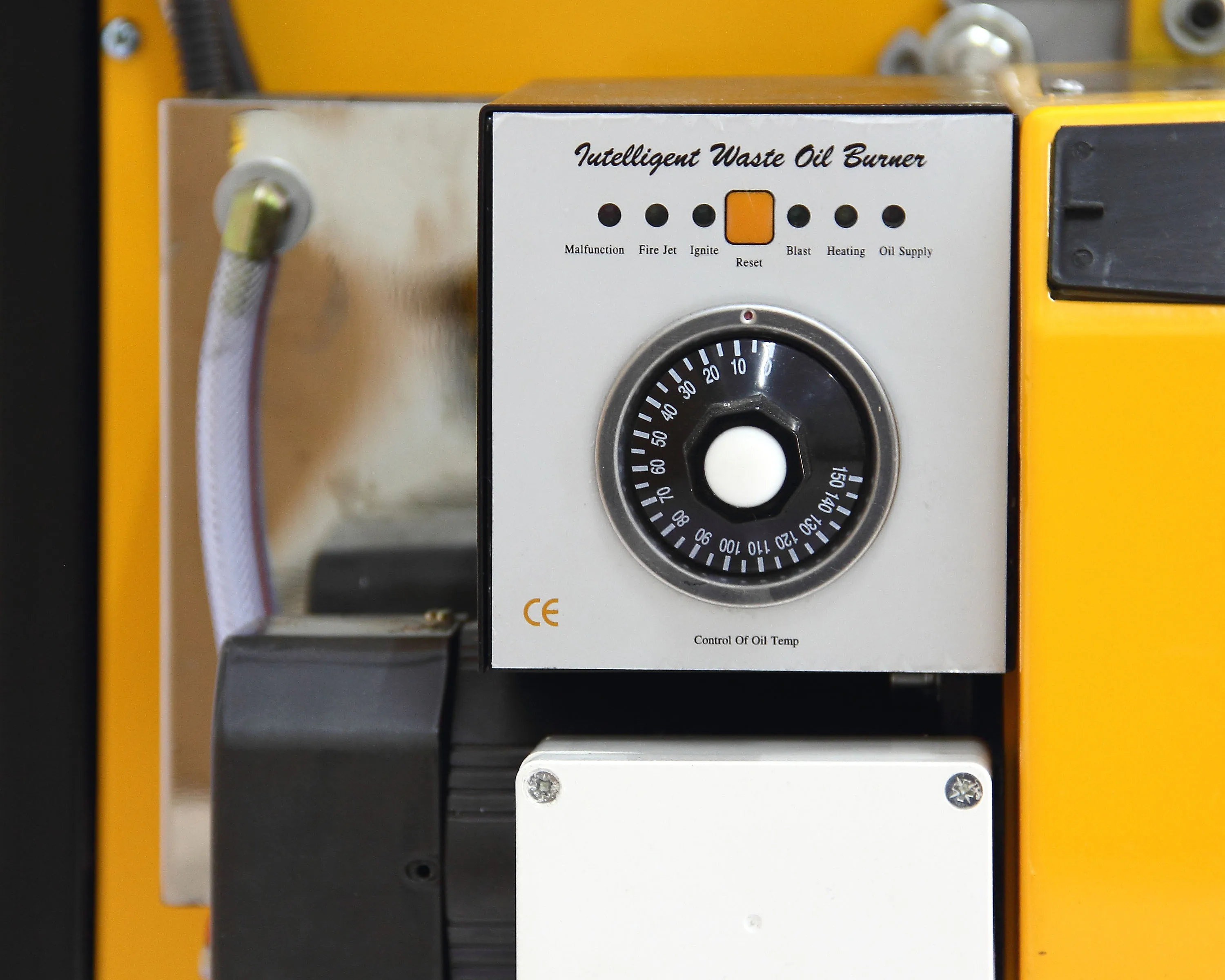

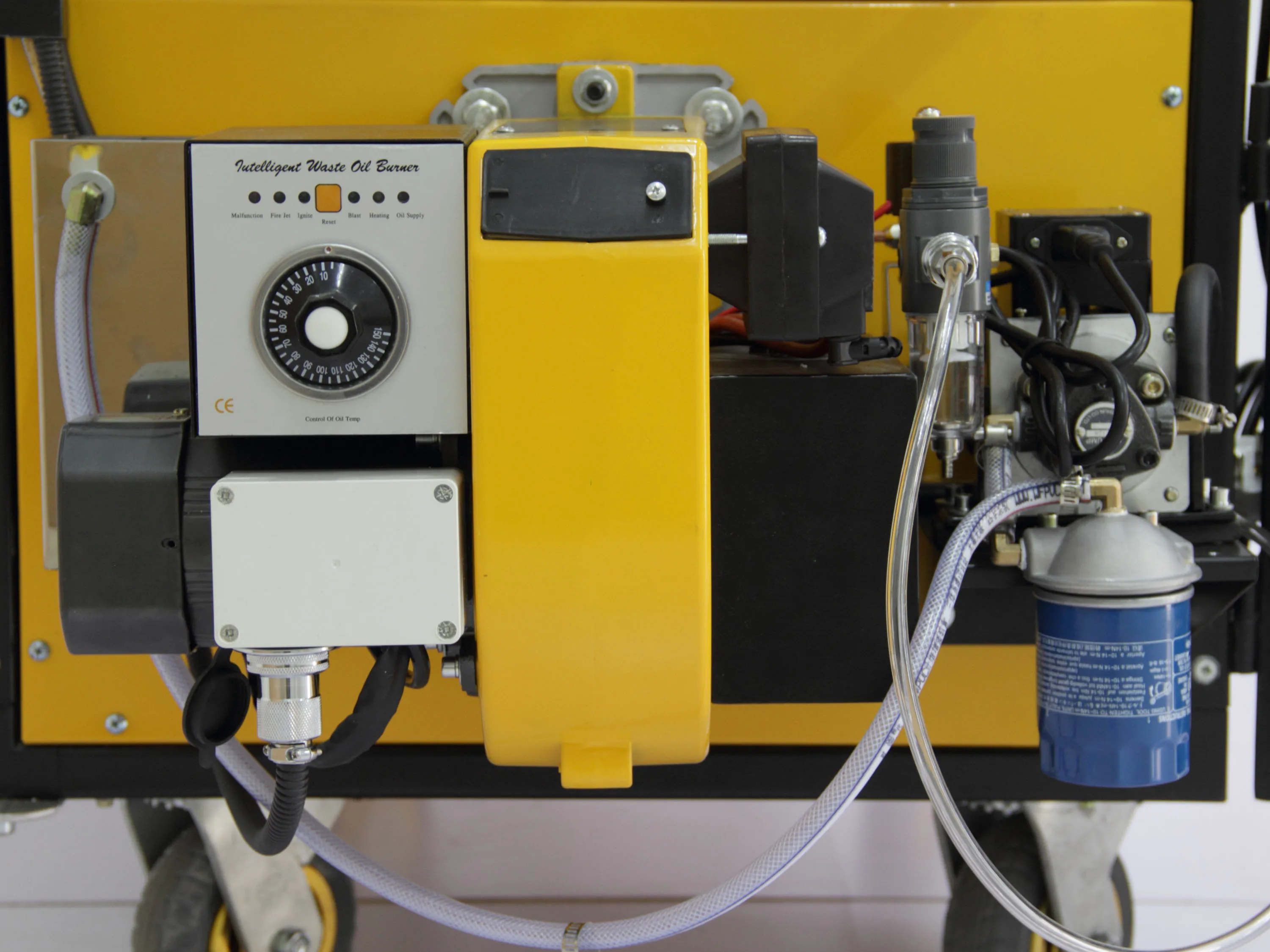

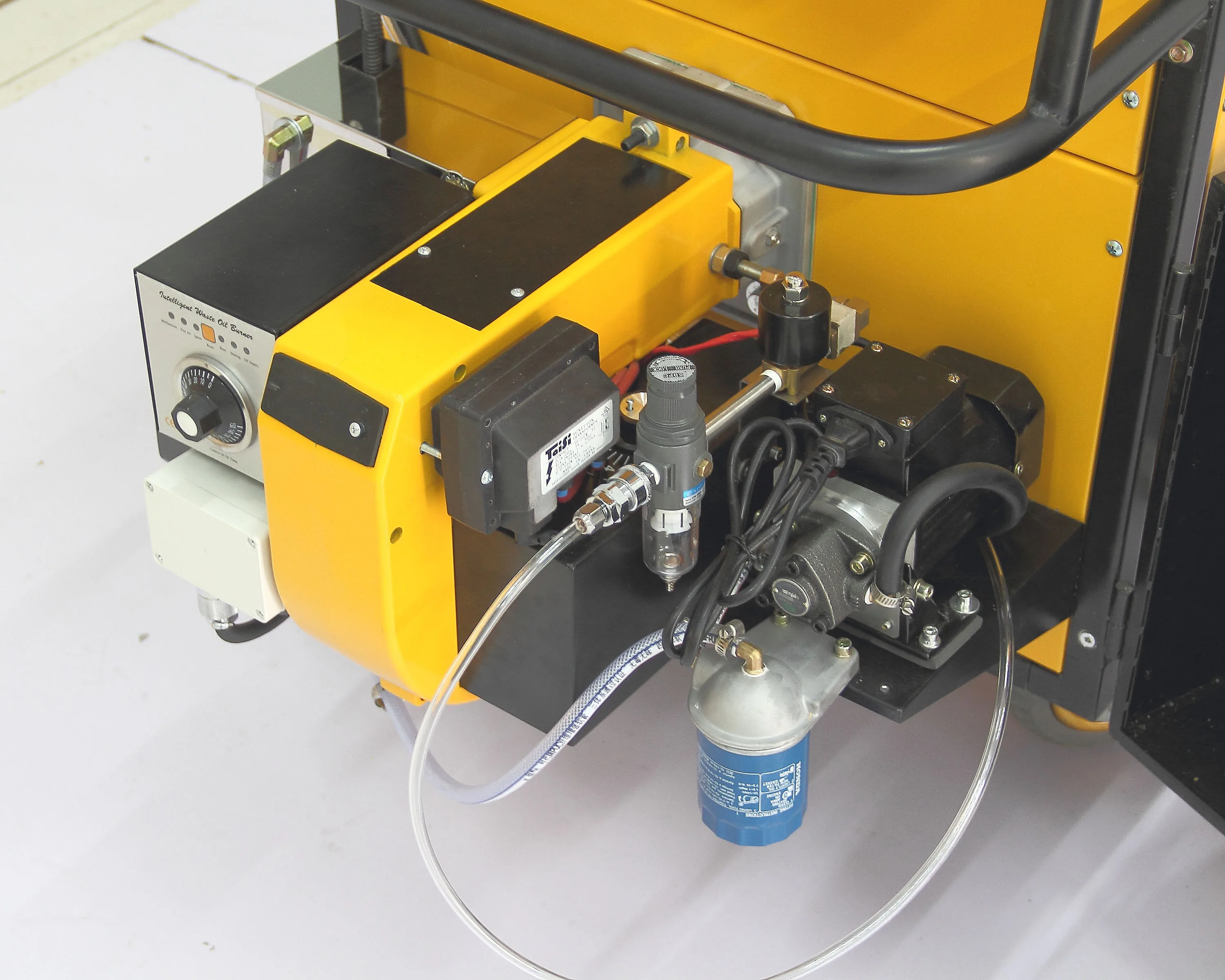

Waste Oil System
Integrated waste oil system- oil storage & heating tank, pump & filter system, burner, deodorization device are already on the heater.
Less oil consumption: KVH6000 heater consumes 6-7 Liter oil per hour.

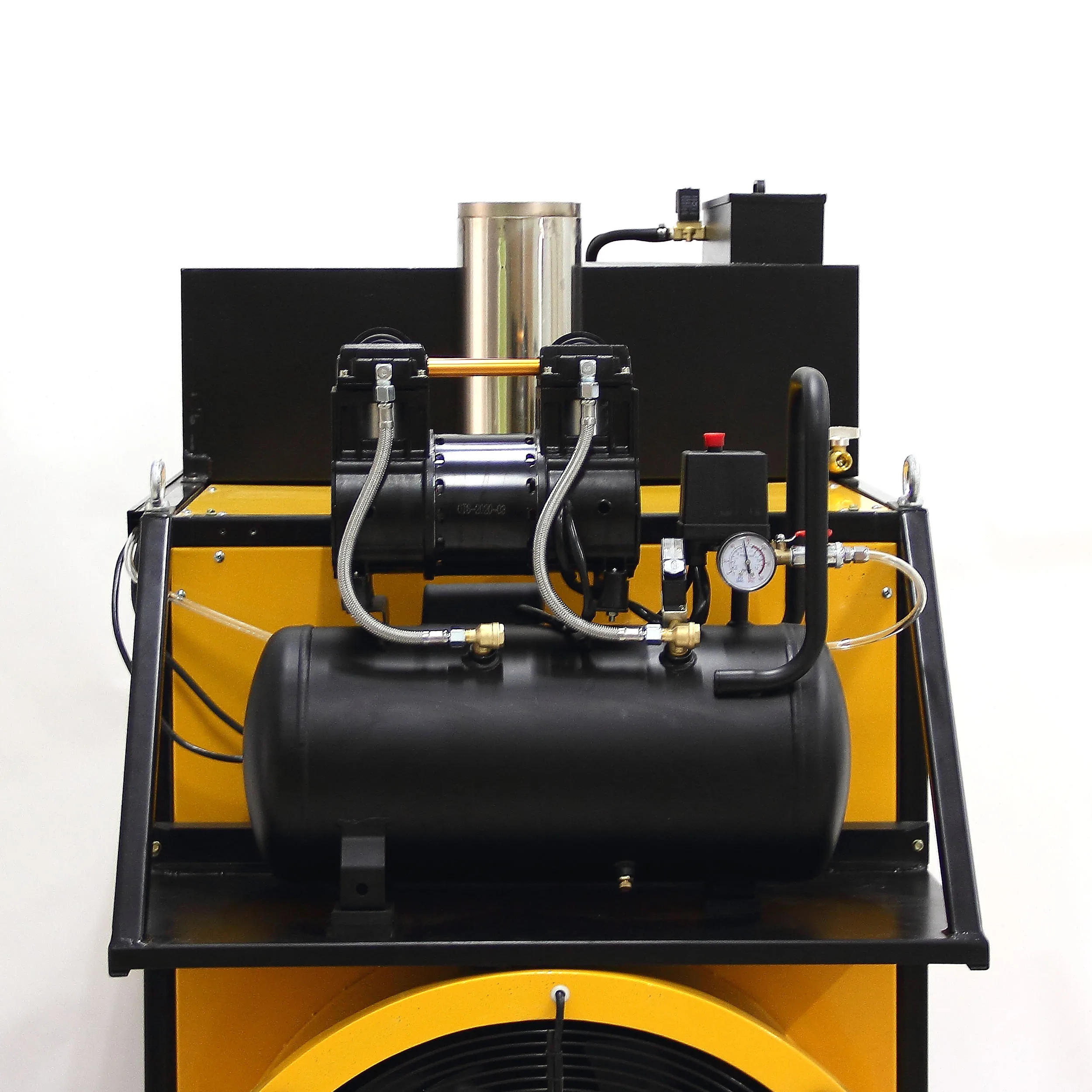

Air Compressor System
Each working period uses 2 bar compressed air, which takes one minute 30 seconds—thirty seconds to raise compressed air from 5-7 bar, the left one minutes for burner's consumption. After compressed air reduces to 5bar, the air compressor starts to work again.

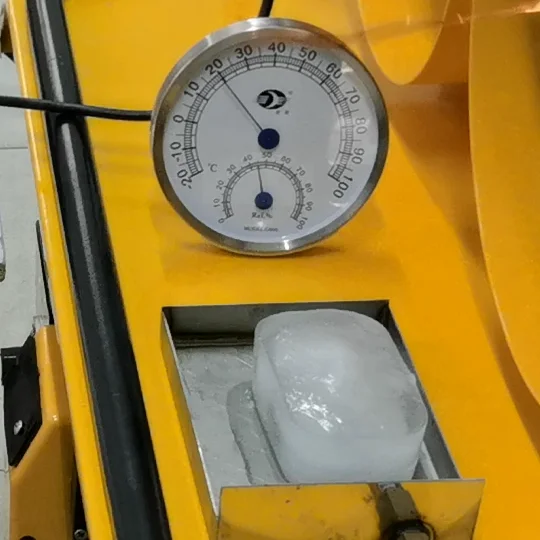

How Long To Melt 200g Ice Block

The first three minutes

room’s temperature rases 6℃, from 19℃ to 35℃. The ice block can still see its shape.

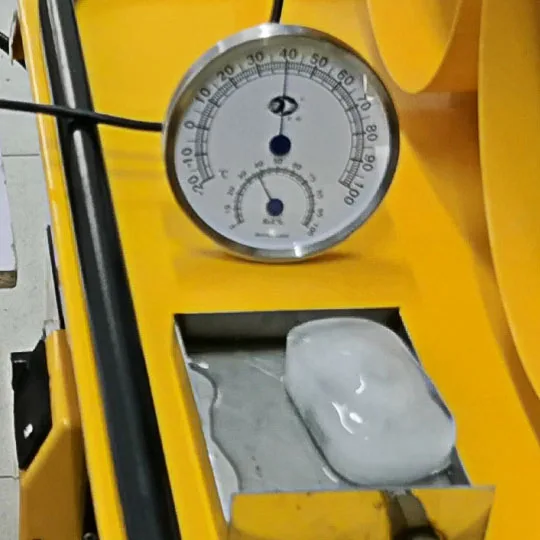

From the fourth minutes to the eighth minute

the room’s temperature rases 10℃, from 40 to 50℃. The ice block still melts, sleeks, and becomes smaller.

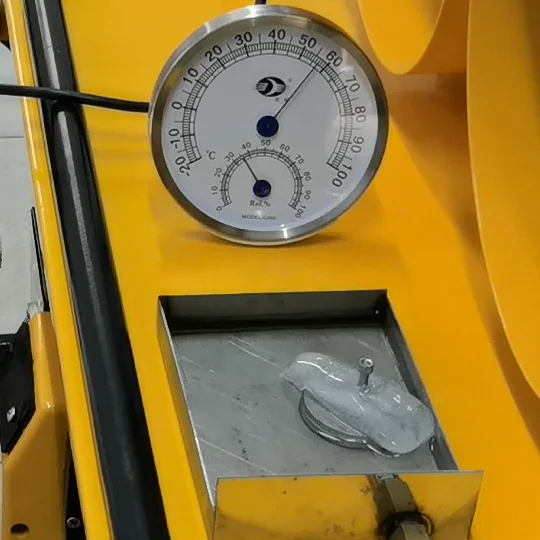

From the ninth minutes to the final 14th minutes 30 seconds

room’s temperature rases 4℃, from 54℃ to 58℃.
The ice block can’t see its shape anymore and melt completely to water.
It takes 14 minutes 30 seconds to melt 200g ice block completely. Waste engine oil consumption is 1.75L.

What's The Smoke Temp
Smoke temp raises from 31-260℃, takes four minutes, continues to rase up.

We collect all the above data from a particular situation as follows, Test day weather: temp is 15-21℃, sunny, and windy. Test data: 30th of April 2020, 13th of May 2020 Test room size: 34sq.m (6.1-meter length, 5.6-meter width), 3.4-meter height, not sealed Test heater: Model KVH6000(400 000Btu)
Fuel: waste engine oil Contact us to revise the test videos!
ps: All the data will change in a different environment.

Model Comparison
Waste Oil Heater Hanging Type
Model
Max.Output Heat
Heater Size
Reference Heat Supply Area
Oil Storage Tank
Air Compressor
KVH800

120 000Btu/h
80x50x50cm
below 200sq.m
external 54L oil tank

Option
KVH1000
200 000Btu/h
110x55x55cm
200-400sq.m
external 100L oil storage tank

Portable Waste Oil Heater For Garage
KVH2000
400 000Btu/h
95x56x174cm
600-800sq.m
Inside 100L oil storage tank

Option
Waste Oil Heater Specially For Greenhouse & Chicken House
KVH5000
400 000Btu/h
185x90x127
cm
600-800sq.m

Inside 100L oil storage tank

Deodorizing box

Air hoses


✓
KVH6000
400 000Btu/h
(upgrade chamber)
203x85x183
cm
800-1000sq.m
*Inside 100L oil storage tank *Portable,wheel&braker installed *Can be installed both indoor & outdoor
*greenhouse temperature
readable
*Minimum adjustment temperature is 1C *Adjustment temperature range:0-100C
*Air duct,heat resistant to 100C
Big Power Waste Oil Heater
KVH8000
800000Btu/h
218x100x198
cm
1000-1600sq.m
External 230L oil storage tank

Deodorizing box

Air hoses


✓
Installation Example
Our waste oil heater has many applications,can be used both indoor and outdoor.Such as garage,workshop,factory,poultry house,greenhouse,drying kiln,tunnel,stadium,snow melt,warm airplane engine etc.
Order Display
One Package Service

Machine Tool Workshop

Foundry Workshop

Finished Casing Frame

Assemble By Handwork

Burner's Fire Test,Troubleshoot

Heater's Programme Test

Transport

●By express,such as dhl
●By air
●By sea
●By land

After-Sale Service

●spare parts for life time
●online support
●one year quality warranty

Refund Guarantee

●Transcation via alibaba trade assurance order.if we fail to product quality and delivery time,alibaba will pay your loss.
