LAB1ST industrial competitive 5l 10l 20l 50l essential oil distillation vacuum chiller rotary evaporator price

FOB Reference Price:Get Latest Price
$3,000.00 - $4,500.00 / Sets | 1 Set/Sets (Min. Order)
Application:
Distillation
Model Number:
RE-510
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Power Source:
Electric
Process:
Vacuum Distillation
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
LAB1ST
Voltage:
220V/110V
Power(W):
250W
Dimension(L*W*H):
1100*550*1200mm
Weight:
160kg
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Overseas third-party support available
Model:
LAB1ST cometitive rotary evaporator price
Evaporation Flask:
10L
Receiving Flask:
5L
Material:
Stainless Steel
Sealing:
PTFE +Viton
Evaporation Speed:
3.2L/hr (water)
Future:
laboratory rotary evaporator
End volume:
20mbar or less
bath power:
3.8kw
Supply Ability
Supply Ability:
1000 Set/Sets per Month LAB1ST cometitive rotary evaporator price
Packaging & Delivery
Packaging Details
Carefully packed in woods
Port
Shanghai
Product Description

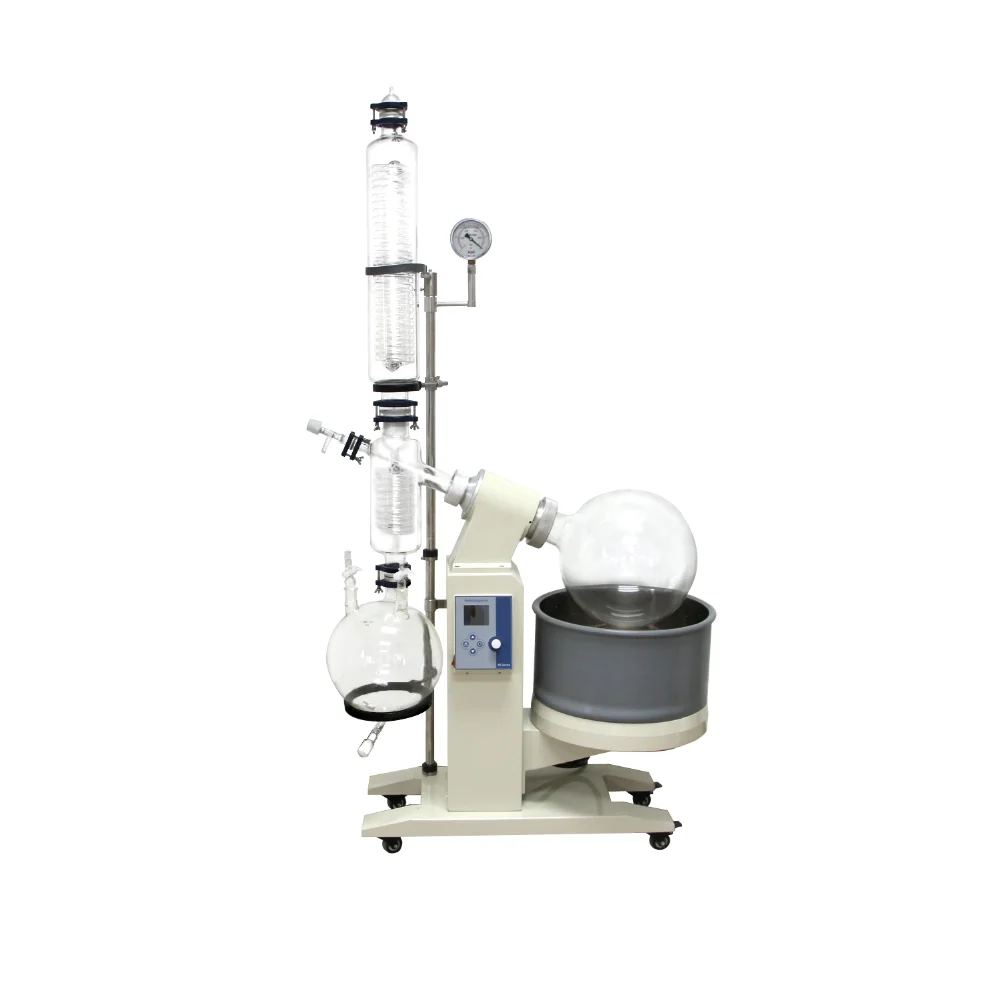

LAB1ST cometitive rotary evaporator price

The LAB1ST RE1-series rotary evaporators feature a simple and reliable modular design, making it one of the most reliable rotary evaporators in industry. Their open and straight-forward structure also makes them extremely easy to maintain and repair. Moreover, these evaporators are designed with various safety features (dry-heating shut off, over temperature protection, soft start of rotation, over-current protection).

For hazardous environment, our RE1-series EX (explosion proof) model is rated for Exd IIB T4, which is equivalent to Class I, Division 1,Group C T4. For extreme condition, we are able to customize the system to air-driven motor and steam-heated bath, which totally eliminate risks from electrical sparks.

Technical Futures

1.All the wetted components are made of high quality boro 3.3 glass and PTFE, for excellent corrosion resistance.
2.High precision vacuum seal and vapor tube design leads to ultimate vacuum performance (1 mbar end vacuum, < 1 mbar/min vacuum leakage).
3.Modular and straight-forward structure for extremely easy maintenance.
4.High torque motor, high precision worm-gear gearbox and hand lift components for years of quiet and reliable operations.
5.Easy and straight forward operation of speed and temperature controller.
6.1-year hassle-free warranty and life-long parts and phone support.
7.Heavy-duty SS304 support frame and epoxy-coated water/bath enclosure guarantees vibration-free operation.
8.2-stage triple-coil condenser design with extra large cooling surface for outstanding cooling efficiency.
9.1-way check valve automatically turns off when draining the receiving flask. The pressure inside evaporator won't be changed during draining.10.The VFD speed controller keeps the motor's torque at its maximum even during low speed range.
11.The temperature controller comes with a built-in over-temp monitor, which shuts off heating when bath temperature is 15C higher than set value.

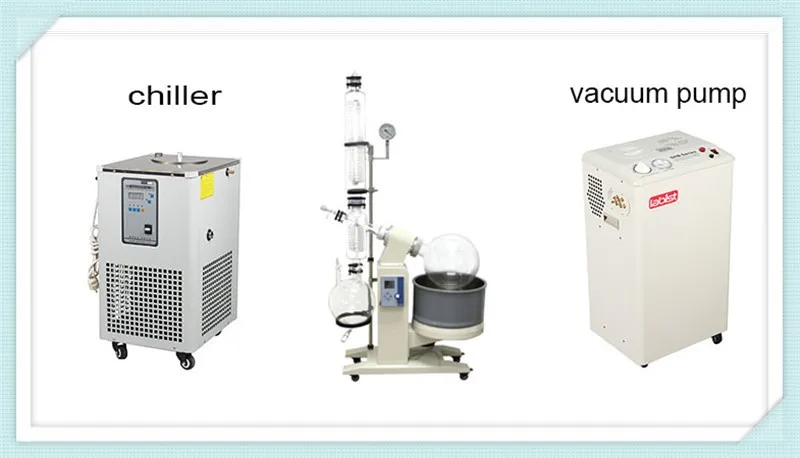

12.Various options and accessories are available (vacuum pump, chiller, vacuum controller, cold trap, etc)

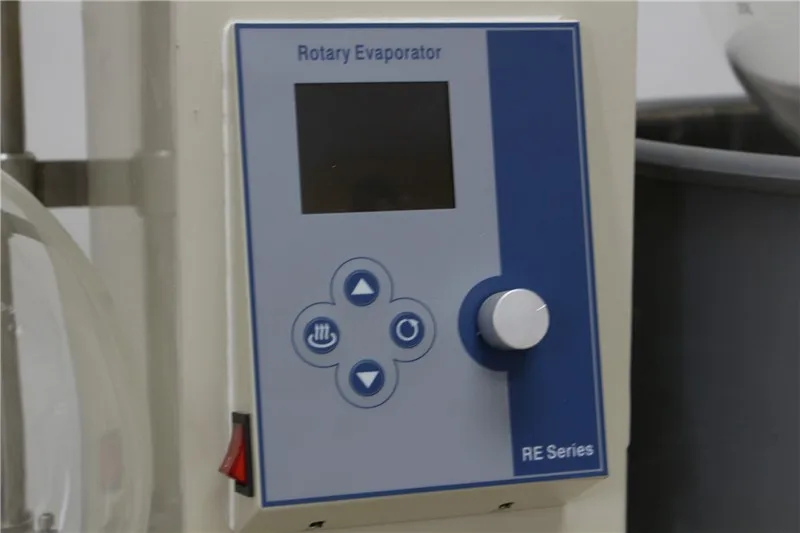

LCD integrated contral panel


Integrated control panel can control the rotating speed, temperature and the height of heat bath.


Integrated control panel designs with observation window.

Electric Lift Heat Bath


Electric lift heat bath with a temperature range: RT~90℃(Water) or RT~180℃ (Oil)


Homogeneous glass flask, keep rotating concentric, reduce shake and anti-corrosion.

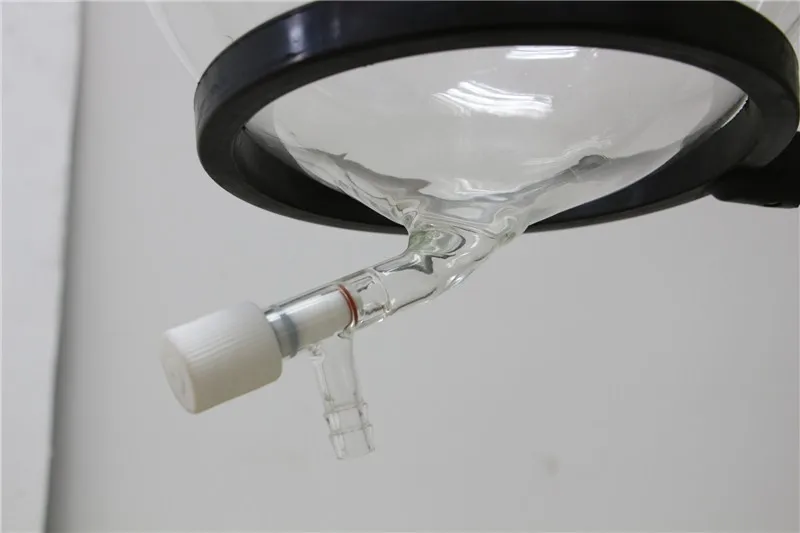

PTFE discharge valve



New designed PTFE with flang connection, which is anti-corrosion,

no vacuum grease, no pollution to solvent received, and more fastness.

Technical dates
Model
RE-510
RE-520
RE-550
Rotary flask
10L
20L
50L
Collect flask
5L
10L
20L
Motor speed controller
AC motor, stepless controller
Rotation speed
20-110 rpm
Motor power
250W
Bath
stainless steel ,  water RT-99℃, oil RT-180℃
End vacuum
399.9 pa
Evaporating speed (water)
3.2L/h
5L/h
9L/h
Evaporating speed ( alcohol)
6.5L/h
11L/h
19L/h
Lift
electric lift
Bath power
3.8kw
6.3kw
6.3kw
Voltage
single phase, 220v/50Hz
External Dimension
1100x550x1200mm
1100x550x1200mm
1220x660x1450mm
Related products
Model
 SHZ-95
Utimate Vacuum
20mbar (-0.098Mpa)
Gas-taking speed
10L/min x 5 ports
Water tank volume
50L
Water flow rate
80L/min
Pressure head
12m
Power
370w,220v, 50-60hz
Weight
36kg
Dimension
450x340x790mm
Lots of options, with reservoir volume from 5L to 100L, and lowest temperature from -10C to -120C

Easy-to-operate controller panel

Large and bright LED display of temperature

Durable castors for easy transportation

All necessary accessories available (tubes, valves, insulation layers, etc)
jacketed glass reactor systems is the ideal equipment for mixing, reaction and distillation in chemistry and pharmaceutical industries

volumes are available from 500mL to 200L

High quality borosilicate 3.3 glass

Outstanding corrosion resistance

Fully customizable systems
How to support

For a lab equipment, the most valuable is the quality configuration and after sales support!

1.All glassware test by china authorities certification, our products get Green product certification,China famous product certification and ISO9001 quality management system certification.

2.All machine dispatched from Lab1st must be test by 3 times. the first time is the PR deparment,then test again by the QC deparment, and then the machine must be test again by our DS deparment.  to guarantee each machine working perfect before delivery! 20L Multi Effect Rotary Evaporator with Chiller Pump

3.Each machine will deliver with User manual, machine label, Serier No.  to guarantee the customer can get the machine without quality problem, custom clearance problem and delivery problem. also we provide 13month guarantee since the shipping date, all faulty spare parts can be exchanged for free at the first time

Our factory

Labfirst Scientific Instruments Co.,Ltd | Shanghai, China

Labfirst Scientific (LAB1ST) was founded and based in Shanghai, specializing in the manufacturing and sales of premium scientific glassware, lab equipment and glass apparatus. With more than 20 years of experience on glass blowing, we provide a comprehensive range of products from lab glassware to industry-grade glass reactors (up to 200L) and evaporators (up to 50L). With the help of our experienced scientific glassblowers, we are able to quickly build customized glassware and prototype equipments, based on your sketch or pictures.


As a key supplier to the pharmaceutical industry, We work hard to provide high quality yet low cost products to our customers in universities, research labs and production facilities from all over the world. LAB1ST cometitive rotary evaporator price


We are proud to guarantee that, with our strong technical background and communication capability, our sales/support engineers are able to answer your most complicated technical questions over the phone in English. That would save a lot of time for communication.


The following pictures show our factory. over 3500 square meters. 150-200 people, divided into 4 workshops. Allows to produce and store large number of  products all the time.
