LED Integrated Membrane Switch with Metal Dome for Ventilation System

FOB Reference Price:Get Latest Price
$0.10 - $10.00 / Pieces | 100 Piece/Pieces (Min. Order)
Customization:
Customized logo (Min. Order: 100 Pieces)
Graphic customization (Min. Order: 100 Pieces)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
FLEXKYS
Model Number:
Custom
Application:
Calculator
Keypad Button Material:
PET/PC
Color:
Pantone
Certification:
ISO9001:2008
Material:
PET PC
Rear adhesive:
3M468MP Adhesive
Adhesive:
3M467/468
Type:
Meet Customer's Demand
Printing:
Screen Printing
Size:
Customized Size
Membrane switch:
OEM Membrane Switch
Supply Ability
Supply Ability:
500000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
First put into a polybag per 50 pcs usually, seperated by cardboard, then paked into a 5-layer carton.
According to clients' special requirements.
Port
Shanghai

LED Integrated Membrane Switch with Metal Dome for Ventilation System

PartOrdinary Material
Graphic Overlay  FinishSpecification
 PC Gloss0.175/.25/.35/.5 mm thickness
 Matt0.175/.25/.35/.5 mm thickness
 PET Fine Texture0.15/.20 mm thickness
 Valet Texture0.15/.20 mm thickness
 Gloss with Hard Coat0.18 mm thickness


Top Adhesive

 PET Double-sided Tape

0.10/.125mm

 Paper Double-sided Tape 0.10mm
 Transfer Tape

0.06/.12mm

 Retainer PET Gloss 0.125mm
 Spacer PET Double-sided Tape  0.225/.275mm
 Circuit Layer PET Gloss 0.125mm


Rear Adhesive


 Paper Double-sided Tape  0.10mm
 Transfer Tape  0.06/.12mm


Connector


 Pin  Metal,Male/Female 2.54mm

 House



 Female,2.54mm

Conductive Layer



 Silver Paste

  Acheson ELECTRODA 820B
 Carbon Paste  Acheson ELECTRODA 423SS
 Insulation Ink  Acheson ELECTRODA 452SS





Electrical Performances

Wire Resistance

0.5mm width,<1Ω/cm

Rated Current

25-100mA,0-30V DC

Insulation Resistance

>100MΩ 250V DC

Working Voltage

<50V DC

Non-tactile Switch

0.1-0.4mm

Tactile Switch

0.4-1.0mm

Working Life

>1 million times

Working Temperature

-40℃-70℃

Working Humidity

40℃,98%RH No Influence

Substrate Voltage

1500V DC

Feed backTime

10ms

Tail Folding

 R>1,180

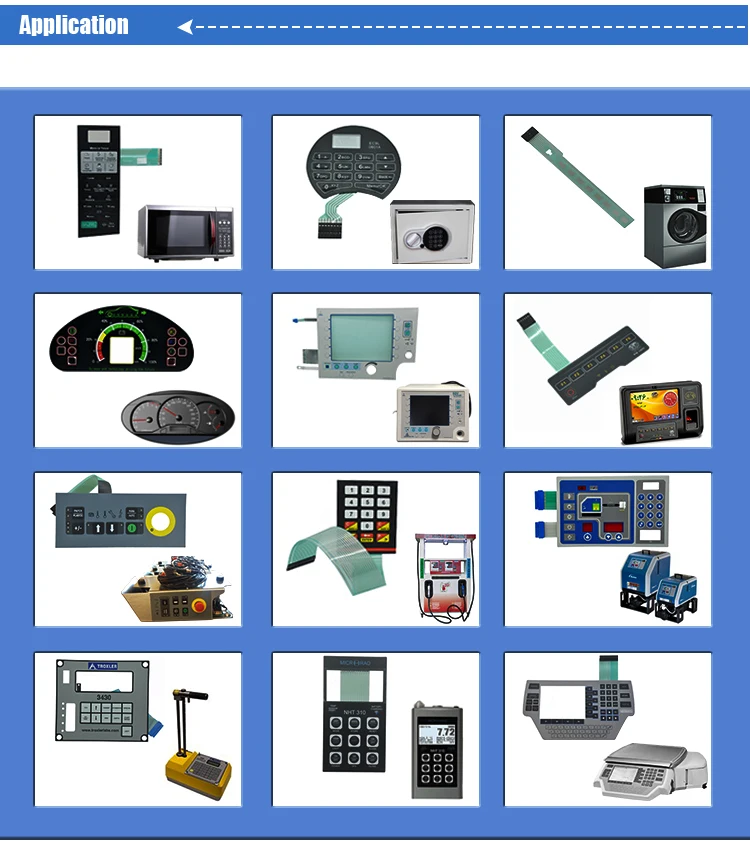

Application Areas
1. How to make an order?
Please tell us your material,artwork design,logic circuit principle chart,size,surface,usage etc. And better send us the design drawing or samples together with other detailed datas, then we’ll customize the membrane switch upon your requests.
2. Sample available?
Yes, but based on freight collect. Most of the items are customized for clients, so molding charge is needed.
3. How to guarantee the after sales service?
We will track the production situation of the goods during the whole process,we promise the goods will be shipped to you smoothly. If any problem happened, we will provide the best solution for you.
4. Shipping ways & Delivery Time?
Shipping by: UPS/ Fedex /DHL /TNT or other ways specified.
Delivery time: 15~20 days after payment received.
5. Payment terms:100% T/T in advance.
