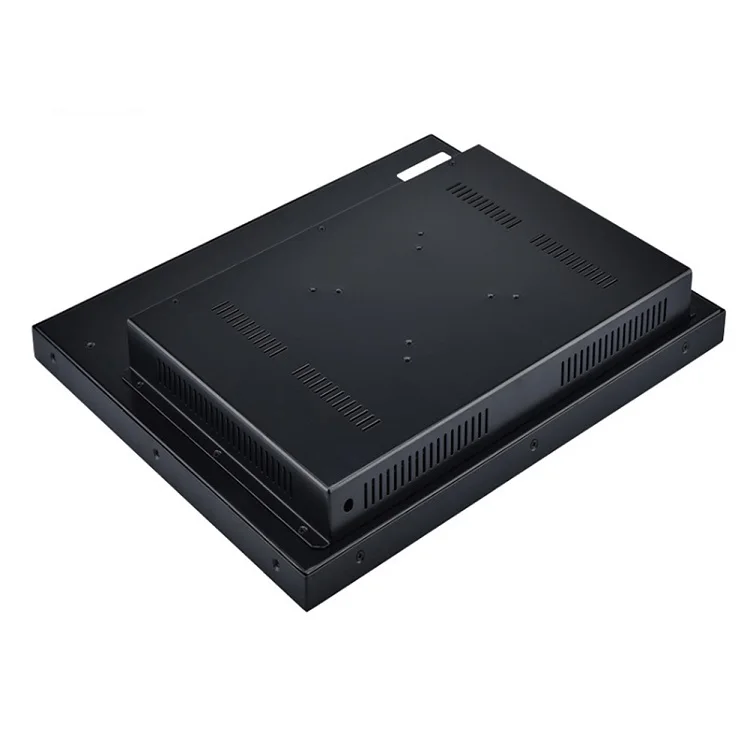

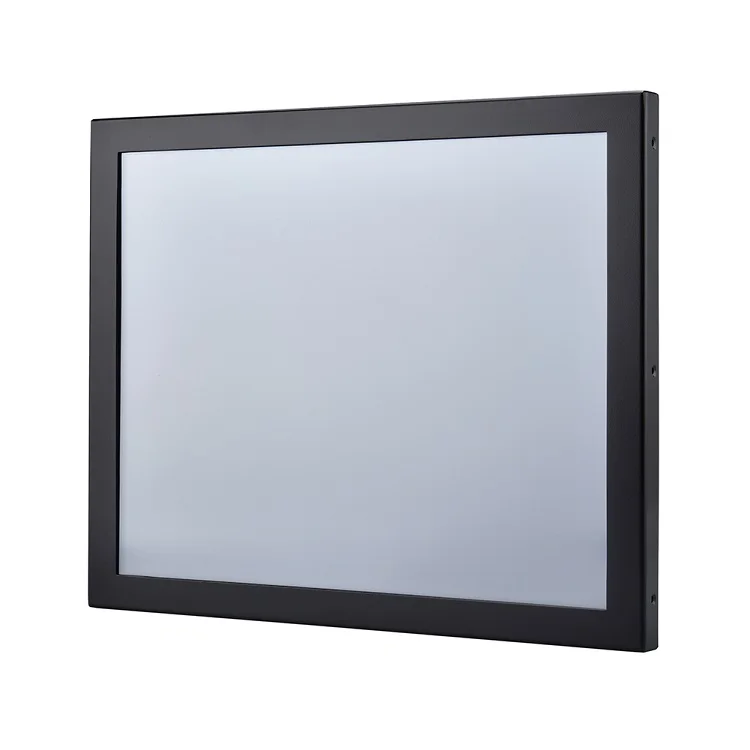

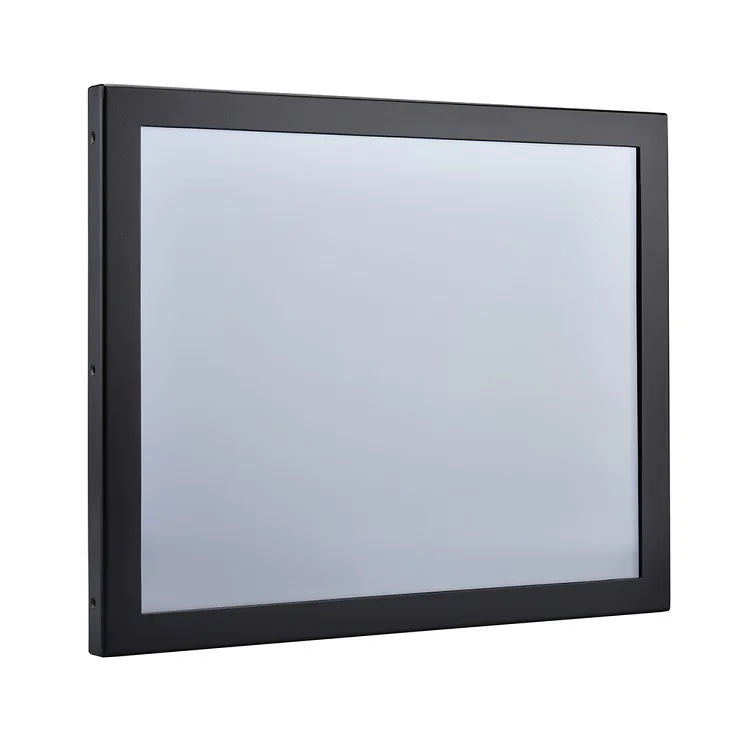

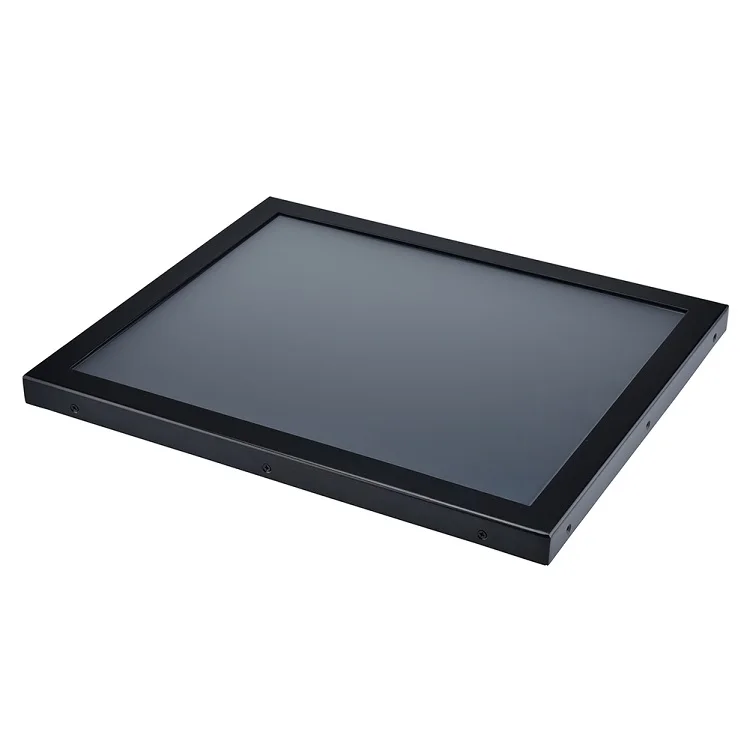

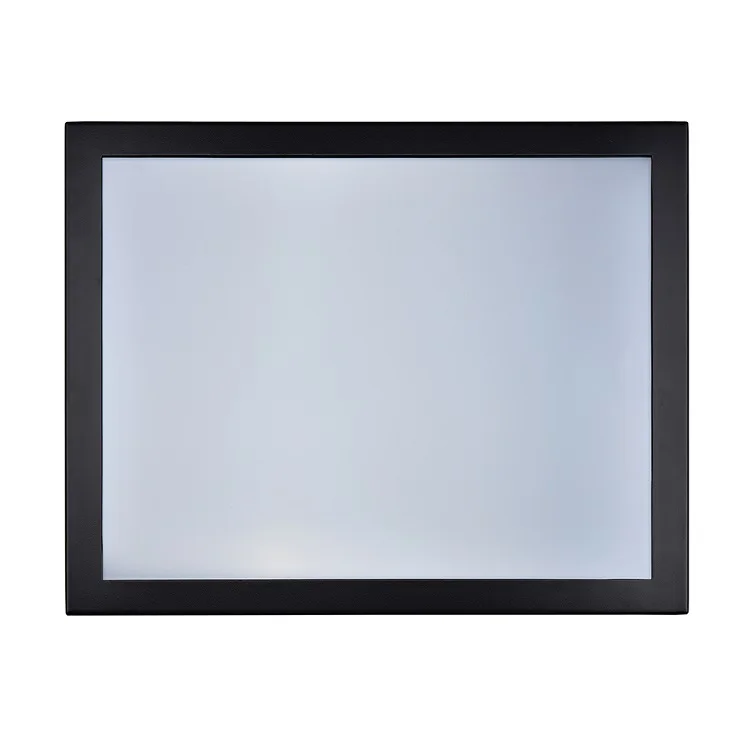

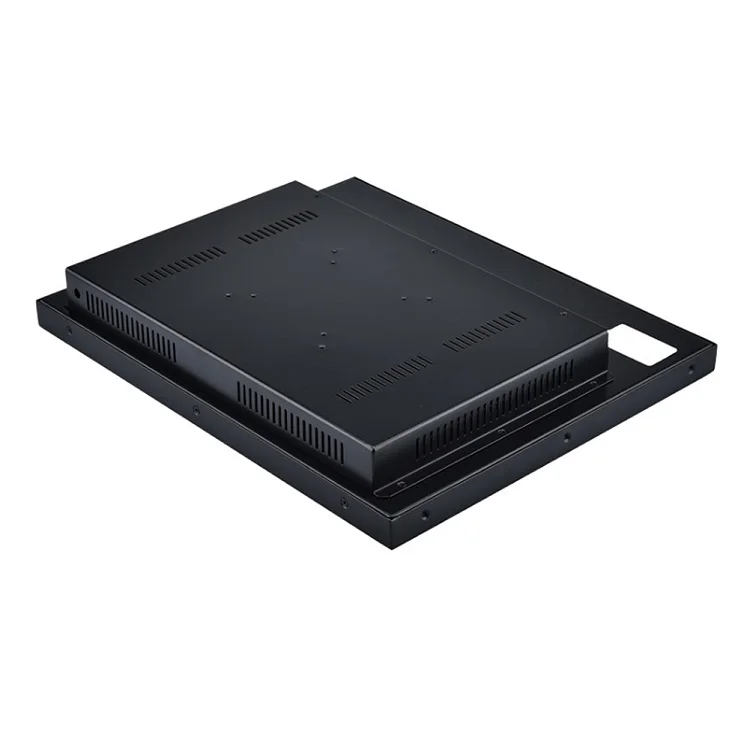

LED Intel Celeron 3855U 10 Points Capacitive Touch Screen Industrial Panel PC Desktop PC

$533.82 - $587.76 / Unit
$574.00 - $632.00
1 Unit (Min. Order)
7% OFF Discount ends in : : :
Memory Capacity:
4g 8GB
Hard Drive Capacity:
60GB
$533.82
- +
available
120GB
$543.12
- +
available
250GB
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Customization:
Customized logo (Min. Order: 10 Units)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Type:
All-In-One
Screen Size:
17"
Processor Brand:
Intel
Graphics Card Type:
Integrated Card
Display Type:
LCD
Widescreen:
Yes
Optical Drive Type:
N/A
Processor Main Frequency:
1.6 GHz
Brand Name:
Partaker
Model Number:
Elite Z15
Place of Origin:
Guangdong, China
Product Name:
17 Inch Industrial All In One Touchscreen Computer
CPU:
Intel Celeron Processor 3855U
Operating System:
Win7/8/10/Linux
Touch screen:
10 Points Capacitive Touch Screen
Network:
1* Realtek 8111E 10/100/1000M
Size:
386.5*318.49*57.7(mm)
Resolution:
1280*1024
Interface:
3*RS232+VGA+LAN+3*USB2.0+1 USB 3.0+DC+Audio In &Out
RAM:
Maximum 8G RAM
SSD:
1* MSATA + 1*2.5 Inch HDD
Products Status:
Stock

Packaging & Delivery

Selling Units:
Single item
Single package size:
46X40.5X14.3 cm
Single gross weight:
10.0 kg
Package Type:
Brown Paper Box
Lead Time :
Quantity(Units) 1 - 10 11 - 20 21 - 30 >30
Est. Time(days) 3 4 5 To be negotiated

Like us









Industrial Panel PC,17 Inch LED,10 Points Capacitive Touch Screen,Windows 7/10/Linux Ubuntu,Intel Celeron 3855u,(Black),[Partaker Z15],[64Bit/VGA/3USB2.0/1USB3.0/1LAN/3RS232]





My Skype is thinclient0323

Phone/Wechat/WhatsApp is 86-13713916024

Please contact me if you have any question.Thanks!







1



  • 17 inch led touch panel pc. Typical 1280*1024 resolution. Compact, fully functional,all the power and functionality of a desktop computer in a all in one design,powered by intel celeron 3855u processor, ideal for industrial and commercial applications. suit for multiple application,industries, car repair shops, security, factory, business, fanancial and projects.



  • Windows 7 Ultimate/10 pro (64-bit) preferred/linux ubuntu as optional, set up is effortless and it's ready to run straight out of the box.allows you to install software, games, apps and enjoy video, music, photo,support most online games and pc games, like warcraft, counter-strike (cs), support some 3d games but this is integrated graphic not independent cards.



  • Low power consumption, low heat, use dedicated turbo silent cooling fan to ensure long-term operation and stable heat dissipation. very slim, can stand on desk or embeded/mountable.

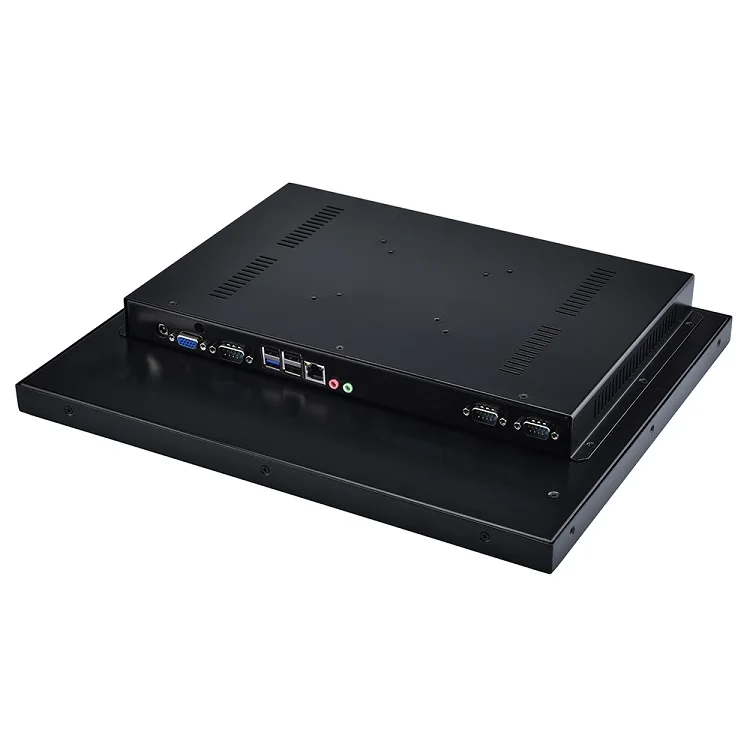

  • Designed with 3*RS232+VGA+LAN+3*USB2.0+1 USB 3.0+DC+Audio In &Out,aesthetic design and reasonable interface layout.



  • Size at 386.5*318.49*57.7(mm),with power cord,auto power-on option could be customized,all use big brand memory and ssd/hdd with quality assurance.







This model can install 5 types processor CPU:



1: Bay Trail-D-Celeron J1900 Quad Core 2.0G(Max. 2.4GHz)

2: Intel® Celeron Processor 3855U (2M Cache, 1.60 GHz)

3: Intel®Core I5 Dual Core(Max. 2.6GHz)

4: Intel® Core I7 Dual Core (Max. 2.8GHz)

5: Bay Trail-D-Celeron J1800 Duad Core 2.41G(Max. 2.58GHz)





This link for CPU 3855U only, if need other CPU, please click here.







Model Number: Partaker Z15
Screen Size: 17 Inch
Opening Hole Size: 334*232mm (Length*Width)
Screen Type: 10 Points Capacitive Touch Screen
CPU: Intel Celeron Processor 3855U (2M Cache, 1.60 GHz)
OS: Windows Or Linux
RAM/SSD/HDD: Maximum 8G RAM, 1* MSATA + 1*2.5 Inch HDD

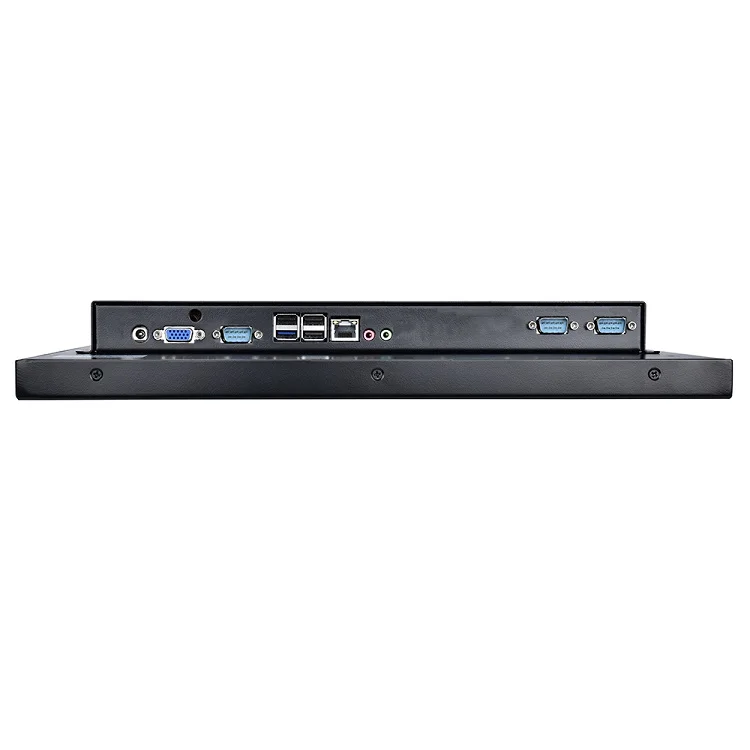

I/O: 3*RS232+VGA+LAN+3*USB2.0+1 USB 3.0+DC+Audio In &Out
I/O: Optional LPT, Default Without
Physical Dimension: 386.5*318.49*57.7(mm)
Gross Weight: 8.5 KGS
Panel Structure:
Panel Size: 17 Inch LED Screen
Resolution: 1280*1024
Display Brightness: 250cd/m(2)
Contrast: 1000 : 1
Response Time: 5ms
Touch Type: Using high-quality resistance touch screen click life> 1 million times
Usage Environment:
Operating Temperature: -10℃~60℃ Surface Air Flow
Operating Humidity: 10% ~ 95% @ 40 ℃ without condensation
Storage Temperature: -20 ℃ ~ 70 ℃
Installation Method:
1: Embedded (Recommended)
2: Wall-mounted
3: Desktop
4: Cantilevered
5: Other Installation Methods
Motherboard:
BIOS: AMI 32Mbit,Support Diskless Start, Wake-Up on Lan, Call Boot (Power On Boot), Watchdog And Other Functions
Motherboard: Fan Design
I/O Interface:
Network: 1* Realtek 8111E 10/100/1000M
Audio: RealtekALC662 HD Audio
Package Information:
Package Size: 46CM(L)*40.5CM(W)*14.3CM(H)
Physical Weight: 5.1KG / 6.4KG(Net/Gross)
Power Supply: Input: 180-240V~1.0A 50-60Hz Output: 12VDC 4A MAX
Power Cord: Power Cord*1
Touch Pen: Resistance touch pen*1 (10 capacitive touch screen without touch pen)
Buckle: Embedded Installation Buckle* 1 Set







Specification:

Model Number:

Partaker Elite Z15

Screen Size:

17 Inch

Opening Hole Size:

334*232mm (Length*Width)

Screen Type:

10 Points Capacitive Touch Screen

CPU:

Intel Celeron Processor 3855U

OS:

Windows Or Linux

RAM/SSD/HDD:

Maximum 8G RAM, 1* MSATA + 1*2.5 Inch HDD

I/O:

3*USB2.0/1*USB3.0/3*COM

I/O:

1*VGA/1*RJ45

I/O:

1*DC/MIC-IN&LINE-OUT

Physical Dimension:

386.5*318.49*57.7(mm)

Gross Weight:

8.5 KGS









Opening Hole Size Drawing:








Features:

Standard Interface,USB*4, RS232*3,

1*VGA HD Display Interface

Durable, dust-proof, high and low temperature resistance, impact resistance, anti-interference

Optional WiFi module, support for 802.11b / g / n

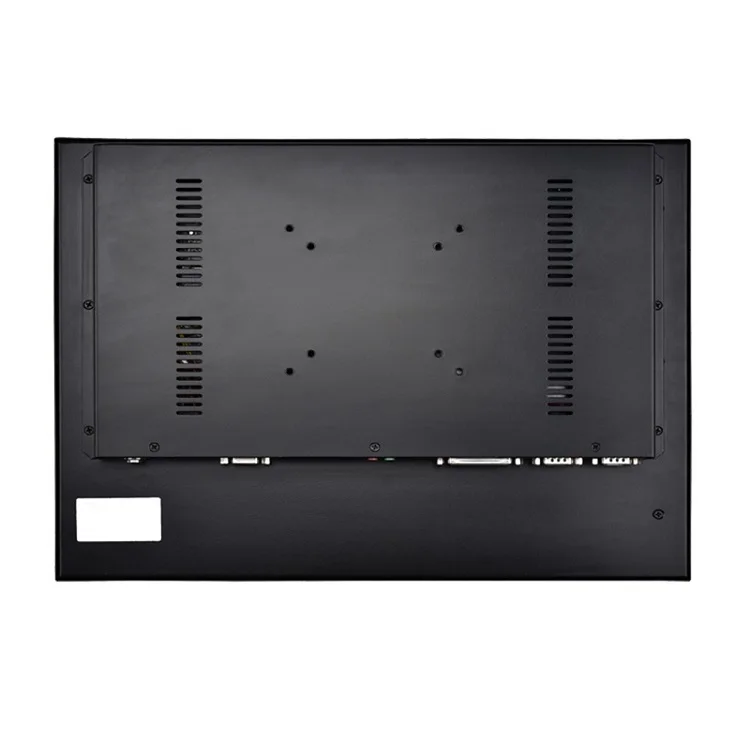

Standard VESA screw hole, can choose the installation method flexibly

Support Win7, Win8, Win10, Linux etc….









Panel Structure:

Panel Size

17 Inch LED Screen

Resolution

1280*1024

Display Brightness

250cd/m(2)

Contrast

1000 : 1

Response Time

5ms

Touch Type

Using High Quality Resistance touch-screen click life> 1 million times









Usage Environment:

Operating Temperature:

-10℃~60℃ Surface Air Flow

Operating Humidity:

10% ~ 95% @ 40 ℃ without condensation

Storage Temperature:

-20 ℃ ~ 70 ℃







Installation Method:

1. Embedded (Recommended)

2. Wall-mounted

3. Desktop

4. Cantilevered

5. Other Installation Methods







Motherboard:

BIOS:AMI 32Mbit,Support Diskless Start, Wake-Up on Lan, Call Boot (Power On Boot), Watchdog And Other Functions

Display Mode:Single Display; VGA+LVDS, Synchronous / Asynchronous Dual Display

Motherboard:  Fanless Design









I/O Interface:

Network: 1* Realtek 8111E 10/100/1000M Adaptive Network Card Chip

Audio: Realtek®ALC662 HD Audio Decoding Core









Quality Inspection:

Each Partaker Industrial All In One Computer will conduct a number of strict testing, including performance testing, temperature testing, vibration, pressure, LED screen aging, interface testing, electronic load, touch screen detection

Before shipment, the appearance of Partaker Industrial All In One Computer, performance, interface, 24-hour aging test to ensure that each is superior quality.







Company Profile:

Focus on the industrial sector for 8 years, your most reliable suppliers

INCTEL Technology focus on All in One touch-screen, infrared touch All in One Computer, resistance touch All in One PC, advertising, touch products such as the development and production. For industrial control, commercial display, advertising, business meetings, games, entertainment, medical equipment and other fields, introduced a professional application solutions.









Package Information:

Package Size

46CM(L)*40.5CM(W)*14.3CM(H)

Physical Weight

5.1KG / 6.4KG(Net/Gross)

Power Supply

Input: 180-240V~1.0A 50-60Hz Output: 12VDC  4A MAX

Power Cord

Power Cord*1

Touch Pen

Resistance touch pen*1 (10 capacitive touch screen without touch pen)

Buckle

Embedded Installation Buckle* 1 Set
