LHH YT27 YT28 YT29a pneumatic digging tools pick tunnel boring machine sale

$250.00 / Piece | 1 Piece (Min. Order)
Model Number:
LH
Power(W):
air compressor
$250.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
6 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
air leg
Place of Origin:
Shandong, China
Brand Name:
LH
Usage:
air leg rock drill
Voltage:
air
Dimension(L*W*H):
659*248*205mm
Weight:
29KG for net weight
Certification:
ISO
Warranty:
one year
After-sales Service Provided:
Video technical support
name:
yt29a air leg pneumatic rock drill
Physical size:
659*248*205mm
Cylinder Diameter:
82mm
Piston Structure Stroke:
60mm
Working Pressure0.63:
0.63MPA
Impact Energy:
78J
Rock drill depth:
5m
Shank size:
H22*108±1mm
Air pipe inner dia:
25mm
Water pipe inner dia:
13mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
82X26X16 cm
Single gross weight:
30.0 kg
Lead Time :
Quantity(Piece) 1 - 50 >50
Est. Time(days) 6 To be negotiated
Product Description

Product Application

This drilling machine is suitable for working with the hard and solid rock to do the drilling level , inclined hole or the up drilling. The drilling diameter is commonly between 34 and 45 mm.The depth of drilling is 5m.According to the size of tunnel fracture surface and the operating condition ,it could be matched with the air leg,FT160A ,FT160C ,FT160 and FT170.To do the dry or wet drilling with the drill carriage and drilling rig is also feasible for YT29A .

Detailed Images
Packing & Delivery
Packaging
Size
72.5*29.7*21.2CM
Weight
29KGS



Packaging Details

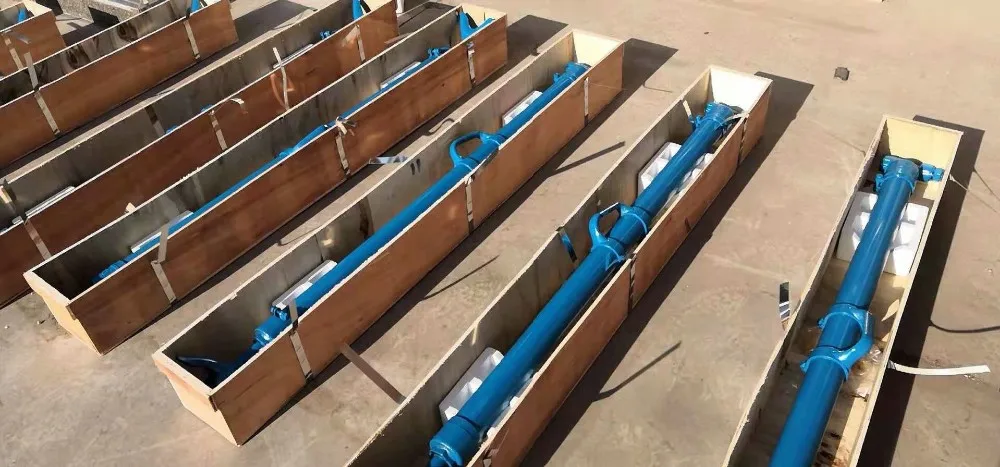

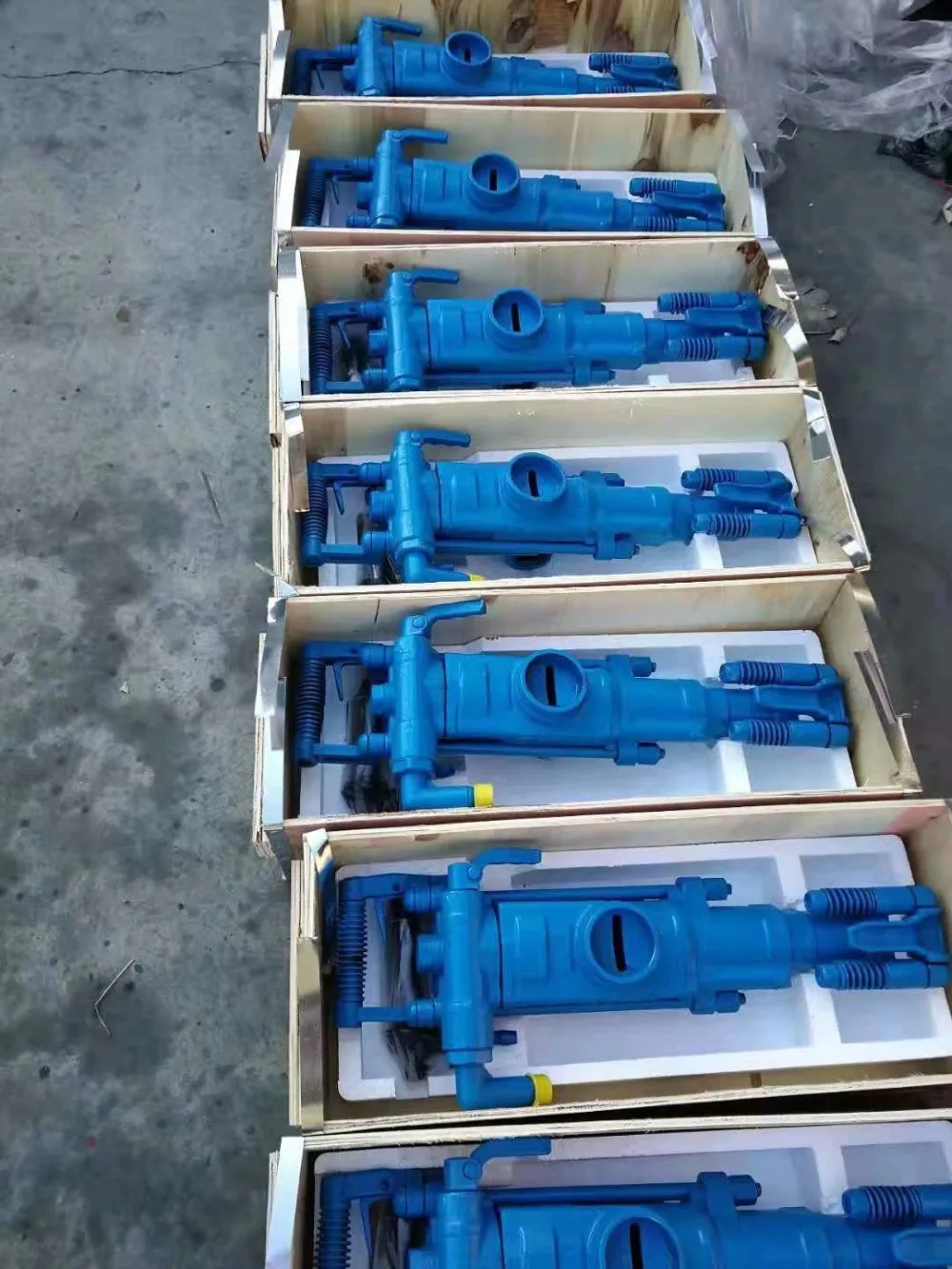

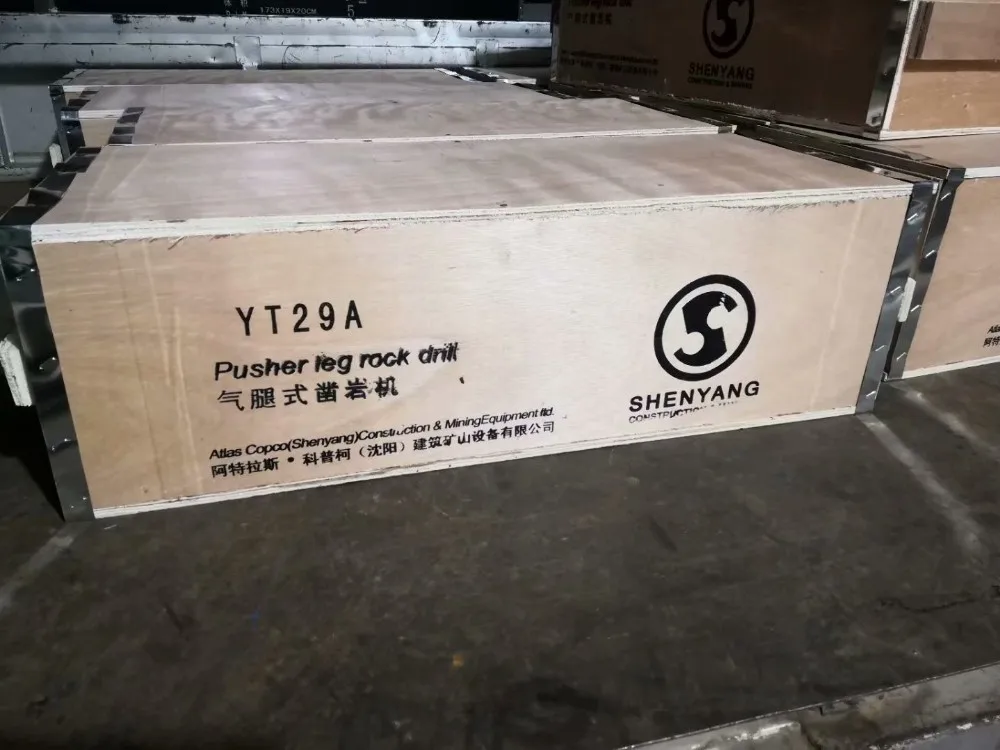

our normal packing is carton box or wooden box.

if you need wooden case is ok , depends on your requirement . We can make your company logo as your need on machine
