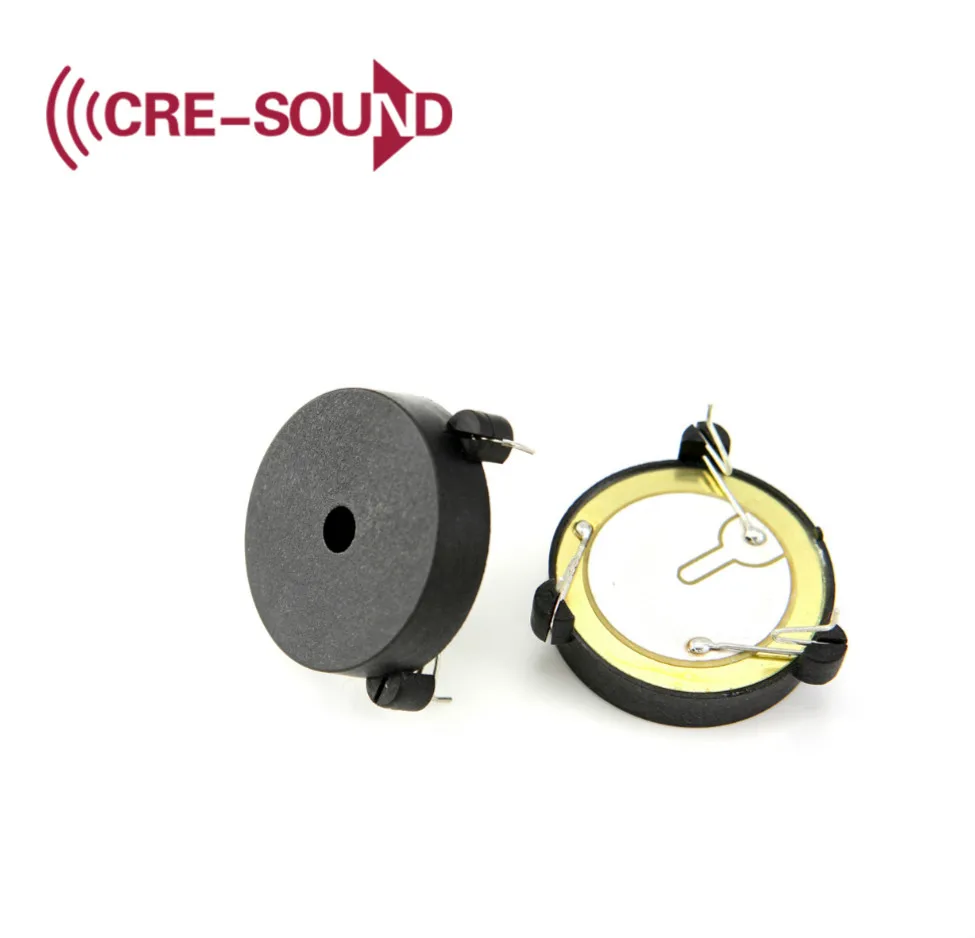

LPF3380AZ 3 pin buzzer piezo buzzer 85db

FOB Reference Price:Get Latest Price
$0.26 - $0.40 / Pieces | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Cresound piezo buzzer
Model Number:
LPF3380AZ piezo buzzer
Type:
Buzzer
Rated Voltage (VDC):
5
Operating Voltage(VDC):
5~12
Rated Current(mA):
≤30
Sound Output at 300cm(dB):
≥85
Resonance Frequency (KHz):
2.6±0.5
Operating Temperature(℃):
-40~+85
Storage Temperature(℃):
-40~+90
Housing Material:
PBT
RoHS:
Yes
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month 3 pin buzzer
Packaging & Delivery
Packaging Details
9000 pcs/carton
42*35.5*36.5cm
Port
Shanghai
Buzzer Description
Cresound
Other factory
SPL Error Range
≤4 db
≤ 8dB
Drop Test ( drop from 1.5mm totally 18 times)
×
PPM
≤100
≤2000
Customization
×
Engineer 24 hours service
×
Provide Buzzer Drive Plan
×

CHANGZHOU CRE-SOUND ELECTRONIC Co., Ltd is one of the worldwide leading acoustic electronics products total solution provider, serving our customers with innovation, time to market, time to volume & cost competitiveness. Now we have more than 270 staffs, especially including 25 professional acoustic engineers with more than 15 years working experience in acoustic area. Since 1996 we are always devote ourselves to research, develop and produce the acoustic components .

LPF3380AZ 3 pin buzzer piezo buzzer 85db

1. Specification of Piezo buzzer
Rated Voltage
(VDC)
12
Operating Voltage
(VDC)
5~12
*Rated Current
(mA)
≤30
*Sound Output at 10cm
(dB)
≥85
Resonance Frequency
(KHz)
2.6±0.5
Operating Temperature
(℃)
-40~+85
Storage Temperature
(℃)
-40~+90
Weight
(g)
6.2
Housing Material
PBT
RoHS
Yes
Quantity
(pcs)
9000
Carton Size
(cm)
42*35.5*36.5
Gross Weight
(kg)
12.7

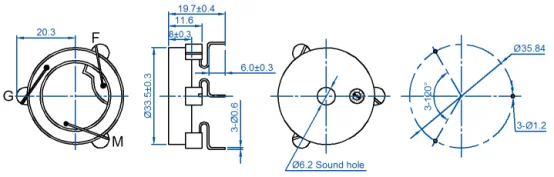

2. Dimension of Piezo buzzer

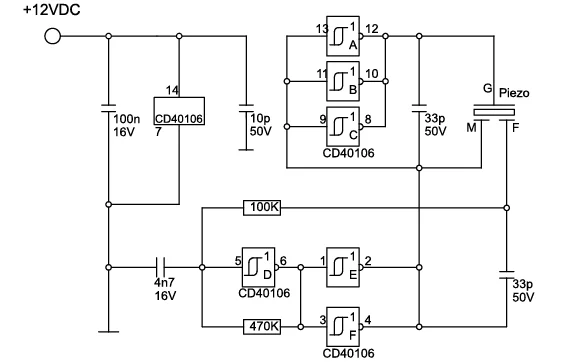

3.  Test Self-Oscillation Circuit
5 . Related Buzzer

           SMD Magnetic  Buzzer

                    LET1310CS

                 PIEZO Buzzer

                 LPB4720W

                  Piezo Bender

                       FT-27T

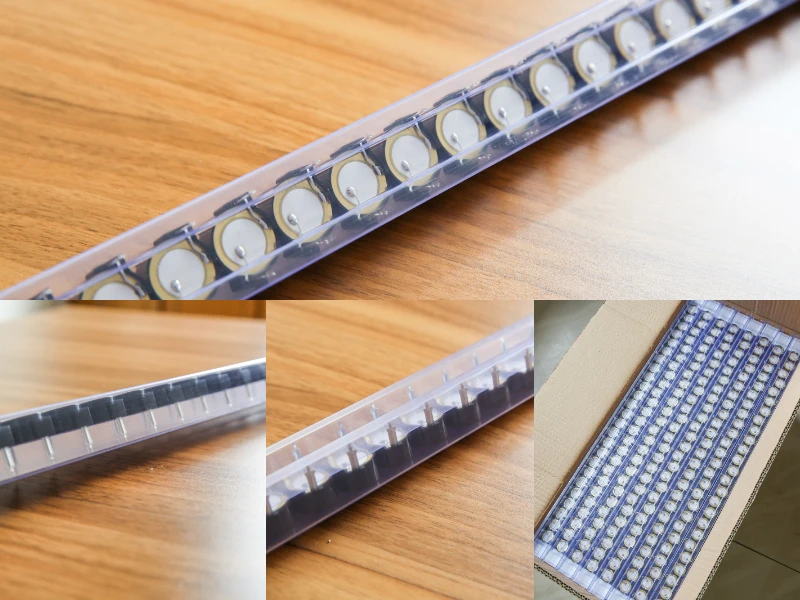

Packaging of buzzer
Buzzer application
Buzzer factory

Our main products are Piezo Buzzer, Magnetic Buzzer and Mylar Speaker, especially our SMD buzzer is the best in acoustic field . Today, we have strong capability of products' design, mould's design and manufacture. The enterprise work on TSI 16949, ISO9001, ISO14001 strictly to strengthen the control system. Our products normally pass through several procedures, such as products' designing, income purchasing, producing, testing and packaging. All these procedures are controlled by our QC staffs strictly to assure the products' high quality before the date of delivery.


Other buzzer and speaker

             Magnetic Buzzer

                 Piezo Element

                         Speaker

Buzzer certification

1. Global Source Electronics Fair in Asia World-Expo of HongKong , Oct 11-14,2016,Our booth No:9G17

2. Munich Electronica Fair,November 8-11,2016,Our booth No:B6.561/1.

Transport for buzzer
FAQ of SMD buzzer
Q:
When can we get the reply?
A:
Any inquiries will be replied within 24 hours.
Q:
Can i have samples?
A:
Yes. Sample is surely ok. We can even send you free sample and you should only pay for the freight fee.
Q:
What is your payment term?
A:
 Payment terms: T/T, west Union, Paypal and L/C etc.
Q:
What is the lead time?
A:
20 days for piezo buzzer
Q:
How you will send the goods to us?
A:
We will send the goods to you by Air (DHL, Fedex, UPS, TNT) and Sea shipping etc.
Q:
Are you trading company or manufacturer ?
A:
We are changzhou buzzer manufactory.
Q:
Do you support OEM and ODM services?
A:
Yes, surely support. we can customize products according to the drawing.
Q:
Can you provide driven circuit?
A:
Yes, of course sure.
