LS VISION 16 Channel IP Network Video Recorder NVR Support ONVIF 4MP 5MP 8MP Mobile Phone Remote View And Computer CMS

  • 1-49 Sets
    $81.10
  • 50-99 Sets
    $78.80
  • >=100 Sets
    $75.30
Type:
NVR
Channels:
16
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order: 50 Sets)
Customized packaging (Min. Order: 200 Sets)

More

Graphic customization (Min. Order: 300 Sets) Less
Contact Supplier
Samples - $81.10 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
LS VISION
Model Number:
LS-NF5216
Feature1:
16CH NVR
Feature2:
96M Access Bandwidth
Feature3:
CVBS, VGA, HDMI
Video Decoding:
H.265/ H.264
POE port:
NON
HDD:
2 Sata
Max IP channel resolution:
3264x2448
Main Processor:
Hi3536
Audio:
Support
P2P:
Support

Packaging & Delivery

Selling Units:
Single item
Single package size:
44X41X16 cm
Single gross weight:
4.5 kg
Package Type:
Color Box 16CH Ip NVR
Lead Time :
Quantity(Set) 1 - 20 21 - 100 101 - 200 >200
Est. Time(days) 7 12 20 To be negotiated
More Recommendation
Product Description



H.265 compression
Access capability 1 - 5 megapixel ip camera
Support ONVIF 2.4
Support 2 SATA
Full HDMI output, support HDMI, VGA, CVBS synchronization output

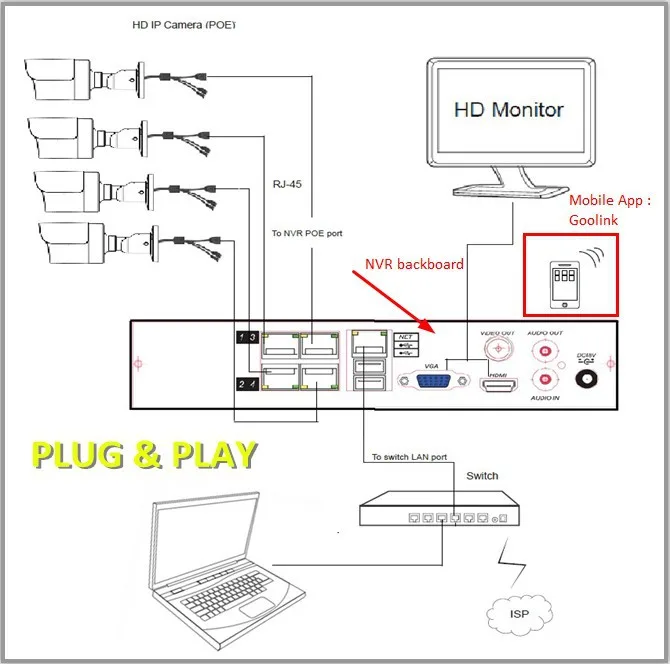

How to do the connection of LS VISION POE NVR ?

Specification
Module

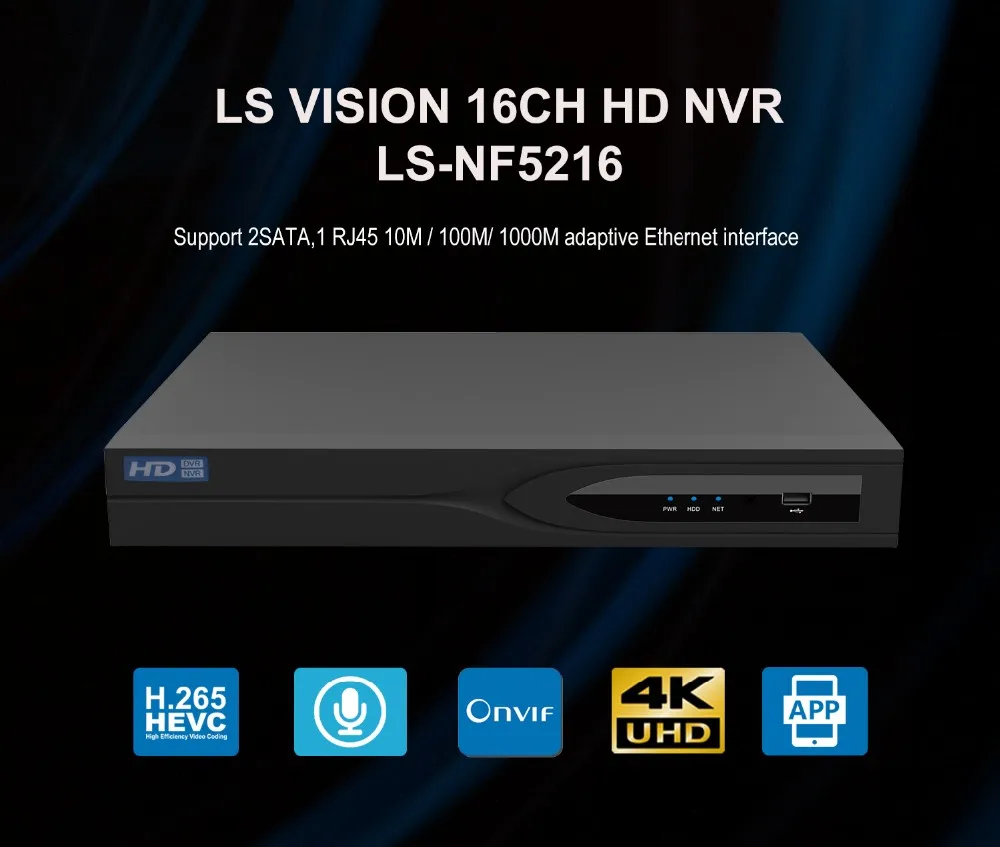

LS-NF5216 16CH NVR
OS
Embedded Linux
Master chip
Hi3536
Video Copression
H.265
Access Bandwidth
96M
Bidirectional Talk
1 CH(Line in,2Vpp,1Kohms)
Audio Output
1CH,BNC(Line out,2Vpp,300ohms)
IP Resolution
Main stream:up to 5632x4224
Sub stream: no more than D1
Synchronous Playback
Up to 16CH
Bidirectional Talk
Two-way voice intercom function
Motion Detection
Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)
Intelligent features
1CH face detection, 2ch boundary analysis (optional)
Network Interface
1 RJ45 10M/100M/1000M adaptive Ethernet interface
HDD
Support 2 SATA
Weight
3.0 Kg(without HDD)
Power Supply
DC12V
Working Temperature
 -10℃--+55℃
Working Humidity
10%--90%
Consumption
10W(without HDD)
Customer Feedback
Certification
Brand & CCTV Project

LS VISION Global Brand

At present, LS VISION partners and customers all over the world, including dealers, agents, engineers and security importers, end consumers and other different customer groups, in Russia, Yemen, Philippines, Madagascar, Nigeria, Tunisia, Bangladesh, Saudi Arabia, Vietnam, Ghana, Bangladesh and other countries region, set up an exclusive agency, and we have been have been making great efforts to expend our global agency or distribution area.

LS VISION Global Security Project

LS VISION products and solutions used in a number of countries and regions, Such as the Saudi Arabian Jeddah International Book Fair Project in 2017 and 2018; CITY Center MAKKAH CCTV Project in 2018;   the Fath Gas Station Project in 2017, the Peruvian Bass Amas Plaza Project, the Panama Airport and other major security projects have played an important role.

LS VISION

LS VISION will keep our key value of Quality. Innovation. Dedication to do more research for the products to bring more value for our partners in the 2019.


In 2019, LS VISION products strategy:
Industry market:
IPC: 2MP to 8MP 4K Series IP Camera and HD NVR system.
Analog HD: 2MP to 8MP series and DVR system.
AI series: Face recognition camera and NVR system.
4G Solar Camera system

Consumer Market:
Wifi NVR Kit, POE Nvr Kit;
wifi Battery Cameras, wifi PTZ Camera, Smart Doorbell etc.
