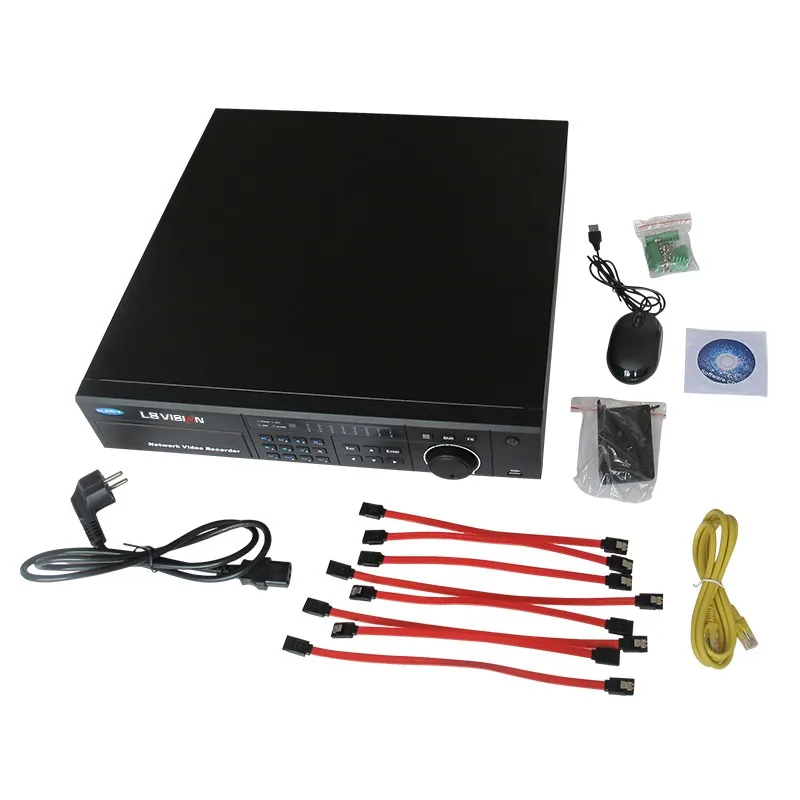

LS VISION 32CH NVR 4K IP Camera Recording 8 SATA support Onvif and Mobile Phone Remote View

  • 2-49 Pieces
    $294.50
  • 50-99 Pieces
    $285.80
  • >=100 Pieces
    $269.60
Type:
NVR
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order: 50 Pieces)
Customized packaging (Min. Order: 500 Pieces)

More

Graphic customization (Min. Order: 1000 Pieces) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
LS VISION
Model Number:
LS-NF7832
Key Feature1:
32CH NVR
Key Feature2:
160M Access Bandwidth
Key Feature3:
CVBS,VGA & HD
IP Resolution:
4K
Video Decoding:
PEG-4/H.264 (UP to High Profile Level4.2)
Playback:
6ch(1080P)
HDD:
Support 8SATA/1 ESATA
Audio:
support
Onvif:
Support
Network ports:
2 RJ45 ports

Packaging & Delivery

Selling Units:
Single item
Single package size:
48X44X9 cm
Single gross weight:
15.0 kg
Package Type:
441x448x88mm Color Box
Lead Time :
Quantity(Piece) 1 - 20 21 - 100 101 - 200 >200
Est. Time(days) 7 12 20 To be negotiated
More Recommendation
Product Description
Specification NVR

1. 32ch 1080p@30fps(4Mbps)/16ch 1080p@30fps(8Mbps)/16ch 3MP@20fps(8Mbps)/16ch 5MP@10fps(8Mbps) video input

2. 6ch 1080P real time/4CH 3MP@20fps(8Mbps)/2CH 5MP@10fps(8Mbps) Playback
3. Support 8SATA/1 ESATA, 2RJ45 10M/100M/1000M adaptive Ethernet interface

4. Two-way voice intercom,small size: 441x448x88mm 16CH Alarm
5. Input and 4CH Alarm Output

Module
LS-NF7832
OS
Embedded Linux
master chip
Hi3535
Access Bandwidth
160M
Bidirectional Talk
1 CH(Line in,2Vpp,1Kohms)
CVBS Output
1CH,BNC(1.0Vp-p,75ohms)
VGA
1CH,Resolution 1920×1080,1280×1024, 1280×720,1024×768,800×600
HDMI
Standard 2.0
Resolution 3840×2160,1920×1080,1366×768,1280×1024,1280×720,1024×768
Audio Output
1CH,BNC(Line out,2Vpp,300ohms)
Audio Compression
G711A
Audio Bit Rate
64Kbps
Synchronous Playback
Up to 6CH
Bidirectional Talk
Two-way voice intercom function
Motion Detection
Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)
Picture Capture
Local Capture&Web Capture
SATA
8
ESATA
1
POE interface
N/A
Network Interface
2 RJ45 10M/100M/1000M adaptive Ethernet interface
USB
2 USB 2.0 Interfaces
Dimensions
441x448x88mm
Weight
15 Kg(without HDD)
Power Supply
110V~220V±10% 47Hz~63Hz
Working Temperature
-10℃--+55℃
Working Humidity
10%--90%
