LS VISION AI Technology H.265 22400 Facial Database Alarm System Face Capture Analysis Recognition CCTV Security Camera

  • 2-49 Pieces
    $869.95
  • 50-99 Pieces
    $829.95
  • >=100 Pieces
    $779.95
Resolution:
1920 x 1080
Type:
face recognition camera
Style:
Box Camera
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Customization:
Customized logo (Min. Order: 500 Pieces)
Customized packaging (Min. Order: 1000 Pieces)

More

Graphic customization (Min. Order: 2000 Pieces) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
LSVISION
Model Number:
LS-FR100
Sensor:
CMOS, 1/1.8" Progressive Scan CMOS
Certification:
CE, FCC
Data Storage Options:
NVR
Video Compression Format:
H.264
AI Analysis:
Face capture and recognition
Optional Function:
Black and White List or Stranger Alarm Output
Video Standard:
H.265/ H.264
Storage:
2 CH USB2.0 Interface,1CH SATA (6TB) Interface
Interface Protocol:
ONVIF, GB28181
Alarm:
Support
Operating Temperature:
-30 ℃ ~70 ℃
Power Supply:
Support POE(802.3at) &mobile app
Face Database:
Support 22400 face image inventory
Special Features:
Face Capture and Analysis Recognition
Product Certification certification
CE Certified.
FCC Certified.
Valid from 2013-05-14 until 2049-12-31

Packaging & Delivery

Selling Units:
Single item
Single package size:
40X40X20 cm
Single gross weight:
9.000 kg
Package Type:
Box/CTN. Face Analysis Camera System
Lead Time :
Quantity(Pieces) 1 - 10 11 - 50 51 - 100 >100
Est. Time(days) 10 15 20 To be negotiated
More Recommendation
Product Description

Face Recognition and Nvr Kit

.Face recognition application integrated package, can be used to prevent thieves, anti-theft, anti-customary stealing, early warning of dangerous personnel, is your store security butler!

· Built-in intelligent face algorithm to support face capture in complex environments; support face tracking, face exposure mode, face automatic filtering; front face database storage, recommended to import 22400 digital photos, black and white list can be set To achieve real-time comparison of front-end faces.

· The mobile terminal can realize real-time image preview of the hard disk recorder, network camera, remote video playback, local picture and video storage, and alarm push information management through the wireless network;

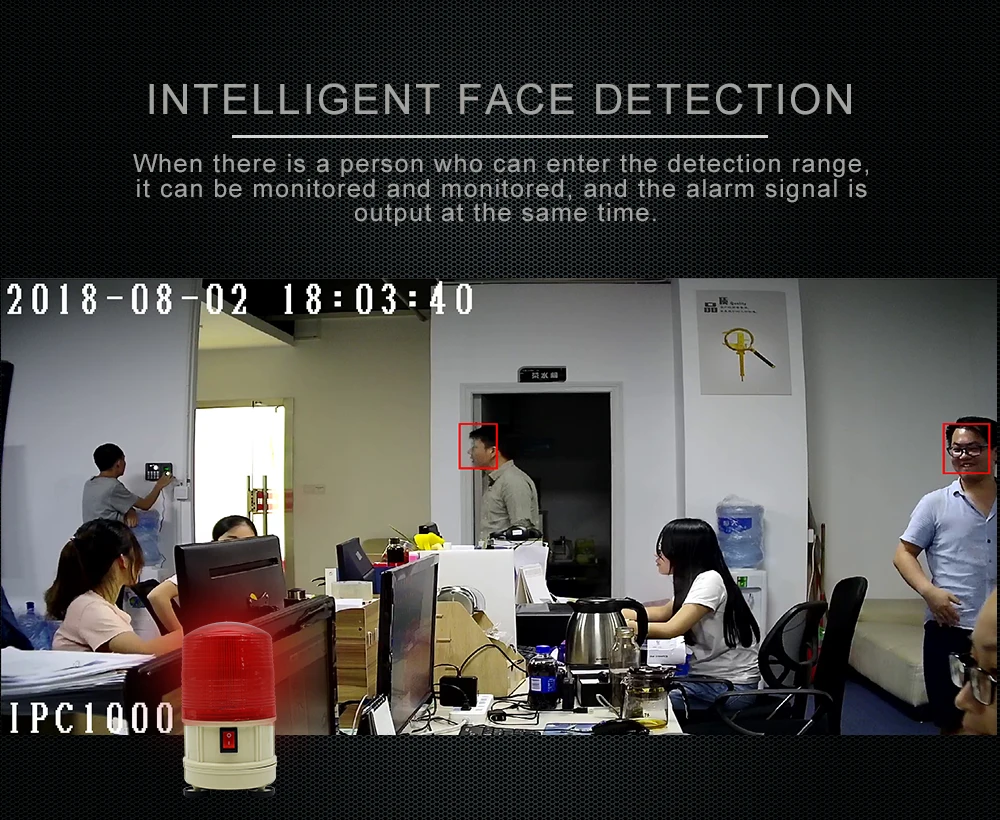

*  Face Capture, Face Recognition, optional Black and White List or Stranger Alarm Output, support VIP Pop-up Function

Application:
Applicable to school, supermarket, hospital, community, etc. for face monitoring and monitoring!
Realize face monitoring, control, black and white list setting, face-based search query!

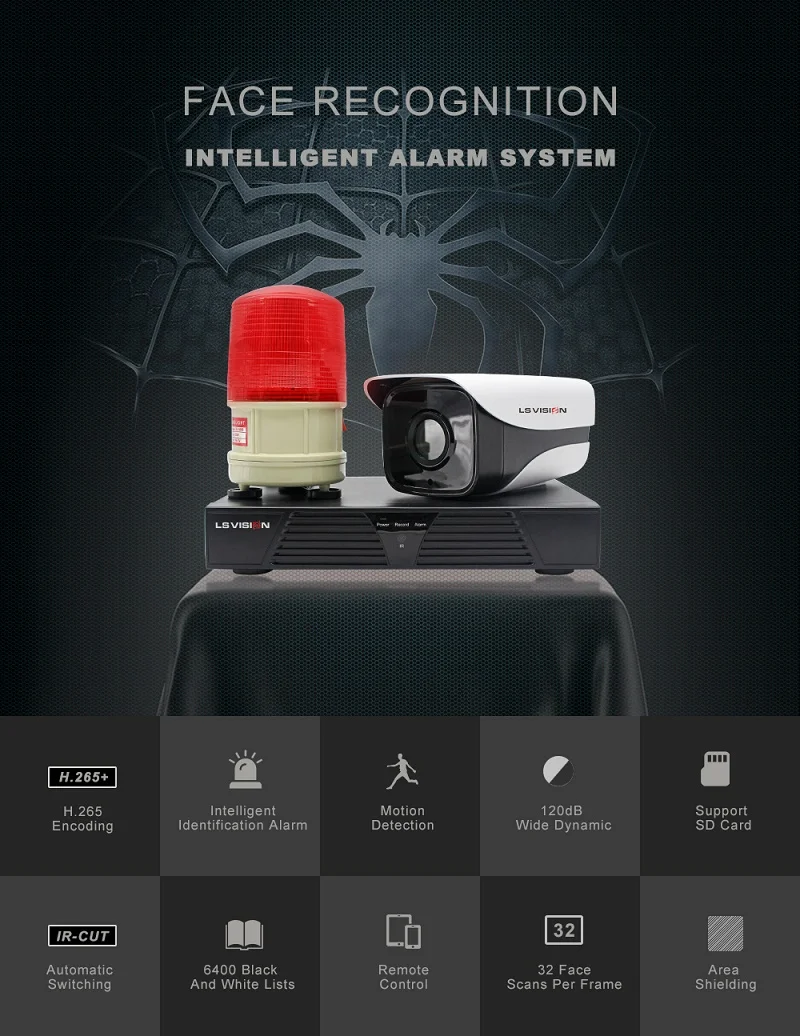

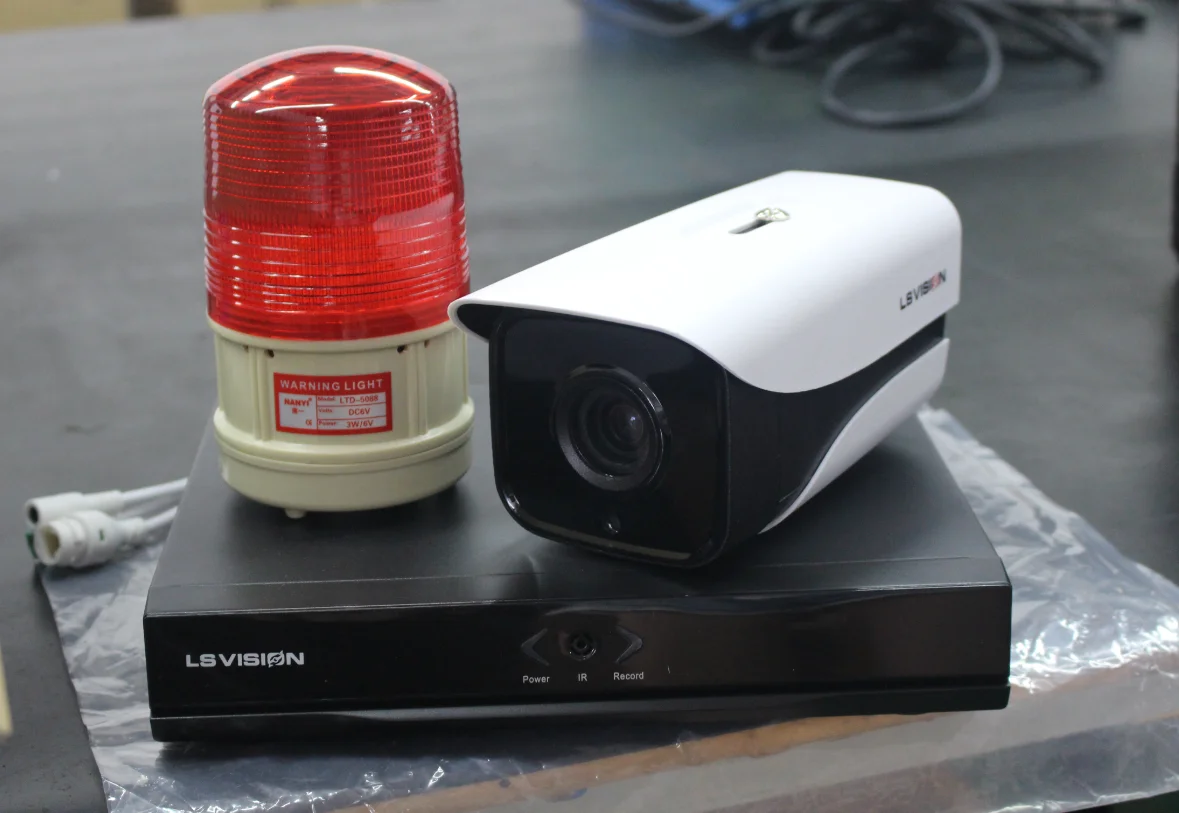

Standard: 1pcs Face Recognition IP Camera + 1pcs Face NVR + 1pcs Alarm

IP Camera :

Hi3519+1/1.8" 2.0MP Sony385 CMOS;
H.265/H.264/MJPEG Coding;
Motorized lens 9-22mm;
4pcs IR led,IR distance 30 meter;
> 120dB Digital WDR;
3D Digital Noise Reduction;
Up to two face databases management;
Support 22400 face image inventory;
Support POE(802.3at) &mobile app

NVR:

Hi3536
H.265 Coding;
Support 1CH 1080P Face Recognition IPC +3CH 1080P;
ordinary IP Camera Video Input;
1CH 1080P Playback;
VGA Interface 1CH, HDMI Interface 1CH;
2CH USB2.0 Interface,1CH SATA (6TB Hard Drive) Interface;
Support face comparison details query;
Support face playback

Alarm :Sound and light alarm

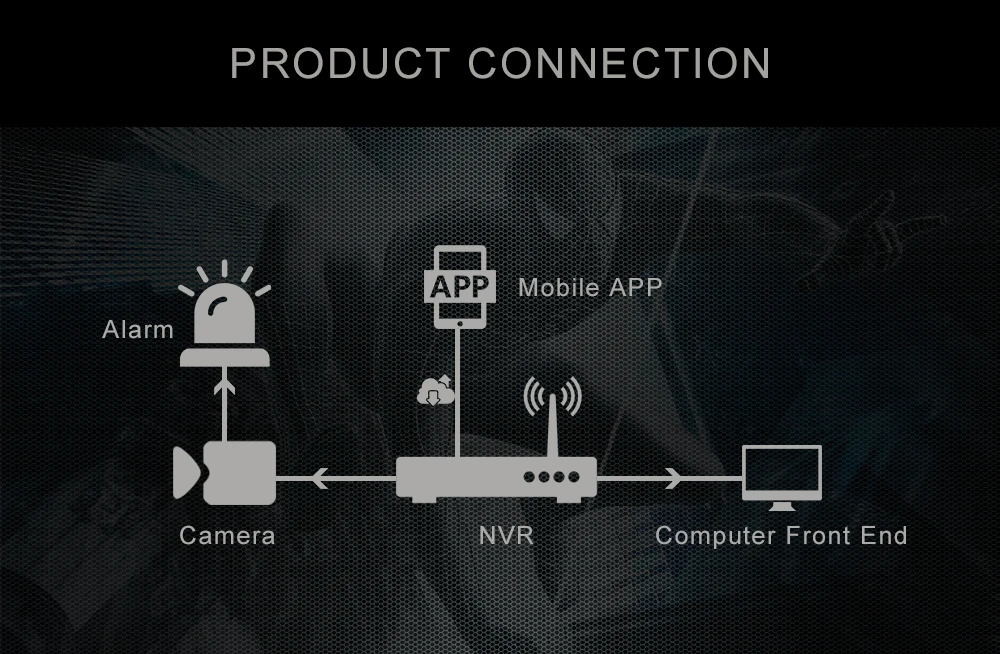

System

Face recognition based whitelist and blacklist to system ;


Compared to traditional system, we add " smart analytics" section, which we do technology grasp, analyze, compare and alarm on camera.

NVR's function is to record.

two way one is to use colour pic which saved in your PC; another is scence capturing.

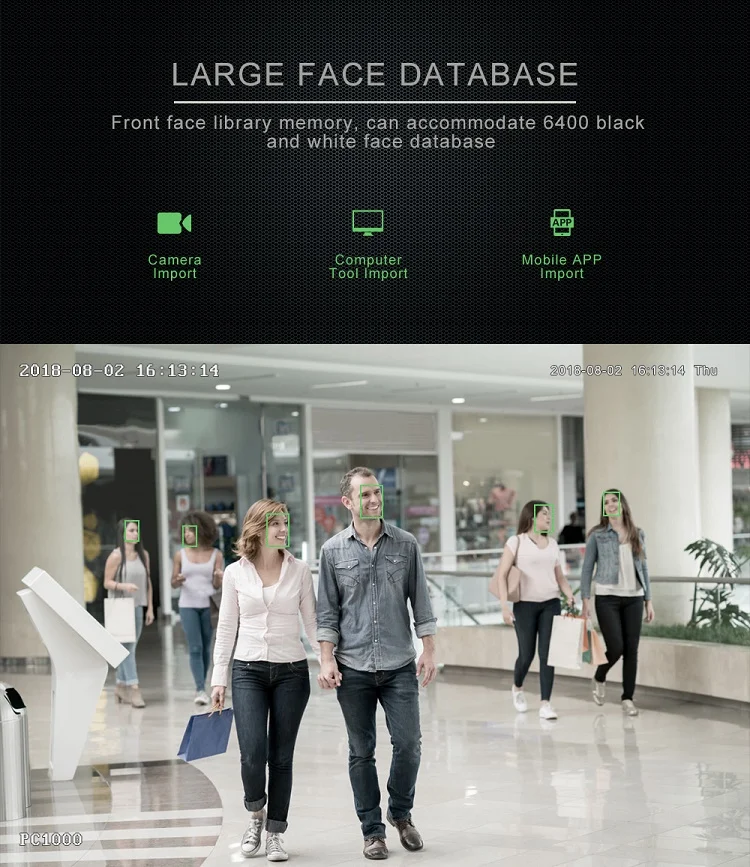

A face library max support 3200 pic, balcklist and whitelist total 6400pcs.

There are two ways to upload face pic into face libary: imported from local or snap face at sence.



Set comparison similarlity as parameter to analyze and compare.

The core algorithm technlogy we used like multiple dimensions like the distance between human eyes distance, Cheekbones heigh and other other pieces of facial features.

Also we can grasp, analyze, compare very fast.

Key Features

LSVISION AI Technology H.265 Facial Recognition System Face Capture and Analysis Recognition CCTV Security Camera


Specially designed for small shops and facades , a ALL-IN-ONE face recognition application integrated kit, can be used to prevent thieves, burglar theft, anti - theft, dangerous personnel early warning, is your shop safety stewardship!


Professional intelligence function:

1.Embedded smart face algorithm, which supports face capture in complex environment.

2.Support face tracking, face exposure mode, and face automatic filtering.

3.Support front-end face alignment.

4.support the detection, tracking, snapping, grading, screening, feature extraction and recognition of moving faces, and outputs the best alignment results.

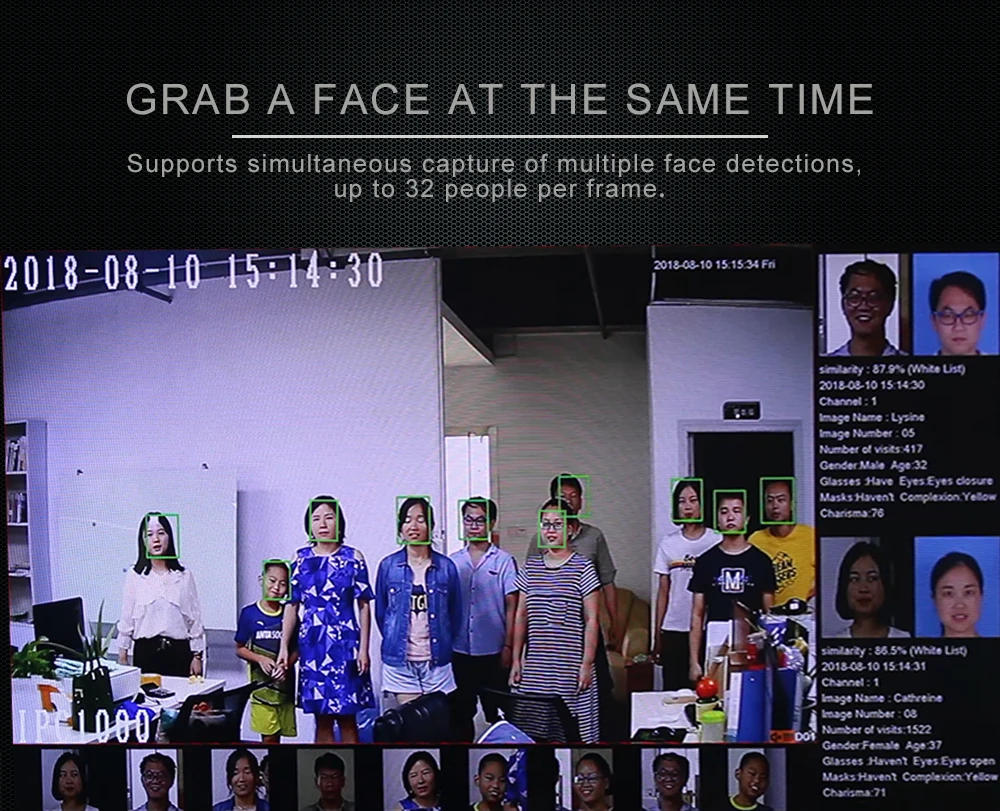

5.supports the detection of up to 32 targets per frame and the recognition speed is fast.

6.The face capture scenes are backlighting scenes and ordinary scenes for backlighting and normal environment respectively. Two modes can be set up.

7.Aiming at the optimization of face application scene, it is suitable for face detection, feature extraction and recognition.

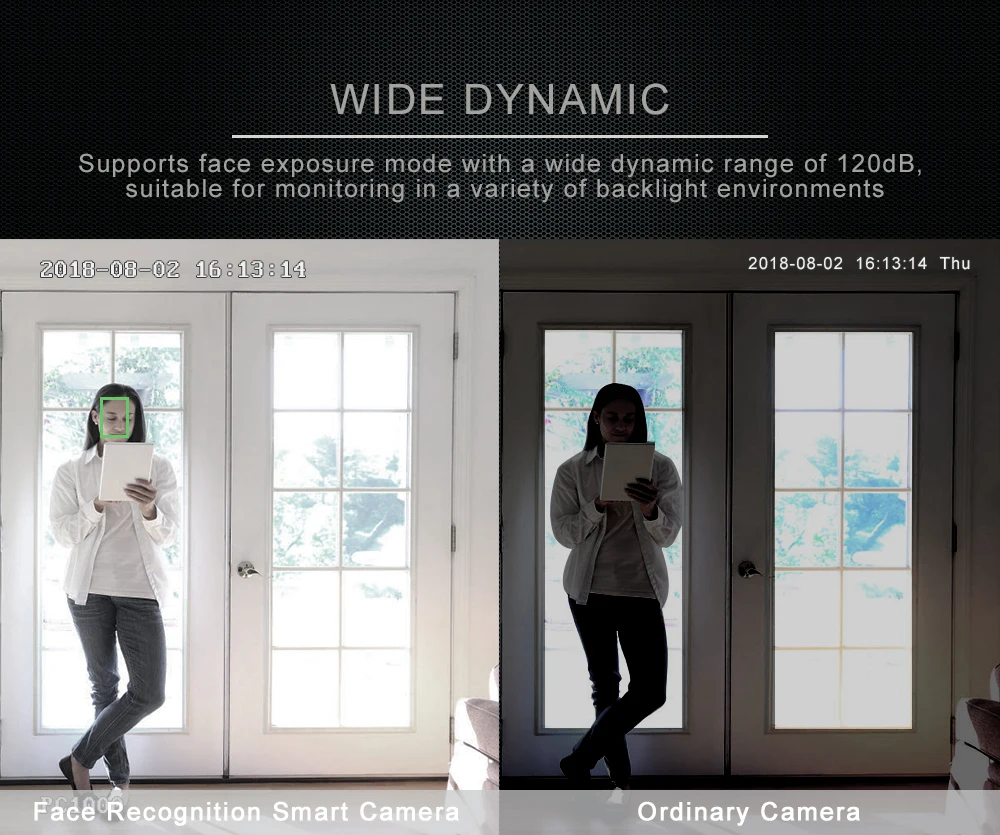

8.Support face exposure function, wide dynamic range of 120dB, suitable for monitoring under backlight environment;

9.Support area selection of face recognition; multi parameter setting, face parameter setting, professional level capture rate;

10.The setting range of facial image quality (1-99) is adjustable.

11.Support face detection with more than 30*30-300*300 pixels.

12.Support the upload of face pictures and original pictures, and the quality of face picture coding can be adjusted.

13.The number of supporting snapshots can be set up.

14.Supports the management of up to 2 people's face databases, and each face library supports more than 3200 face importing.

15.The total storage space for supporting the face database is 16GB, and the single face supports 150*150-960*960 pixel interval.


General Function:


1,The maximum resolution is up to 2 million pixels (1920 x 1080), and can output real-time 30fps images at this resolution, and the image is more fluent.

2,Scan CMOS by line by line to capture motion images without aliasing

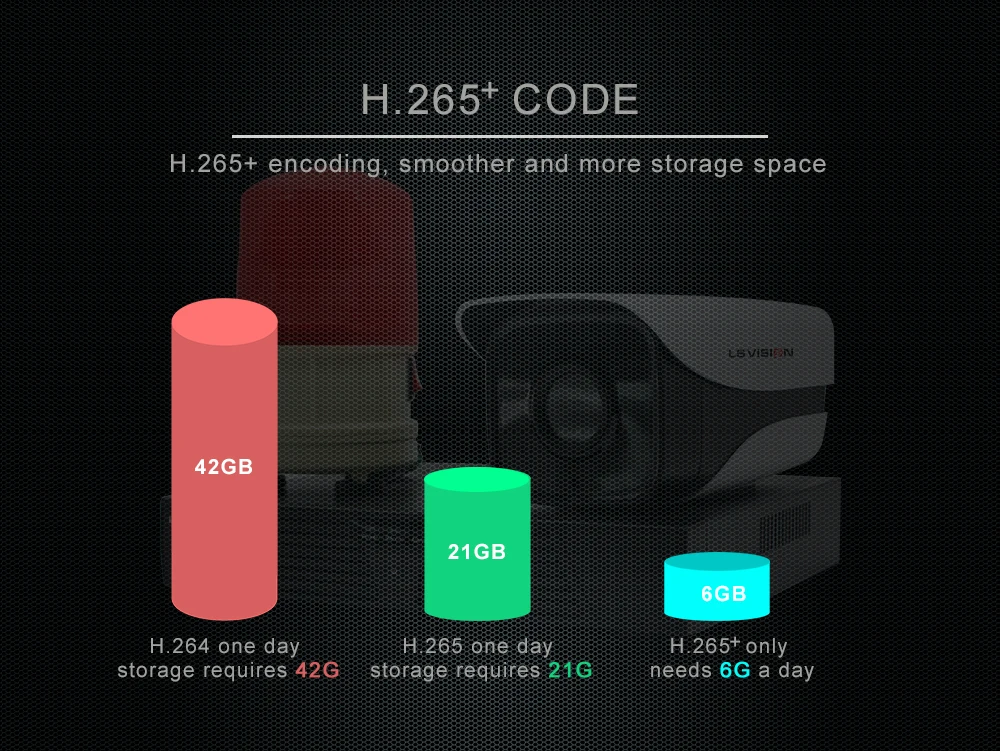

3,Adopt the latest standard H.265 video compression technology, high compression ratio, accurate and stable code flow control.

4,Built in automatic day and night type dual filter switching mechanism, with manual or automatic color to turn black and other switching mode.

5,Support digital wide dynamic, 3D digital noise reduction function

6,A variety of white balance models, suitable for various scenarios.

7,Support Onvif protocol, national standard GB28181

Specification
Model
LS-FR100 Face Recognition CCTV Camera
Sensor type
1/1.8" Progressive Scan CMOS Sensor
Electronic shutter
1/25s~1/10000s
Minimum illuminance
Color 0.001Lux@ F1.2;Black and white 0.0001Lux@ F1.2;
Signal-to-noise ratio
≥50dB(AGC OFF)
Wide dynamic range
≥120dB
De-noising
3D digital noise reduction
Max. image size
1920 *1080
Lens type
3.6-11mm F1.4, horizontal field angle 106.8 degree ~44.2 degrees.
Video compression standard
H.265+/H.265/H.264/MJPEG
H.265 encoding type
Main Profile
Video code rate
32 Kbps~16Mbps
Audio compression format
G.711a/ G.711u/G.726
Image Setting
can adjust brightness, contrast, saturation, sharpness, white balance; AWB (automatic white balance), AGC (automatic gain), AE (automatic exposure control); support for privacy area occlusion; OSD superposition; image rotation: normal 90 / 270 degree automatic, manual or automatic color blackening and other switching modes
main stream
1080P(1920×1080)/1280×720
Auxiliary code stream
D1(704×576)/VGA(640×480)/640×352/QVGA(320×240)
Video frame rate
50Hz: 50fps (1920×1080,1280×960,1280×720)

60Hz: 60fps (1920×1080,1280×960,1280×720)
Smart encoding
supports low bit rate, low latency, ROI region of interest enhancement coding, and supports 4 ROI regions.
Smart detection
supports occlusion detection, defocus detection, luminance detection, color detection, sound detection, remnants detection, mobile detection, virtual cordon, regional intrusion
Smart control
supports intelligent control alarm opening, alarm closing, fault clearing, intelligent noise reduction.
Intelligent analysis
face capture, face tracking and face automatic filtering
Picture format
capture pictures using JPEG coding
The sensitivity
0-10 adjustable, the lower the sensitivity, the higher the image quality.
Area settings

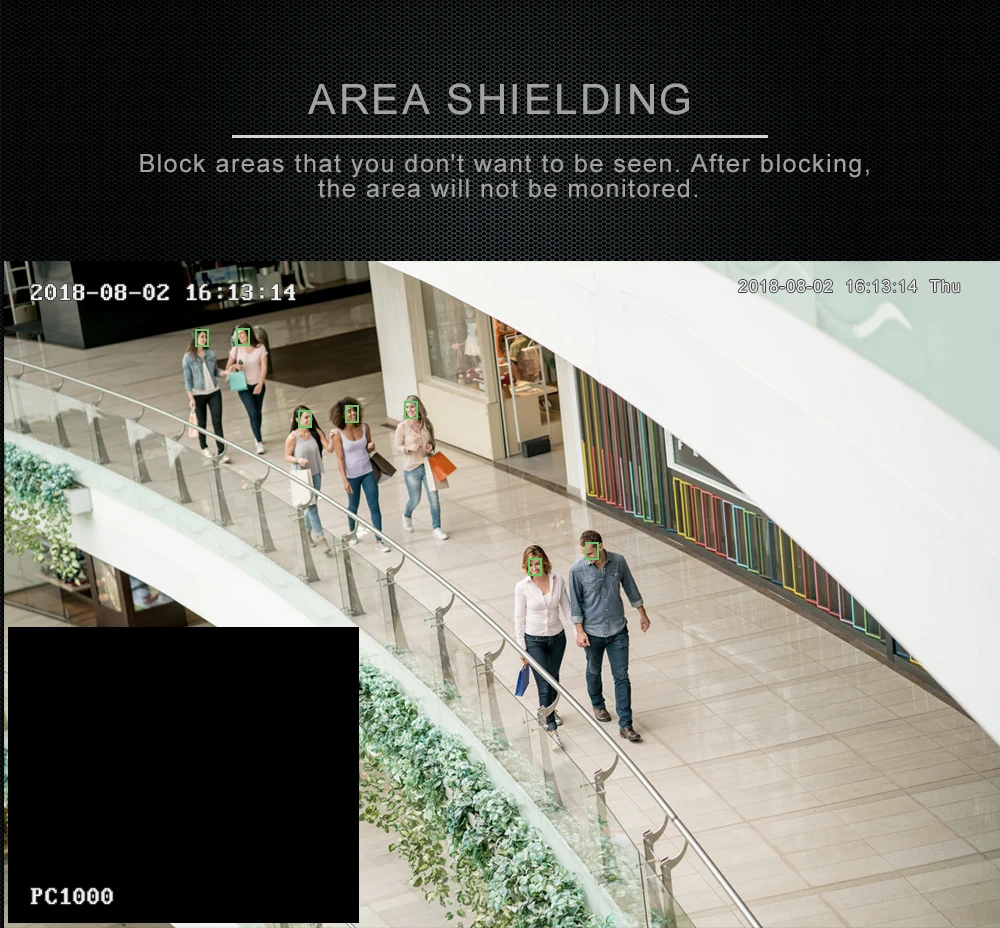

support face recognition area selection
Upload mode
private protocol, hokang protocol, FTP upload
Model:LS-FR100N  nvr for recording
Master control
Hi3520DV200
Operating system
embedded Linux operating system
Decode type
H.264
Video access
4ch 1080P
Replay
1ch 1080P
Compression mode
G.711A
speaking
Do not support
Video recording
manual recording, alarm recording, dynamic detection, video recording, general video recording.
Video query
channel retrieval, calendar retrieval, event retrieval, time retrieval
Record Storage
local hard disk storage
Backup mode
USB backup
VGA interface
1
HDMI interface
1
USB interface
2 USB2.0 interface
Hard disk
1 SATA interface (single maximum support 4T hard disk)
Network interface
10M/100M adaptive Ethernet port
Network protocol
1 channel audio input (MIC IN/Line IN); 1 way audio output interface
Power
12V/2A
Power
<10W(without hard disk)
Working temperature
-10°C ~60°C
Working humidity
10% ~ 90%RH

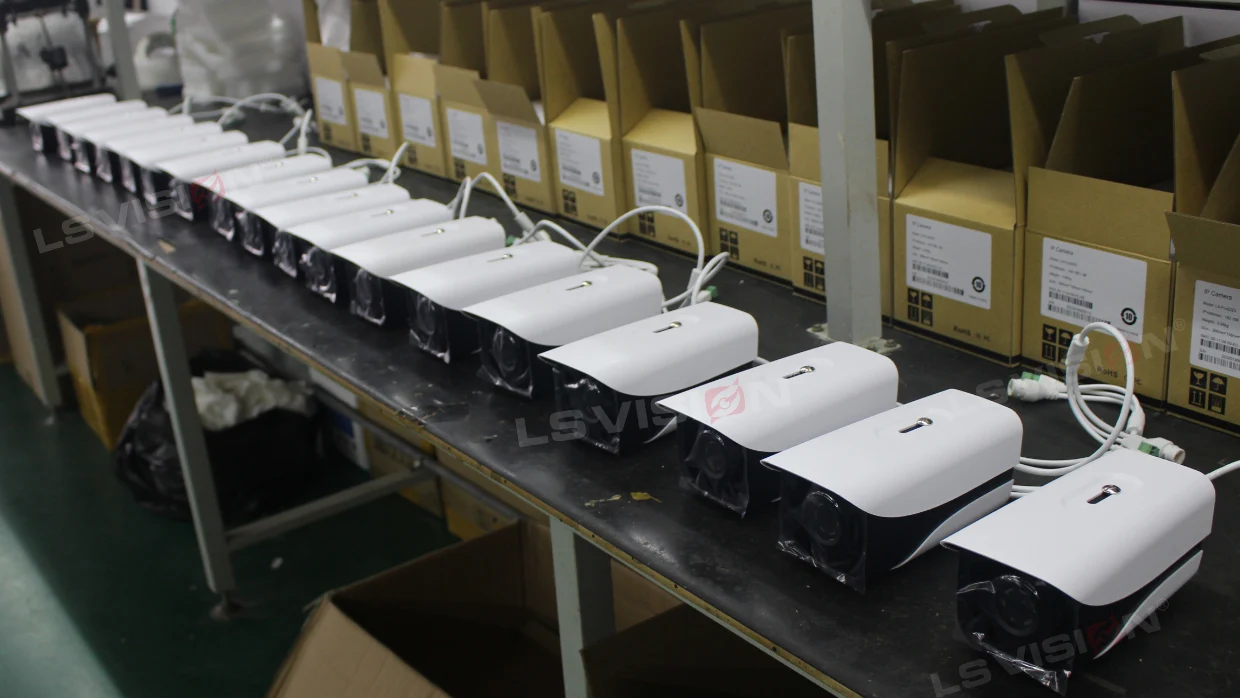

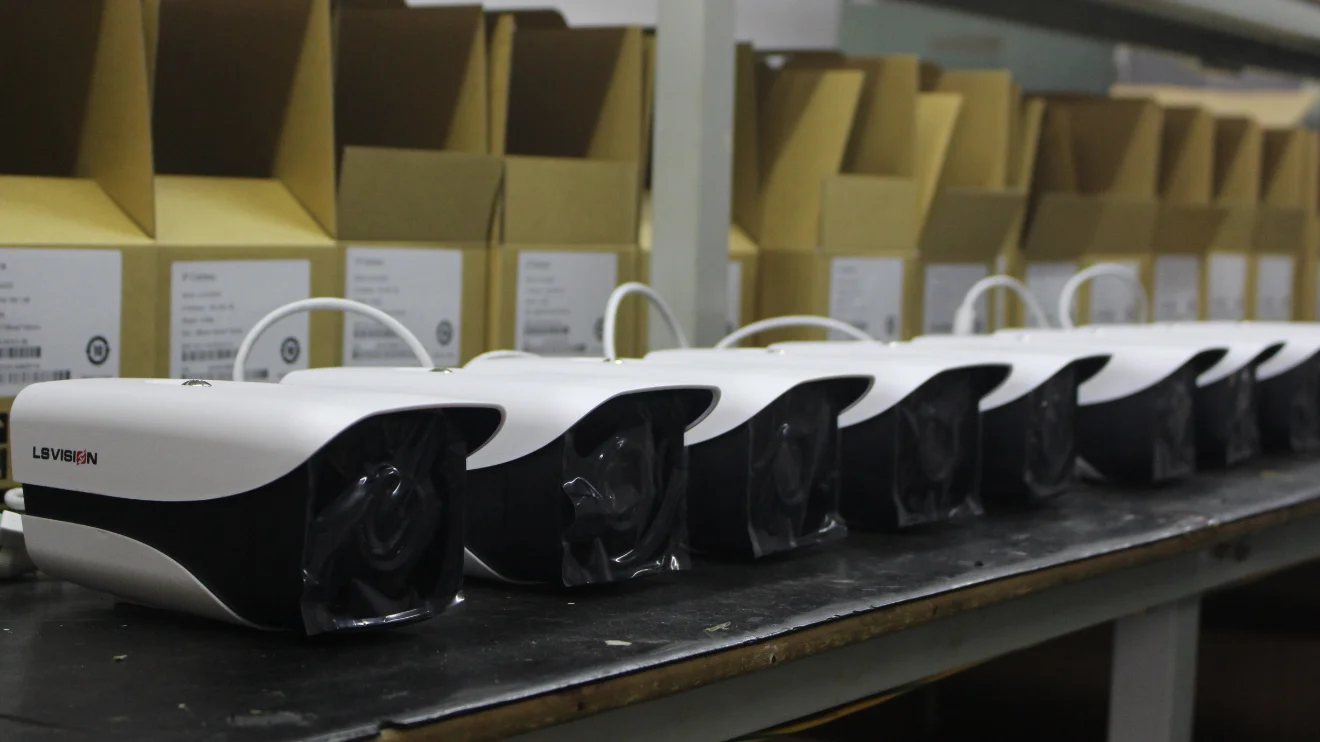

Production & Packaging

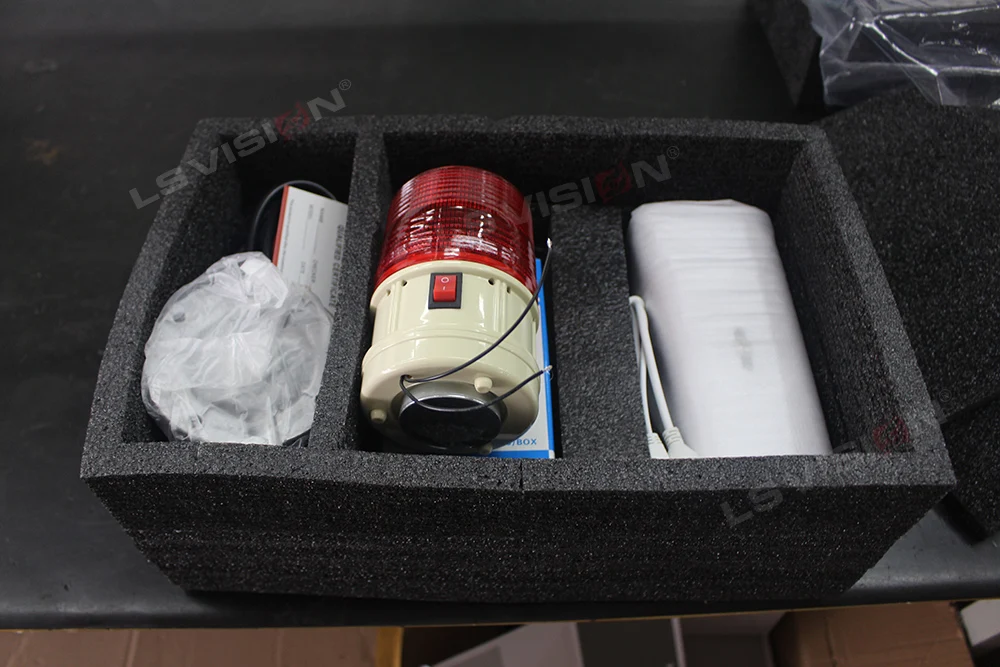

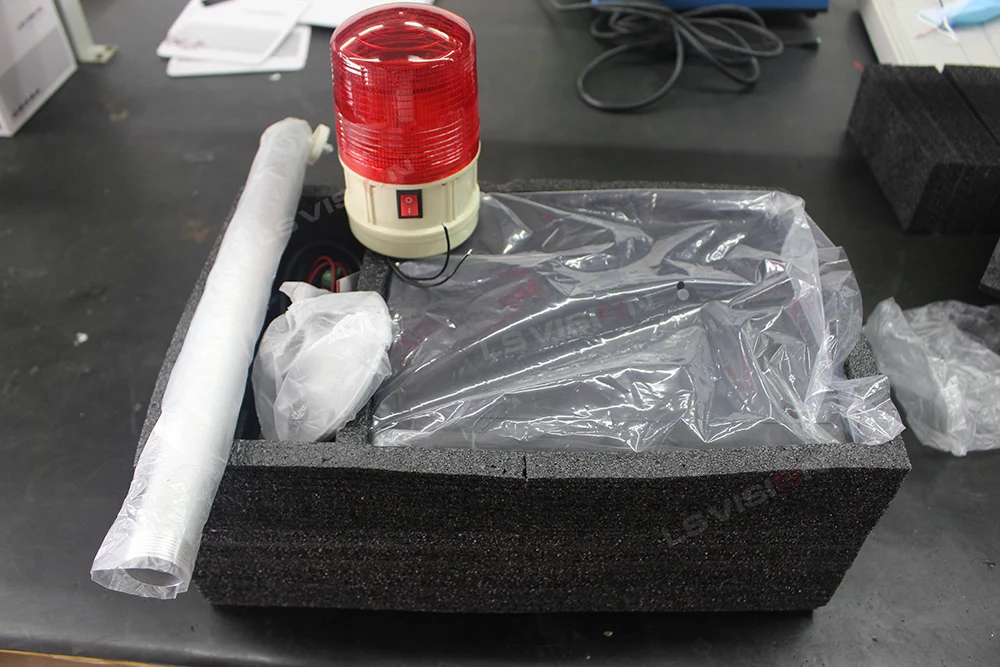

Face Recognition Series Package
Face Recognition Camera + NVR + Alarm Advice + Accessories
