LS VISION H.265 1080P 4ch NVR Kit 2.0MP POE HD Security IP Camera System CCTV Monitor Surveillance Network System

  • 1-19 Sets
    $124.95
  • 20-49 Sets
    $122.95
  • 50-99 Sets
    $119.95
  • >=100 Sets
    $114.95
Type:
POE CCTV Kits
Style:
BULLET CAMERA
Channels:
4
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order: 50 Sets)
Customized packaging (Min. Order: 500 Sets)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
LS VISION
Model Number:
LS-K4104P
Product name:
CCTV Kits 4 ch 2MP Bullet IP Camera NVR Smart Home Security System
Video&Audio input:
4ch 1080P smart home security system
Video&Audio output:
CVBS/VGA/HMDI/Audio
Bidirectional Talk:
Two-way voice intercom
Access Bandwidth:
48M smart home security system
Video decoding:
MPEG-4/H.264
Resource capacity:
4ch 1080P Play back
SATA:
1Sata smart home security system
POE:
4CH RJ45 10M/100M adaptive Ethernet interface
IP Camera:
4pcs 2MP smart home security system

Packaging & Delivery

Selling Units:
Single item
Single package size:
40X22X28 cm
Single gross weight:
5.500 kg
Package Type:
CTN 400*300*220mm 1*NVR + 4*IP camera + 4*network cables
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 20 21 - 50 51 - 100 >100
Est. Time(days) 7 10 15 To be negotiated
Video Description
More Recommendation
Key Features

LS VISION 4ch NVR Kit 2.0MP POE HD Security IP Camera System CCTV Monitor Surveillance Network System


H.265 compressiom

4PCS 2MP Outdoor POE IP Camera

1pc 4CH POE NVR with one Sata

Motion detection

NVR: Intelligent features: 1ch face detection, 1ch boundary analysis (optional)

IPC: Standard Fixed lens 3.6mm

12pcs Leds IR distance 20M , IP66

NVR: support one channel Face Recognition

Specification
Camera
Model
LS-NB1204C
Video Standard
H.265/H.264 Double code
Video Resolution
Main stream: 1920*1080@25fps

Sub stream: 640*480/640*360 ,1-30fps
Image Quality
Brightness setting, Saturation setting, Sharpness setting, Contrast setting, Auto white balance, Manual white balance setting, Backlight compensation setting, Light suppression setting, Auto exposure, 2D/3D noise reduction intensity setting, Fog mode setting, WDR mode Strength setting
Day/Night
Color/(B/W)/Timing
WDR
Digital WDR
White Balance
Auto
AGC/BLC
Support
DNR
2D/3D DNR
Other
Motion Detection, Privacy Mask, Mirror, Rotate
Audio
Optional
Lens
3.6mm, 20m IR
Network Services
Protocol
HTTP/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/ONVIF/P2P/UPNP
P2P
Yes
Web
IE , Firefox, etc.
Media
CMS, Android, IOS
ONVIF
2.6 compatible
General
Network Port
1-RJ45, 10/100Mbps
Power Supply
Support POE 48V 12 VDC ± 10%
Power Consumption
< 15 W
Operating Temp.
-30℃-(+70)℃, 10%-90%RH
Waterproof level
IP66

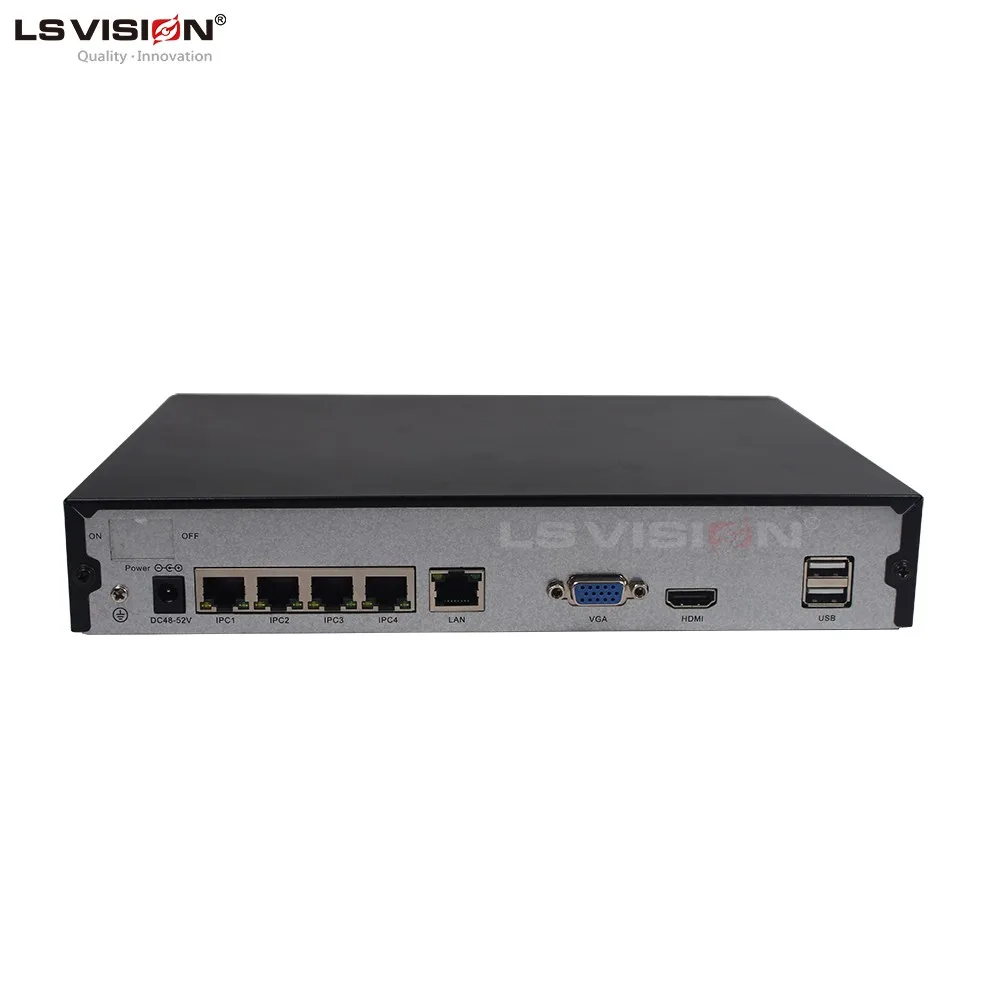

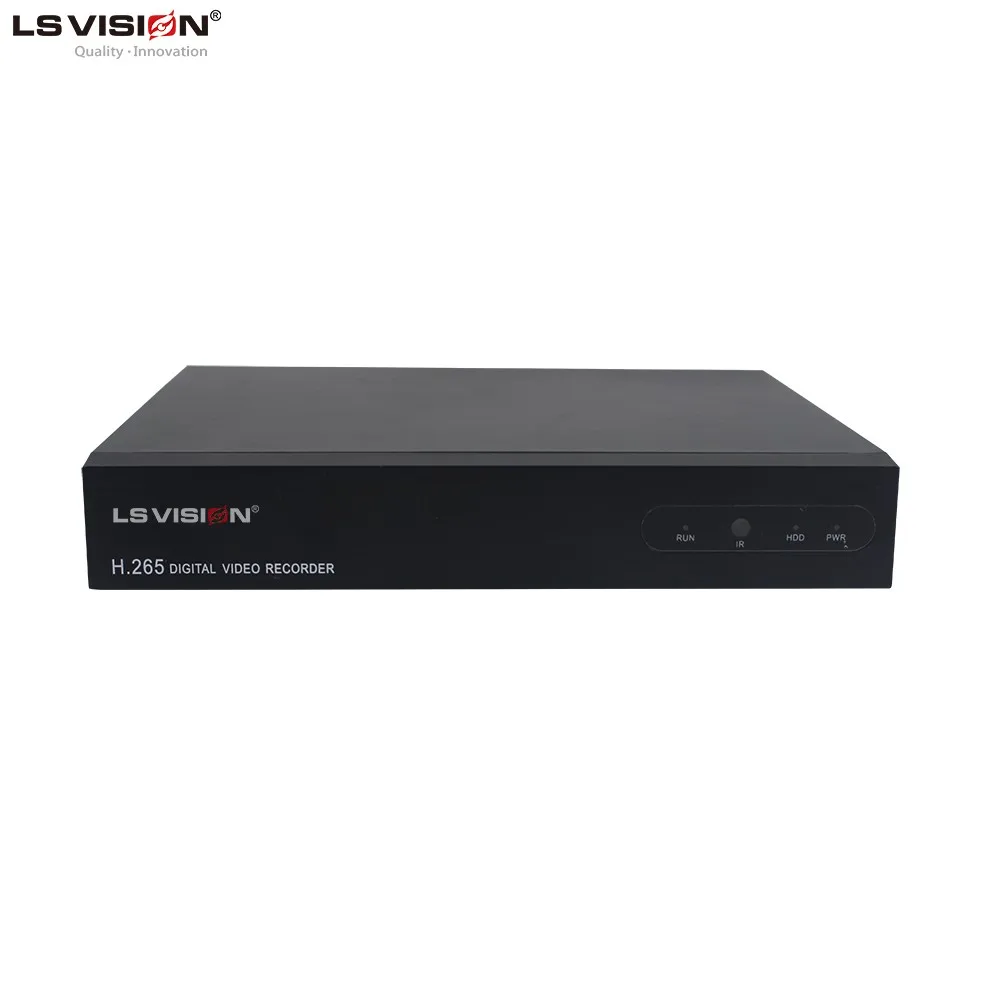

NVR
Module
LS-NF5104P
OS
Embedded Linux
Master chip
Hi3798M
Access Bandwidth
48M
Support 1 SATA, 8ch POE port (IEEE 802.3af)
Yes
Bidirectional Talk
Two-way voice intercom function
CVBS Output
1CH,BNC(1.0Vp-p,75ohms)
HDMI
Resolution 1920×1080,
1280×1024,1280×720,1024×768,800×600
Audio Output
1CH,BNC(Line out,2Vpp,300ohms)
IP Resolution
Main stream:up to 5632x4224
Sub stream: no more than D1

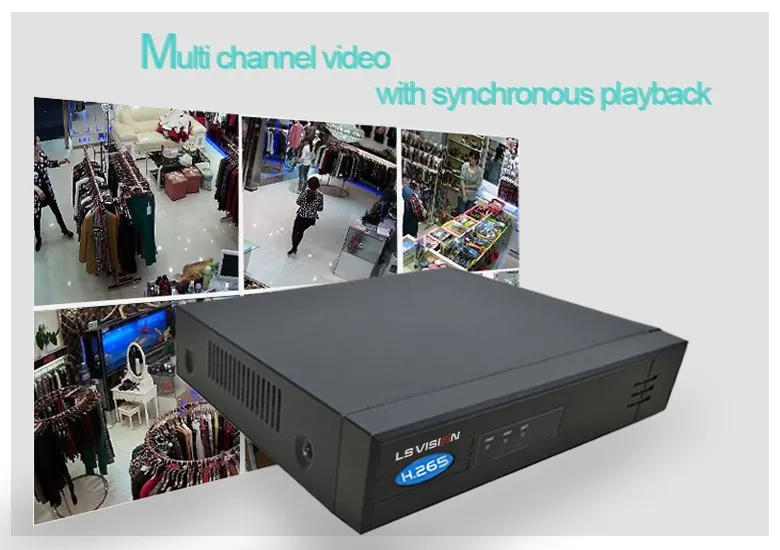

Synchronous Playback
Up to 4CH
Bidirectional Talk
Two-way voice intercom function
Motion Detection
Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)
Network Interface
1 RJ45 10M/100M/1000M adaptive Ethernet interface
Weight
2.0 Kg(without HDD)
Power Supply
110V~220V±10% ±10% 47Hz~63Hz
Working Temperature
 -10℃--+55℃
Working Humidity
10%--90%
Consumption
30W(without HDD)
Image Effects

IP Camera

NVR

Mobile App

IE interface

CMS
