LS VISION H.265 High End Embedded Onvif IP Recorder CCTV 32CH Channel Facial Detection Alarm NVR Support 8 SATA and One ESATA

  • 1-49 Sets
    $377.10
    $396.95
  • 50-99 Sets
    $370.45
    $389.95
  • >=100 Sets
    $360.00
    $378.95
5% OFF Discount ends in : : :
Type:
NVR
Channels:
32
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order: 50 Sets)
Customized packaging (Min. Order: 500 Sets)
Contact Supplier
Samples - $396.50 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
LS VISION
Model Number:
LS-NF5832
Key Feature1:
Onvif 32 Channel CCTV NVR Facial Recognition
Key Feature2:
Face Detection
Key Feature3:
8SATA/1 ESATA
Compression:
H.264/H.265
Main Processor:
HI3536
RS-485:
YES
Certificate:
CE FCC RoHS
Access Bandwidth:
200M
Network Ports:
2RJ45 10M/100M/1000M adaptive Ethernet interface
Power Standard:
EU/AU/UK/US

Packaging & Delivery

Selling Units:
Single item
Single package size:
44X41X16 cm
Single gross weight:
15.0 kg
Package Type:
CNT 4K 8MP Onvif 32 Channel CCTV NVR
Lead Time :
Quantity(Set) 1 - 20 21 - 100 101 - 150 >150
Est. Time(days) 7 12 15 To be negotiated
More Recommendation
Product Description

LS VISION H.265 8 SATA Onvif 32CH Channel CCTV NVR Network Video Recorder Support Alarm


A Network Video Recorder (NVR) is a video recorder that is connected to your computer network and records video footage from the IP cameras also connected to that network. It allows you to manage an IP camera system via existing computers and IT hardware.

PoE IP cameras (Power over Ethernet) allow the user to take advantage of low cost CAT5e or CAT6 network cable for their indoor infrastructure.

Detailed Images
Specification NVR
Module
LS-NF5832
OS
Embedded Linux
master chip
Hi3536
Access Bandwidth
200M
Bidirectional Talk
1 CH(Line in,2Vpp,1Kohms)
CVBS Output
1CH,BNC(1.0Vp-p,75ohms)
VGA
1CH,Resolution 1920×1080,1280×1024, 1280×720,1024×768,800×600
HDMI
Standard 2.0
Resolution 3840×2160,1920×1080,1366×768,1280×1024,1280×720,1024×768
Audio Output
1CH,BNC(Line out,2Vpp,300ohms)
Audio Compression
G711A
Audio Bit Rate
64Kbps
Video decoding
H.265(Main Profile@ L5.0 High-tie)/H.264(Up to High Profile@ Level5.0)
Synchronous Playback
Up to 6CH
Bidirectional Talk
Two-way voice intercom function
Motion Detection
Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)
Picture Capture
Local Capture&Web Capture
SATA
8
ESATA
1
POE interface
N/A
Network Interface
2 RJ45 10M/100M/1000M adaptive Ethernet interface
USB
2 USB 2.0 Interfaces
Dimensions
405*365*123mm
Weight
15Kg(without HDD)
Power Supply
110V~220V±10% 47Hz~63Hz
Working Temperature
-10℃--+55℃
Working Humidity
10%--90%
Product packaging

IP Camera Series Package

There are two color box packaging, LS VISION brand packaging and  packaging without logo.
support OEM service

NVR Series Package

Neutral carton packaging.
NVR can support LS VISION Logo, neutral no logo, or customed logo

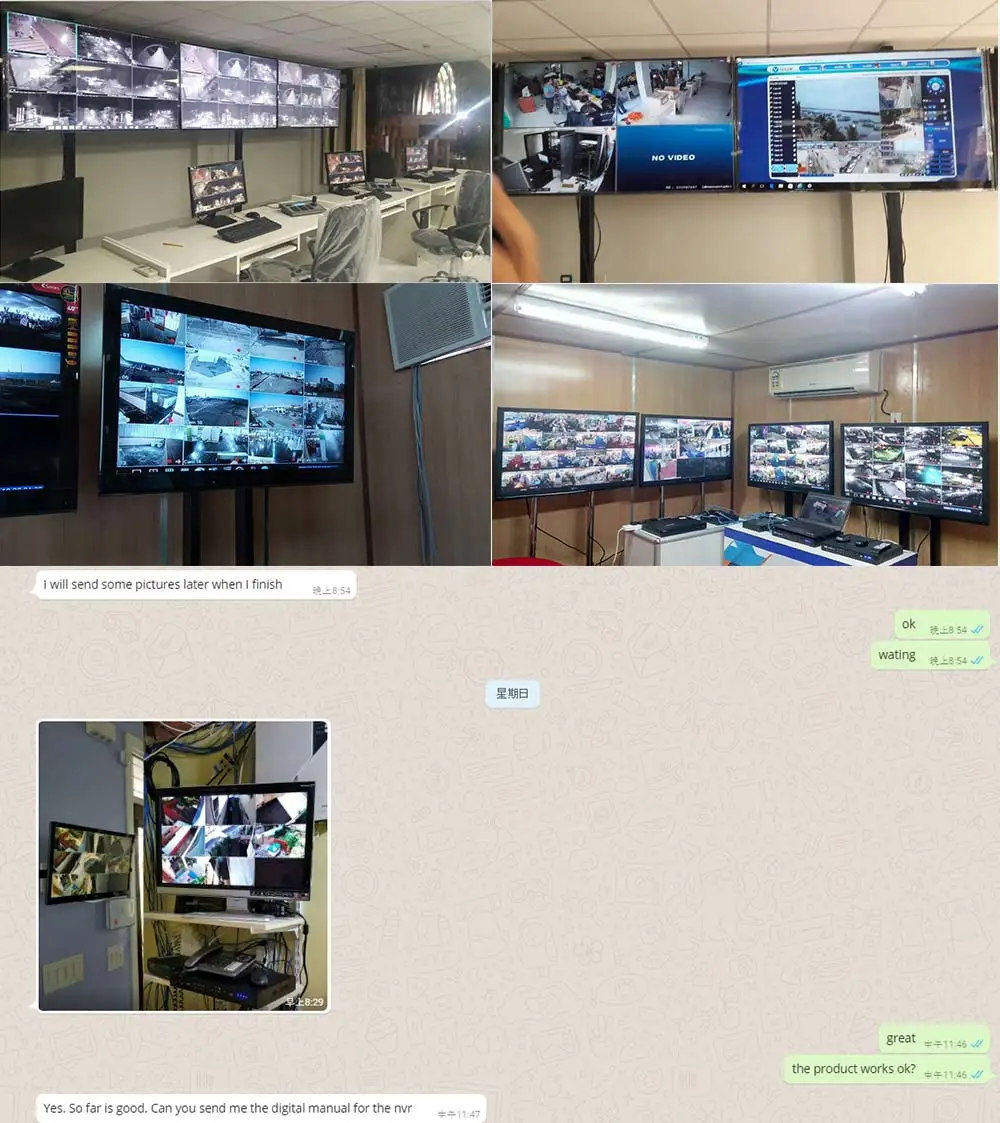

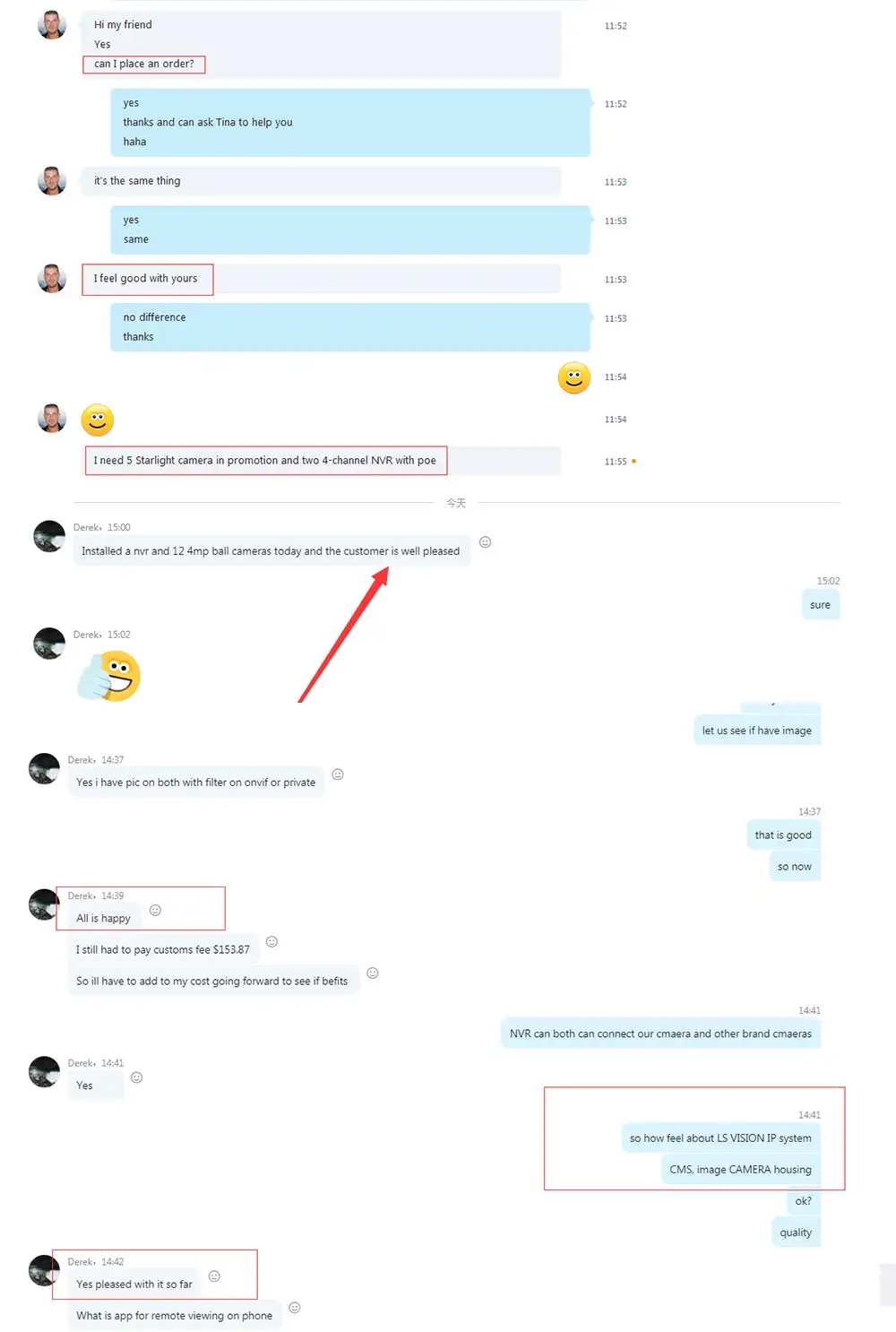

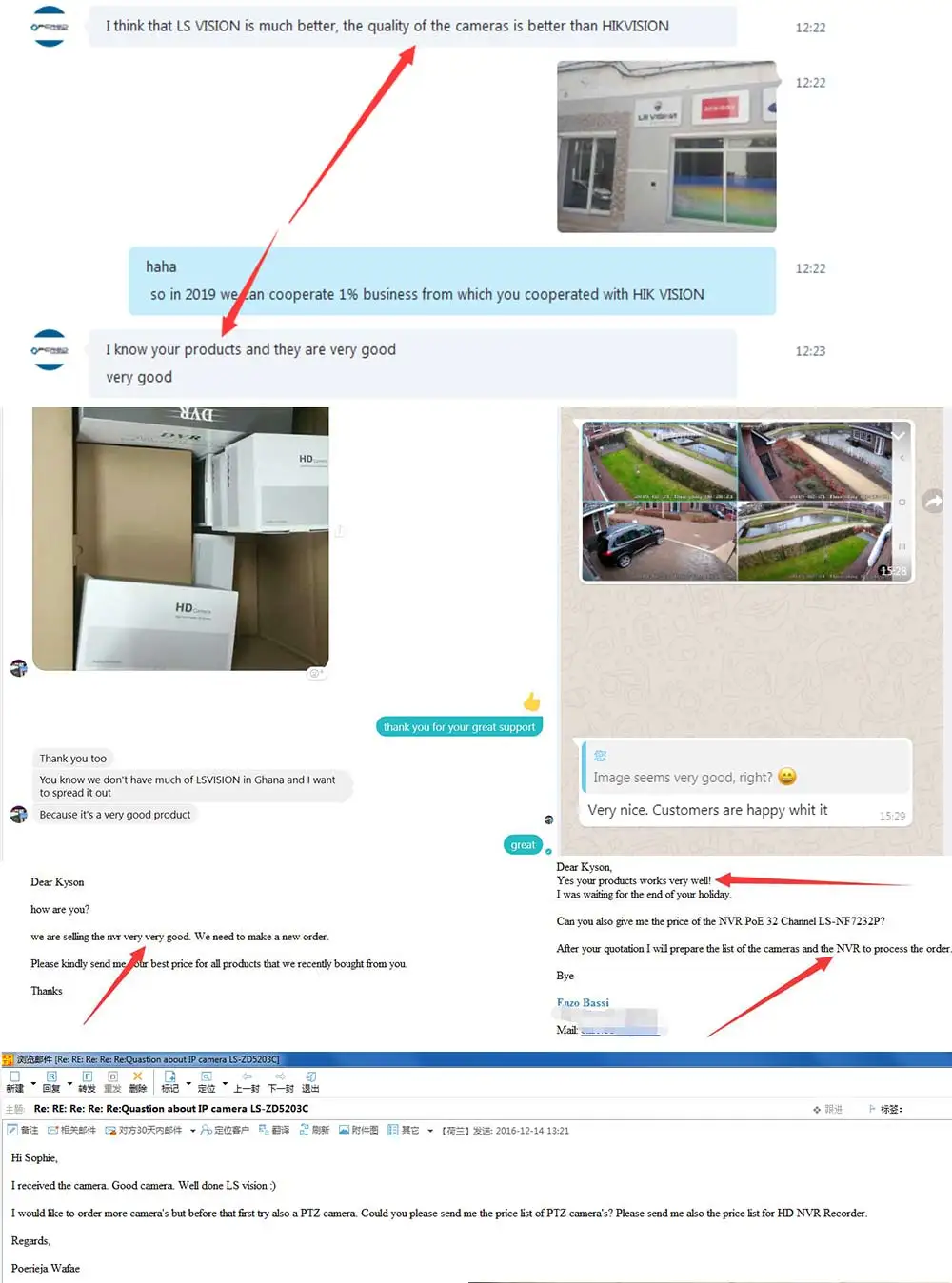

Customer Feedback
Brand & CCTV Project

LS VISION Global Brand

At present, LS VISION partners and customers all over the world, including dealers, agents, engineers and security importers, end consumers and other different customer groups, in Russia, Yemen, Philippines, Madagascar, Nigeria, Tunisia, Bangladesh, Saudi Arabia, Vietnam, Ghana, Bangladesh and other countries region, set up an exclusive agency, and we have been have been making great efforts to expend our global agency or distribution area.

LS VISION Global Security Project

LS VISION products and solutions used in a number of countries and regions, Such as the Saudi Arabian Jeddah International Book Fair Project in 2017 and 2018; CITY Center MAKKAH CCTV Project in 2018;   the Fath Gas Station Project in 2017, the Peruvian Bass Amas Plaza Project, the Panama Airport and other major security projects have played an important role.

Certification
LS VISION

LS VISION will keep our key value of Quality. Innovation. Dedication to do more research for the products to bring more value for our partners in the 2019.


In 2019, LS VISION products strategy:
Industry market:
IPC: 2MP to 8MP 4K Series IP Camera and HD NVR system.
Analog HD: 2MP to 8MP series and DVR system.
AI Series: Face recognition camera and NVR system.
4G Solar Camera system

Police Body Camera

Consumer Market:
Wifi NVR Kit, POE Nvr Kit;
wifi Battery Cameras, WiFi Indoor PTZ Camera, Smart Doorbell etc.
