LS VISION H.265 Long Range 4CH 2MP Wireless Home Security Motion Alarm WIFI Kit 1080P HD IP CCTV Camera NVR System support 6TB

  • 1-9 Pieces
    $139.95
  • 10-49 Pieces
    $136.95
  • 50-99 Pieces
    $132.95
  • >=100 Pieces
    $129.95
Style:
BULLET CAMERA
Channels:
4
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
8 day(s) after payment received
Customization:
Customized logo (Min. Order: 50 Pieces)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
LS VISION
Model Number:
LS-WK6204
Bidirectional Talk:
1CH (Line in,2Vpp,1Kohms)
Audio Output:
1CH,BNC (Line out,2Vpp,300ohms)
IP Resolution:
Main stream: up to 1920x2048 Auxiliary stream:4CIF"
Synchronous Playback:
Up to 4CH
SATA:
1 Sata support 6TB
Video access:
4-way 1080P device access storage
Record Mode:
Manual> Alarm> Motion Detection> Timing
Network Interface:
1 RJ45 10M / 100M adaptive Ethernet interface
Screen display:
1/4 Screen
USB:
2 USB 2.0

Packaging & Delivery

Selling Units:
Single item
Single package size:
35X30X20 cm
Single gross weight:
4.500 kg
Package Type:
color box
Lead Time :
Quantity(Pieces) 1 - 20 21 - 50 51 - 100 >100
Est. Time(days) 8 12 15 To be negotiated
Video Description
Product Description

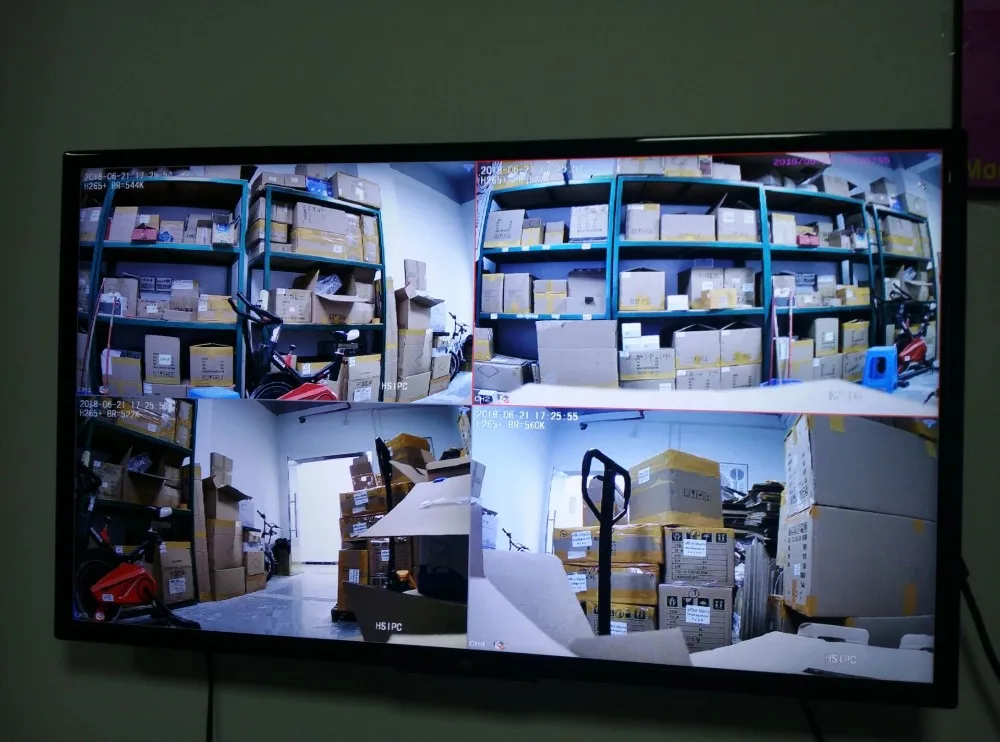

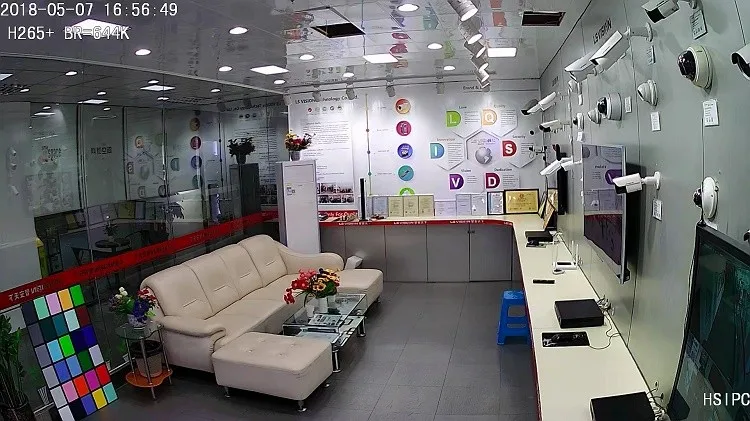

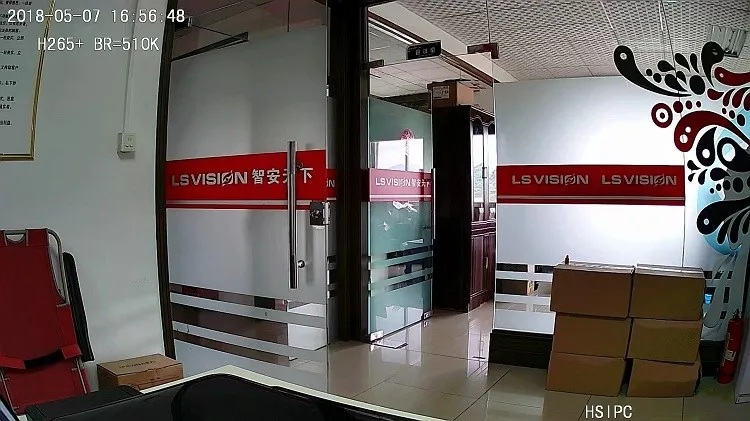

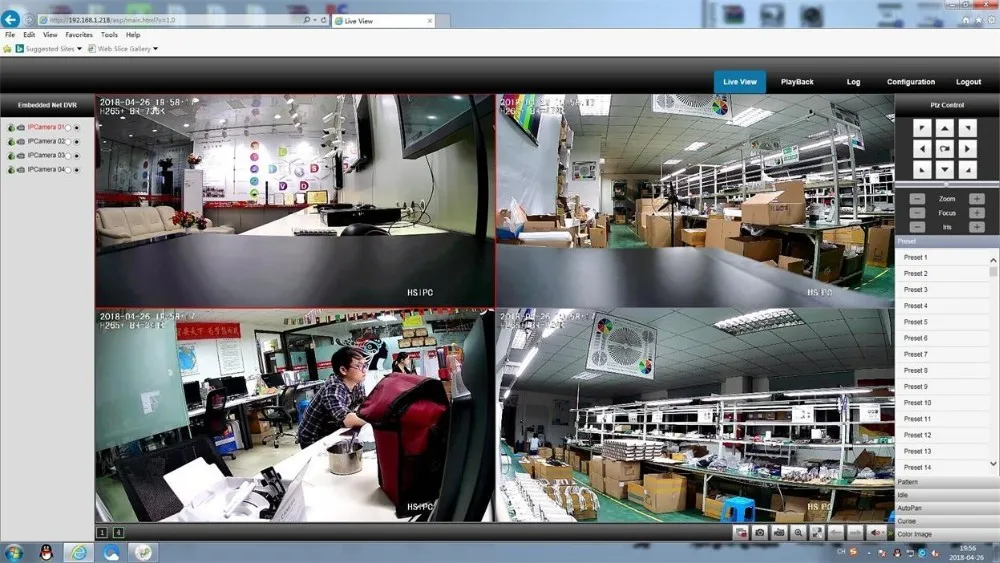

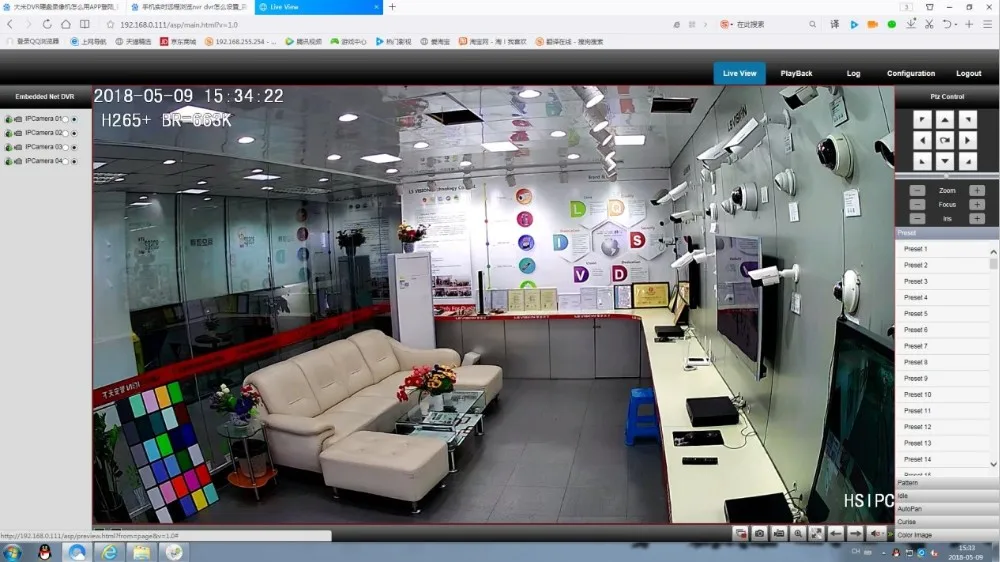

IE Brower and CMS Software Effect

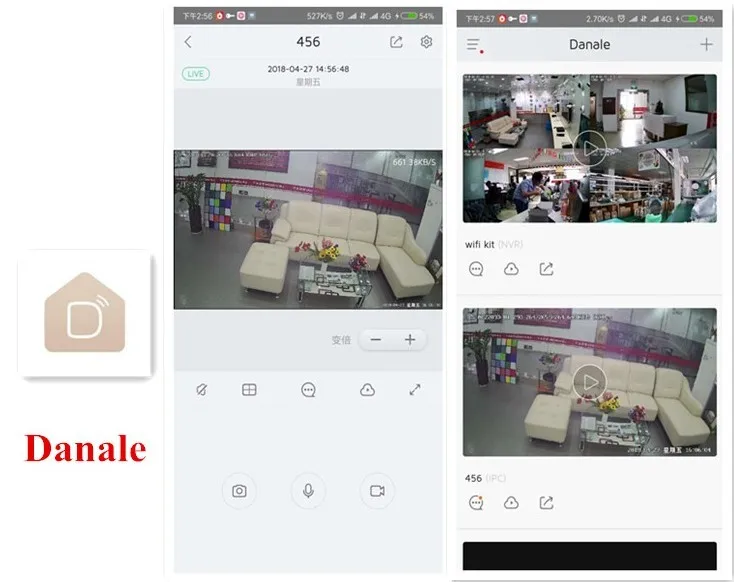

Danale APP Video and Image Effect

Detailed Image
Specification

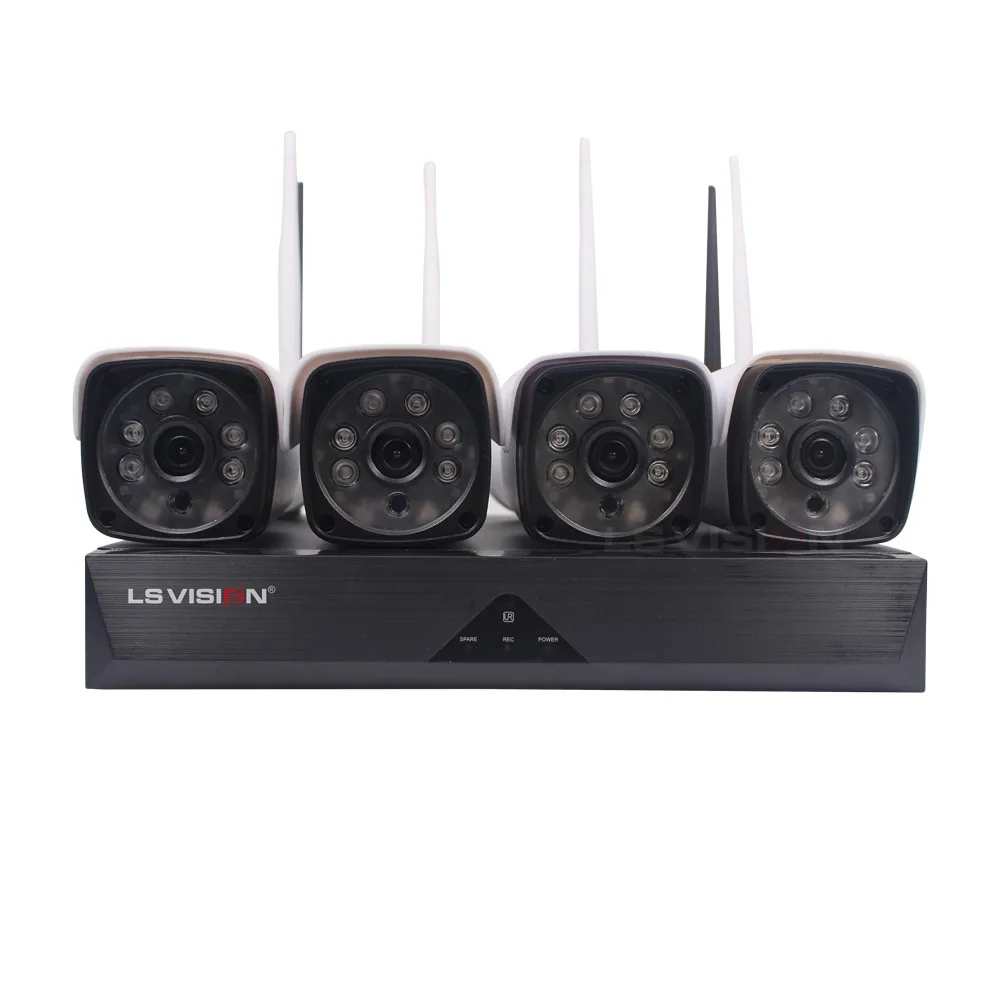

LSVISION H265 Long Range 4ch 1080P Wireless Home Security Alarm Kit HD IP CCTV Camera NVR System


Key Features for H265 Wifi NVR Kit:


1,H.265 encoding 4CH 1080P wifi NVR kit

2,802.11b/g/n ;300Mbps;2.4G wireless

3,4CH 1080P@15fps video input and 4CH sync playback

4,Support HDMI/VGA;1 SATA max 6T

5,Support 1 RJ45;2 USB interface;2pcs 5dbi detachable wifi antenna

6,With 1m reticle*1;Power adaptor*5;USB Mouse*1 ;1 network port;

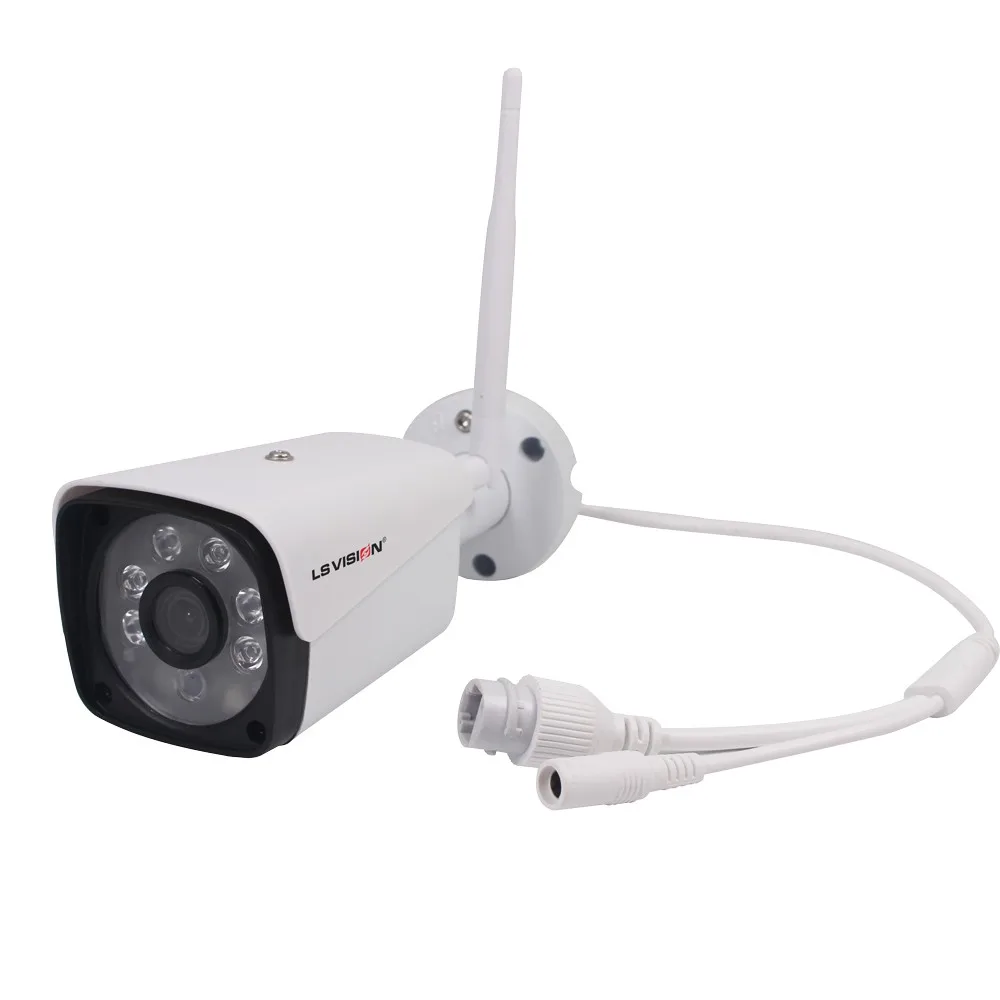

7,With 4pcs 1080P IR bullet cameras, 1/2.7" 2.0MP sensor, 4mm lens, with 5dbi antenna

8,4pcs IR Array LED, IR distance 20 meters

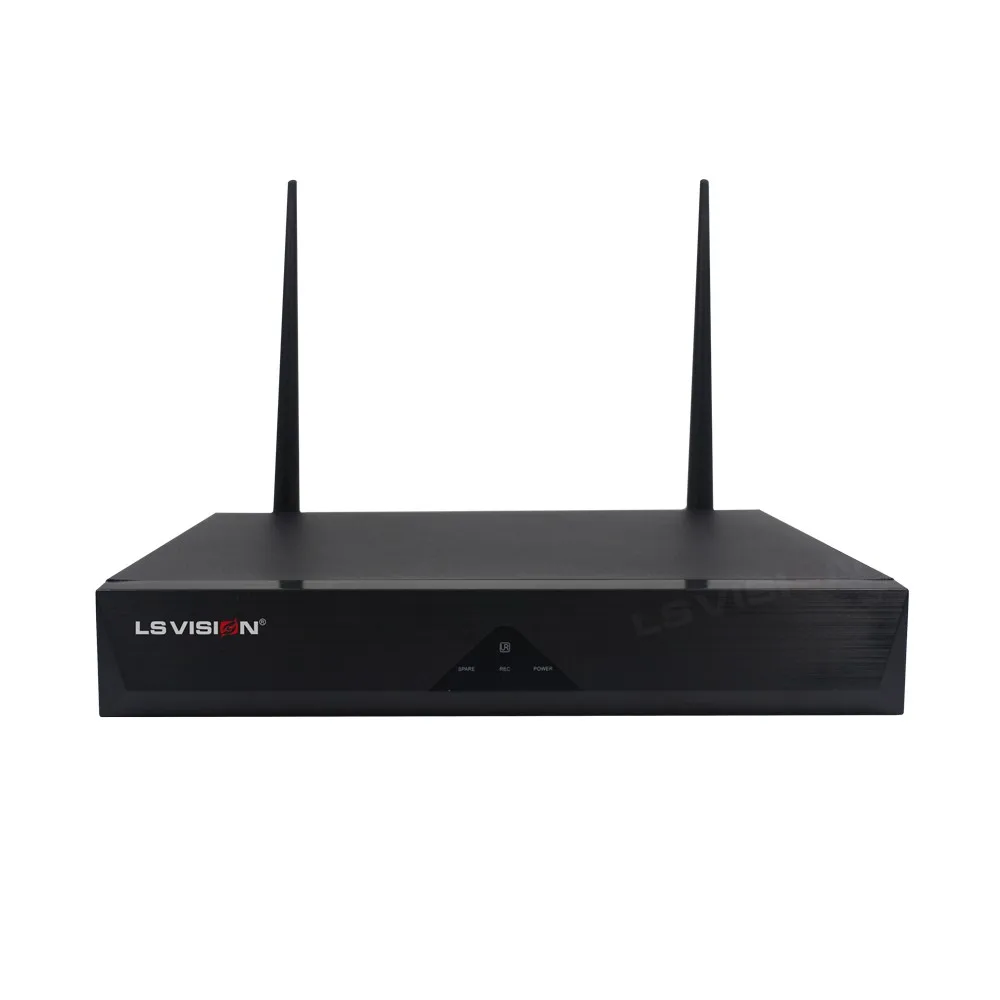

Model
H.265 WIFI NVR
Main Processor
Latest Industrial Embedded Microcontrollers(MSR620Q)
Operating system
Embedded LINUX operating system
System resource
Simultaneous multi-channel real-time recording, real-time playback, multiple multi-user network operations, USB backup
Operation interface
24-bit true color graphic menu operator interface with mouse operation
Screen display
1/4 Screen
Image coding
BaseLine Profile / Main Profile / High Profile
Playback quality
1080P
Video access
4-way 1080P device access storage
Motion Detection
396 (22*18) detection areas per screen; sensitivity can be set
Audio compression
G711.A,G711.U
Monitor
not support
Record mode
Manual> Alarm> Motion Detection> Timing
Local playback
4-way 1080P playback
Video search
Point-in-time search, calendar search, event search, channel search
Backup method
USB,Mobile hard disk
Video output
1 VGA, 1 HDMI
Audio output
1
Network
1*RJ45 10M/100M Adaptive Ethernet port
USB
2 USB 2.0
Hard disk
1 SATA(Maximum support 6T hard drive)
Antenna
2 150Mbps
Power supply
DC 12V 2A
Weight
1.0kg(Without hard disk)
Working humidity
10%-90%
Operating temperature
-10℃--50℃

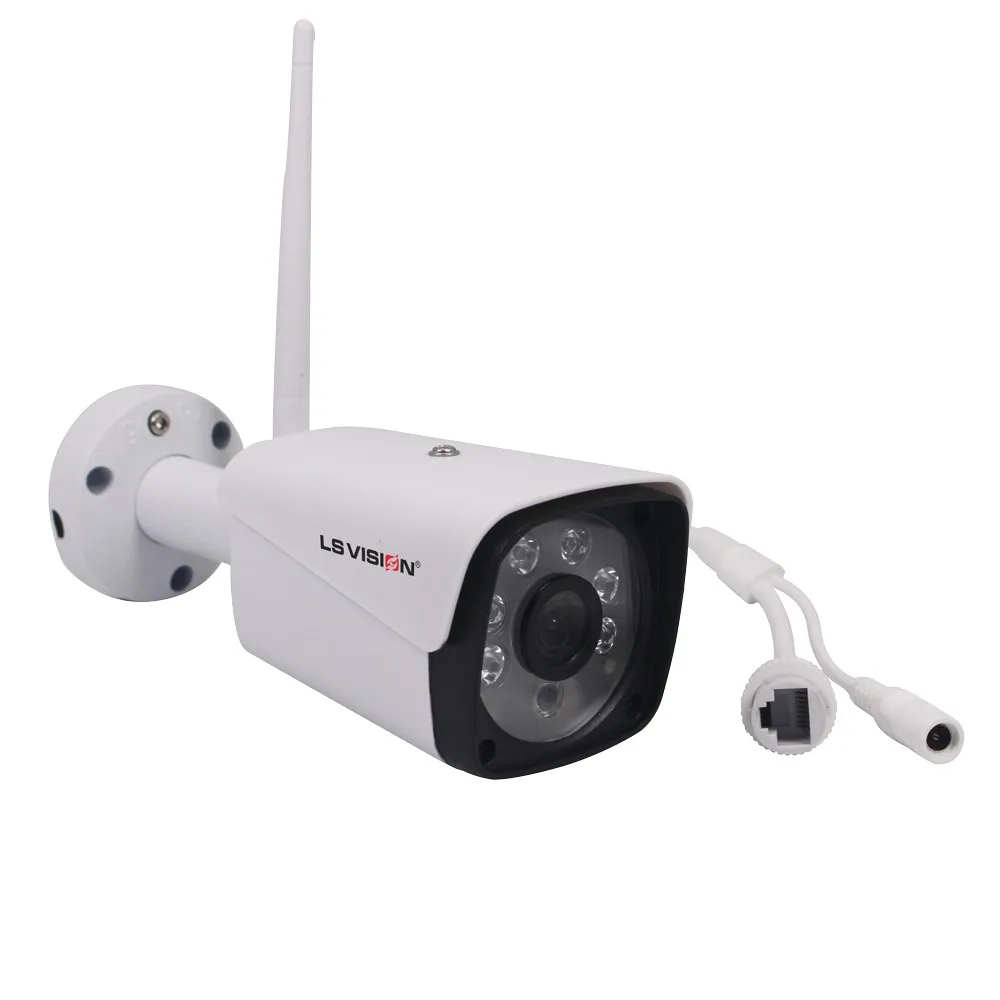

H.265 2MP IP Camera
Effective Pixels
2MP,1920(H)*1080(V)
Sensor
1/2.7"CMOS
Minimum illumination
0.05Lux/F1.2(color);0.01Lux/F1.2(B&W)
Electronic shutter
NTSC:1/30---1/10000 second;PAL:1/25---1/10000 second
Day & night conversion mode
ICR IR_CUT
Video compression standard
H.265
H.265 Coding type
PROFILE_BASELINE
Image format
1920*1080(1080P)
Frame rate
50Hz:15fps/60Hz:15fps
Masking settings
Supports 4 sets of masking block settings
Image settings
Brightness, Contrast, Saturation, Gain, Shutter, White Balance, etc. Adjustable
Color to black
support
Smart alarm
Motion detection, occlusion alarm, video loss, network cable disconnection, IP address conflict
supporting agreement
TCP/IP,DHCP,HTTP,HTTPS,NTP,DNS,RTP,RTSP
General function
One-click recovery, dual stream, heartbeat, mirroring, video cover, anonymous access, etc.
Communication Interface
One RJ45 10M/100M adaptive Ethernet port
WIFI antenna interface
Support 8188EUS etc.
Lens
4mm
power supply
DC12V
Power
≤6W
