LS VISION H.265 POE ONVIF 4K 8MP NVR Support 2 USB Port CCTV Camera 4 channel NVR System

  • 2-49 Sets
    $74.95
  • 50-99 Sets
    $70.95
  • >=100 Sets
    $68.95
Type:
NVR
Style:
BULLET CAMERA Dome Camera
Channels:
4
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order: 50 Sets)
Customized packaging (Min. Order: 500 Sets)

More

Graphic customization (Min. Order: 1000 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
LS VISION
Model Number:
LS-NF5104CP
Key Feature1:
support 4CHANNEL 4K CMAERA
Key Feature2:
1CH,BNC(Line out,2Vpp,300ohms)
Key Feature3:
Main stream:up to 5632x4224; Sub stream: no more than D1
Synchronous Playback:
Up to 4CH
SATA:
1
USB:
2 USB 2.0 Interfaces
Network Interface:
1 RJ45 10M / 100M adaptive Ethernet interface
Dimensions:
215*235*50mm(W*D* H)
POE interface:
4CH RJ45 10M/100M adaptive Ethernet interface
POE:
YES

Packaging & Delivery

Selling Units:
Single item
Single package size:
43X32X10 cm
Single gross weight:
2.300 kg
Package Type:
Single Packaging
Lead Time :
Quantity(Sets) 1 - 20 21 - 100 101 - 200 >200
Est. Time(days) 7 12 20 To be negotiated
Video Description
Promotion Models
More Recommendation
Product Description

We have H.265 4ch to 64ch HD NVR, after you confirm how many cameras you need, I can recommend your which type NVR your need.

It is Plug and Play- to identify camera IP automatically with bulit in POE switches.


Support 4ch 4K /8MP Cameras

Key Features for H.265 NVR:


-H.264/H.265 High performance and industrial-grade SOC chip with low power consumption and steady system. Triple watchdog circuit protection system ensures no crashes phenomenon.

-With embedded Linux system, a 16-bit colored image enhancement technology, a consummate UI operation interface style.

-Support ONVIF 2.4 protocol.

-Full HDMI output, support HDMI, VGA, CVBS synchronization output.

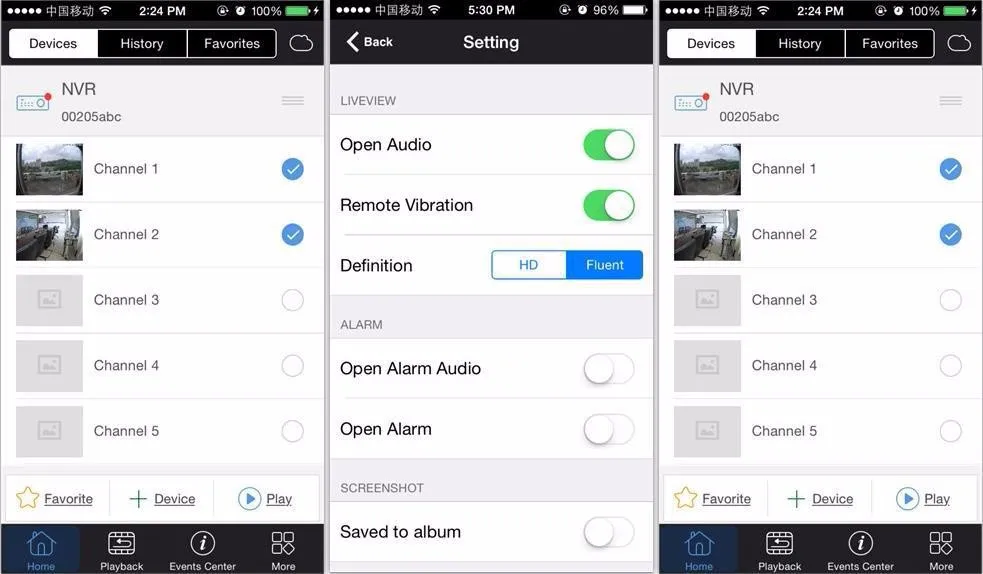

-Plug and play, support P2P function, cloud services and cloud storage is provided.

-4ch POE port built-in.

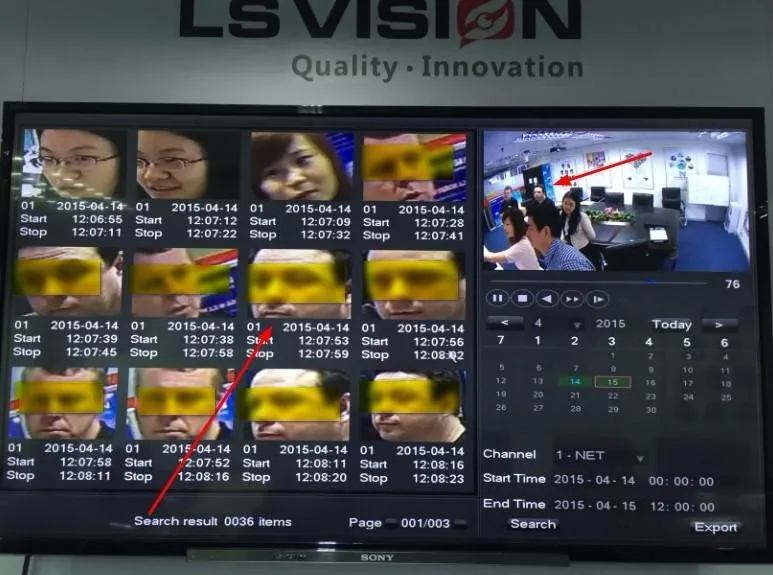

-Intelligent features: 1CH face detection, 2ch boundary analysis.
Application
Specification
Audio Output
1CH,BNC(Line out,2Vpp,300ohms)
Audio Compression
G711A
Audio Bit Rate
64Kbps
IP Resolution
Main stream:Up to 4096*3072
Auxiliary stream:D1
Video bitrate
Up to 2Mbps@D1, 4Mbps@720P, 8Mbps@1080P
Video decoding
H.265(Main Profile L5.0 High-tie)/H.264(Up to High Profile Level5.0)
Synchronous Playback
Up to 4CH
D1 Play back
4CH
720P Play back
4CH
1080P Play back
4CH
switch for 8.0MP IPC
1CH 8MP@10fps(8Mbps) Playback
8.0MP Play back
4CH
switch for 5.0MP IPC
4CH 5MP@10fps(10Mbps)
5.0MP Play back
2CH
Bidirectional Talk
Two-way voice intercom function
Motion Detection
Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)
Picture Capture
Local Capture&Web Capture
SATA
1
ESATA
0
POE interface
4ch POE -RJ-45 10/100 Mbps self-adaptive Ethernet interface
Network Interface
1 RJ45 10M/100M/1000M adaptive Ethernet interface
USB
2 USB 2.0 Interfaces
Dimensions
410*293*60mm
Weight
1.7Kg(without HDD)
Power Supply
DC 48V /1.35A
Working Temperature
-10℃--+55℃
Working Humidity
10%--90%
Consumption
7W(without HDD and POE)

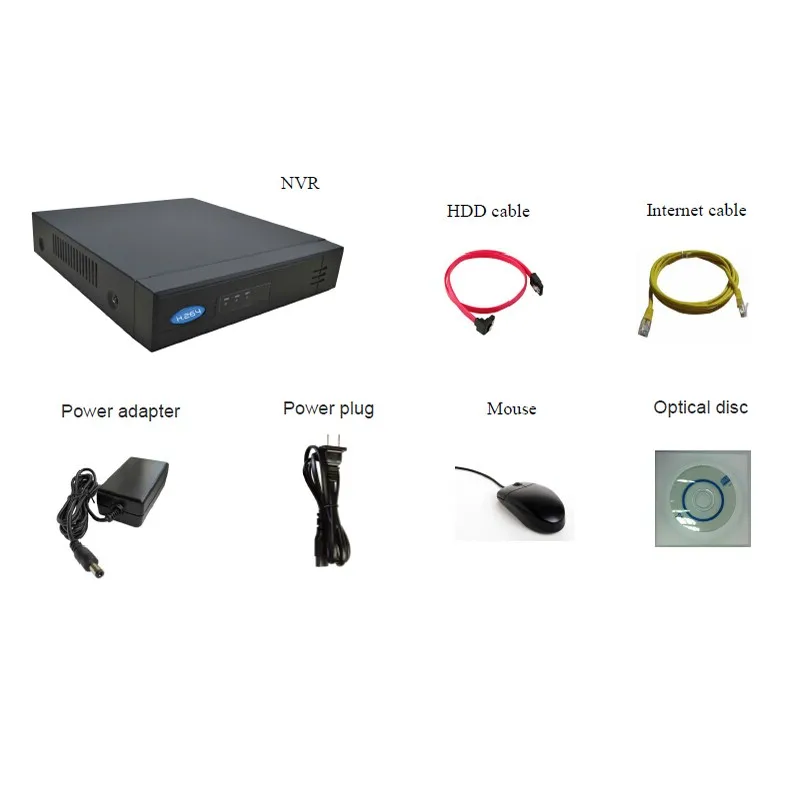

Product packaging
Brand & CCTV Project

LS VISION Global Brand

At present, LS VISION partners and customers all over the world, including dealers, agents, engineers and security importers, end consumers and other different customer groups, in Russia, Yemen, Philippines, Madagascar, Nigeria, Tunisia, Bangladesh, Saudi Arabia, Vietnam, Ghana, Bangladesh and other countries region, set up an exclusive agency, and we have been have been making great efforts to expend our global agency or distribution area.

LS VISION Global Security Project

LS VISION products and solutions used in a number of countries and regions, Such as the Saudi Arabian Jeddah International Book Fair Project in 2017 and 2018; CITY Center MAKKAH CCTV Project in 2018;   the Fath Gas Station Project in 2017, the Peruvian Bass Amas Plaza Project, the Panama Airport and other major security projects have played an important role.

LS VISION

LS VISION will keep our key value of Quality. Innovation. Dedication to do more research for the products to bring more value for our partners in the 2019.


In 2019, LS VISION products strategy:
Industry market:
IPC: 2MP to 8MP 4K Series IP Camera and HD NVR system.
Analog HD: 2MP to 8MP series and DVR system.
AI series: Face recognition camera and NVR system.
4G Solar Camera system

Consumer Market:
Wifi NVR Kit, POE Nvr Kit;
wifi Battery Cameras, wifi PTZ Camera, Smart Doorbell etc.
