LS VISION HD 1080P 8CH H.265 1080P IP Network Indoor Outdoor CCTV Camera NVR Kit Video Surveillance POE Security Camera System

  • 1-49 Sets
    $218.20
    $224.95
  • 50-99 Sets
    $210.44
    $216.95
  • >=100 Sets
    $203.65
    $209.95
3% OFF Discount ends in : : :
Type:
POE NVR KIts
Style:
BULLET CAMERA
Channels:
8
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order: 50 Sets)
Customized packaging (Min. Order: 500 Sets)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
LS VISION
Model Number:
LS-PK1208
Key Feature1:
CCTV Kits 8 ch 2MP Bullet IP Camera NVR Smart Home Security System
Key Feature2:
8ch 1080P smart home security system
Key Feature3:
Standard HDMI / VGA output
Access Bandwidth:
48M smart home security system
Video decoding:
MPEG-4/H.264
Resource capacity:
6ch 1080P Play back
SATA:
1Sata smart home security system
POE:
8CH RJ45 10M/100M adaptive Ethernet interface
IP Camera:
8pcs 2MP smart home security system
Storage:
support 1pcs 6T hard drive

Packaging & Delivery

Selling Units:
Single item
Single package size:
40X35X27 cm
Single gross weight:
9.5 kg

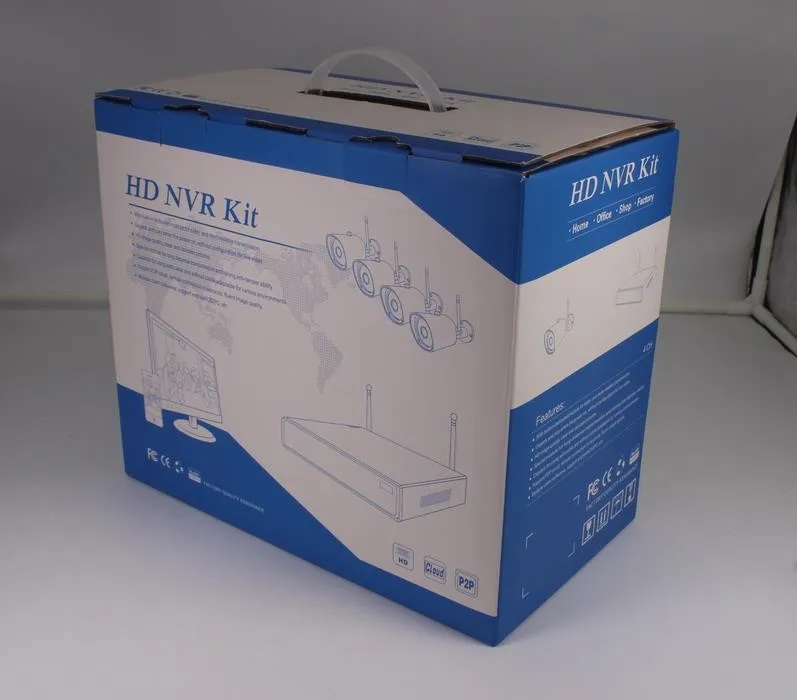

Package Type:
color box / carton
Lead Time :
Quantity(Set) 1 - 20 21 - 50 51 - 100 >100
Est. Time(days) 7 10 15 To be negotiated
Video Description
More Recommendation
Key Features

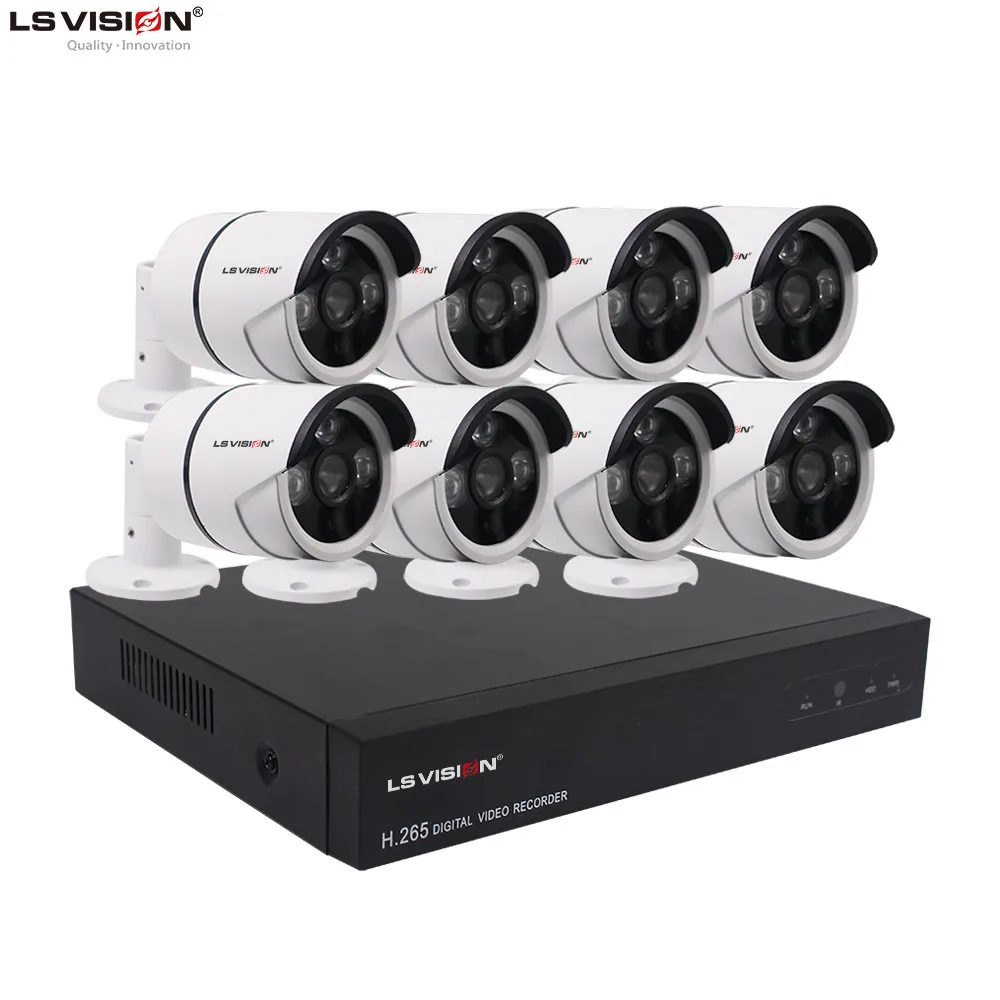

LS VISION HD 1080P 8CH H.265 System IP Network 100Meter Indoor Outdoor IP POE Security Video Surveillance KIT Camera

H.265 compressiom

8PCS 2MP Outdoor POE IP Cameras

1pc 8CH POE NVR with one Sata

Motion detection

NVR: Intelligent features: 1ch face detection, 1ch boundary analysis (optional)

IPC: Standard Fixed lens 3.6mm

3pcs Leds IR distance 20M , IP66

Detailed Image
IE & APP & CMS
Specification

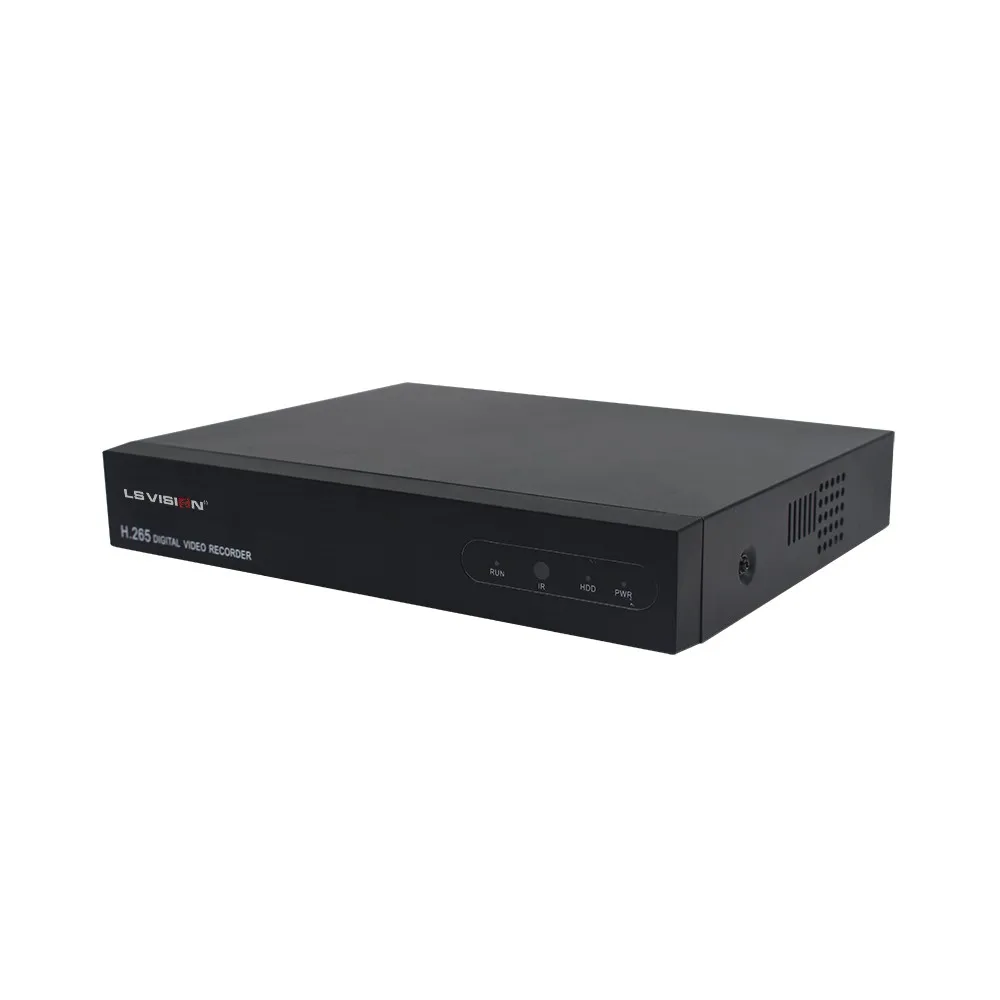

POE NVR Specification

LS-PK1208 NVR
Model
Embedded Linux OS
Operating System
Hi3536D V200
DSP
H.265/H.264
AV(video)input
Network Video
8CH
Network video input broad bank
20Mbps
AV (video) output
HDMI input
2D/3D DNR
VGA output
Motion Detection, Privacy Mask, Mirror, Rotate
Video Control
Video Resolution
D1/1080P
synch-playback
8CH
Video Control
Video/Capture mode
Manual,Time,Motion,Alarm
Playback mode
Real time,Routine,Event
Backup
USB backup
Storage
Type
1*SATA interface
Max Capacity
6 TB at most for each

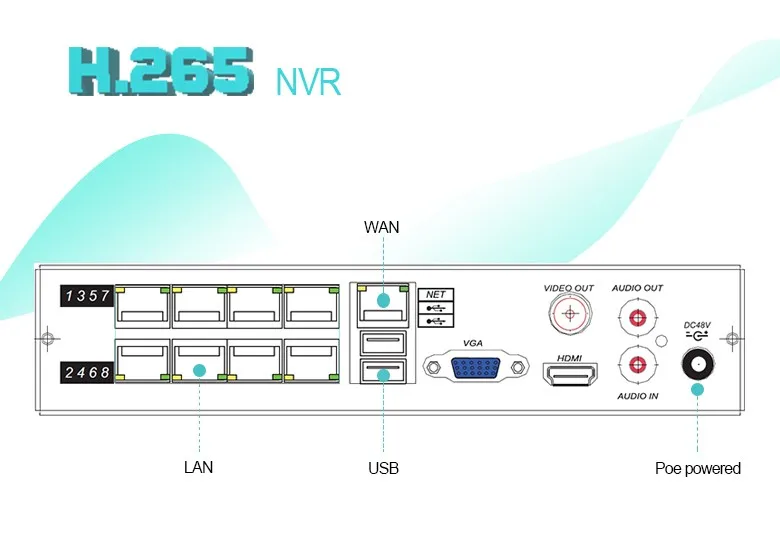

External Interface
9Network Interface
9 RJ45 10M/100M+8pcs POE
USB Interface
2 USB 2.0
Network Protocol
Protocol
UPnP (play&plug)/SMTP (email survice)/PPPoE (dial-up)
DHCP (Automatically obtain an IP address), etc...
Others
Power Supply
DC48v
Power Consumption (W)
≤5W(Without HDD)
Operate Temperature (°C)
-10℃~+55℃
Working Humidity (%) RH
10%~90%
Size
257mm(W)×210mm(V)×45mm(H)
Weight(excluding HDD)
≤2Kg

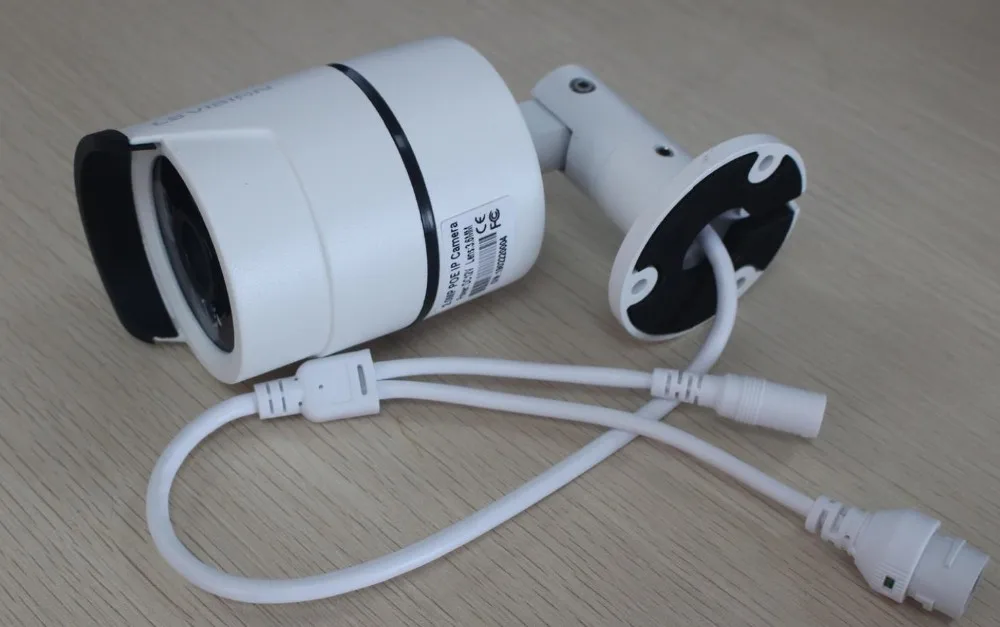

IP Camera Specification

Sensor
1/2.7" Progressive Scan Sensor
Compression
H.265/H.264
DSP
Hi3516E+SC2232
Signal System
PAL/NTSC
Resolution
1920*1080 16 : 9 High Defination
Minimum illumination
Color: 0.1 Lux; B/W: 0.01 Lux
Shutter
1/25s to 1/25,000s
Lens
3.6mm
OSD
Date Time & Title
White Balance
Auto
Day&Night
Auto / Color / BW
3D-DNR
Auto
Mirror/Flip
On / Off
Frame Specification
H.265 1920x1080@30fps or below
H.265 640x480@30fps or below
S/N
> 39.1 Db
Interface
1 RJ45 /POE
General Specification
Anti-thunder Level
Standard IEC61000-4-5
Ambient Temperature/Humidity
-10℃ to +50℃ / 30% to 80% RH
Working Temperature/Humidity
-20℃ to +60℃ / 20% to 90% RH
Power Input
DC12V-1A&POE
Power consumption
≤6W
Size
205(L)×70(W)×55 (H)mm
Weight
0.5Kg
Level of Protection
IP66
Certification
Brand & CCTV Project

LS VISION Global Brand

At present, LS VISION partners and customers all over the world, including dealers, agents, engineers and security importers, end consumers and other different customer groups, in Russia, Yemen, Philippines, Madagascar, Nigeria, Tunisia, Bangladesh, Saudi Arabia, Vietnam, Ghana, Bangladesh and other countries region, set up an exclusive agency, and we have been have been making great efforts to expend our global agency or distribution area.

LS VISION Global Security Project

LS VISION products and solutions used in a number of countries and regions, Such as the Saudi Arabian Jeddah International Book Fair Project in 2017 and 2018; CITY Center MAKKAH CCTV Project in 2018;   the Fath Gas Station Project in 2017, the Peruvian Bass Amas Plaza Project, the Panama Airport and other major security projects have played an important role.

LS VISION

LS VISION will keep our key value of Quality. Innovation. Dedication to do more research for the products to bring more value for our partners in the 2019.


In 2019, LS VISION products strategy:
Industry market:
IPC: 2MP to 8MP 4K Series IP Camera and HD NVR system.
Analog HD: 2MP to 8MP series and DVR system.
AI series: Face recognition camera and NVR system.
4G Solar Camera system

Consumer Market:
Wifi NVR Kit, POE Nvr Kit;
wifi Battery Cameras, wifi PTZ Camera, Smart Doorbell etc.
