LT SERIES hole 6mm*15mm rotary encoder coupling

  • 10-199 Pieces
    $5.80
  • >=200 Pieces
    $5.22
1 batch = 10 Pieces
Model Number:
LT-D-D30L35-6*15
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
YUMO
Material:
Aluminium
Standard or Nonstandard:
Standard
Structure:
Metal Bellows
Flexible or Rigid:
Flexible
Applicable Industries:
CNC
Product name:
Encoder Coupling
Type:
Top thread type
Coupling diameter:
30
Coupling assembly:
35
Lnner Diameter:
6*15
Rated torque:
2N.m
Maximum torque:
4N.m
The highest speed:
16000 rpm
The eccentric error:
0.05mm
Shaft angle angle:
0.5°

Packaging & Delivery

Selling Units:
Single item
Single package size:
15X10X5 cm
Single gross weight:
0.4 kg
Package Type:
CARTONS
Lead Time :
Quantity(Pieces) 1 - 50 51 - 200 >200
Est. Time(days) 7 10 To be negotiated

LT SERIES hole 6mm*15mm rotary encoder coupling

Product Description

Product characteristics

Metal-wound coupling with slotted, fully integrated structure on the bar
High torsional rigidity and low moment of inertia
The highest strength super-hard aluminum in aluminum alloy
Slotted leaf springs allow for eccentricity, eccentricity, and axial misalignment



Product size

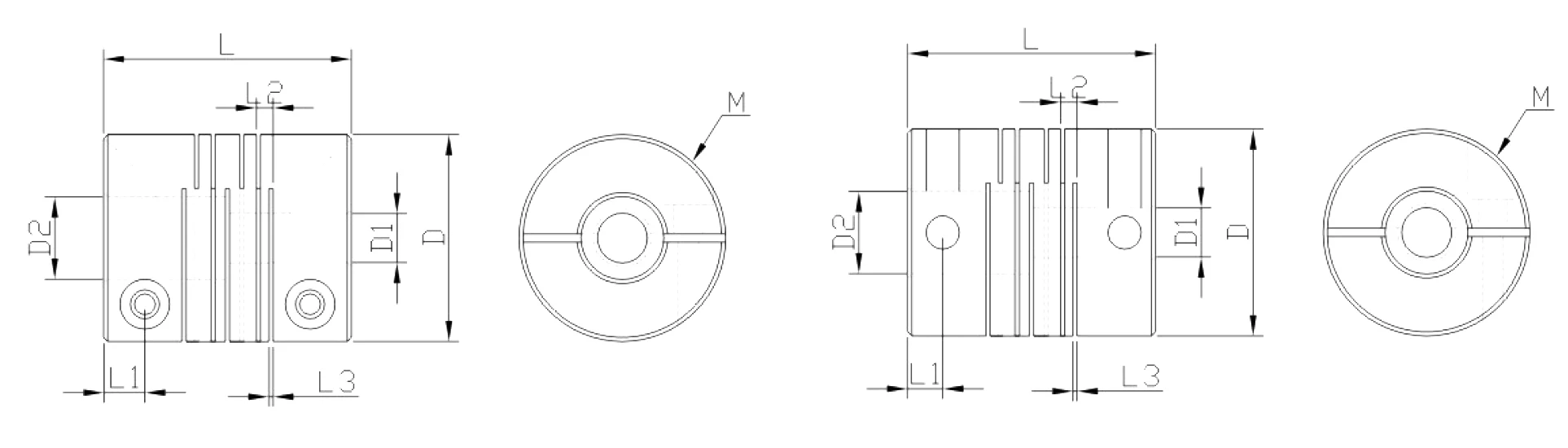

Size control table

Proiect type

D

(mm)

L

(mm)

D1-D2

(mm)

M

(mm)

L1

(mm)

L2

(mm)

L3

(mm)

LT-D-D15L201520 4-5M3.00.51.53
LT-D-D19L2519255-10 M4.00.51.53
LT-D-D25L3025306-12. 7M4.00.51.54
LT-D-D30L3530358-18 M5.00.51.55
LT-D-D35L4035408-22 M5.00.61.85
LT-D-D40L45404510-28  M6.00.61.86



 Technical parameter

Proiect type

Maximum shaft hole

(mm)

Rated torque

(n.m)

Maximum torque

(n.m)

Maximum speed

(rpm)

Moment of inertia

(Kg.m²)

Allow eccentricity

(mm)

Allowable declination

(°)

LT-D-D15L2050.51300002.5*10-70.020.2
LT-D-D19L251012250005.8*10-70.050.5
LT-D-D25L30121.53180001.8*10-60.050.5
LT-D-D30L351924160004.7*10-60.050.5
LT-D-D35L402236140001.1*10-50.050.5
LT-D-D40L4528612120002.3*10-50.050.5
