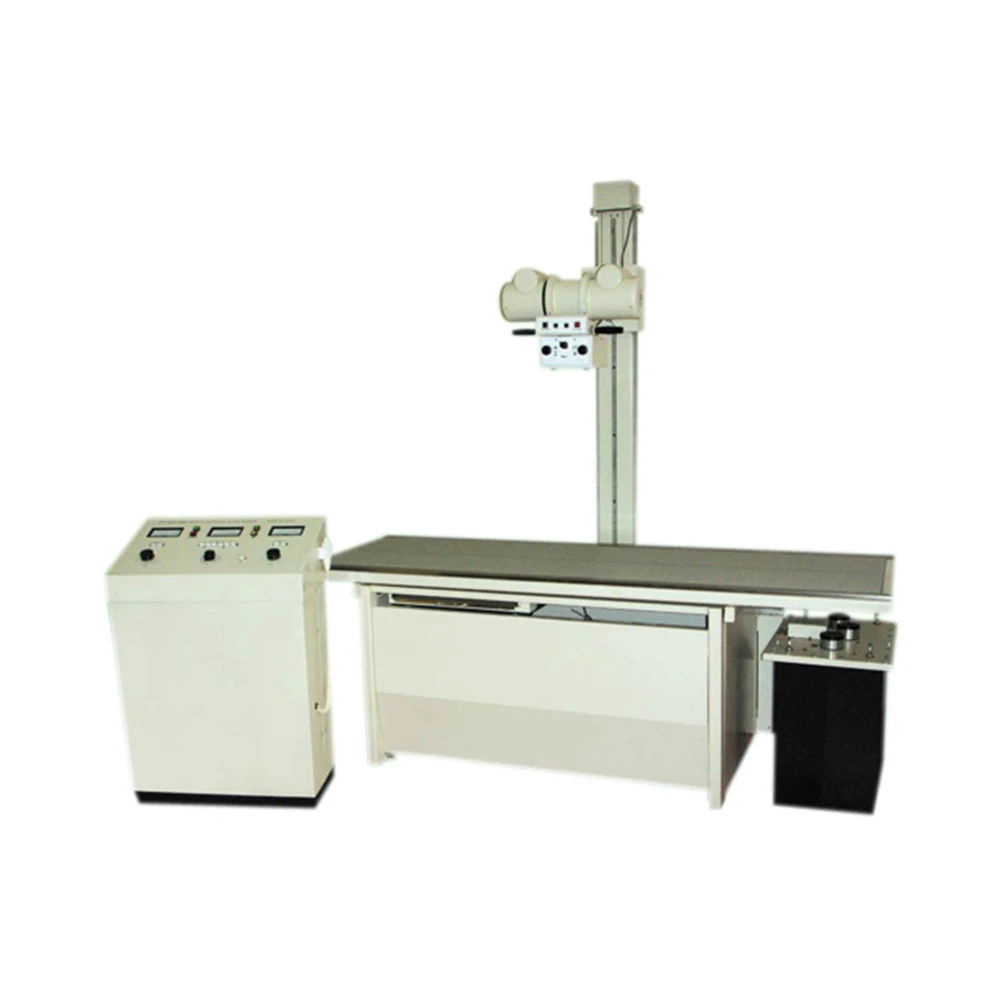

MAIN CHARACTERISTICS 1, Single-table/single-tube 2, Rotary anode X-ray tube unit and tangential annular tube head 3, Single-phase full wave rectification high-voltage generator 4, Power voltage(v) radiograph kilovolt (KV).step-less control electric mechanism 5, Filament stabilizer for X-ray tube unit and space charge compel mentor 6, Radiograph volume KV ,mA and S. grading and interlock protection 7, Adopt digital circuit timer.
Grading according to R10 priority coefficient,(for more accurately controlling time) 8, HT primary, the zero controlled circuit of silicon-controlled rectifier of heavy power 9, Radiographic table can move in length an breadth 10,The radiographic table.
Column and vibrating grid are in a whole without ceiling and floorh rails bottom
Demand of power supply
380V/220V ±10%50HZ ±0.5Hz
2Ω(380V) 0.6 Ω(220V)
380±10% at220V being adjustable continuously
50-90KV being adjustable continuously
Small focus:50mA100mA,Big focus:50mA 100mA 200mA 300mA
0.04~6.35s 23grades together grading a according to R10 coefficient
Max DC output voltage
Max DC output current
Small focus 1×1mm big focus2×2mm
Length×width×height of bed surface
Moving range of bed surface
640mm in Length,200mmin breadth
Ray-filter of table
Travel in length ≥500mm
Grid density N=28
Convergence distance f.=100cm
Grid ratio r=8
Column of X-ray tube unit
Moving Longitudinally along Radiographic table
1000mm or 1800mm
Distance to friend as moving up and down (along column)
Rotary around the center of cross arm
Rotary around the shaft line of X-ray annular tubes
We have sold our products to more than 50 countries ,like The Democratic Republic of Congo, Saudi Arabia, Nigeria, Zambia, Angola, Egypt, Kenya, Ghana, Paraguay, Nepal and Myanmar and so on. Your satisfaction is our duty! It will be our great honor to serve you.
Our professional sales staff to help you make better purchasing decisions
Packing & Delivery
1.We ship goods by UPS/DHL/FEDEX/ TNT express takes 3~ 5 days to arrive , which is door to door ,you no need go out can get LTX23 radiography 300ma medical x-ray machine.
2.We can also help you ship by air cargo, it takes about 2-7 days to arrive, while you need to go to Air port to take LTX23 radiography 300ma medical x-ray machine.
3.If goods are large quantity and you need not so urgently ,you can choose by sea to save some freight cost which takes you about one month to get LTX23 radiography 300ma medical x-ray machine.
No matter what delivery way ,depending on your actual requirements...
* For all your inquires about us, we will reply you in detail within 24 hours.
* We own well-trained and professional sales who can speak fluent English.
*We offer OEM services. We can print your own logo on LTX23 radiography 300ma medical x-ray machine,also can customize the retail box packing and other things.
*Machine warranty: 1year
* View our company.
* We have very experienced engineers ,can help you better use LTX23 radiography 300ma medical x-ray machine.Training how to instal the machine, training how to use the machine.
*If has product fault need to repair, please contact us, and we will cooperate with your engineers to try to deal the fault in the local firstly, so as to minimize the transportation and other cost.
*We will guide you how to deal the troubleshooting, and your engineers follow our guidance to solve fault.
*If need parts for replacement, we will send to you.
*If still can not solve the fault at last, please arrange to deliver the fault parts back to us for repair.
