Lab Cooling Liquid Circulating Chiller

FOB Reference Price:Get Latest Price
$950.00 - $2,100.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
DLSB-20/40
Lead Time:
Quantity(Sets) 1 - 2 >2
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Dimension(L*W*H):
650*750*1150mm
Weight:
80KG
Warranty:
one year
Condition:
compression cooling
Type:
Water-Cooled
Place of Origin:
Henan, China (Mainland)
Brand Name:
ZZKD
Cooling Capability(kw):
.
Voltage:
220V
Certification:
CE
Name:
Lab Cooling Liquid Circulating Chiller
Usage:
supply cool medium
Power:
Electric
Pressure:
Low Pressure
Application:
Cryogenic
Temp control range:
-40~ RT
Cooling capacity:
3809-989
Flow:
20 L/min
Lift(m):
4-6m
Temp stability(°C):
±0.2
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
500 Set/Sets per Month cooling liquid circulating chiller
Packaging & Delivery
Packaging Details
cooling liquid circulating chiller will be packed in wooden case or as your requirements
Port
Qingdao,Dalian,Tianjin,Shanghai
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(days) 5 To be negotiated

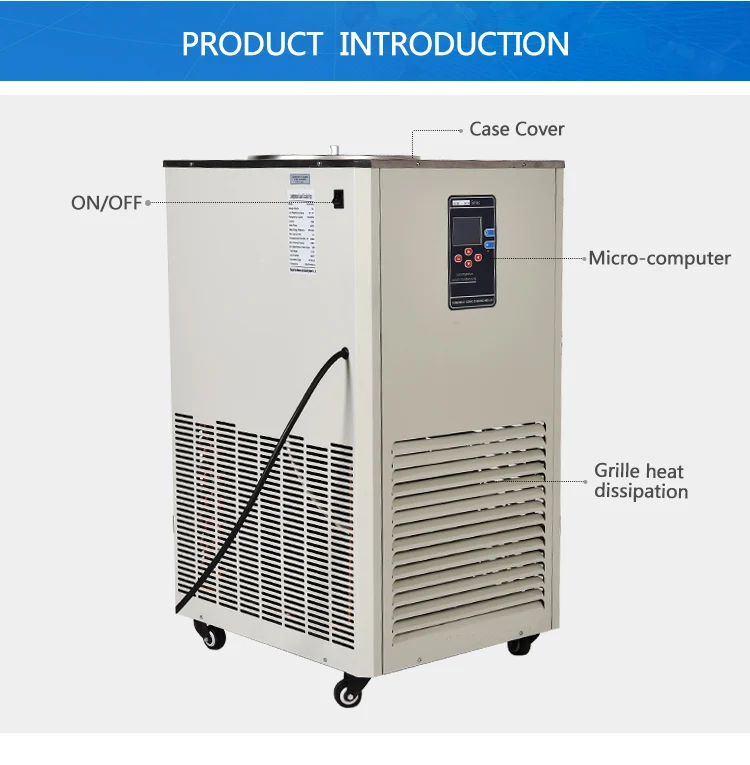

Lab Cooling Liquid Circulating Chiller

Product Description

Brief introduction of cooling liquid circulating chiller

Application

Application of lab cooling liquid circulating chiller of compression refrigeration methods can cool the tube, the reaction bottles directly and so on to have chemical reaction under low-temp and store chemical and biological products under loe-temperature. Besides, it can also be combined with rotary evaporator and circulating water vacuum pump.
ModelDLSB-20/40
Volume(L)24.38
No Load Min. Temp. (℃)-40
Environment Humidity(%)≤70
Power Supply(Single phase)(V/HZ)380/50
Temp. Precision(℃)±2
Cooling Capacity(W)10℃4780
0℃4180
-10℃3670
-20℃2310
-30℃1100
-40℃480
Total Power(W)2488
Total Current(A)5.4
RefrigerantR404A
Circulating PumpPower(W)100
Flow(L/min)20
Lift(m)6
Open Size(mm)220*220
Liquid tank(mm)290*290*290
Total Demension(mm)660*515*985
Weight(Kg)102
Fuse10A
Features of Lab Cooling Liquid Circulating Chiller
1.Large-capacity open bath combined with outside loop can not only be used as freezing tanks, but also provide cooling fluid outside.
2.Digital setting and display of temperature, easy to operate.
3.Circulating system adapts SUS304,316 and macromole anti corrosion substance, which can prevent rust, corrosion, and low temperature liquid pollution.





Company Information

Company introduction:

Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd. is specialized in R & D, production, sales, teaching and chemical biology pharmacy equipment integrated company. The main products are rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), low temperature cooling fluid circulating pump(cool chiller), vacuum drying oven, blast drying oven, freeze dryer, water/oil bath, magnetic heating stirrer, overhead mixer, ultrasonic cleaning machine, lift platform, etc. Besides, we act as agents of some domestic and foreign famous enterprise products, sustaining high praise in domestic junior colleges and universities, scientific research units, etc. Our products are sold to USA, Australia, Asia, Brazil, Iran, Egypt etc. countries and our customers have been fully affirmation.



Factory Size: 1,000-3,000 square meters
Year Established: 2009
Total Revenue : US$1 Million - US$2.5 Million
Registration No.: 410105000067362
Main Markets: Central America, Mid East, Oceania, Africa, South America

Please click on the picture:





Packaging & Shipping

Packaging:
-The glass parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
Shipping:
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent.



Shipping methodNote
ExpressDoor to door, very convenient, don't need to clearance or pick-up
By air

Airport to airport, you need to do the customs clearance and pick up  the

goods at your local airport, which you can have a local shipping agent to do for you.

By seaPort to port and you need to do the customs clearance and pick-up the goods

at your local port, which you can have a local shipping agent to do for you.




Our Services

Warranty & Service:
Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise.
Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan



FAQ

1 . How can I choose a reasonable model from so many models ?

We can supply temperature range from - 10 to -120 Celsius degree; Capacity from 5L-100L.

2. OEM is ok?

Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.

3. My location voltage is 110V, how can we handle this ?

Don’t worry! you can equipped with a voltage regulator, or , we can customized 110V for you (quantity exceed 10 sets ).

Lab Cooling iquidirculating Chiller

Lab Cooling Liquid Circulating Chiller

Lab Cooling Liquid Circulating Chiller
