Lab Vacuum Rotary Evaporator/Distiller RV-211M RV-211A

FOB Reference Price:Get Latest Price
$225.00 - $1,500.00 / Sets | 1 Set/Sets (Min. Order)
Application:
Desalinization Distillation Pharmaceutical Processing
Model Number:
TPS-RV-211M/RV-211A
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 50 Sets)
Customized packaging (Min. Order: 50 Sets)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Power Source:
Electric
Process:
Vacuum Distillation
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Toposun
Voltage:
110V-220V
Power(W):
1000W
Dimension(L*W*H):
230*130*260
Weight:
10kgs
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Video technical support
Water Bath Material:
Stainless Steel Corrosion resistant coating
Rotating Speed:
20-180rpm
Vacuum degree:
8mbar
Condenser:
snake condensate area 0.15m2, 1L rotary bottle
Evaporator speed:
22ml/min
Temperature range:
RT+5~100C
Lifting Mode:
manual/automatic
Vacuum Seal:
PTFE and Teflon Coating
Supply Ability
Supply Ability:
200 Set/Sets per Month Lab Vacuum Rotary Evaporator/Distiller RV-211M RV-211A
Packaging & Delivery
Packaging Details
wooden case
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Product Description
Rotary evaporators (also known as "Rotovaps") are mainly used for distillations/separation applications often

used for medicinal chemistry, pharmaceutical, chromatography, and petrochemical fields. In summary the system

works by increasing the rate of evaporation of the solvent by (1) reducing the pressure to lower the solvent boiling

point (2) rotating the sample to increase the effective surface area (3) heating the solution (4) then the evaporated

solvent then condenses in a cooled glass condenser.

The Main Components of a Rotary Evaporator are

● Motor unit that rotates the evaporation flask or vial containing the user's sample.

● Heated fluid bath (generally water to heat the sample).

● Vapor duct that is the axis for sample rotation, and acts as a vacuum-tight conduit for the vapor being drawn

off the sample.

● Vacuum system (an oil free vacuum pump/diaphragm pump) to substantially reduce the pressure within the

evaporator system.

● Condenser (this normally connects to a recirculating chiller) with a coil passing coolant (water or ethanol).

● Condensate-collecting flask at the bottom of the condenser to catch the distilling solvent after it re-condenses.

● Mechanical or motorized mechanism to quickly lift the evaporation flask from the heating bath.

Rotary Evaporator features

● Simple design for one handed operation manually or automatically.

● A unique PTFE sealing system provides exceptional thermostability, minimizes corrosion, and helps to ensure

day in day out headache free operation.

● The vertical condenser with dual spiral glass tubing provides a condensing surface area of 0.15m2.

● Evaporation speeds of 22ml/min.

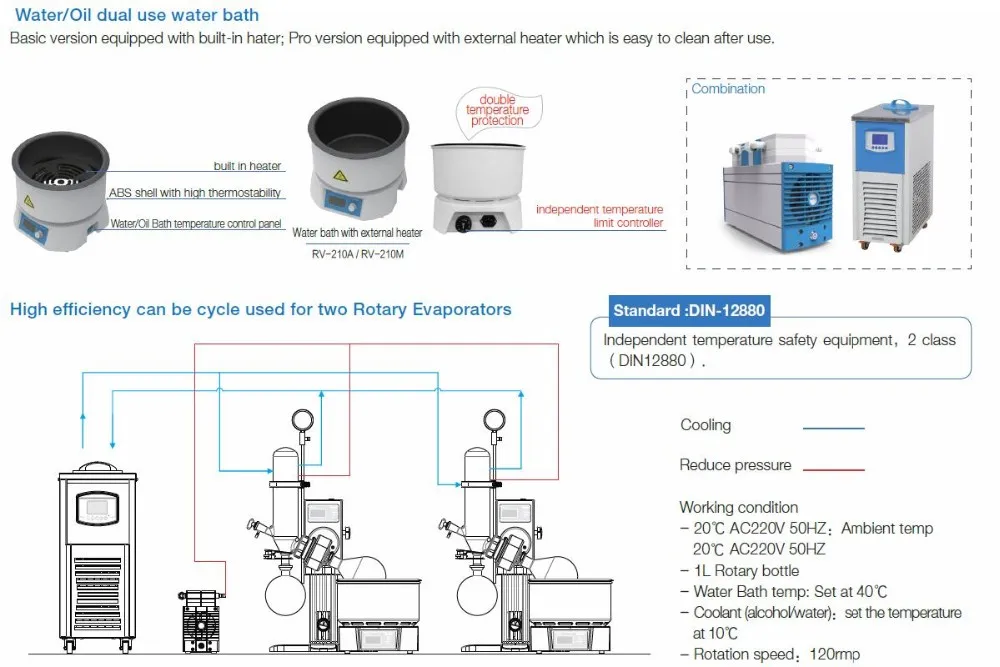

● Our Bath offers a dual heating mode for water and oil with overheat protection.

● PID controller offers easy input of parameters and large LCD display for easy viewing.

● Vacuum regulator available.

● Available 110V and 220V power voltage.
