Lab device rotary evaporator plate with price

FOB Reference Price:Get Latest Price
$500.00 - $1,500.00 / Sets | 1 Set/Sets evaporator plate (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Distillation
Power Source:
Electric
Process:
Vacuum Distillation
Place of Origin:
Shanghai, China
Brand Name:
evaporator plate
Model Number:
RE501
Voltage:
220V/50HZ
Power(W):
60W
Dimension(L*W*H):
600*300*800 (mm)
Weight:
35kg
Certification:
CE ISO
Rotary flask:
5L evaporator plate
Collection flask:
3L rotary evaporator plate
Sealing parts:
PTFE
Glass material:
High Borosilicate Glass 3.3
Rotation Speed (rpm):
0~120
Bath temp range(°C):
RT-199
Frame material:
SUS 304
OEM Serivce:
YES
Display:
Digital
Water Bath Power:
2KW
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
One Year
Product Certification Verified
CE Certified.
Valid from 2018-08-21 until 2023-08-20
Supply Ability
Supply Ability:
300 Set/Sets per Month evaporator plate
Packaging & Delivery
Packaging Details
Qualified wooden case for export and sufficent inner protection for evaporator plate
Port
Shanghai, China
Lead Time :
Shipped in 7 days after payment
Product Description

Lab device rotary evaporator plate with price

About the evaporator plate

♦The compact modular design of the evaporator plate keeps cost to minimum, without any compromise in the essential performance of rotary evaporation.

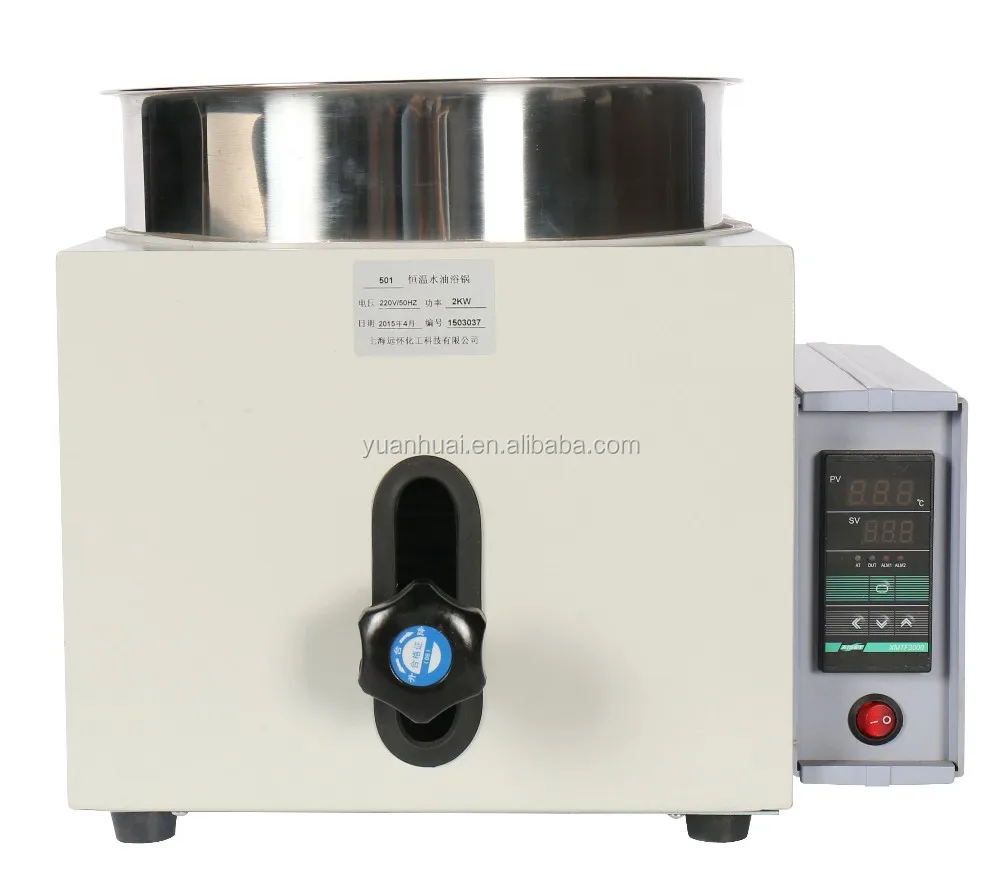

♦The hand lift on heating bath allows for convenient positioning of the glassware. Digital displays for rotation speed and heating bath temperature allow for optimal control of all distilling processes
.

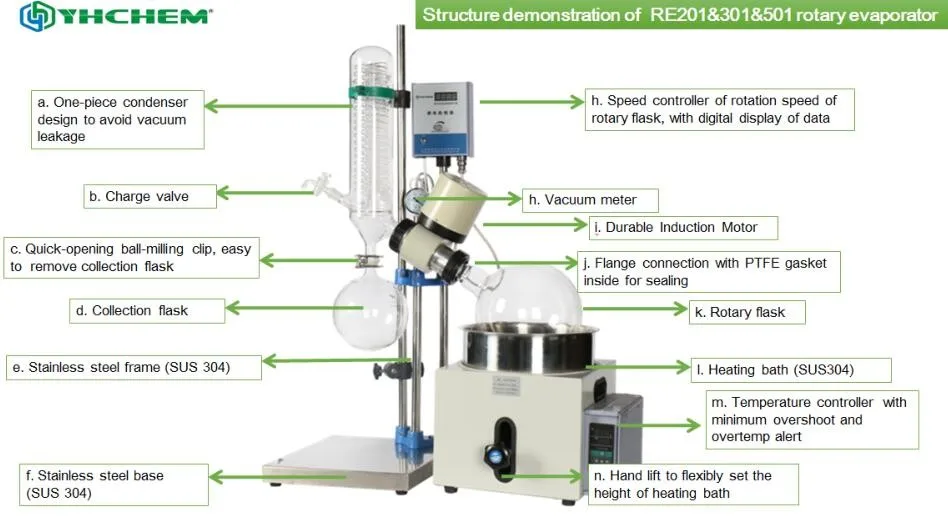

Detailed demonstration of evaporator plate

Feature of the evaporator plate

- Built-in vacuum controller, High vacuum performance
- PTFE sealing
- Anti-explosion desigh to secure the experiment
- Flexibly adjust the ascending or descending of Water/ Oil bath by hand lift
- Digital display and control, easy to read and set
- Easy assembling design: to be assembled within 30 minutes.
- Double layer cooling coils for improved condenser performance.
- High quality borosilicate glass 3.3 with excellent physical and chemical properties
- Large selection of customized volumes from 0.25L to 50L
- Cost-saving modular design and can be customized by clients' requirements

Technical specification of the evaporator plate

Model
RE201
RE301
RE501
Rotary flask(L)
0.5-2
3
5
Collection flask(L)
1
2
3
Evaporating Speed (H2O)
>1.5L/h
>2L/h
>2.5L/h
Motor power(W)
40
40
60
Base Power (KW)
1.5
Rotating speed(rpm)
0~150
Power supply
220V/50HZ (As clients' request)
Sealing Parts
Main PTFE Seal, Oil ring and O ring
Bath temp range(°C)
Room Temp. ~ 199°C
Vacuum degree
<133Pa

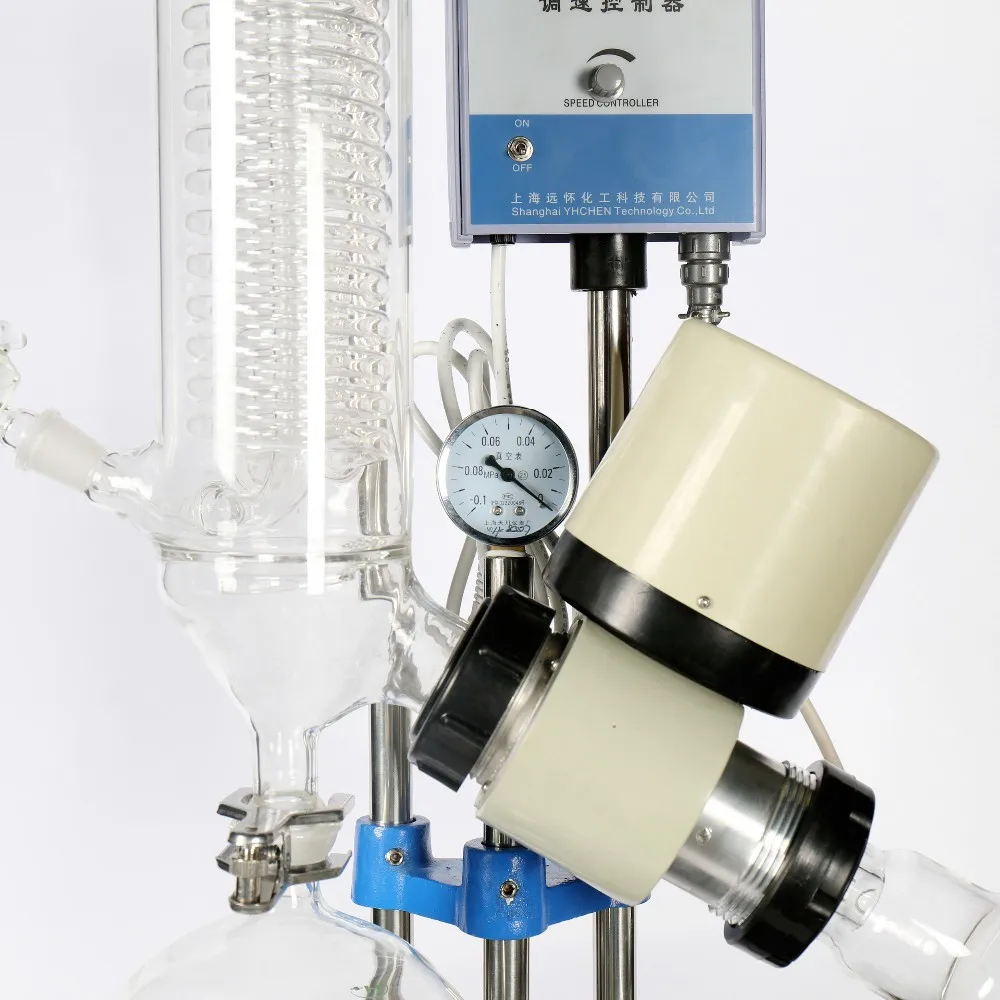

Details Display of the evaporator plate

Related Products

For 1~5L evaporator plate

SHZ-D(III) Water cycle vacuum pump



YHDP20 Diaphragm vacuum pump



               YHLT series chiller



For 10~50L evaporator plate

SHZ-95B water cycle vacuum pump



        YHLT series chiller



      YHLX series chiller



Product Series of evaporator plate
