Laboratory Glass Reactor 5L with Reflux Condenser

FOB Reference Price:Get Latest Price
$800.00 - $2,500.00 / Sets | 1 Set/Sets laboratory glass reactor (Min. Order)
Model Number:
S212-5L
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Automatic Grade:
Semi-Automatic
Type:
Reaction Kettle
Place of Origin:
Henan, China
Brand Name:
Effison
Voltage:
Single Phase 220V/50HZ
Power(W):
90W
Dimension(L*W*H):
100mm*750mm*2300mm
Weight:
75KG
Certification:
CE ISO
Product Name:
laboratory glass reactor
Volume:
5 Liter
Jacket Volume:
2 Liter
Glass Material:
Borosilicate Glass 3.3 (GG-17)
Heating Type:
Oil/Water Recycling
Motor Power:
90W
Rotating Speed:
50~680rpm
Seal:
PTFE Sealing Components
Discharge Valve:
PTFE Discharge Valve
Display:
Digital
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Supply Ability
Supply Ability:
100 Set/Sets per Month laboratory glass reactor
Packaging & Delivery
Packaging Details
Packaged in export fumigated wooden case for laboratory glass reactor.
Port
Beijing/Qingdao/Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Product Description

Laboratory Glass Reactor 5L with Reflux Condenser

The laboratory glass reactor is widely used in chemical reaction, combination, separation and concentration. Different heating or cooling liquids, such as water or oil, can be injected into the interlayer of the pharmaceutical reactor for providing a constant temperature for reactions. It also can provide excellent mixing in the reactor under atmospheric or sub-atmospheric pressure. The transparent glass structure can be helpful to monitor the complete reaction.

Features of laboratory glass reactor:


1) Use GG17, G3.3 high borosilicate glass, owns excellent chemical and physical performance.

2) PTFE (Ceramic) sealing mechanical components with proprietary technology, maintaining the best vacuum degree among the similar products in the market.

3) PTFE discharge valve without dead corner, solidquid material can be easily released from the bottom.

4) Kettle body and interface can be customized according to customer requirements.

5) Heating mantle type and explosion-proof type are also optional.


Specifications of the laboratory glass reactor:

Model
S212-1L
S212-2L
S212-3L
S212-5L
Rection Volume
1L
2L
3L
5L
Jacketed Volume
1L
1.5L
1.5L
2L
Ports on the Lid
4+1
Max.Toque
200N.cm
Motor Power
90W
Stirr Speed
0~680rpm
Temperature Sensor
PT100
Display
Digital display and control
Voltage
Single Phase 220V/ 110V, 50/60Hz
Detailed Images



 4+1 Lid

 Funnel: for liquid adding

Temperature Tube: for PT100

PTFE Lid: for solid/liquid adding

Refulx Unit: connect condenser

Stirr rod: PTFE sealing




GG-13 High Borosilicate Glass


No pollution to the raw material
Stand -120~300℃ temperature change

Esay to observe the reaction







Durable induction motor

    Standard 220V

   110V motor is also available

   Ex-proof is option

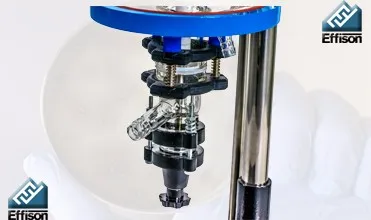

dead-zone free bottom discharge valve

  No leak, 100% material discharge

  Easy to operate

  PTFE discharge valve is option
Related Products

The laboratory glass reactor is always combined with vacuum pump, chiller, oil bath, to do reaction or test under certained temperature or vacuum degree.

 Heating and Cooling Circulator

91.8% Response Rate

 Water Circulation Vacuum Pump


91.8% Response Rate

       Heating Circulator(Oil Bath)


91.8% Response Rate

Packing & Delivery

1. Depends on different goods, the package will use carton case or fumigated wooden case.

2. Acooding to your schedule and budget, we can ship the goods by air, by sea, by express, or by train.

3. If there's any broken during the shipment, we will send you new parts for free.

4. Different countries has different requirements for customer clearance, if you know it, pls tell us

Our Service
FAQ

NO.1 How to choose suitable equipment?
You tell us your work flow and requirement, for example: capacity, temperature range, pressure, power supply, etc., we will recommend you suitable equipment according to your requirements.

NO.2 How long is your date of delivery?
Within 7 working days after payment confirmed, customized products need 10~15 days.

NO.3 How to solve the equipment trouble during using?
Please send us email of the problem, pictures or a small video will be much better, we will find the problem and help you to solve it.

NO.4 Will you provide service beyond the warranty?
Yes,we provide lifetime service for our products, but it won't be free beyond the warranty period.

NO.5 How to transport the product?
By sea: More than 60kg or big quantity, safe, cheap but slow;
By air to airport: Suit for big product or quantity but urgent a lot.3~10 days;
By Express delivery such as DHL, FedEx, TNT: Suit for small or not too heavy and very urgent product.

Contact Us

If you have any question about the laboratory glass reactor, pls feel free to contact us.
