Laboratory Wafer Surface Treatment 2L Desktop Vacuum Plasma Cleaner for Lab

FOB Reference Price:Get Latest Price
$5,000.00 - $5,760.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
CH-2S
Lead Time:
Quantity(Sets) 1 - 2 >2
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Machine Type:
Other
Applicable Industries:
Energy & Mining
Condition:
New
Place of Origin:
China
Brand Name:
CHUANGHE
Power(W):
300
Warranty:
1 Year
After-sales Service Provided:
Video technical support
Use:
Wafer Cleaning
Cleaning Type:
Plasma Cleaning
Product name:
Plasma cleaning system for coating and surface treatment
Application:
Laboratory Wafer Cleaning
Chamber size:
100mm*270mm
RF frequency:
40KHz
RF output:
300w
Vacuum degree:
10Pa-1000Pa
Power supply:
AC:220V 50Hz
Supply Ability
Supply Ability:
10 Set/Sets per Week
Packaging & Delivery
Packaging Details
PLY WOODEN BOX WITH PROTECTIVE FOAM
Port
ZHENGZHOU, QINGDAO,BEIJING
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(days) 10 To be negotiated
Product Description

Specifications

Chuanghe Laboratory Plasma Cleaner divided into two types, atmospheric and vacuum; it is widely used in semi-conductor, PCB, medical diagnosis, elastomer industry, optical industry,etc.

RF generator has 40KHz, 13.56Mhz, and 2.45GHz. According to the usage, can choose the suitable RF Power. Our standard chamber capacity has 2L, 5L,10L which used in laboratory. Basing on different industry, we can do customized chamber dimension with requested RF power.

Model No.
CH-2S
Display

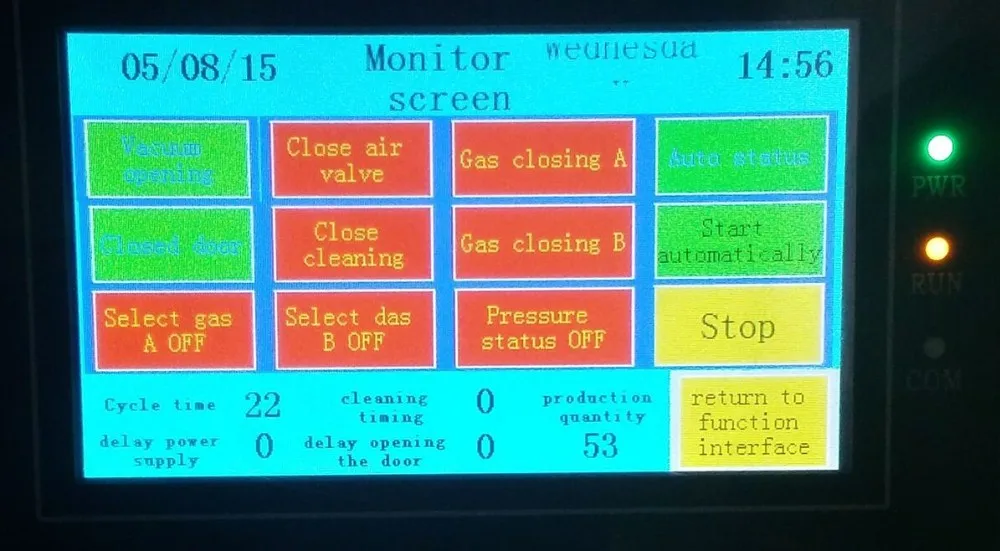

LCD touch controller
RF Frequency
40KHz (13.56MHz for optional)
Coupled mode
condenser coupling, without pollute sample
RF power
100W/ 300W Optional
RF offset
< 0.2KHz
Characteristic impedance
50Ω, automatic matching
Vacuum degree
10Pa-1000Pa
Gas Speed
Two way Float Flow Gas Control
60-600ml/min, adjustable
Inner chamber size
Chamber Dimension Φ 100*270mm
Chamber Capacity
2L
Pressure Gauge
A simple digital pressure gauge is equipped for reading
Cooling way
Forced cooling
Vacuum Pump
 2XZ-4
Power Supply
AC220V 50Hz

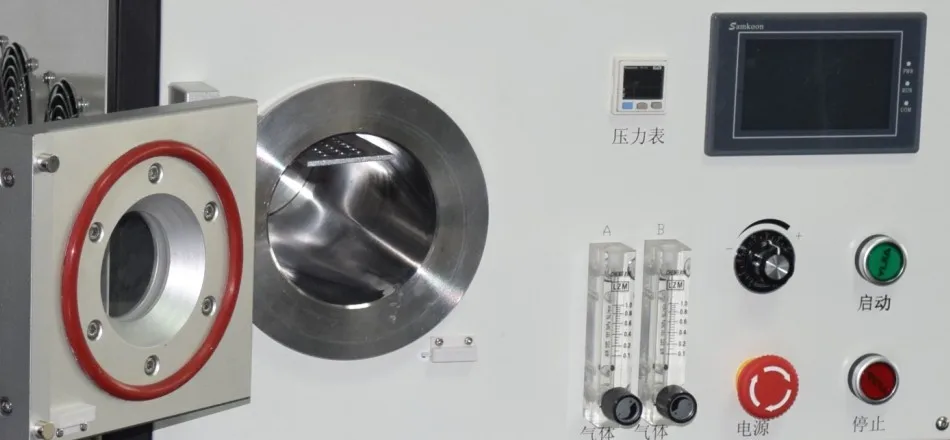

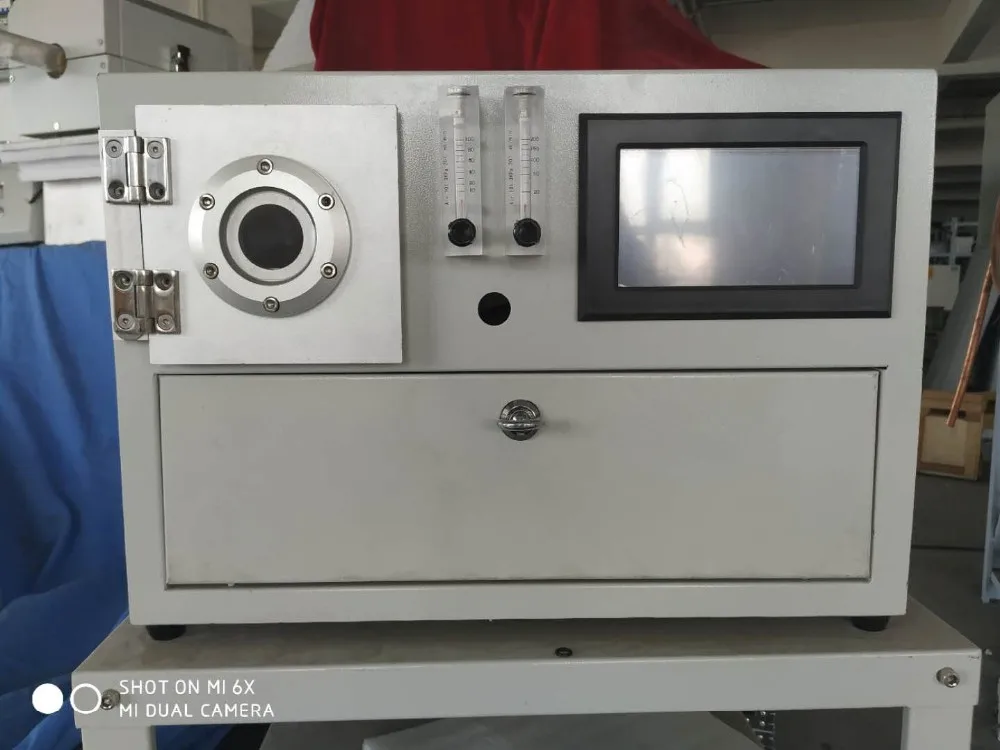

Detailed Images
