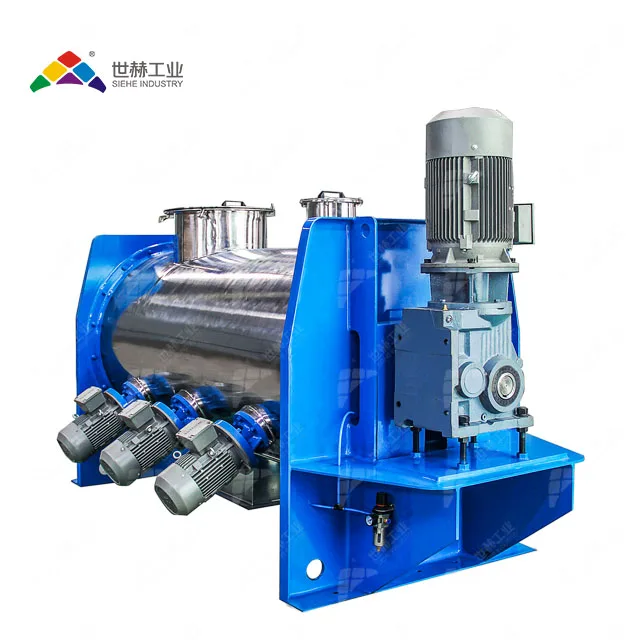

Large Output Biaxial Mixer Agravic Double Paddle Mixer For Dry Mortar Dry Powder In Building Industry

FOB Reference Price:Get Latest Price
$13,500.00 - $65,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
SHZL
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 75 Negotiable
Report Suspicious Activity
Overview
Quick Details
Max. Loading Capacity:
20T
Application:
Chemicals Processing, Powder
Condition:
New
Mixer Type:
Ribbon
Product Type:
dry mortar
Additional Capabilities:
Milling
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
SIEHE
Voltage:
380V/415V
Dimension(L*W*H):
Depending
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training
Product name:
Biaxial Mixer Agravic Double Paddle Mixer For Dry Mortar Dry Powder
Motor Brand:
ABB.Siemens
Invert:
Schneider
Bearing:
NSK
Sealing:
Packing sealing
Reducer:
KONE/East Well
Material:
Stainless Steel 304 / SUS316L
Raw materials feeding:
Vacuum system optional
Ex-proof:
Optional
Discharging:
Double discharging shaft
Power(W):
Depending
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
LCL: Wooden case with steel frame fixed.
FCL: Naked in the conatiner, available for sea, land transportation.
Large Output Biaxial Mixer Agravic Double Paddle Mixer For Dry Mortar Dry Powder In Building Industry
Port
Shanghai Port
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 75 To be negotiated
Non gravity mixer

Machine structure:

Machine introduction:

Horizontal non-gravity mixer is a Korean-technical late-model mixing equipment with high efficiency, high uniformity, high loading coefficient but low energy cost, low pollution and low crush. Agitators, designed in special angle, rotates in same but opposite direction and shows a nice mixing, smashing, dispersing results. It is widely used in powder-powder, powder-liquid, powder-particles mixing. It is also able to used for materials in different specific gravity and particles in a wide range of sizes.


[Materials Specific Gravity]: ≤3g/cm³

[Capacity]: 100-20,000L

[Application]: Suitable for the mixing of pharmacy, food, pesticide, dye, chemical industry, plastic, lithium battery, ceramic, chemical fertilizer,rubber, mortar and etc.


[Materials]:Powders with fluidity whose specific gravity is up to 3g/cm³, such as milk powder, food activities, organic chemical fertilizer, dry powder mortar, specific building materials, antiflame materials and etc
.

Models optional:


Model
Power (KW)
Main shaft speed(rpm)
Thickness (mm)
Capacity (KG)
Size
Weight (KG)
Length
Width
Height
SHZL-100
3
60
4
30~60
1000
1000
1000
700
SHZL-200
4
60
4
60~120
1100
1100
1100
880
SHZL-500
7.5
43
5
150~300
1500
1500
1100
1000
SHZL-1000
11
43
5
300~600
1750
1750
1500
1500
SHZL-2000
15
40
5
600~1200
2200
2500
1800
2500
SHZL-3000
18.5
35
5
900-1800
2300
2650
1800
2900
SHZL-4000
22
35
6
1200-2400
2500
2900
2300
4200
SHZL-6000
37
33
6
1800-3600
2800
3000
2400
6500
SHZL-8000
45
33
6
2400-4800
2800
3500
2550
7500
SHZL-10000
55
26
8
3000-6000
3050
3700
2700
8500
SHZL-15000
75
22
8
4500-9000
3200
4250
2900
12000
SHZL-20000
90
18
8
6000-12000
3500
4700
3300
15000

Machine details:


Mixing agitator:


Double ribbon mixing agitator used, double discharging shaft structure


Drive system:


Belt driving system used

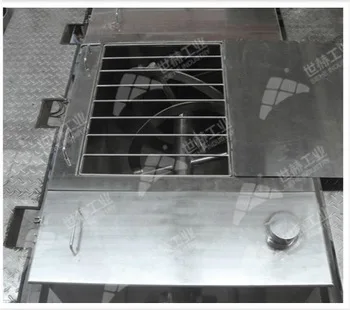

Feeding port:


At the top of the mixer with one feeding port, the size can be customized according to needd.


Discharging port at the bottom:


There is one discharging port at the bottom of the barrel, the size can be customized.


Working principles:

Horizontal non-gravity mixer consists of conveying part, blade-type agitator, twin U-shape working chamber. Multi-row-chain-driven or gear-driven reducer drives the main shaft to rotate. The paddles on dual-shaft is arranged with a special angle, which rotate reversely at the same speed, to ensure the materials are splashed in radial, axial, and circle directions, forming a compound effect of cross circulation, shearing and mixing, thus achieve uniform mixing within a short time.

Related machines:


SHLD series Horizontal ribbon mixer for powder mixing

SHDH series Horizontal plough mixer for powder blending


Packing & Delivery
Our company

SIEHE industry

SIEHE Industry, China professional machine manufacturer, both the office and factory are located in Shanghai City. 70% of machines are for exporting, with 20 years mature experience of oversea market service, professional engineer for oversea machine installation and maintaining. Main machines all with CE certificates. Professional in machine solutions for powder mixing, low and high viscosity slurry mixing, as well as complete production lines. For the industry of paint, resin, ink, adhesive, food, pigment, medicine, building materials, asphalt emulsion etc.. Provide extensive proposals to the oversea clients, from single machine to complete production lines. All machines can be customized.

Our factory:


Office:

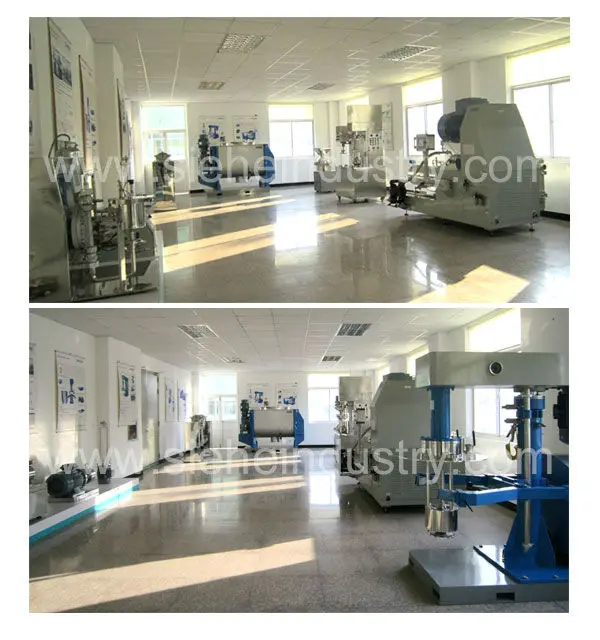

Exhibition Hall:


Our Team:


Contacting informtion:

Shanghai SIEHE Mechanical & Electrical Equipment Co., ltd.

Thea Xi
Tel: +86 021 52913185*126
Fax: +86-21-52912822
Web: www.sieheindustry.com
Office: Room 305-307, Building1, No. 168 Taihong Rd., Hongqiao Business District, Shanghai
Factory: No.548Zhenying Rd.. Qingpu Industrial Park, Shanghai, China.


Certificates of our main products:


Suppliers of our machine electrical components:


Our services:


Presale service:
Suitable, reasonable technical advise
Test service provided

Sales Service:
Project manager system, one customer one project manager

After sales service:
One year warranty
Overseas engineers service team for installation and training at your site
Spare parts purchasing
Other service...


Contacting me:



Thea Xi
Mobile: +86(0) 18930995872
Whatsapp: +86 (0) 18616216049
Skype: siehe.sales10
Email: sales04 at siehechina.com

FAQ:


Q 1: Payment terms capacity?

A 1: L/C, T/T, D/P, cash, Alibaba trade assurance;

Q 2: Trade terms?

A 2: In according with Incoterms 2010, normally with EXW, FOB shanghai, CFR, CIP, CIF and DDU;

Q 3: Validity of quotation?

A 3: Within 30 days;

Q 4: Modes of shipment?

A 4: By sea, by railway, by air and by express;

Q 5: Warranty?

A 5: One year and lifelong service provided at cost;

Q 6: Installation and training?

A 6: usu. tel or mail guidance for installation, for production line, paid overseas engineering service provided.
