Large power fiber laser cutting machine for metal sheet/ steel laser cutter/ laser cutting machine price

FOB Reference Price:Get Latest Price
$29,800.00 - $213,000.00 / Yards | 1 Yard/Yards (Min. Order)
Model Number:
OPT-1530S
Lead Time:
Quantity(Yards) 1 - 1 >1
Est. Time(days) 25 Negotiable
Customization:
Customized logo (Min. Order: 1 Yards)
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Applicable Material:
Stainless steel, mild steel, iron, brass, copper, aluminum, Metal
Laser Type:
Fiber Laser
Cutting Area:
3000*1500mm
Cutting Speed:
7000mm/min
Graphic Format Supported:
AI, DXF, DST, DWG, DXP
Application:
Laser Cutting
Condition:
New
Cutting Thickness:
0 ~ 25mm
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Control Software:
Cypcut
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
OPTIC
Certification:
CE, ISO, FDA
Warranty:
5 years
Laser source:
IPG/ Raycus/ CAS
Laser Power:
300W ~ 6KW
Marking Speed:
0-7000mm/s
Laser wavelength:
1064nm
Cutting thickness:
0~25mm
Color:
Star design White and red
Product name:
fiber laser cutting machine
Keywords:
fiber laser cutting machine
Supply Ability
Supply Ability:
120 Set/Sets per Month
Packaging & Delivery
Packaging Details
International standard wooden case.
Port
Qingdao
Lead Time :
Quantity(Yards) 1 - 1 >1
Est. Time(days) 25 To be negotiated
Video Description
Product Description

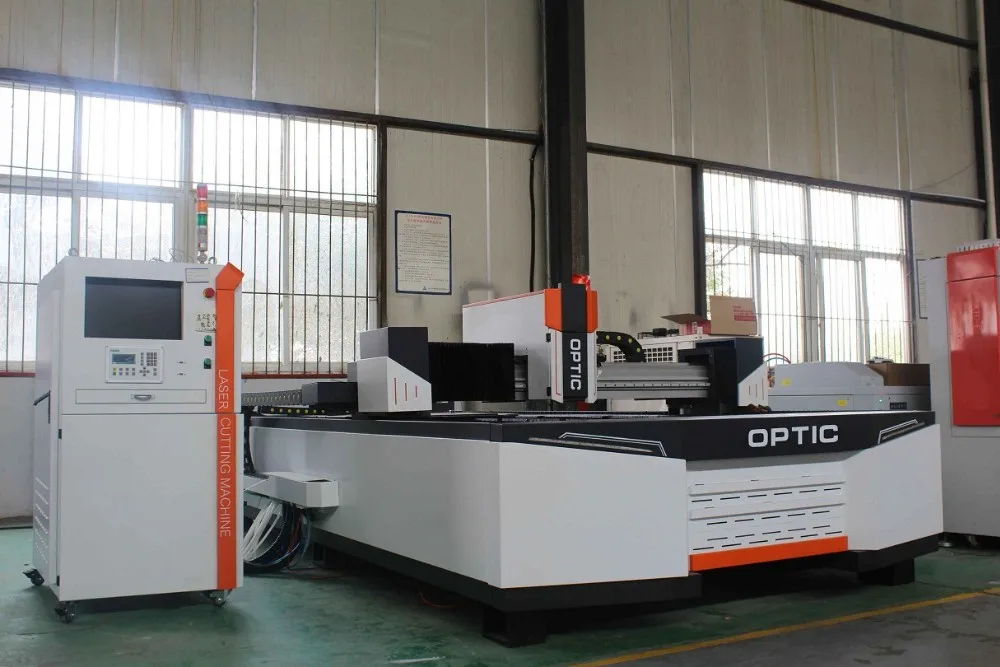

Large power fiber laser cutting machine for metal sheet/ steel laser cutter/ laser cutting machine price

Fiber laser cutting machine is now best way to cut thin metal plate and pipes, we build 300w ~ 6KW  with 600*600mm ~ 6000*2500mm size platform in China, our factory was found in 2004, and so far OPTIC growing to the leader in south area of China, we currently have 3 factories for laser cutting/ laser welding/ laser marking machine, over 200 engineer and technicians that make your order no more delay !

From over 14 years experience, we have the core technology to product quality and stable machine, our assembly partner include IPGphotonics (Germany), YASKAWA (Japan), Raycus (China), Lasermech (Amercia), Precitec (Germany), Siemens (Germany), etc. We promise the quality from original sourcing, through our triple A production line system and QC pass inspecting process that present China best laser machine for our customer.



Why choose optic laser ?

This is a unique design than ever in China, this model can serve for you over 30 years, this benefit by our excellent design of machine body, this body after reinforced and aggraveted, and universal structure, support power level and protection upgrades, as we can know that laser technology now is more and more mature, German has introduced their 100KW laser, in near future, the under 1KW laser will be eliminated by cheaper and larger power, because the laser under 1KW can do very limited works, it waste time and resource. I predict that after 3 years, 2KW laser will reduce 50% cost and price in use, 1KW laser will reduce 30% price, and after 5 years, 2KW laser will cheaper than nowday's 1KW laser.

So in this sense, we introduced our model OPT-W, it support to change the large power in future, this universal structure can use for over 30 years, no out of shape, no accuracy losing, and most incredible thing is no need change the machine body parts when you replace the laser source and power supply, then the machine can work for you again, even you can do this work by your self that no need waste time to wait for technician from other side. Here another qustions, when i upgraded my laser power, then i want upgrade protection equipment, what should i do ? Do i need change a body ? The answer is no need, our model OPT-W support to add a protective case to cover the machine, and also support to add auto exchange table, this is really a beyound design than you need now, while the number of years gone, you will get benefits more and more through our model OPT-W.

Let's see you in future 30 years !


So if you are interested with laser machine, you are choosing right way, please send your inquiry to us and clicl CHAT NOW to know which model is best for you !




Main Features

1) IPG/ Raycus / CAS laser source 500w ~ 6KW
2) Table size 600*600mm ~ 6000*2500mm

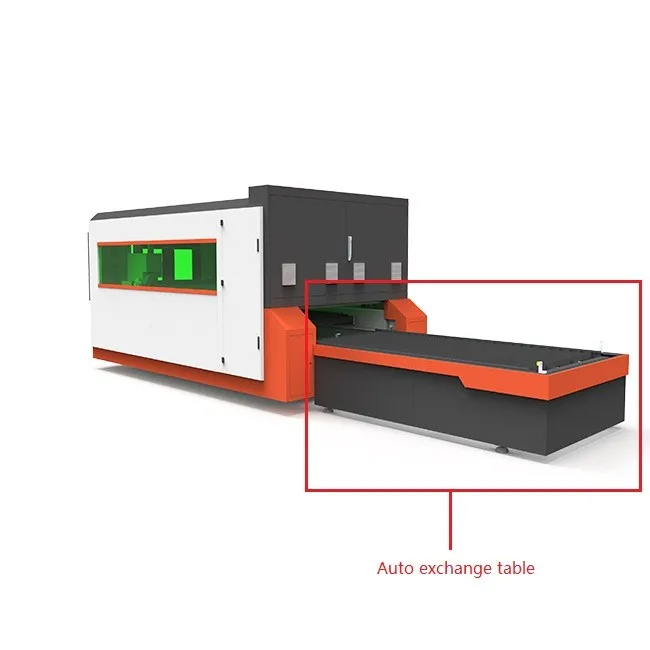

3) Automatic exchange table available
4) Precitech/ Lasermech / Raytools cutting head automatic focusing.
5) YASKAWA servo motor 3000W/ 1800W
6) Dual temperature control water chiller 25°C ~ 26°C (77°F ~ 78.8°F)
7) Quality and light manganese gantry acceleration 1.2G
8) Reinforced and aggraveted lathe bed
Certifications
Detailed Images

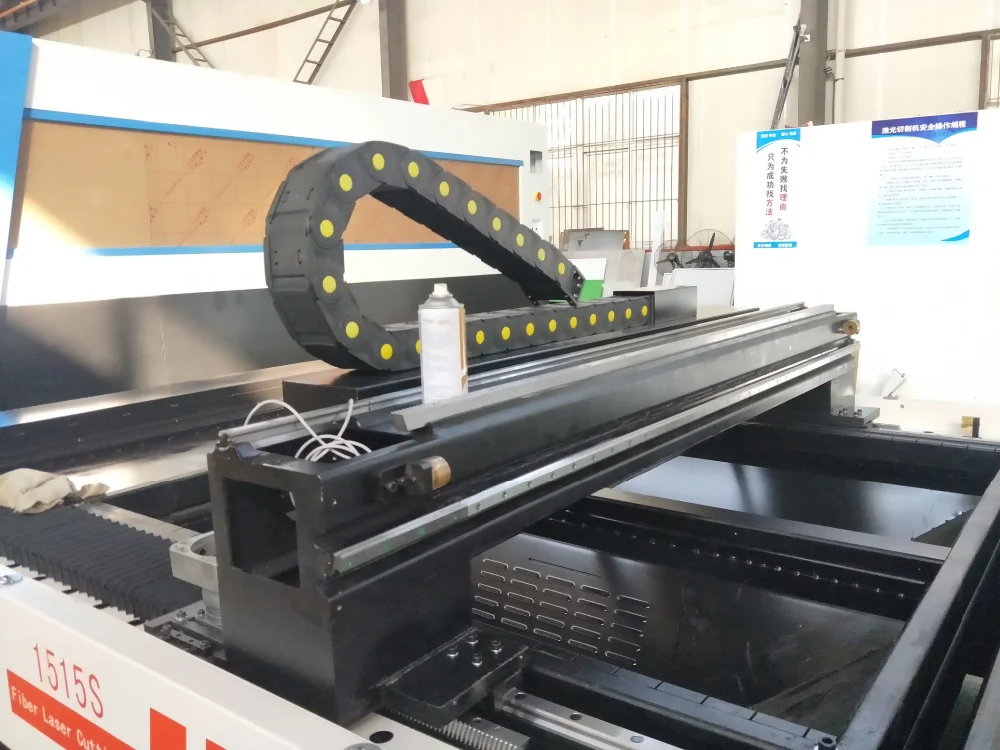

1) Gantry

Gantry is the carrier for cutting head and main moving part while cutting, drived by 4 servo motor. We use light and precise gantry made by high quality manganese steel, this structure provide high speed and precise movement, maxinum speed reach up to 80m/min. Save 30% time while moving, acceleration reach up to 1.2G.

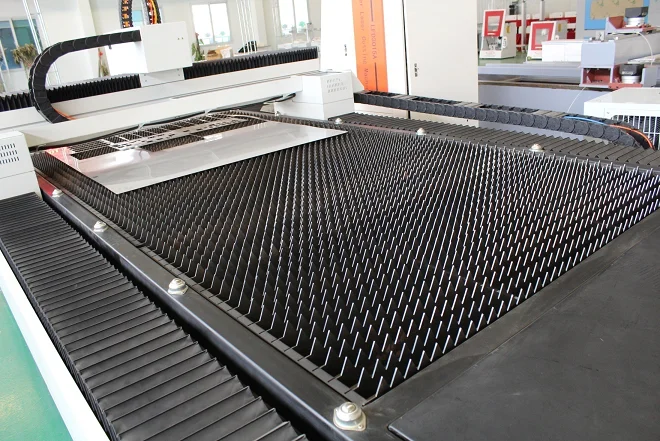

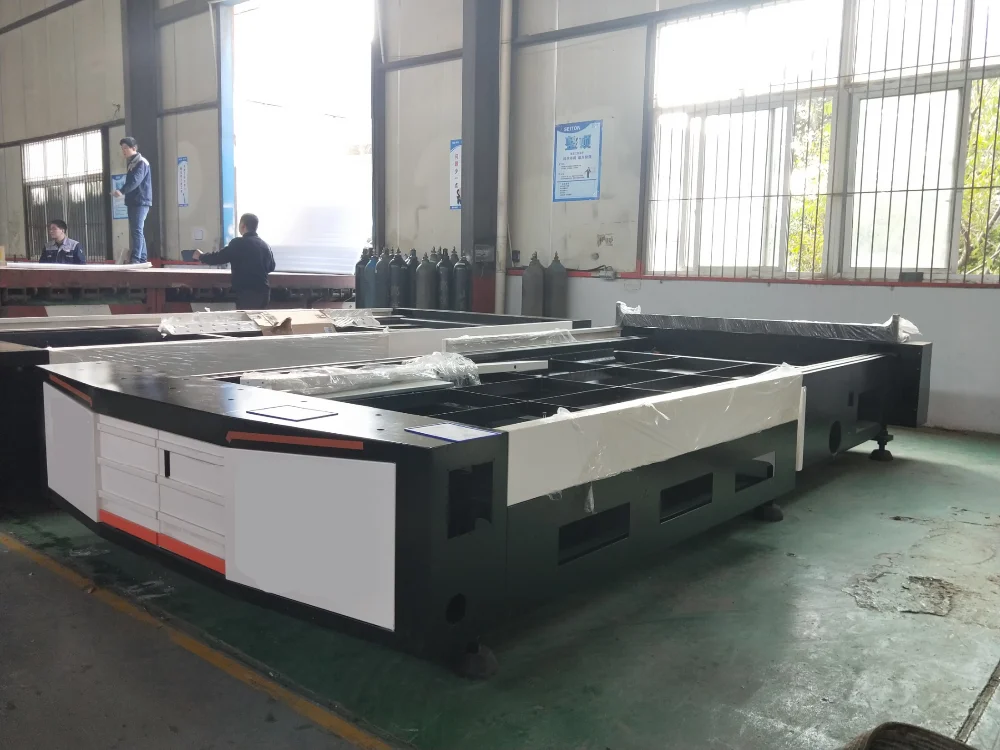

2) Reinforced and aggraveted bed

Our working bed made by adopting high quality 8mm seamless steel rectangle pipe and 15mm thick steel plate in the machine frame after hot processing which is better stabilization and rigidity. It solved the shaking problem of bed while the gantry under high speed moving, this is one of points to influence the precision.

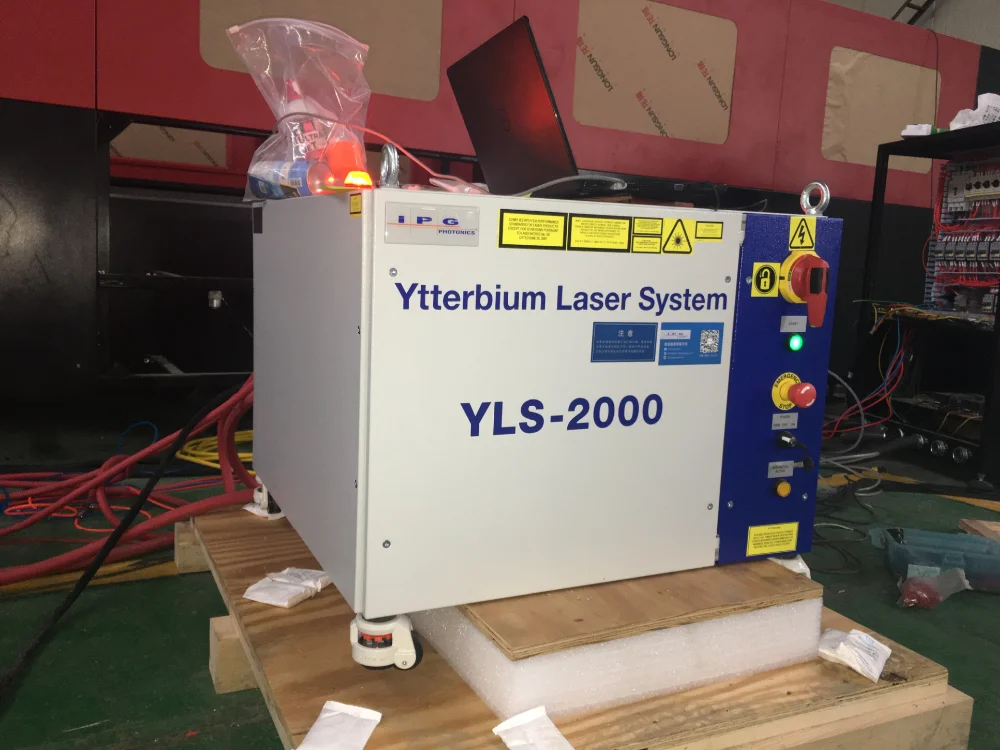

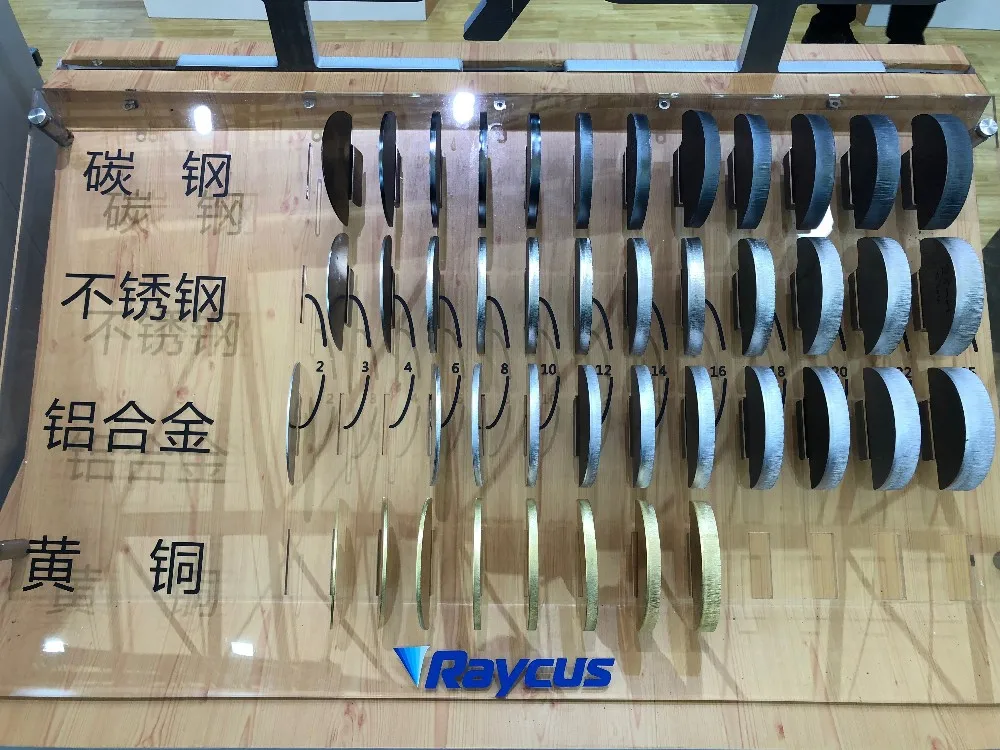

3) World famous laser source

 We only use high-end and mature technology brand of laser source.
IPG is well-known by the wrold as the best brand which is found on 1991 in Germany, they produce from 20w up to 500KW laser source.
http://www.ipgphotonics.com/

Raycus is the Chinese best brand since 2003, and introduced first set of large power laser source in 2006, from now 11 years passed, the raycus source become the leader in China laser field.
http://www.raycuslaser.com/

nLight is the brand from America, this source is different from any others, because it is specially use to cut high reflective metal, nLight solved the problem that normal laser source will damage while cut such metals, so if you frequently cut the aluminum, brass, gold, silver, we advise nLight laser source.
http://www.nlight.net/

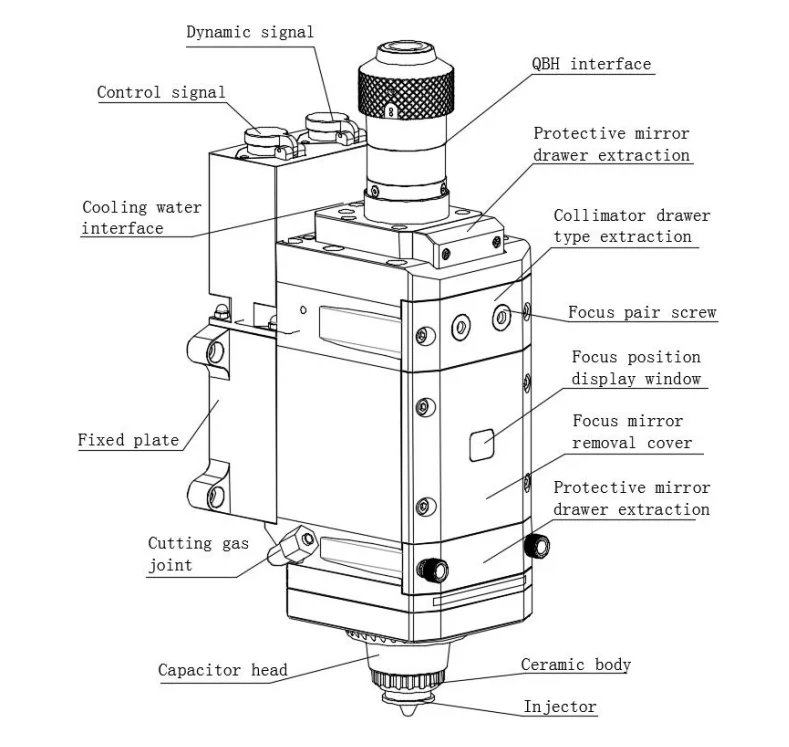

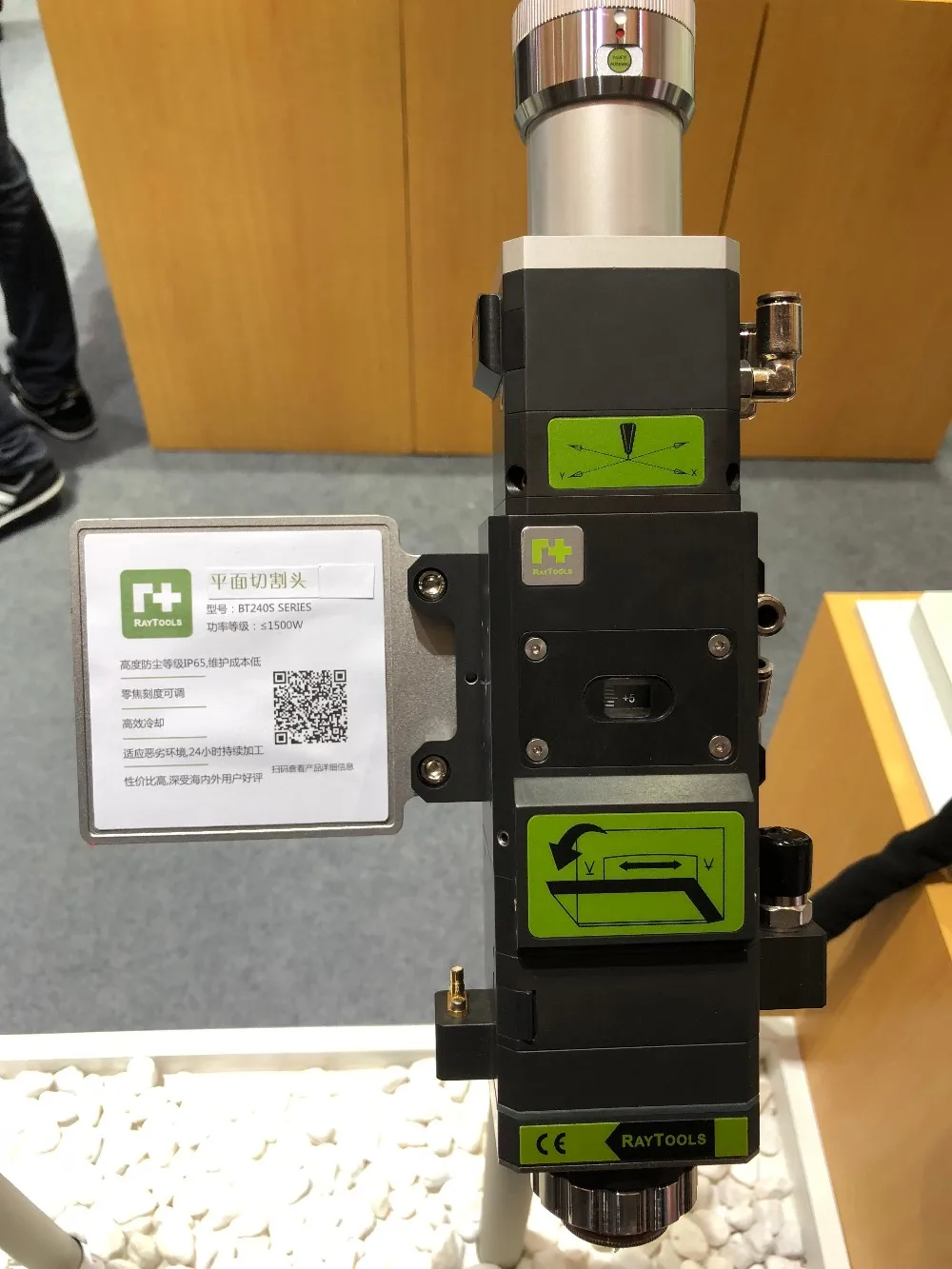

4) Auto focusing cutting head

Raytools AG is the famous brand from Swiss who is specialize in laser cutting head and made in China, Raytools-BT series is the high-end cutting head specially for medium and large power laser.

Raytools cutting head use multiplex interface and advanced optical design that make this cutting head able to use on all kind of laser source. Digitalized height sensor make stay focus and protect cutting head from high speed moving.

http://www.empower.cn/RayTools/

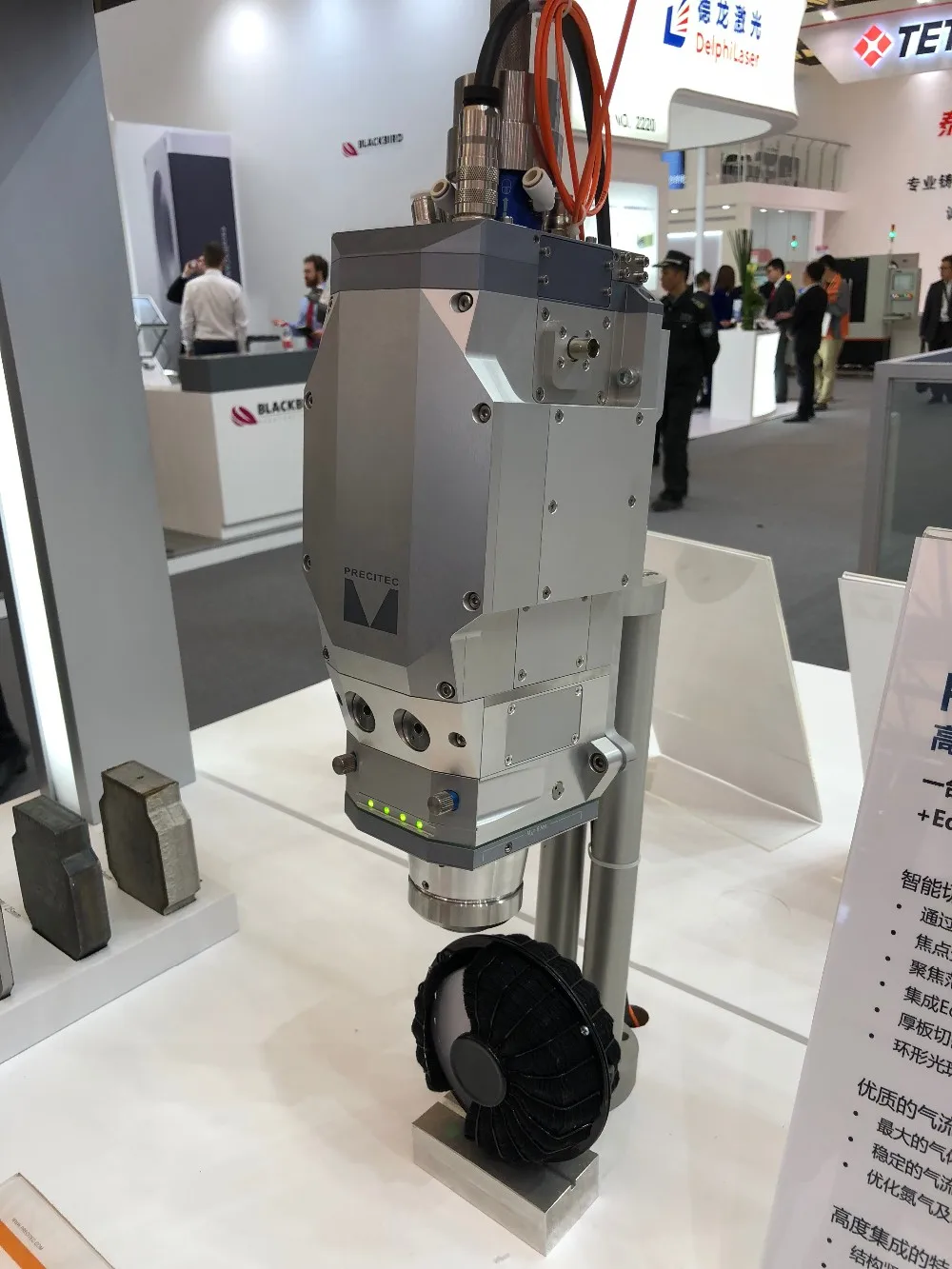

Precitec cutting head is from Germany, also the best cutting head in the world. German always good at machinery, their cutting head can use for 100KW laser power, cut up to 25mm thick stainless teel.

And very gald that they have bench factory in China, so we can get the original stuff directly from Precitec company, this is also customer benefits.

See their website:  http://www.precitec.de/cn/contact/precitec-china/


5) Servo motor

We use 4 sets of driver motor provide strong kinetic energy, accelerated speed reach up to 1.2G, first positioning accuracy is ≤0.03mm.

2 sets on Y axis, 1800W/ 3000W output
1 set on X aixs, 1300W/ 1800W output
1 set on Z axis, 400W/ 850W output
http://www.yaskawa.co.jp/
since 1915s

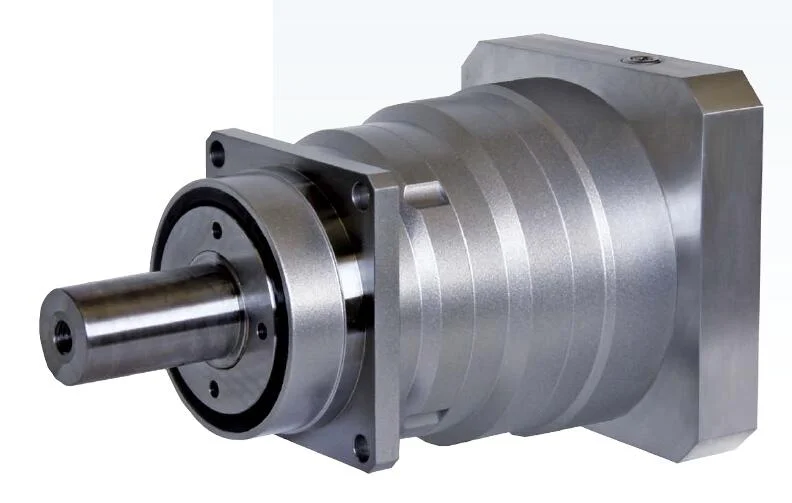

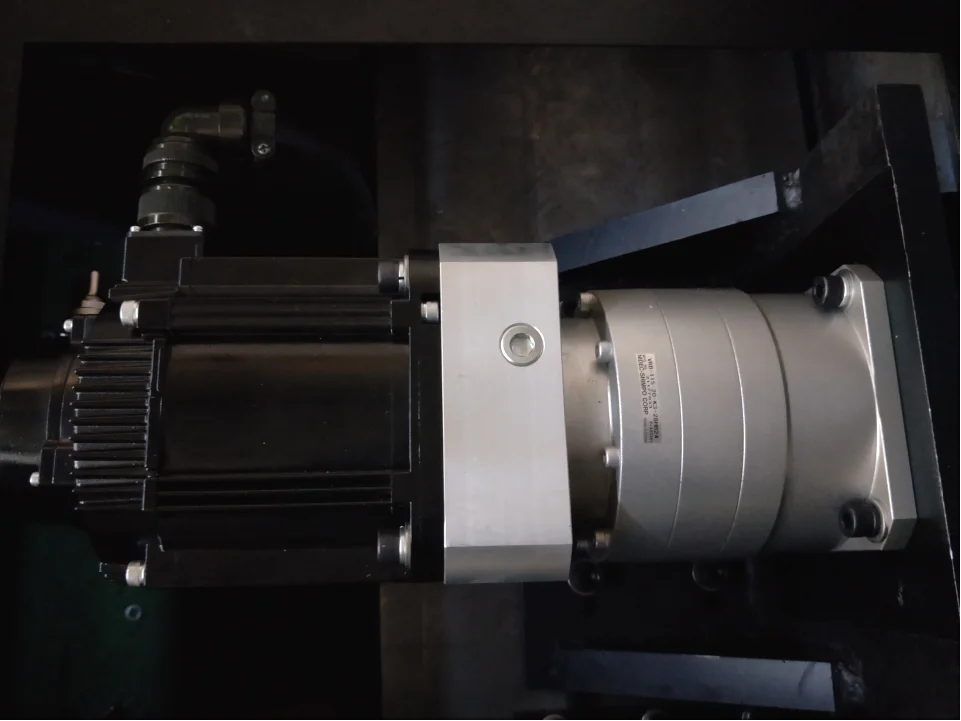

6) Motor reducer

Reducer is the connection between motor and rack, reduce the rotation rate and increase the torque, the kinetic energy will be stronger after the reducer working.

Reducer is the energy passing parts, so must be high precision standard.
http://www.nidec-shimpo.co.jp/
Since 1946s

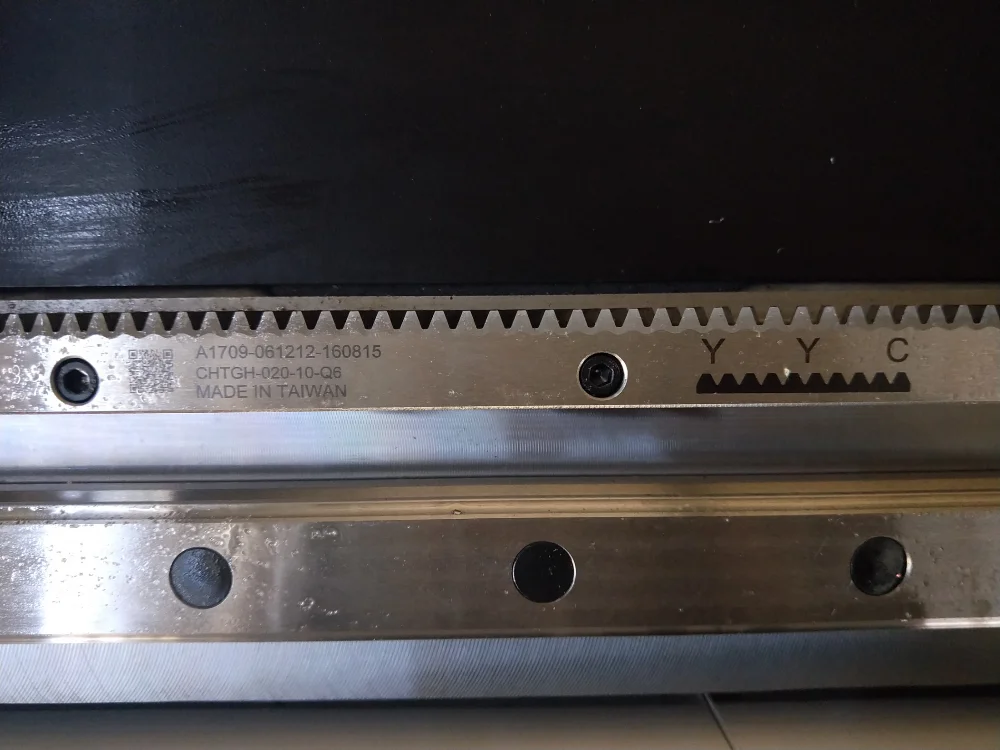

7) Gear and racks

Gear and racks is the rail way for the gantry, we use 6th class precision(6>5>4>3>2>1), it provide big acceleration for movement.

http://www.yuan-yi-chang.com.tw/
Since 1980s

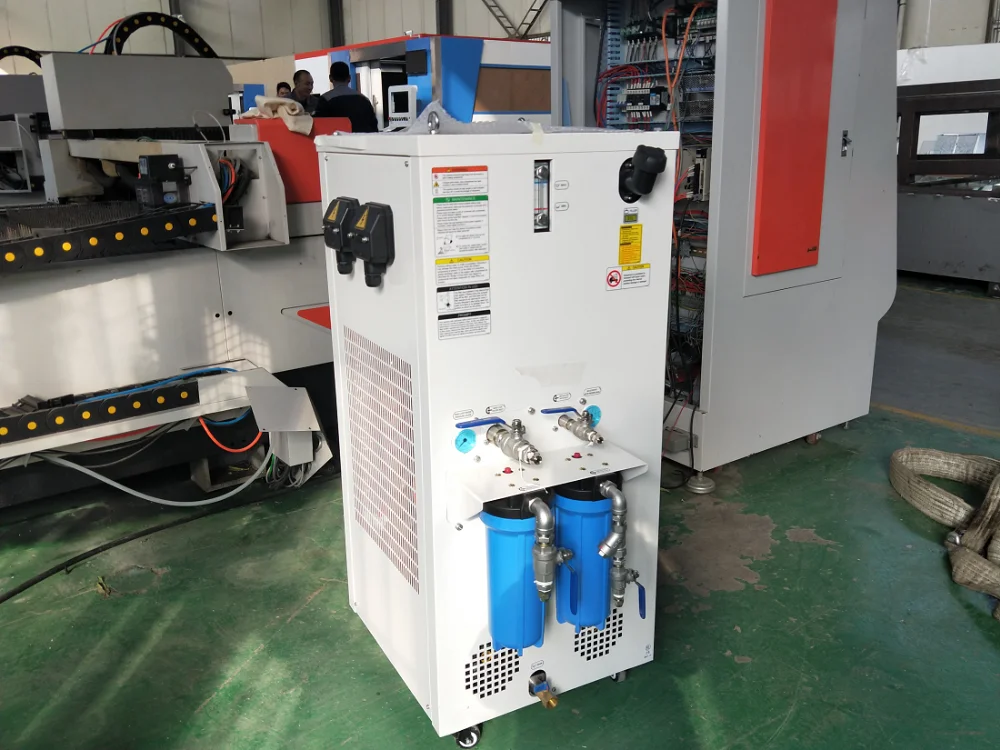

9) Dual temperature control water chiller

Tongfei brand is the manufacturer which specialize in industrial chiller with more than 20 years experience.


Model: dual temperature with dual controller.
First cool for laser source.
Second cool for cutting head.

Because while cutting, the laser source and cutting head has different temperature, if only one controller, that may one of them will not colling well, so double controller will colling each part stand-alone to control the temperature precisely.

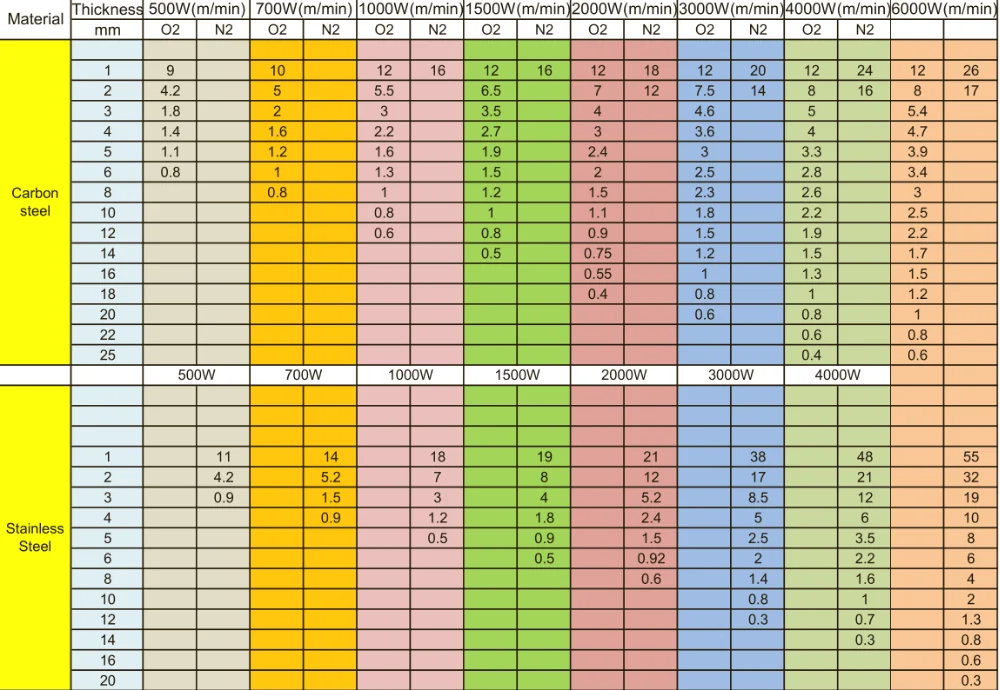

Cutting parameters
Free training

Service:

1) We provide 5 years warranty for laser marking machine, if you meet any problem with machine, we will help you online within 8 hours, if any parts broken, we will send you replacement by express for free.
2) We provide shipping service with custom clearance and taxes declaring, door to door shipping service.
3) We provide all machine accessories for life time.

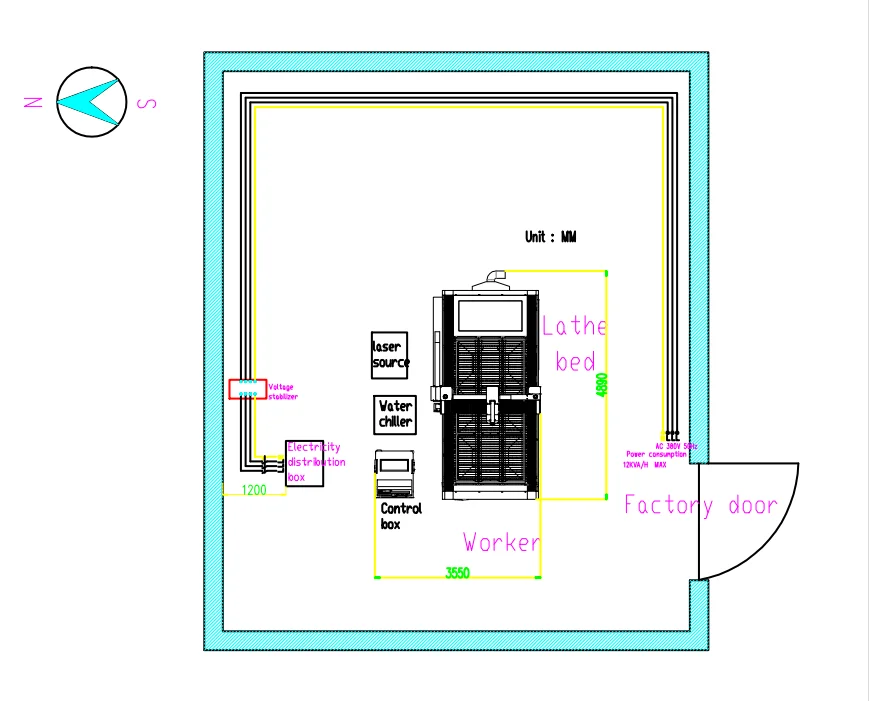

Delivery and Install
Packaging
Size (cm)
For example OPT-W1530: 2100mm (L) * 1600mm (W) * 1500mm (D)
Weight (kg)
5.5 Ton

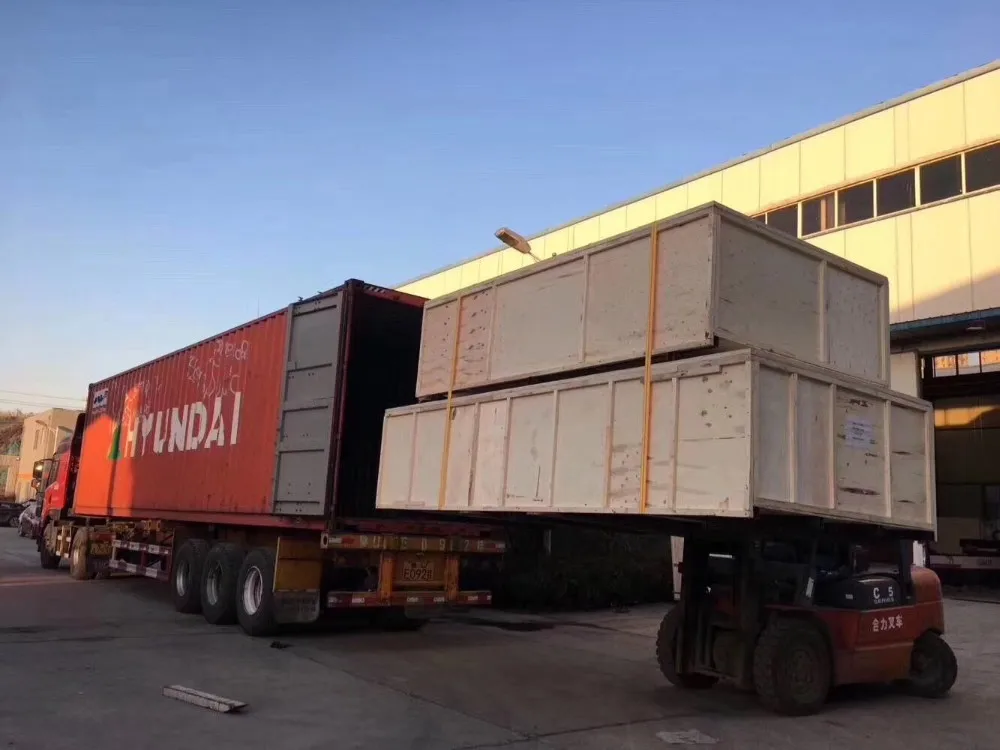

Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

We provide free training and installation service on your side.

Before shipping, we will uninstall some parts, and packing in 5 wooden cas, after machine arrived your side, we will send 3~4 technician to your side for free training and installation service, install the machine takes about 4 ~6 hours, and after that, we will training your engineer for 7 days at longest, we will teach you how to operate with it, and how to do daily maintaince, how to check the machine health status, how to solve when the machine error, and our sales man will be online 15 hours per day for your any questions, response within 1 hour in working hours (China time 9:00 ~ 00:00)

FAQ

What you worrying all is here!


# What is your warranty?

R: We provide 5 years warranty for laser marking machine, if any parts broken in guarantee, we send you replacement by express for free.



# What is your after-sales service?

R: We have professional English spoken technician team and customer care team response for services within 8 hours, so you no need worry about any problem before sale and after sale.



# What is your shipping service?

R: We provide door to door shipping service with customs clearance and tax declaring, international wooden case package, make sure the goods from our factory to your hands by a safest and fastest way.



# When i can get my machine after i paid?

R: For laser marking machine, the leading time is 20~25 days, we have 3 factories that make sure no dealys. Ship by sea takes 25 ~ 30 days, the cost please ask our sales man acorddingly.
