Lathes C6132/C6136/C6140/C6150/C6166 Mini Metal Lathe Machine

  • >=1 Sets
    $5,670.00
Max. Swing Diameter (mm):
320/360/400/500/660
Spindle bore:
52
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 40 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year, 12 Months
After-sales Service Provided:
Online support, Video technical support, Engineers available to service machinery overseas
Place of Origin:
Shandong, China
Brand Name:
luzhong
Model Number:
C6132/C6136/C6140/C6150/C6166
Condition:
New
Dimension(L*W*H):
50*1150*1550mm
Type:
Horizontal
Certification:
CE ISO
Voltage:
Customer's Requirement
Applicable Industries:
Machinery Repair Shops, Manufacturing Plant, Lathes C6132/C6136/C6140/C6150/C6166 Mini Metal La
Key Selling Points:
Competitive Price
Weight (KG):
1600 KG
Max. Swing Diameter (mm):
500 mm
Max. Length of Workpiece (mm):
1000 mm
Max. Turned Length (mm):
800 mm
Machining Capacity:
Light Duty
Spindle Bore(mm):
52 m'm
After Warranty Service:
Online support
Local Service Location:
None
Showroom Location:
None
Product model:
Lathes C6132/C6136/C6140/C6150/C6166 Mini Metal Lathe Machine
Machine Type:
lathes
Precision:
mini lathe machine
Spindle bore:
52/80
Product type:
mini metal lathe
Spindle speed:
36-1600rpm (12 Steps)
Function:
Lathe Machining
Color:
Customized Option
CNC or Not:
Normal
Automatic Grade:
Semi-automatic
Product Certification certification
CE Certified.
Valid from 2018-11-30 until 2023-11-29
Supply Ability
Supply Ability:
200 Set/Sets per Month Lathes C6132/C6136/C6140/C6150/C6166 Mini Metal Lathe Machine
Packaging & Delivery
Packaging Details
Lathes C6132/C6136/C6140/C6150/C6166 Mini Metal Lathe Machine
Plywood case
One set in one case
Port
any port of China Lathes C6132/C6136/C6140/C6150/C6166 Mini Metal Lathe Machine
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 40 To be negotiated
Product Description

1.Bed rail by super audio quenching and precision grinding.
2.Precision grinding of the main shaft box, low noise.
3.More thread type.
4.Electrical safety performance is good, high reliability.
5.With electromagnetic brake, the color of available options.
Specifications
C6150
Capacity
Max.Swing over bed
500mm
Max. rotating diameter
300mm
Max.swing over gap
720mm
Center distance
750、1000、1500、2000mm
Spindle hole
52mm(82mm)
Spindle
Spindle nose
ISO-C6(C8)
Spindle tap
MT6
Spindle speeds(Number)
36-1600rpm (12 Steps)
Feed
Metric threads range(Kinds)
0.5-14mm (18 Kinds)
Inch threads range(Kinds)
2-40/inch (28 Kinds)
Moudle threads range(Kinds)
0.25-3.5mπ (17 Kinds)
Compound rest travel
150mm
Cross slide travel
180mm
Cross-section size of toolshank
22×22mm2
Tailstock
Dia.of tailstock sleeve
75mm
Taper of tailstock sleeve
MT5
Travel of tailstock sleeve
160mm
Main motor power
5.5/7.5KW
Machine size
(L*W*H mm)
Overall dimensions for750mm
2100×1150×1550mm
Overall dimensions for1000mm
2350×1150×1550mm
Overall dimensions for1500mm
2850×1150×1550mm
Overall dimensions for2000mm
3350×1150×1550mm
Weight(kg)
Weight for 750mm
1700kg
Weight for 1000mm
1800kg
Weight for 1500mm
2000kg
Weight for 2000mm
2200kg

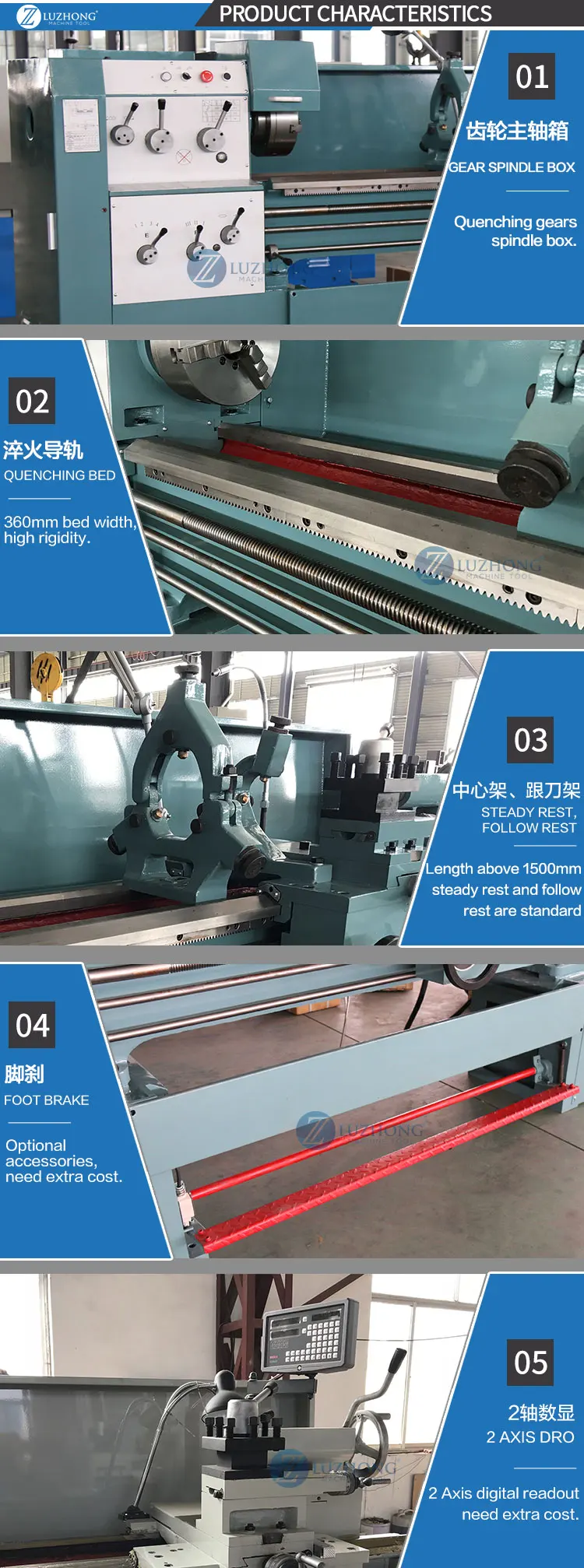

Details Display
