Lazer cutting machine cnc laser cutter for embroidery acrylic laser for sale

FOB Reference Price:Get Latest Price
$3,000.00 - $5,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
K1080-F K1390-F K1610-F K1810-F
Power(W):
60W/ 80W/ 100W/ 130W/ 150W
Lead Time:
Quantity(Sets) 1 - 2 3 - 5 >5
Est. Time(days) 5 7 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Applicable Material:
Acrylic, Crytal, Leather, MDF, Paper, plastic, Rubber, Wood, Fabric
Laser Type:
CO2
Cutting Area:
1000mm*800mm
Cutting Speed:
≤450mm/s
Graphic Format Supported:
AI, PLT, DXF, BMP, DST
Application:
Laser Cutting
Condition:
New
Cutting Thickness:
≤20mm
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Control Software:
Ruida
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
KASU
Certification:
CE, ISO, SGS, FDA
Warranty:
1 Year
Product name:

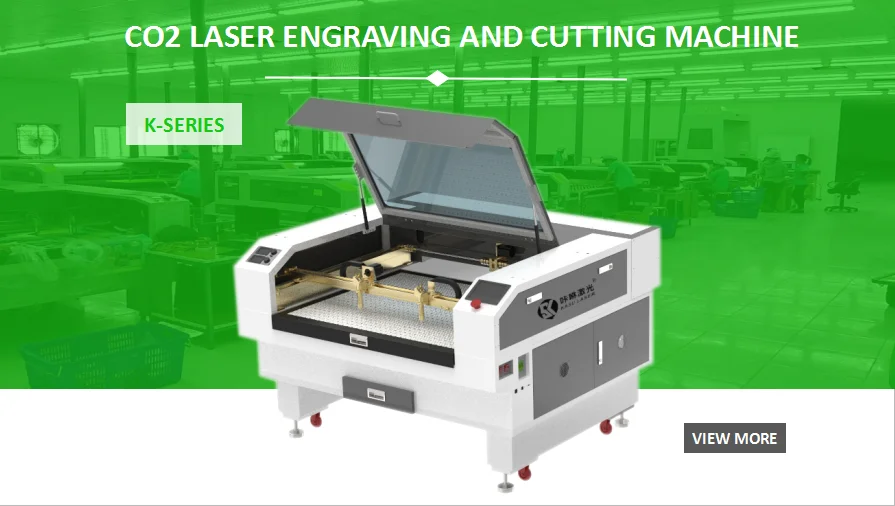

Laser cutting and engraving machine
Working area:
1000mm*800mm
Laser power:
80w/100w/130w/150w
Laser tube:
Glass Tube CO2
Laser head:
Single
Cooling system:
CW 5000/5200 Water Cooling

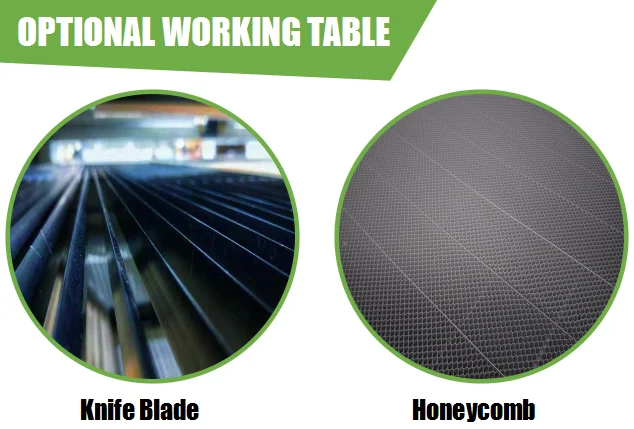

Working table:
Honeycomb/Knife Blade
Color:
White/Grey
Power supply:
AC220V 5% / 50Hz
Gross Power:
1500W
Supply Ability
Supply Ability:
1000 Set/Sets per Year
Packaging & Delivery
Packaging Details
The laser cutting machine is packaged by poly-wood cases.
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 2 3 - 5 >5
Est. Time(days) 5 7 To be negotiated
Video Description
Engraving Laser

As pioneers of the laser cutting industry, our latest range of CNC laser cutting machines are designed to be an efficient and productive asset to your business. We have combined many years of experience with state of the art technology and developments to give you the ultimate laser cutting systems.

We use a highly cost effective glass CO2 laser source with water cooling system. This machine is available with a 60watt, 80watt, 100watt, 130watt and 150watt laser. It can cut a wide variety of materials like leather, acrylic, mdf, ply, cardboard and paper. You can also engrave and raster images onto surfaces such as wood and plastic.

INDUSTRY APPLICATION

Many industries are now finding that laser cutting technology is far superior to other cutting methods and our CNC laser cutting machines have proved to be successful in all types of markets from automotive to textiles. Our laser cutting systems demonstrate the precision to cut a wide variety of materials including acrylic and wood at speeds suitable for mass production.

MACHINE SPECIFICATIONS

What Is Co2 Laser

Many industries are now finding that laser cutting technology is far superior to other cutting methods and our CNC laser cutting machines have proved to be successful in all types of markets from automotive to textiles. Our laser cutting systems demonstrate the precision to cut a wide variety of materials including acrylic and wood at speeds suitable for mass production.


We use a highly cost effective glass CO2 laser source with water cooling system. This machine is available with a 60watt, 80watt, 100watt, 130watt, 150watt, 180watt and 200watt laser. It can cut a wide variety of materials like leather, acrylic, mdf, ply, cardboard and paper. You can also engrave and raster images onto material surfaces.

CO2 LASER WORKING MODEL

QC System

HOW TO ACHIEVE BEST CUTTING AND ENGRAVING EFFECT?

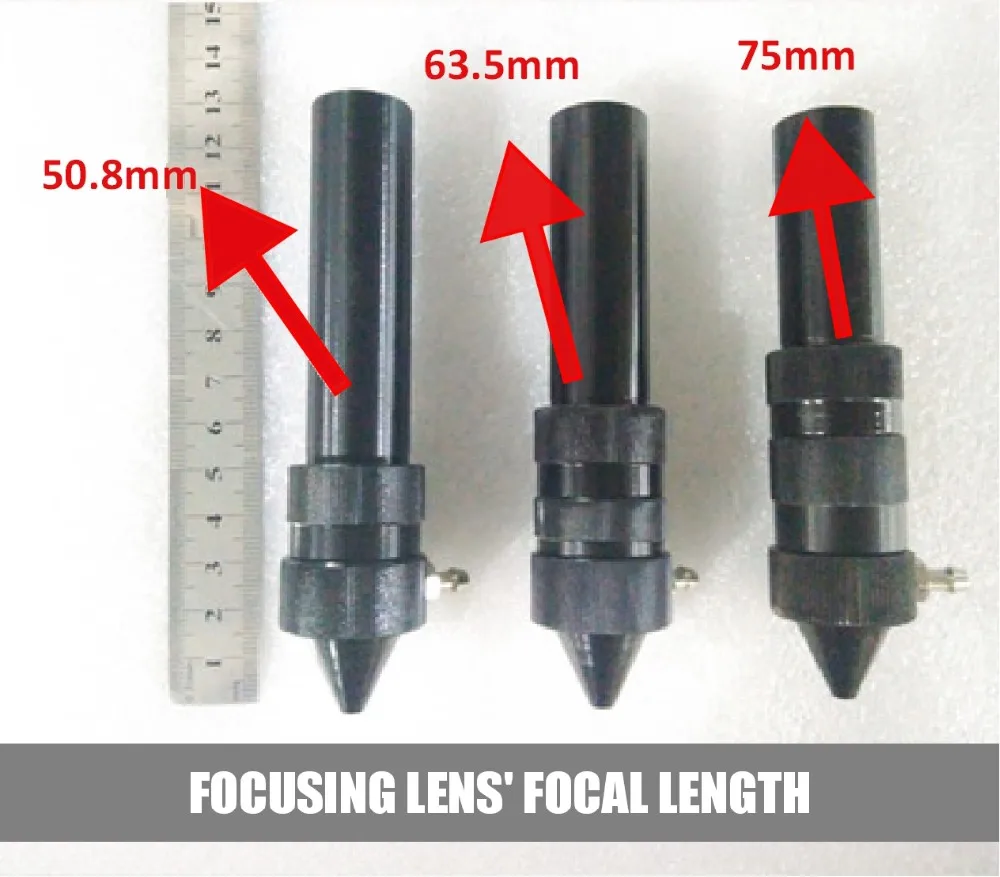

To achieve best cutting and engraving quality, you need coordinating laser tube, laser power supplier, reflecting lens and focusing lens, good quality guide rails and modules, as well as well designed machine structure. With 10 years' manufacturering experience, we are using our industry's strictly selected spare parts to provide you with highly cost-effective product.

WELL PROTECTED STRONG MACHINE STRUCTURE

OUR NEAT CIRCUIT BOARD

WELL SELECTED AND INSTALLED GUIDE RAILS AND MODULES

STRICTLY SELECTED AND INSTALLED CO2 GLASS LASER TUBES

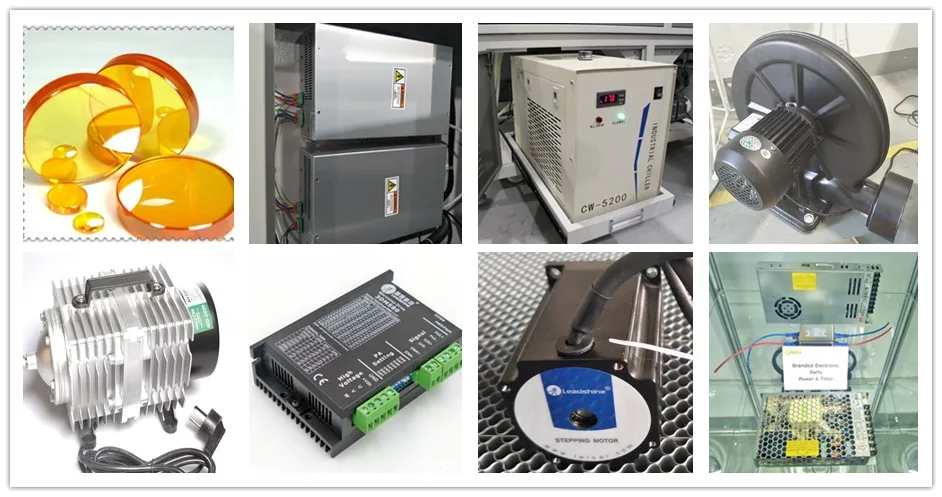

OTHER KEY SPARE PARTS

APPLYING CUSTOMIZED ERP SYSTEM MAKE EVERYTHING UNDER CONTROL

Packing & Delivery
Aftersale Service

FAQ

Q1: What material can this machine cut?
Co2 laser deals with non-metal materilas. You can tell us your working material, detail work by picture or vedio so that we can recommend the most suitable model for you.

Q2: What's the warranty policy?
The machine has one year guarantee, laser tube 6 months, and lens no warranty. If it breaks down, our technician will figure out and solve the problem for you. Broken parts will be replaced freely unless human causes.

Q3: How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to your specific requirements, it would be 15 to 30 days.

Q4: In what languages your software is?
Our software operate in common languages, such as English, Spanish, French, German, Russian, Portuguese, Japanese, Korean, etc.

Q5: How's the payment?
Telegraphic Transfer(T/T) 50% first, balance before delivery.

Q6: Do you arrange shipment for the machines?
Yes, for FOB or CIF price, we will arrange shipment for you. For EXW price, you need to arrange shipment by yourself or your agents.
