Liquid Silicone Used Rubber Injection Molding Machine

FOB Reference Price:Get Latest Price
  • >=1 Sets
    $29,500.00
Report Suspicious Activity
Overview
Quick Details
Clamping Force:
2000KN
Condition:
New
Type:
Preform Injection
Style:
Horizontal
Brand Name:
Zenith
Model Number:
PET-1200V6
Place of Origin:
Jiangsu, China (Mainland)
Plastic Type:
Thermoplastic
Automatic:
Yes
Opening Stroke:
490mm
Certification:
CE ISO9001
Product name:
PET Preform Injection Molding Machine
Keyword:
liquid silicone rubber injection molding machine
Screw Diameter:
67mm
Product:
PET preform
Function:
Plastic Injection Molding Machinery
Injection Rate:
300g/s ~ 1200g/s
After-sales Service Provided:
Engineers available to service machinery overseas
Power(W):
38.5kw
Injection Weight:
1150g
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
PACKED WITH WATER PROOF PACKAGES AND LOAD INTO CONTAINER,WITH LINES AND FOOTS FIXED THE BODY OF INJECTION MOLDING MACHINE ON THE CONTAINER
Port
SHANGHAI,CHINA
Lead Time :
Shipped in 10 days after payment
Product Description

Product Application

PET preform injection molding machine

silicone rubber injection molding machine
Specially made PET screw highly increases the plasticizing speed and shot weight, lowers the plasticizing temperature and AA value, also lowers the shearing of perform, while achieves better transparency.
The variable pump control system can save energy by 20﹪-30﹪,while the servo motor control system can save energy by 30﹪-50﹪,
Different models are available for the choice of customers.
Increasing eject force ejector stroke, adapts PET perform molding.
Whole closed safe door meets the requirement of sanitary and thermo-control.
Hot runner system interface is included.
Optional with pressure holding and charge at the same time, which can increase the output by 15﹪-25﹪.

used rubber injection molding machine

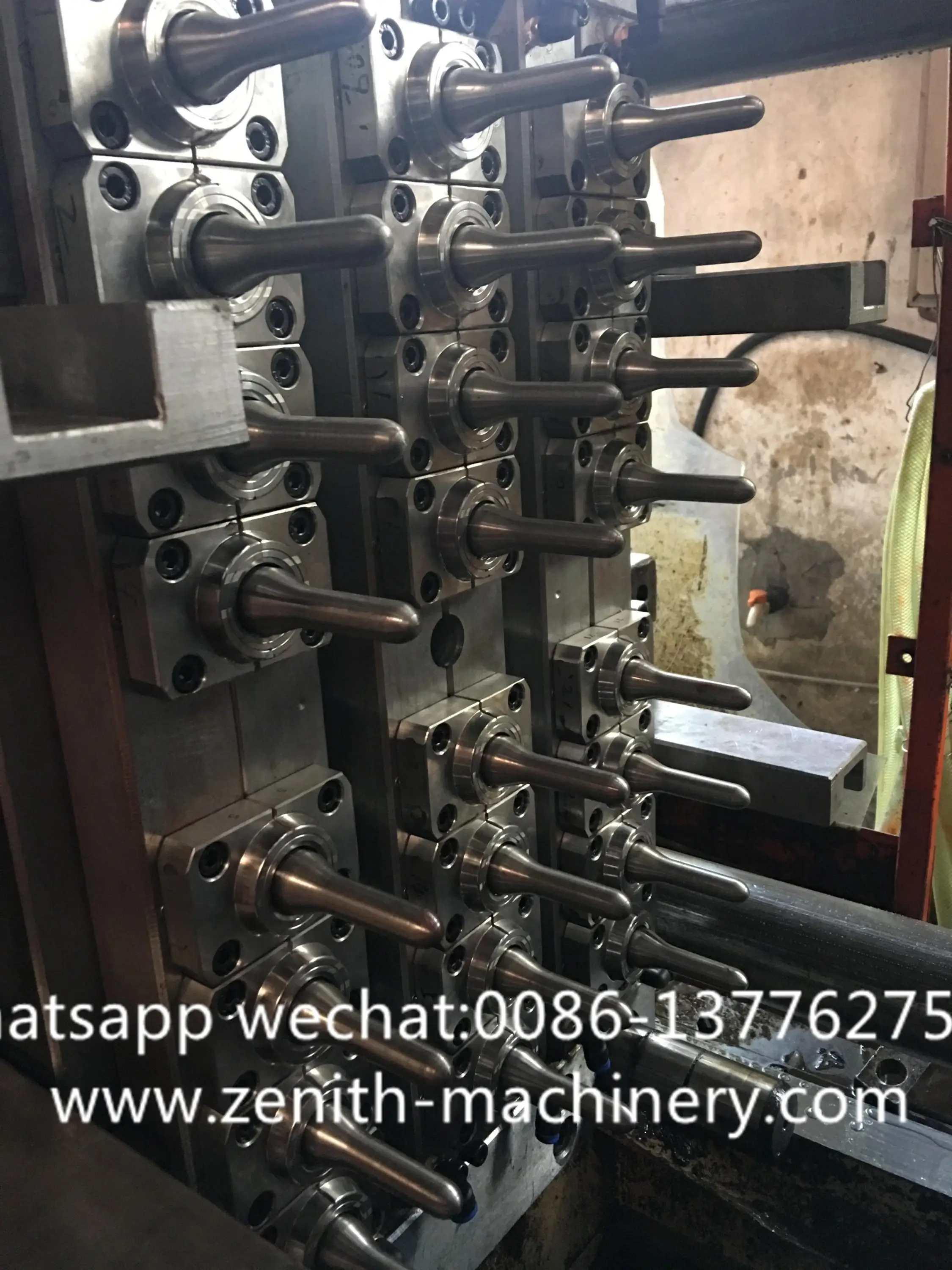

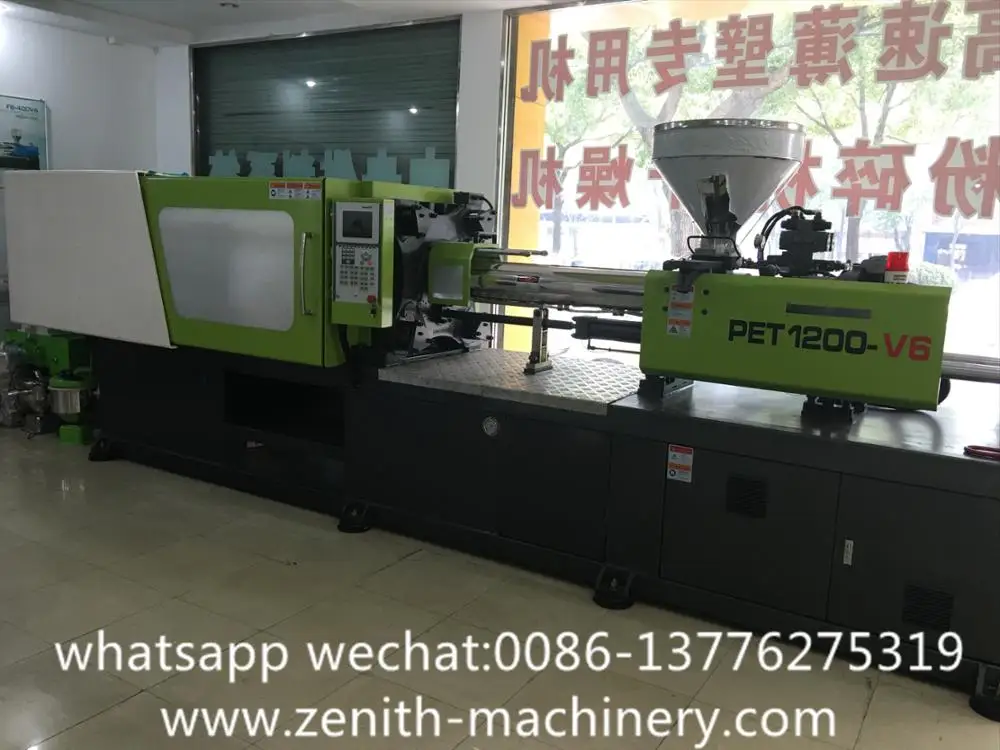

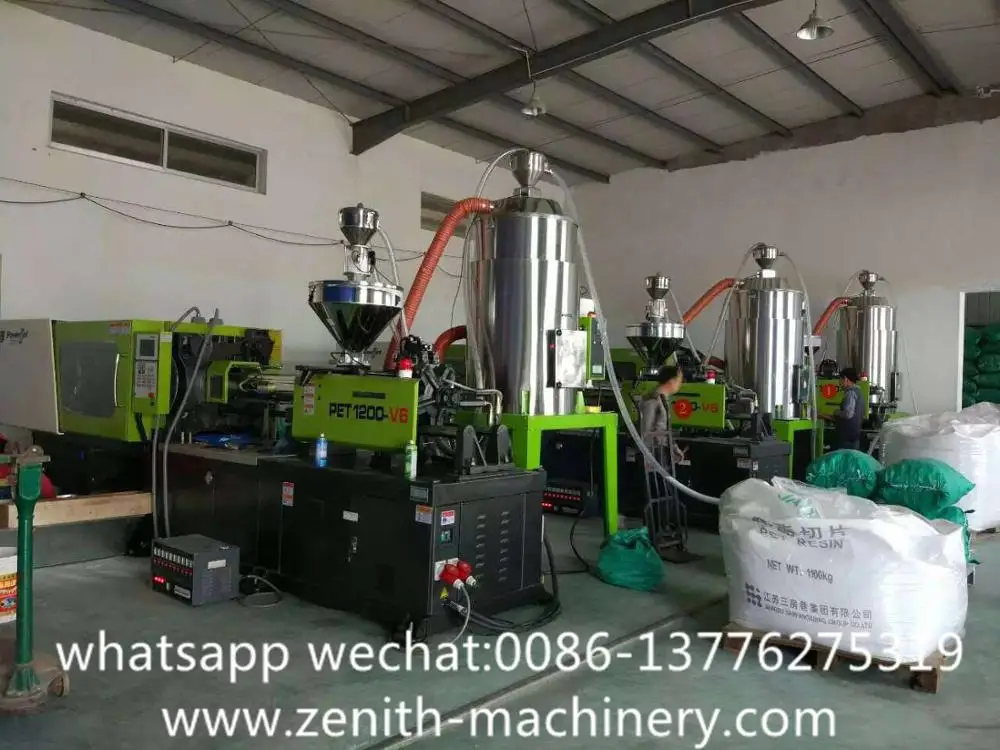

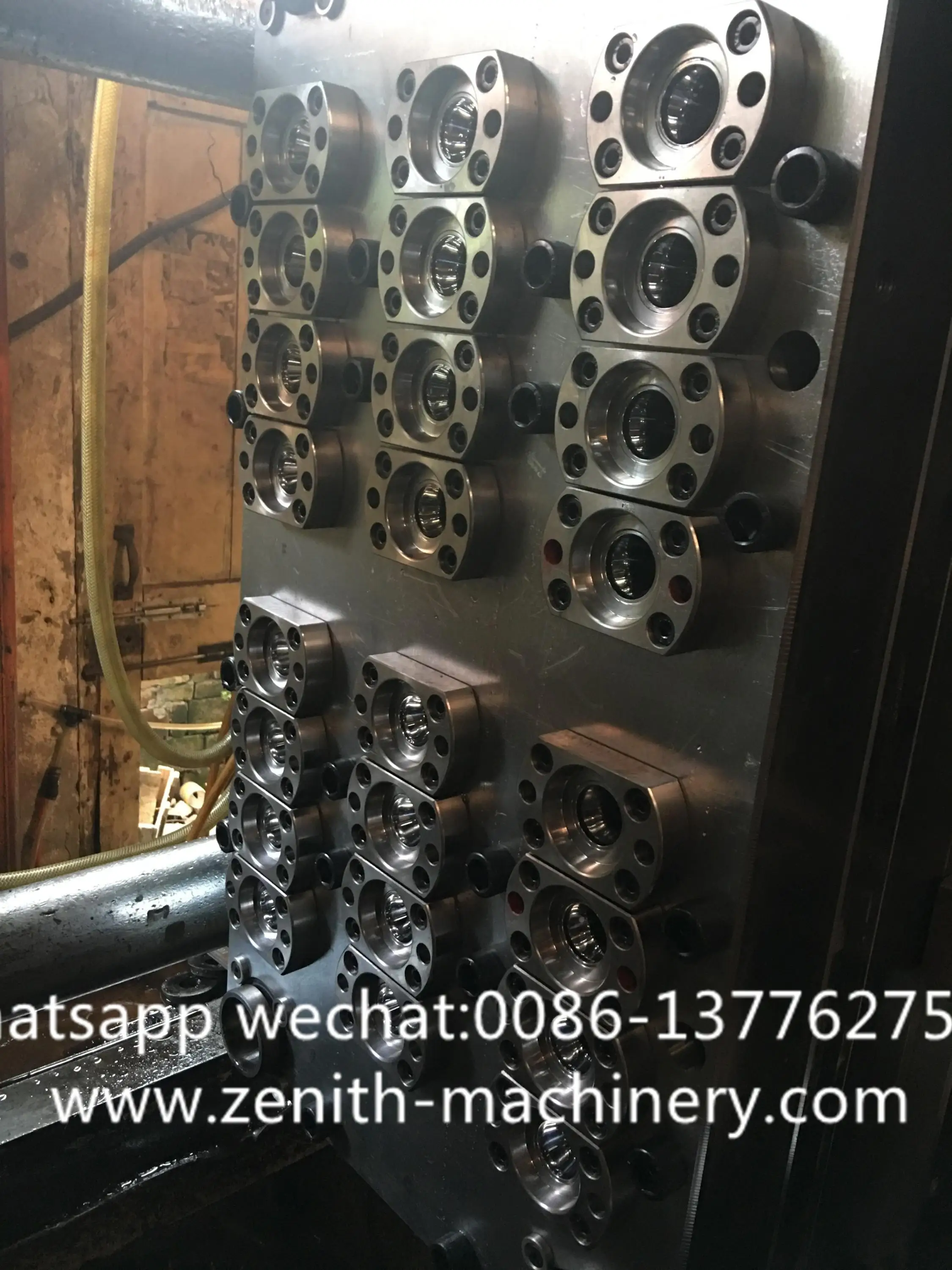

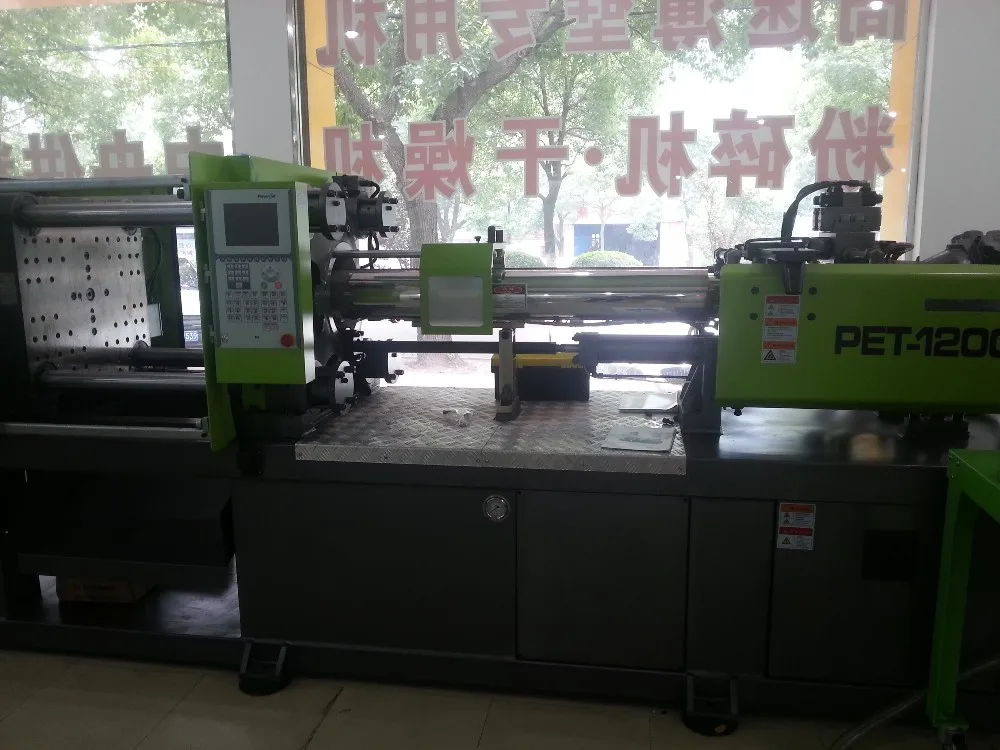

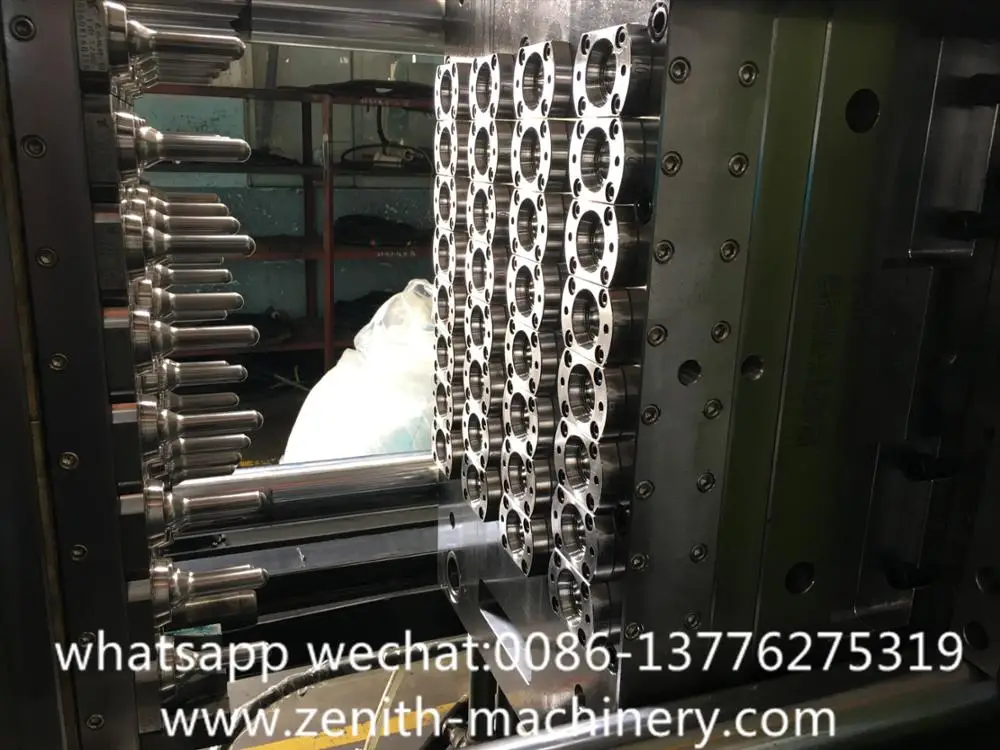

Detailed Images
Main Specification
DESCRIPTION
Unit
PET-1200V6
International size rating
2000-1088
INJECTION UNIT
Screw diameter
mm
67
Screw L/D Ratio
22
Shot volume
Cm3
987
Shot weight (PS) (@PS1.05)
g
927
Shot weight (PET) (@PET1.3)
g
1150
Shot weight (PP) (@PP0.9)
g
795
Screw stroke
mm
280
Max.screw rotary speed
Rpm
160
 CLAMPING UNIT
Clamping force
KN
2000
Opening stroke
mm
490
Max.daylight
mm
1040
Space between bars(H*V)
mm*mm
510*510
Movable platen size(H*V)
mm*mm
775*755
Max.mold height
mm
550
Min.mold height
mm
230
Ejector stroke
mm
160
Ejector force
KN
99
Ejector force
KN
77
Number of ejector pins
6+1
POWER UNIT
Hydraulic system pressure
Mpa
17.5
Pump motor power
KW
22
Heater power
KW
16.5
Total current
A
117.5
GENERAL
Oil tank capacity
L
420
Machine weight
Ton
6.4
Machine dimensions(L*W*H)
m*m*m
6.0*1.4*2.1
Components List
TYPE
Component
Brand
Hydraulic system
Proportional variable pump
YUKEN,JAPAN
Direction valve
YUKEN,JAPAN
Oil seal
NOK,JAPAN
 Electric system
Computer
TECHMATION,TAIWAN
Electric switch
MERLIN GERIN,FRANCE
AC contactor
SCHNEIDER,FRANCE
 Injection System
Lubrication hydraulic pump
HERG,JAPAN
Mould adjusting hydraulic motor
ETON/WHITE,ITALY
Plasticizing motor
INTERMOT,ITALY
Screw barrel
HUAYE,CHINA
