Long Vehicle Parking Sensor 7 inch monitor camera 3-5 Meter Long Range Buzzer Alarm Car Parking Sensor system Price

FOB Reference Price:Get Latest Price
$162.00 - $192.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Parking Sensor
Voltage:
12~24V DC
Power:
1W
Car Make:
Van Motorhome
Place of Origin:
Guangdong, China
Brand Name:
Lintech
Model Number:
T-R4-B
Warranty:
18 Months
Sensor cable length:
3m
Power supply:
12~24V DC
long range:
3-5 meter
Control Box power:
Supply by Monitor
system start working:
When vehicle starts to reverse
Detection range:
0~3m, 0~5m optional
Sensor installation:
Metal bracket or drill hole
Operating frequency:
40 KHZ
camera waterproof rate:
IP68
Supply Ability
Supply Ability:
6500 Set/Sets per Month parking sensor system sample in stock
Packaging & Delivery
Packaging Details
Brown box packing (Customize color box is welcome).
Port
Shenzhen






Product Description

Visualable 7 inch monitor camera 3-5 Meter Long Range Buzzer Alarm Car Parking Sensor system Price



Model No.:T-R4-B







Parking sensor system more details photos:







Installation details:























New:



--Control Box can integrate the Sensor distance data and Camera's image signal, and display on the Monitor



--Parking sensor with Buzzer alarm.



--Driver will can see, can hear at the same time.





This parking sensor system is special make for Heavy duty vehicles.To help drivers avoid danger and keep safe when they are reversing.









parking sensor system Specification:



1) Van 4 probe reversing radar system, applicable to all the large vehicles;
2) When vehicle starts to reverse, system start working;
3) Sensor detection range: 0 m ~ 3.0 m (Special require: 5.0meter optional)
4) Speech at distance range: 0.3 meters to 3.0 meters;
5) Connector to Monitor, Host, Probe cable length : 15m, 3m (Customized)
6) Cable connection installation, prevent radio interference;
7) Lightning protection anti-interference boxes;
8) Bracket screws or punch probe (waterproof for thread form 4 probe);
9) 4 pins screw on extension cable, 15 meters;(other length customized);
10) Power input:12- 24 v DC; Stand by : less than 1W
11) Operating frequency: 40 KHZ.
12) Probe Beam Angle: single Angle 60-80 degrees, can choose double Angle Y = 60-80 degrees,  X = 100-120 degrees.
13) Size: length x width x height = 153mm x 99mm x47mm.
14)Low temperature - 40 °C, high temperature of 80 °C;









parking sensor system FEATURES:



--Lightning protection anti-interference host (12-24 VDC)
--With buzzer crescent BI..BI..BI.. When backup vehicle, The volume is not less than 100 db.
--Monitor direct connection control box to supply power.  cable length without being limited by the car.
--Distance will display on the Screen with
--2 style probe: Bracket screws or punch probe
--Probe special waterproof design, level of waterproof IP67.
--Lightning protection design, containing 600 w TVS diode.
--4 core aviation joint line (extension cord with 15 meters)



7 Inch Rear View Monitor Spec:
Screen size:7" LCD  monitor
Brightness:400 (CD/M2)
Resolution:800(W) x RGB x 480(H)
System:PAL/NTSC
Type:monitor (16:   9) display
Video input:Standard V1/V2   (V1/V2/V3/V4optional)
System:PAL & NTSC auto switching
Power supply:DC 12-32V
Power   consumption:less than 7W
Operating   temperature:(-)10 to +65 C-degree
Storage   temperature:(-)20 to +65 C-degree

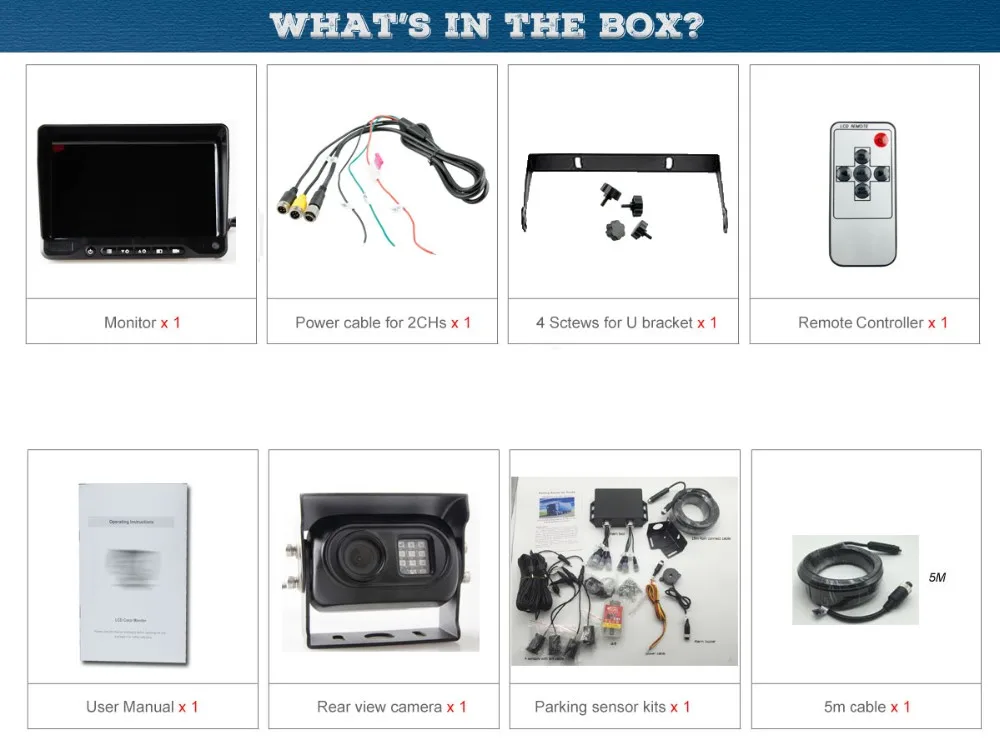

Packaging & Shipping

1 x 7 inch monitor

1 x rear view camera

1 x Main control box.

1 x Buzzer

4 x waterproof thread form probe + Metal brackets.
