For cardboard & corrugated paper box cutting making
Imported finger tape and glue
Trade Assurance Order L/C D/A D/P T/T Western Union MoneyGram
Pressboard Creasing Matrix 13mm wide for long die cutting jobs
Packaging & Delivery
Single package size:
Single gross weight:
Pressboard Creasing Matrix 13mm wide for long die cutting job
Carton: 73 x 23x 22cm(length x width x height),
Delivery:Within 2-7 days upon receive payment
1 - 100000
To be negotiated
Name:GRB0.6 * 1.9mmP Pressboard Creasing Matrix 13mm wide for long die cutting jobs
1. World’s most advanced creasing matrix made from pressboard for various die cutting jobs 2. Accurate locator – ensures perfect registration 3. Low profile chamfer – board flows freely over the matrix; board marking is reduced 4. Finger lift adhesive tape – backing paper easily and quickly removed 5. New and strong adhesive removes cleanly from the plate after use, will not move about during die cutting jobs
6. Special sizes available to suit all board types, off-centers and multi-crease for close creasing rule 7. It is extremely durable and accurate and provides benefits in time and cost. 8. Competitive price with high quality 9. Incredibly durable for short-run job with average punching times from 80,000-100,000 10. Off center, double matrix and mtrix on reels are available upon demands
Pressboard based Matrix Size
How to choose

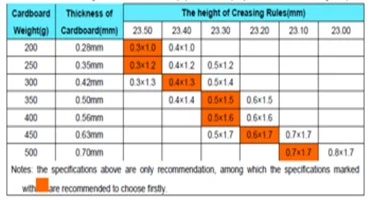

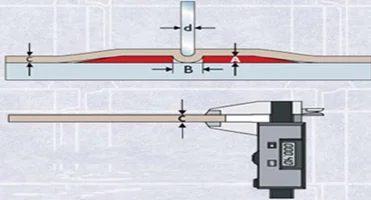

Method to choose creasing matrix size for cardboard paper.Size table(subjct to 23.8mm die-cutting rules).
For instance:the thickness of the cardboard:0.52mm;the thickness of creasing rules:0.71mm,according to calculation formula:A=0.52≈0.5（mm）;B=0.52*1.5+0.71=1.49≈1.5(mm),so we should choose the size of 0.5*1.5
A=thickness of shoulders
B=width of channel
c=thickness of cardboard≤d
d=thickness of creasing rule

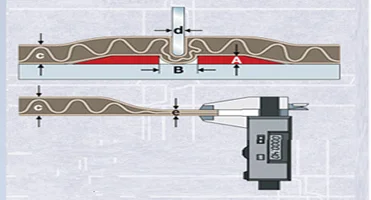

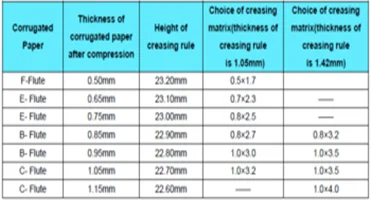

Method to choose creasing matrix size for corrugated paper.Size table(subjct to 23.8mm die-cutting rules).
Remarks:The above blanks just for reference and the exact specification suitable for your job should be chasen according to your actual conditions and material thickness.
Instance: A=thickness of shoulders B=width of channel c=thickness of corrugated paper d=thickness of creasing rule
e=thickness of corrugated paper after compression≤d A≤B=(e*2.0)+d

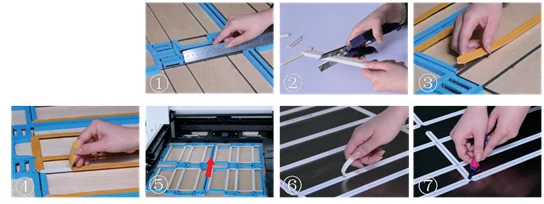

How to use Creasing Matrix
1.Measure the length of the creasing rule. 2.Mark the measurement and cut the matrix. 3.Mount the cut piece onto the creasing rule with locator. 4.Remove backing strip to revel adhesive membrane 5.Lock into press&index machine to place matrix on machine to place matrix on opposing platen. 6.Remove locator strip by pulling firmly upwards. 7.Mitre to suitable angle.
High Quality Creasing Matrix( Imported Finger lift tape and glue)
Sample Last Time
About 3 days
TT/Westerm union/Money Gram
Tianjin or Shanghai

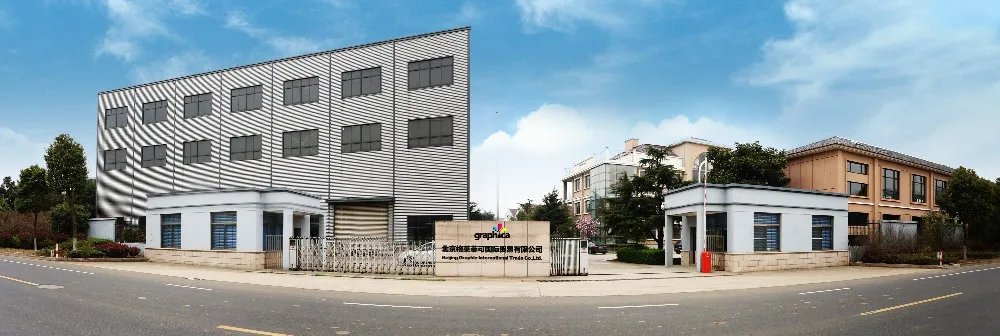

Beijing Graphic International Trade Co., Ltd is a joint venture created by Changzhou Machinery Blade Co.,ltd and ChangZhou Xinyitong Electrical & Mechanical Technology Co.,ltd, who is one of the world's leading and professional supplier of printing equipments and consumables in China, providing its customers with Graphic Arts Consumables, Machines and Spare Parts for diversified jobs. Since its establishment in 2008, Beijing Graphic International Trade Co., Ltd is firmly in accordance with the Business Spirit"Excellent Quality, First-class Service, Honest Commitment"and remain committed to heartfelt Management Principles"Customers Supreme, Reputation First", meanwhile, we undertake"Action Priority, Efficiency Persistence"as our Enterprise Criterion. We are always striving for new ideas and innovative solutions. Beijing Graphic Trade stands for efficient processing ,printing and die cutting systems for most versatile applications with highest customer benefits. Here,Beijing Graphic International Trade Co., Ltd works on things that matter. The best people and the best technologies are taking on the toughest challenges. You will find exactly the right solution for every application and material.
Packing & Delivery
Packing:70cm/pc 50pcs/box 1.3kgs/box, 10boxes/carton Carton: 73 x 23x 22cm(length x width x height), 500-700boxes/pallet Delivery:Within 2-7 days upon receive payment
Pay for transport
Q: Are you factory direct? A:Beijing Graphic Inte’l Trade company as a professional creasing matrix and paper cutting knife manufacturer was established in 2012, specialized in die cutting creasing matrix, paper cutting knife and paper drill bits and pneumatic waste stripper and other related products. Our products are mainly exported to USA, Canada, Europe, South America, etc.Over 120 countries and area.
Q:What’s your product ranges? A: Our main product is packaging material, main product are die cutting creasing matrix, paper cutting knives , paper drill bits, pneumatic waste stripper and so on. You can visit our website www.bjgraphic.net or www.bjgraphic.com for more details.
Q:Do you have a special price and service for wholesale? A: Beijing Graphic Inte’l Trade company is keeping search a long term business cooperation with our clients as a professional creasing matrix manufacturer. we can OEM &ODM for our cilents, fully support and assist on service, to offer you the most competitive price with high quality product.
Q: What payment methods can I use? And how secure is my payment? A: Beijing Graphic Inte’l Trade company accept your payment through Paypal, Bank Transfer,Western Union,etc.
Q:How long does it take for my order to be shipped? And how long can I receive it? A:Generally, your order will be shipped within 3~7 working days after your payment received by us. Beijing Graphic Inte’l Trade company devotes to be a fastest delivery led lights supplier.
Q: How about the warranty? A: Beijing Graphic Inte’l Trade company welcome you to contact us at 24 hours per day, 7 days per week, your any question will be highly appreciated. hotline: 0086-10-87227832
