Low Cost 280kg L Shape Bracket For Electro Magnetic Lock

  • 1-99 Pieces
    $3.00
  • 100-499 Pieces
    $2.75
  • 500-999 Pieces
    $2.50
  • >=1000 Pieces
    $2.25
Type:
Look bracket
Color:
White
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Customization:
Customized logo (Min. Order: 500 Pieces)
Customized packaging (Min. Order: 500 Pieces)

More

Graphic customization (Min. Order: 500 Pieces) Less
Contact Supplier
Samples - $3.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
ACM
Model Number:
ACM-Y280L
Product name::
Low Cost 280kg L Shape Bracket For Electro Magnetic Lock
Armature Plate( LxWxH)::
180x50x50(mm)
Brand::
ACM
Dimensions: Magnet( LxWx H)::
250x47x28(mm)
Certification::
CE/MA
Finished for Shell::
Anodized aluminum
Opening Mode::
90 Degree Door
Application:
Inner open wooden door, narrow box door, metal door
Keywords:
L Type Bracket, Electric Magnetic Door lock Bracket

Packaging & Delivery

Selling Units:
Single item
Single package size:
25X5X4 cm
Single gross weight:
0.27 kg
Package Type:
1unit per box, 30pcs per carton, Carton size : 54.5*20*30.5cm , Gross Weight :9kg cartons per pallet
Lead Time :
Quantity(Piece) 1 - 100 101 - 500 501 - 1000 >1000
Est. Time(days) 3 5 7 To be negotiated
Product Description

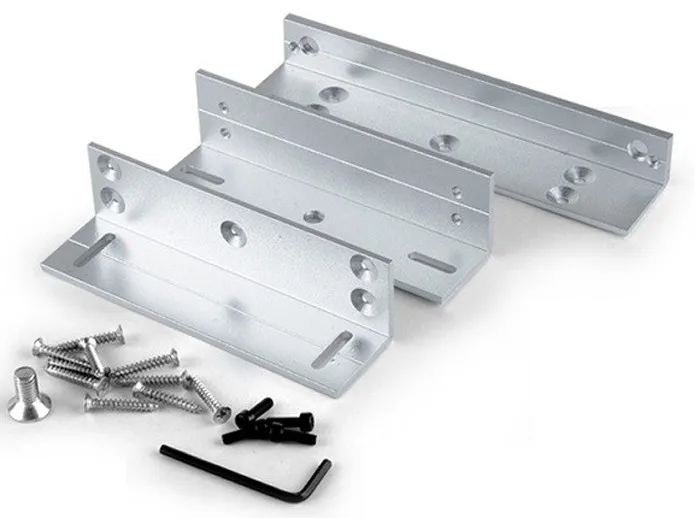

Low Cost 280kg L Shape Bracket For Electro Magnetic Lock


1. It is made of two parts and it is used on the inward door.
2. ACM-180ZL/ACM-280ZL/ACM-350ZL/ACM-500ZL/ACM-750ZL are for your choice.
3. High Strength Aluminum is the main constitute.Special Aluminum, Firm and Durable.Special Design, Suitable with all kinds of Doors.The Best Choice of Access Control.

Product Parameter
Parameter Description
Dimension
L:170x40x29(mm) Z:130x38x38(mm) (180ZL)
L:250x47x28(mm) Z:180x50x50(mm) (280ZL)
L:285x54x31(mm) Z:189x57x50(mm) (350ZL)
L:265x70x45(mm) Z:185x70x61(mm) (500ZL)
L:280x80x51(mm) Z:190x70x61(mm) (750ZL)
Material
High Strength Aluminum, Sandblast Finished
Suitable
Narrow Door
Opening Mode
90 Degree Door
Finished for Shell
Anodized aluminum
Weight
0.4kg/0.75kg/0.82kg/1.3kg/1.6kg
Certification
CE /MA
Material
Special alloy aluminum, flashing silver sand blasting
Suitable For
Inner open wooden door, narrow box door, metal door
Product Advanatge

This is a Z & L for 180KG/280kg magnetic door lock
Special aluminum, firm and durable
Special design, suitable for wooden door and metal door
It is easy to install and convenient to use
It is safe, reliable and efficient

This 180KG 280Kg Z & L Style Magnetic Lock Bracket for Access Control System is required to be paired with magnetic locks for in-swing door applications. Our Lock Bracket are special aluminum, firm and durable. Bracket ensure the magnet remains on the protected side of doors, the best choice of access control. Magnetic locks are excellent for low, medium and high traffic areas, such as offices, convenience stores, building entrances and exits.

Quality Warranty

- Warranty Service will be honored if the damage is not caused by human, ACM Goldbridge provides 2 years warranty for relative products.
- On the contrary, ACM Goldbridge will cahrge extra if repair.
- More information, please browse our service center.

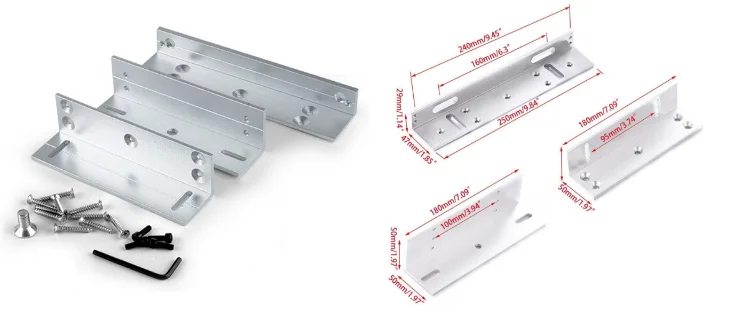

Instalation Diagram
Packing & Delivery

Shipping Way
We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, Forwarder by SEA and By AIR
You also can choose your own shipping forwarder.


Packaging
Magnetic Lock L Bracket packaging: 1unit per box, 30pcs per carton,
Carton size :
54.5*20*30.5cm , Gross Weight :9kg cartons per pallet

Related Products

ACM-Y280N

Backplate magnetic lock (280kgs/600lbs) Suitable For: Wooden Door, Glass Door, Metal Door, Fire| Proof Door

ACM-Y180

Surface mounted (180kg/300lbs) magnetic lock 2Bolts Fail safe.Suitable For: Wooden Door, Glass Door, Metal Door, Fire Proof Door.

ACM-Y280

280kg(600lbs) Single Door magnetic Lock Suitable For: Wooden Door, Glass Door, Metal Door, Fire Proof Door.

ACM-Y350

Single Door Magnetic Lock 350kgs(800lbs) Suitable For: Wooden Door, Glass Door, Metal Door, Fire Proof Door.

ACM-Y500

Single Door Magnetic Lock 500kgs(1000lbs) Suitable For: Wooden Door, Glass Door, Metal Door, Fire Proof Door.

ACM-Y280-W

Single Door Magnetic Lock 280kgs(600lbs) Waterproof.Suitable For: Wooden Door, Glass Door, Metal Door, Fire Proof Door.

ACM-Y100S

Electric Bolt Lock (5PIN) Fail safe electric bolt with magnetic feature

ACM-Y130

Electric strike Lock (NC/NOOptional)
Lock Size : 110x28x31mm

ACM-Y066

Intelligent Smart Lock (motor lock)

Lock size: 130x98x41mmWorking

Click here to order and have your FREE SAMPLE in 3 days!!!

We are professional comprehensive security access control products supplier with 20 years experience, we make sure to offer the best solution of access control system solution! So, send your inquiry details in the below, click "Send" now!
We are looking forward to forming successful business relationships with new clients around the world in the future.

Bracket Need with Door Magnetic Lock

ACM-Y280-L

L Bracket for 280kg/350kg Magnetic Lock

ACM-Y180ZL

ZL Bracket for 180kg/300lbs Magnetic Lock

ACM-Y280-ZL

ZL Bracket for 280Kg/350Kg Magnetic Lock

Our Service

1, Any inquires will be replied within 24 hours
2, Professional manufacturer and supplier, Welcome to visit our website and our factory
3, OEM/ODM Available
4, High quality, fashin desing, reasonable & competitive price, fast lead time
5, After-sale Service :
1), All products will have been strictly quality checked in house before packing
2), All products will be well packed before shipping
3), All our products have 2-3 year warranty if the damage is not caused by human
6, Faster delivery : Around 1~ 5 days for sample order, 7~30 days for bulk order
7, Payment : You can pay for the order via : T/T, Western Union, Paypal, Ali trade assurance
8, Shipping: We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, Forwarder by SEA and By AIR, You also can choose your own shipping forwarder.

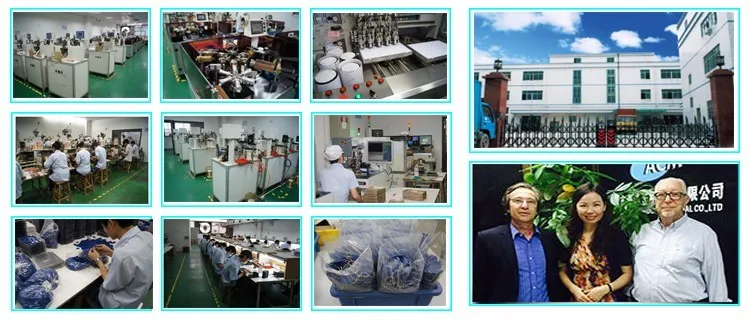

OUR COMPANY :
